Overview

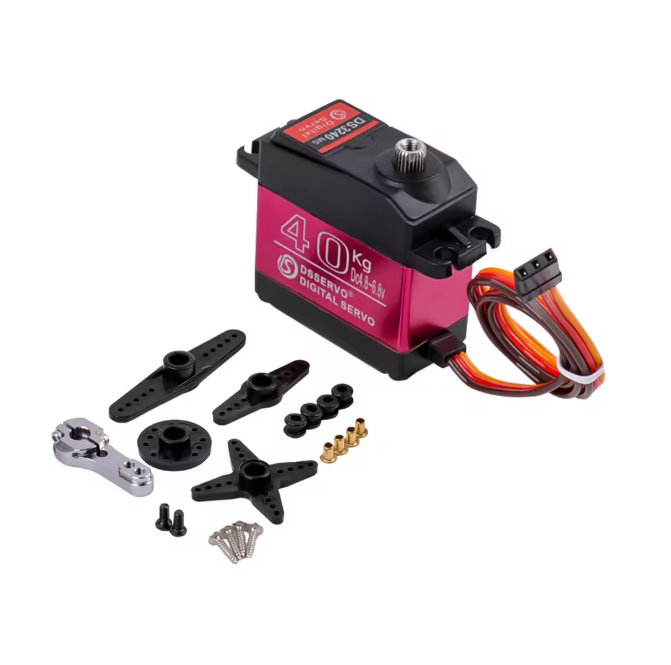

The DS3240 180 Degree Servo Motor is a digital, high-torque servo for robotics control and other motion-control projects. It operates from 4.8 to 6.8 DC volts, provides up to 45 kg/cm torque at 6.8V, and has an IP66 waterproof rating. The servo uses copper and aluminum gears and is specified with a 25T servo arm.
Key Features
- 180 degree digital servo motor
- IP66 waterproof rating
- Copper and aluminum gear type
- 25T servo arm
- 3 us dead band
Specifications
| Model | DS3240 |
| Rotation | 180 degree |
| Operating voltage | 4.8 to 6.8 DC volts |
| Torque | 36 kg/cm at 5V; 45 kg/cm at 6.8V |
| Speed | 0.20 sec/60 degrees at 5V; 0.17 sec/60 degrees at 6.8V |
| Dead band | 3 us |

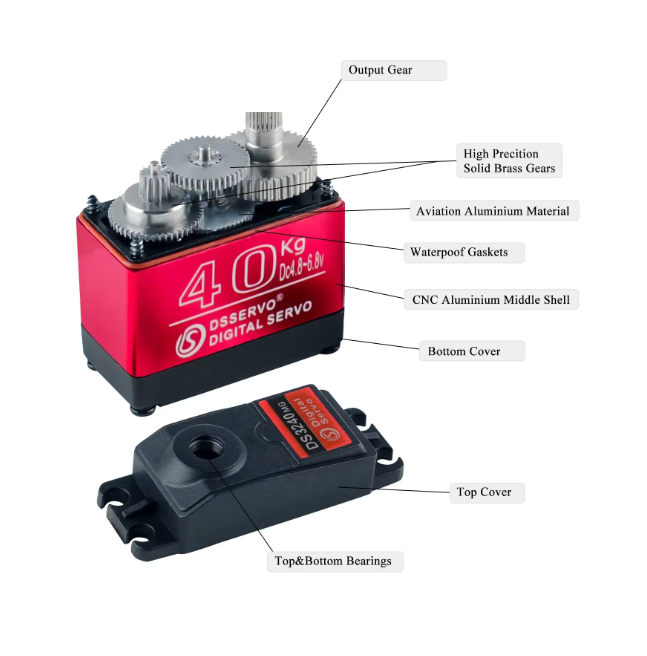

| Gear type | Copper and aluminum |
| Working frequency | 1520 us / 334 Hz |

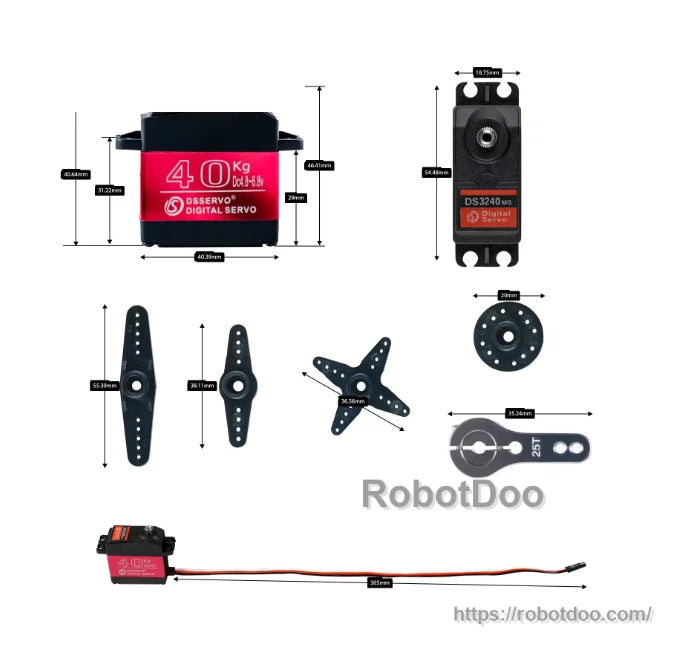

| Dimensions | 40 x 20 x 40.5 mm |
| Waterproof rating | IP66 |
Applications
Suitable for robotics mechanisms and motion-control assemblies that require a 180 degree digital servo. For product support, contact support@robotdoo.com.
