Overview

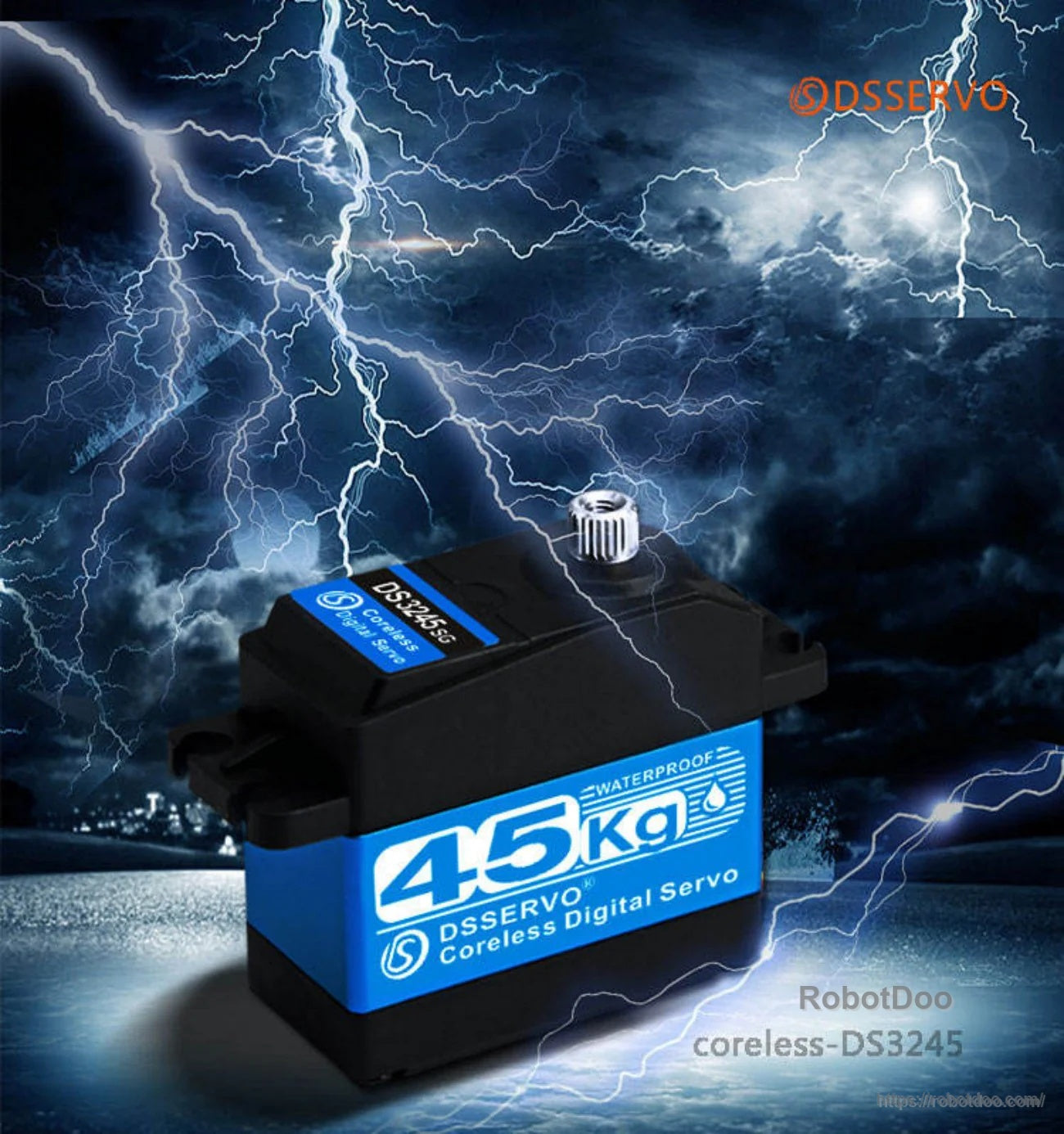

DSSERVO DS3245SG servo motor is a waterproof (IP66) coreless digital servo for robotics and RC actuation. It supports PWM control with a 500–2500 μsec pulse width range and is designed for applications such as RC cars and robots.
Key Features

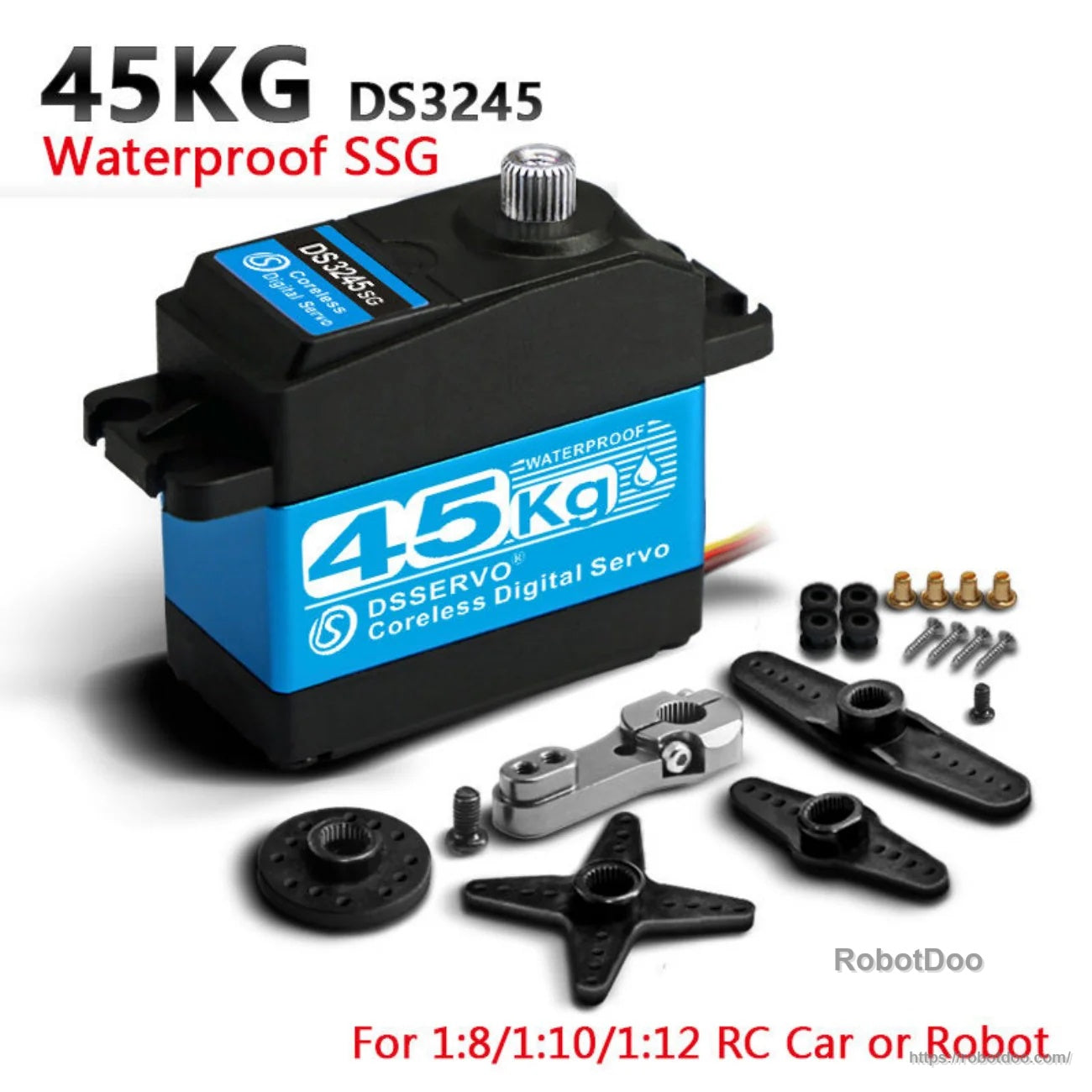

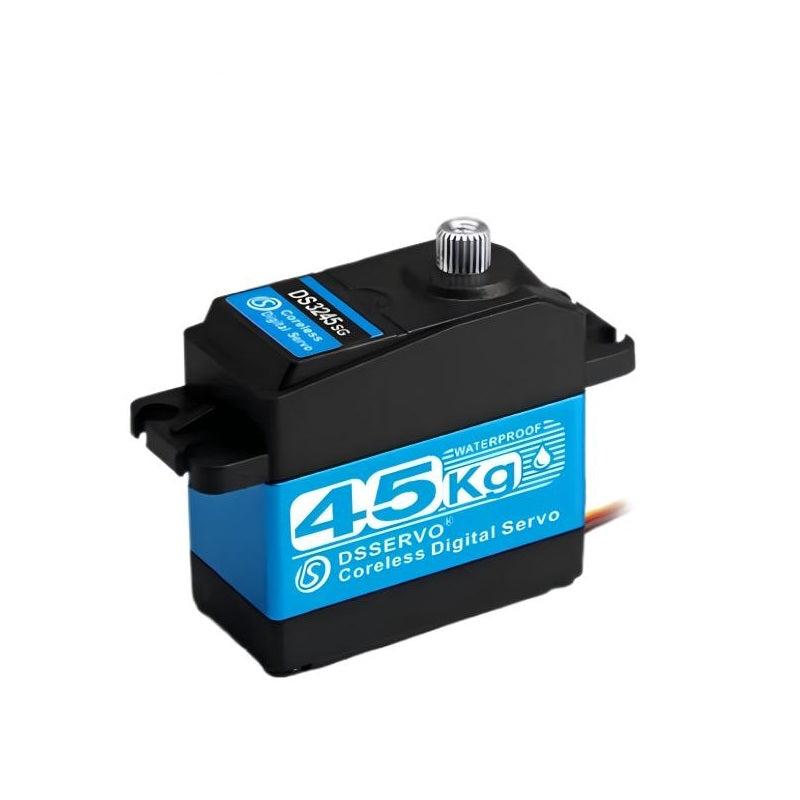

- Coreless digital servo (marked “DS3245SG” on the case)
- Waterproof performance: IP66
- PWM control (pulse width range: 500–2500 μsec; neutral: 1500 μsec)
- Configurable running degree: 180° or 270° (when 500–2500 μsec)
- Double bearing design

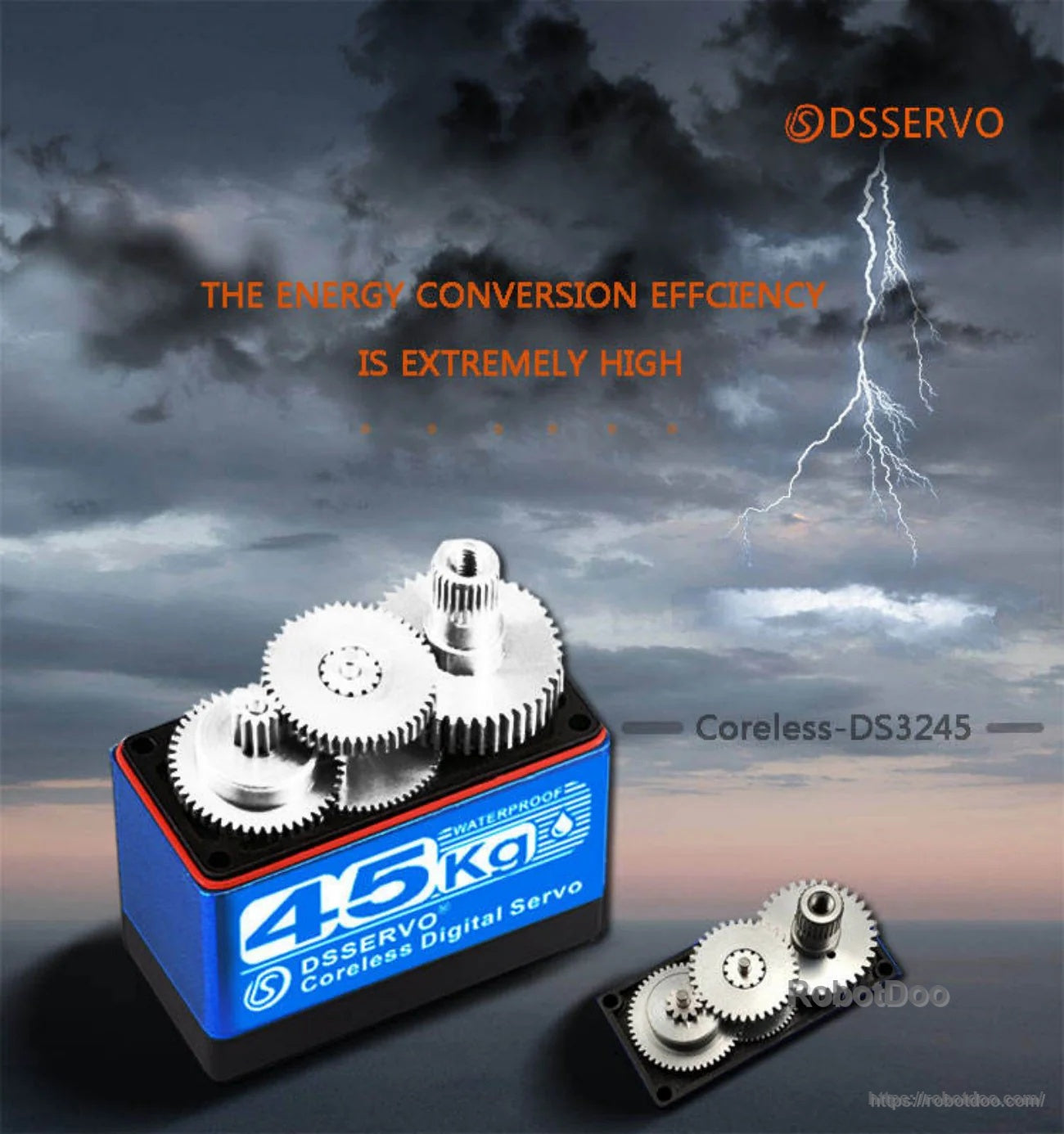

- Gear details called out: high precision stainless steel gear; output gear

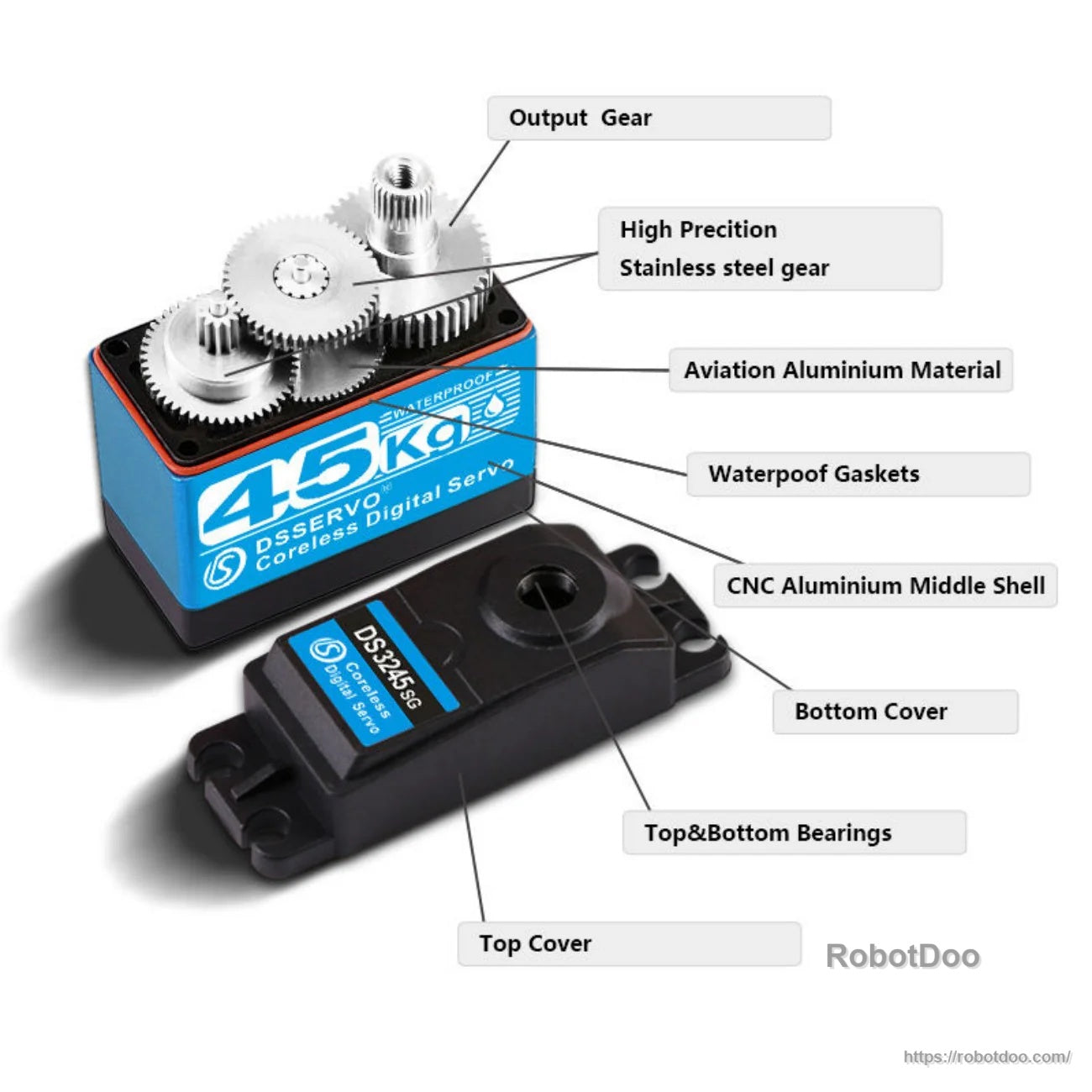

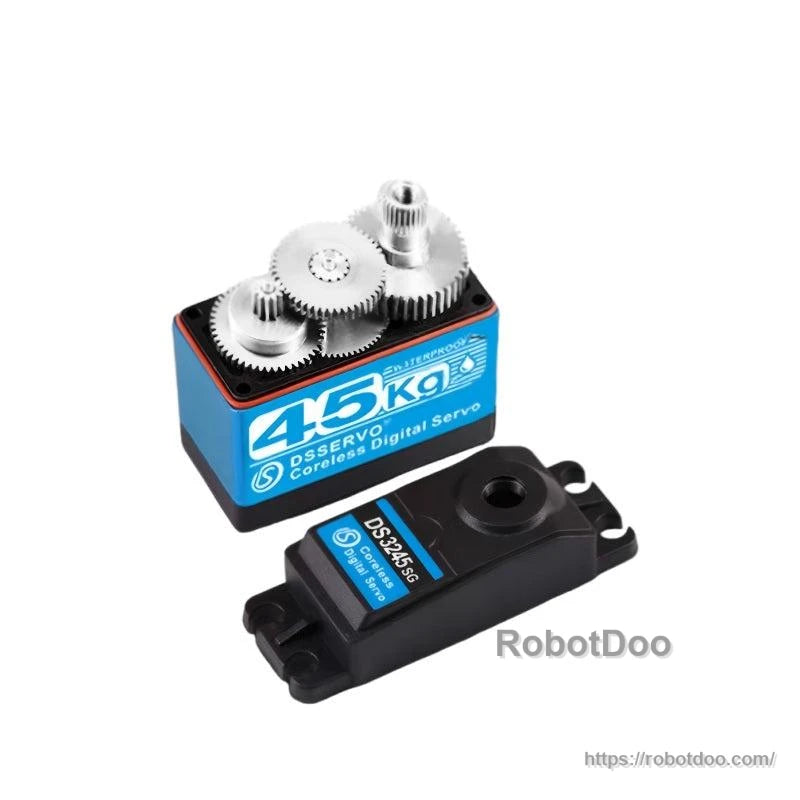

- Housing details called out: aviation aluminium material; CNC aluminium middle shell; waterproof gaskets; top cover; bottom cover; top & bottom bearings
- Connector shown: JR-3pin-2.54mm (wire colors shown: Brown(-)/Red(+)/Orange(S) and Black(-)/Red(+)/White(S))
Specifications
| Operating voltage | 5V / 6V / 7.4V / 8.4V |
| Operating voltage range | 5-8.4V |
| Idle current (at stopped) | 5mA (5V / 6V / 7.4V / 8.4V) |
| Operating speed (at no load) | 0.18 sec/60° (5V); 0.15 sec/60° (6V); 0.13 sec/60° (7.4V); 0.11 sec/60° (8.4V) |
| Stall torque (at locked) | 35 kg·cm (5V); 40 kg·cm (6V); 46 kg·cm (7.4V); 51 kg·cm (8.4V) |
| Stall current (at locked) | 3.5A (5V); 4.2A (6V); 5.2A (7.4V); 5.8A (8.4V) |
| Control system | PWM (Pulse width modification) |
| Pulse width range | 500～2500μsec |
| Neutral position | 1500μsec |
| Dead band width | 2 μsec |
| Operating frequency | 50~330Hz |
| Rotating direction | Counterclockwise (when 500～2500 μ sec) |
| Running degree | 180° or 270° (when 500～2500 μ sec) |
| Size | 40*20*38.5mm |
| Weight | 60g |
| Gear ratio | 342 |
| Bearing | Double bearing |
| Motor | Coreless motor |
| Connector wire | 300±5mm |
| Waterproof performance | IP66 |
| Storage temperature range | -30°C to 80°C |
| Operating temperature range | -15°C to 70°C |

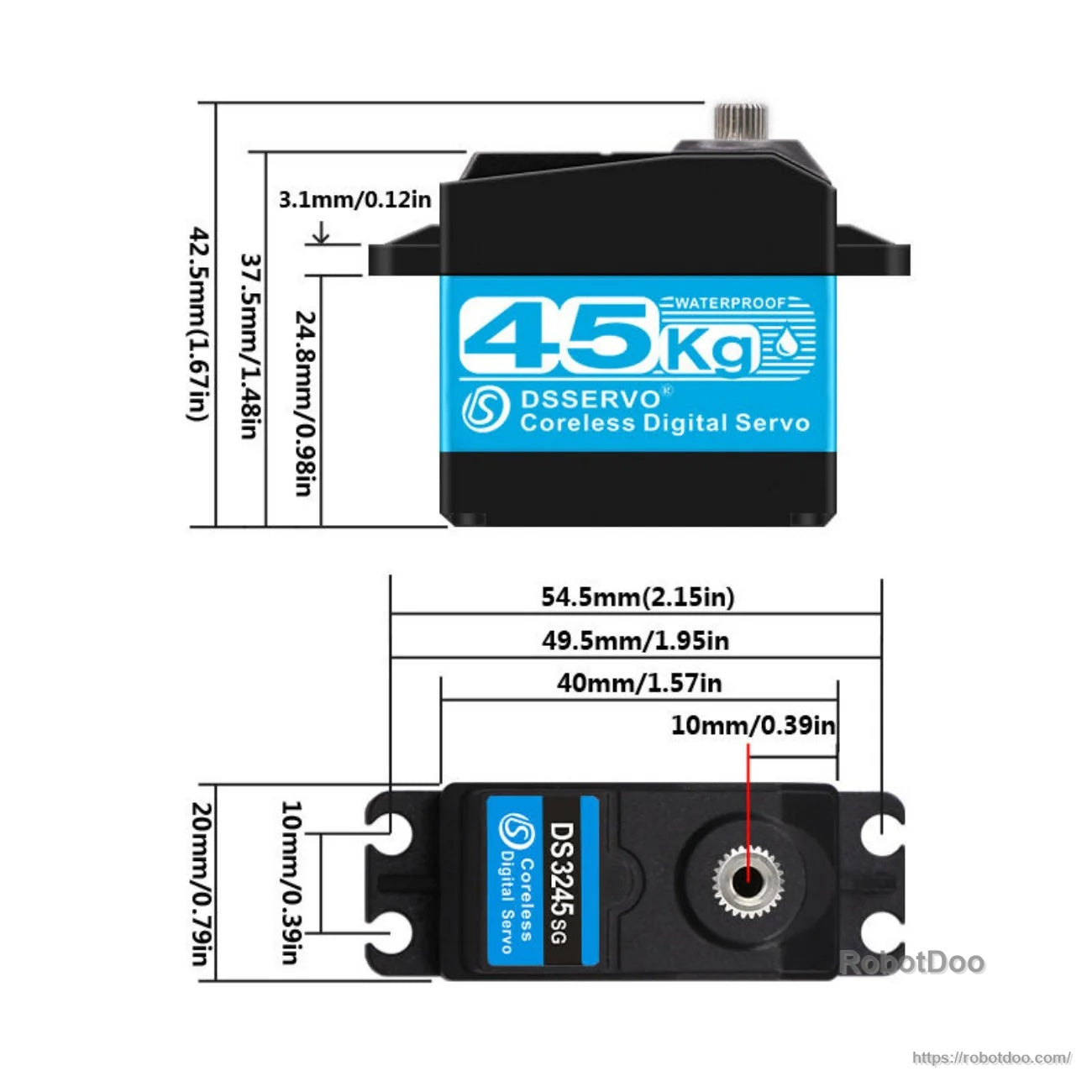

| Drawing dimensions shown | 54.5mm (2.15in); 49.5mm (1.95in); 40mm (1.57in); 42.5mm (1.67in); 37.5mm (1.48in); 24.8mm (0.98in); 20mm (0.79in); 10mm (0.39in); 3.1mm (0.12in) |

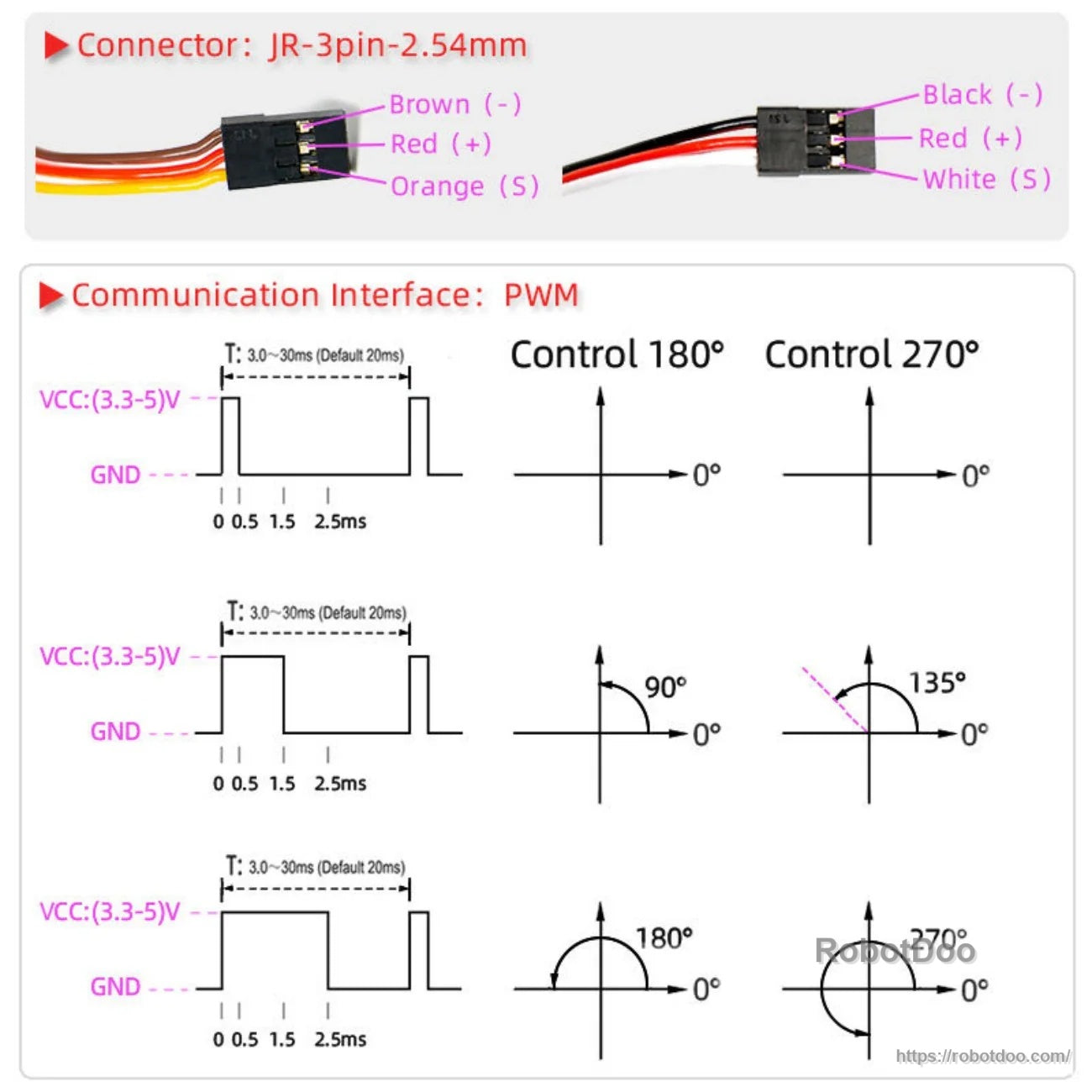

| Signal timing diagram text shown | T: 3.0~30ms (Default 20ms); VCC: (3.3~5)V; pulse marks: 0.5 / 1.5 / 2.5ms |
| Marking on case | “45kg”, “WATERPROOF”, “Coreless Digital Servo” |
What’s Included
- DSSERVO DS3245SG servo motor

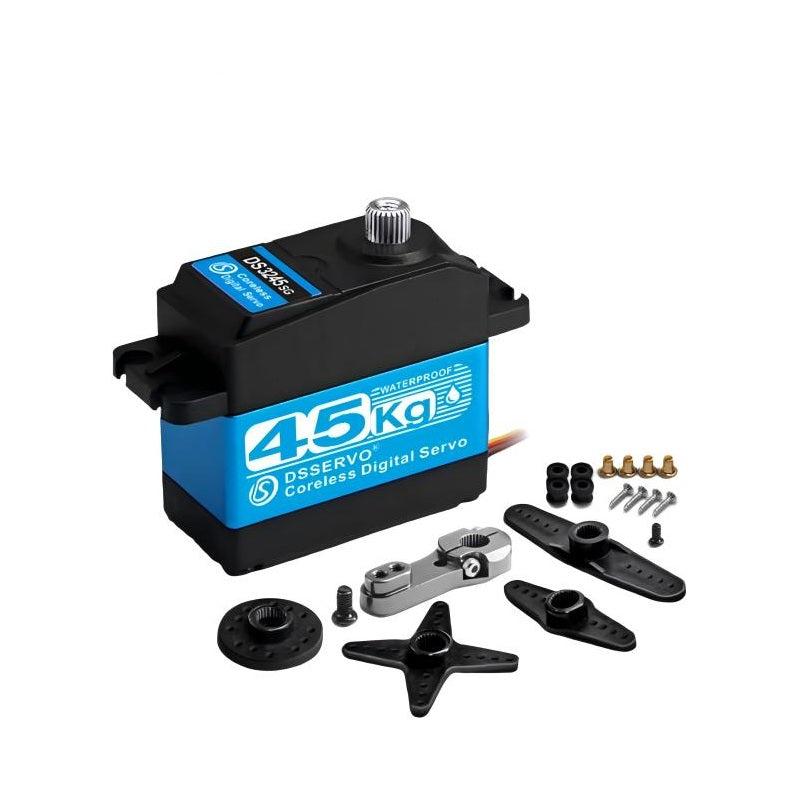

- Servo horns/accessories and mounting hardware (assorted), as shown
Applications
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
- RC car
- UAV
- Robot
Documents
Details
A high-torque DS3245SG coreless digital servo with a waterproof housing, supplied with multiple servo horns and mounting screws.
Coreless motor design pairs with a metal gear train for reliable, responsive actuation in RC and robotics builds.
Stainless steel gearing, CNC aluminium middle shell, and sealing gaskets support durability for demanding environments.
PWM control supports a 500–2500 μsec pulse range with JR 3‑pin wiring options, and can be configured for 180° or 270° travel.
