Overview

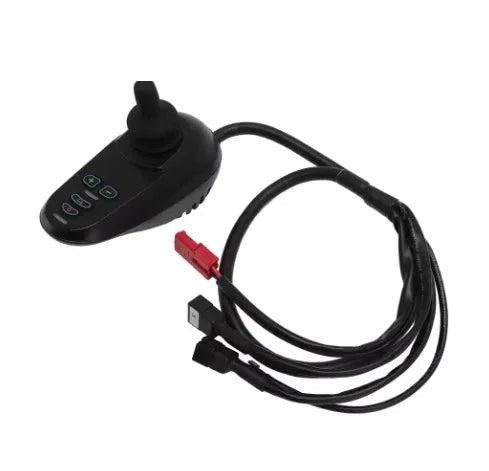

This 24V universal electric wheelchair joystick controller is designed for wheelchair drive systems using a 24V DC brushed motor. It provides joystick control for speed, direction, and stopping, with adjustable travel speed, hill-hold functionality, and a maximum output current of 45A.
Key Features
- EABS hill-hold function stops the wheelchair when the joystick returns to neutral and supports controlled movement on slopes and inclines.
- Adjustable speed control through dedicated speed increase and decrease buttons.
- Smooth acceleration and deceleration for controlled travel without abrupt changes.
- Compatible with 24V DC brushed drive motors.
- ABS construction with an aluminum bottom shell and built-in heat dissipation chamber.
- Integrated controls for power, speed adjustment, joystick operation, and horn or buzzer activation.
Specifications
| Item type | Electric wheelchair controller |
|---|---|
| Operating voltage | 24V |
| Output current | 45A maximum |
| Battery charging current | 6A maximum, via the controller |
| Applicable drive motor | 24V DC brushed motor |
| Standby current | Less than or equal to 50 mA |
| Power-off standby current | 0.1 +/- 0.05 mA |
| Operating temperature | -25 C to +60 C |
| Storage temperature | -45 C to +80 C |
| Housing material | ABS with aluminum bottom shell |
Operation
- Power: Press the power button to start the controller and illuminate the battery indicators. Press and hold the button for more than 0.5 seconds to power off and help prevent accidental shutdown.
- Speed decrease: Press the speed decrease button to lower the maximum travel speed by one level.
- Speed increase: Press the speed increase button to raise the maximum travel speed by one level.
- Joystick: Move the joystick in the desired direction to control wheelchair speed and direction. Returning the joystick to neutral stops the wheelchair.
- Horn: Press the horn button to activate the connected horn or buzzer.
For installation or application questions, contact customer service at robotdoo.com.
What's Included
- 1 x Electric wheelchair controller
- 4 x Cable ties
- 2 x Screws
- 1 x User manual
