Product Overview

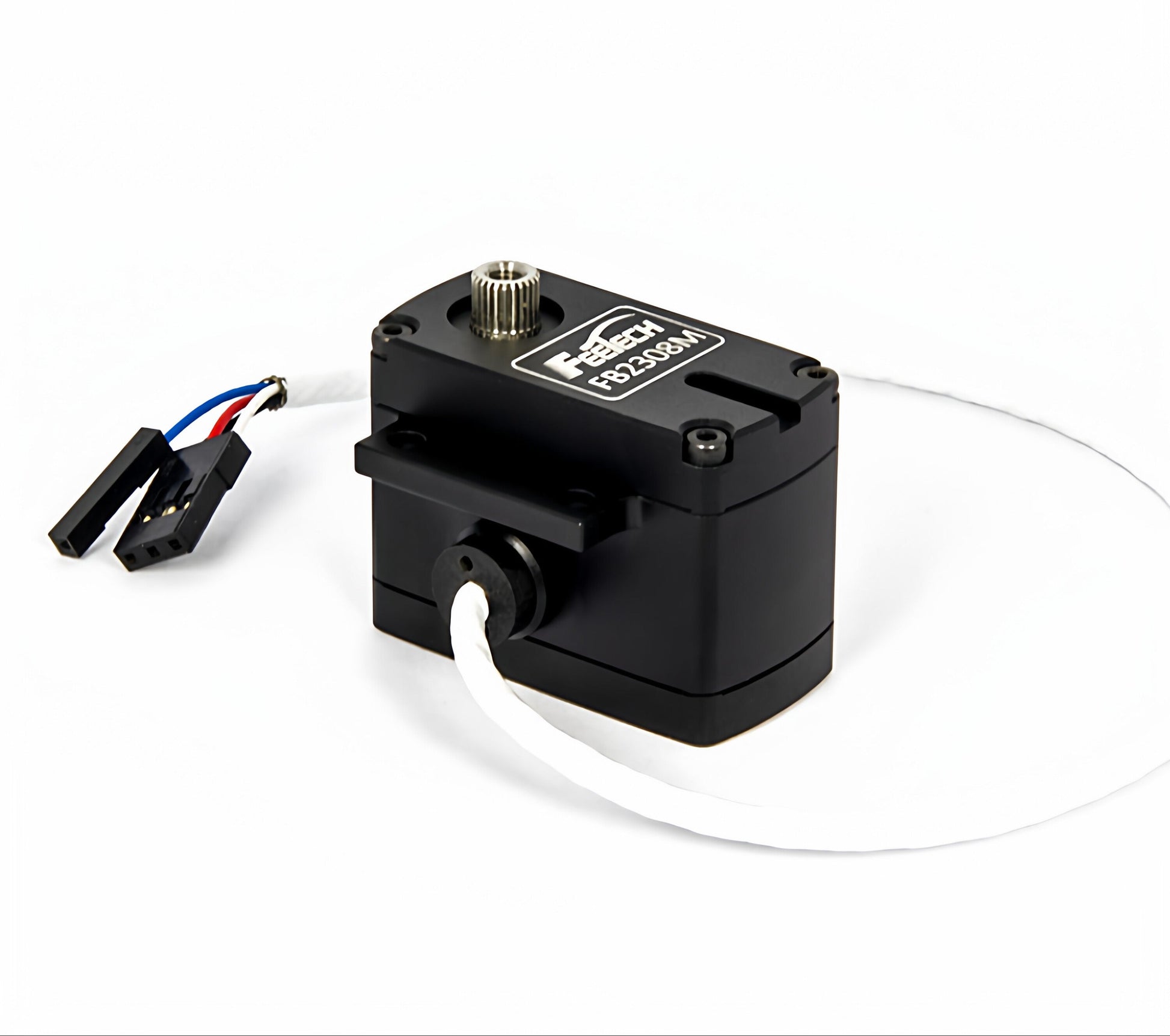

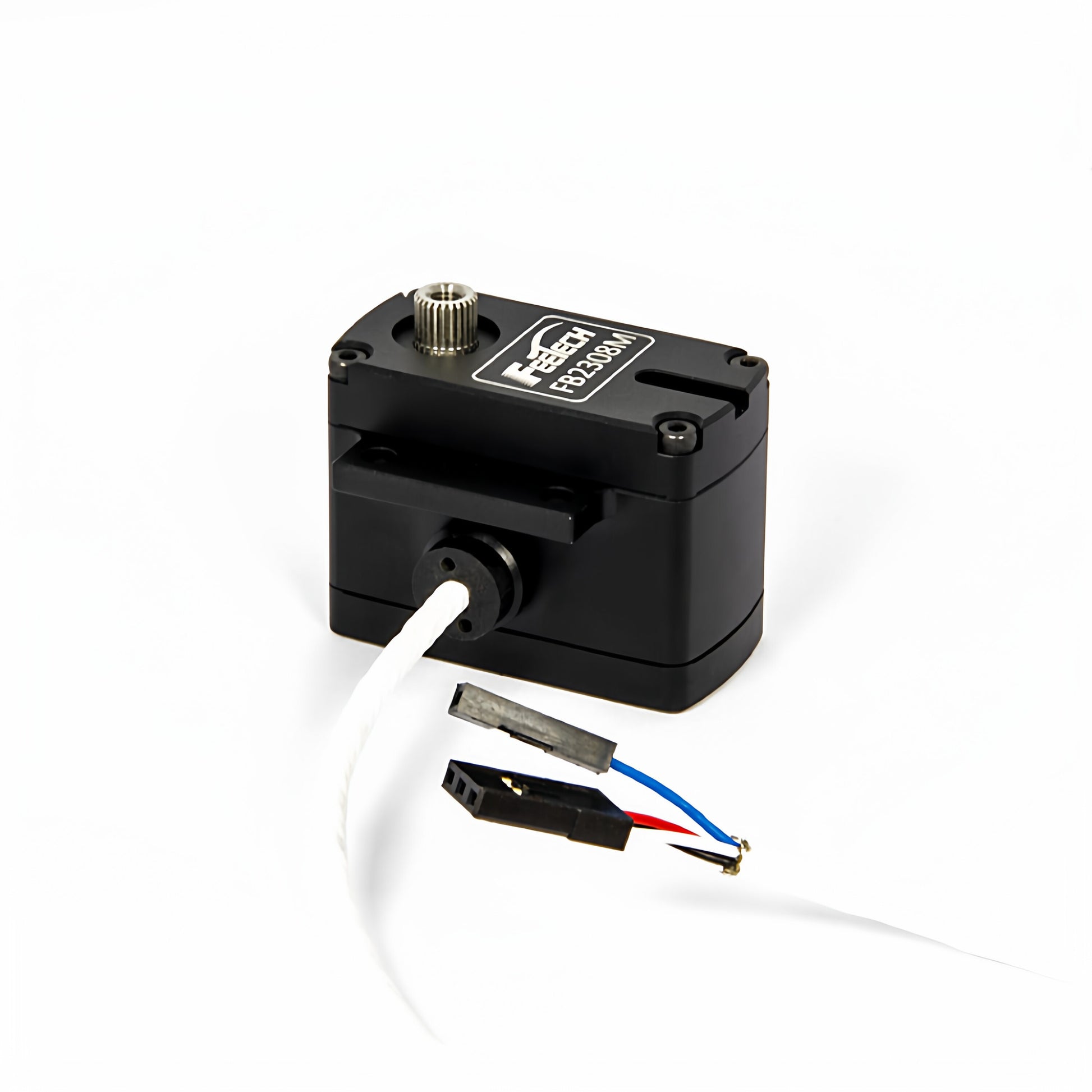

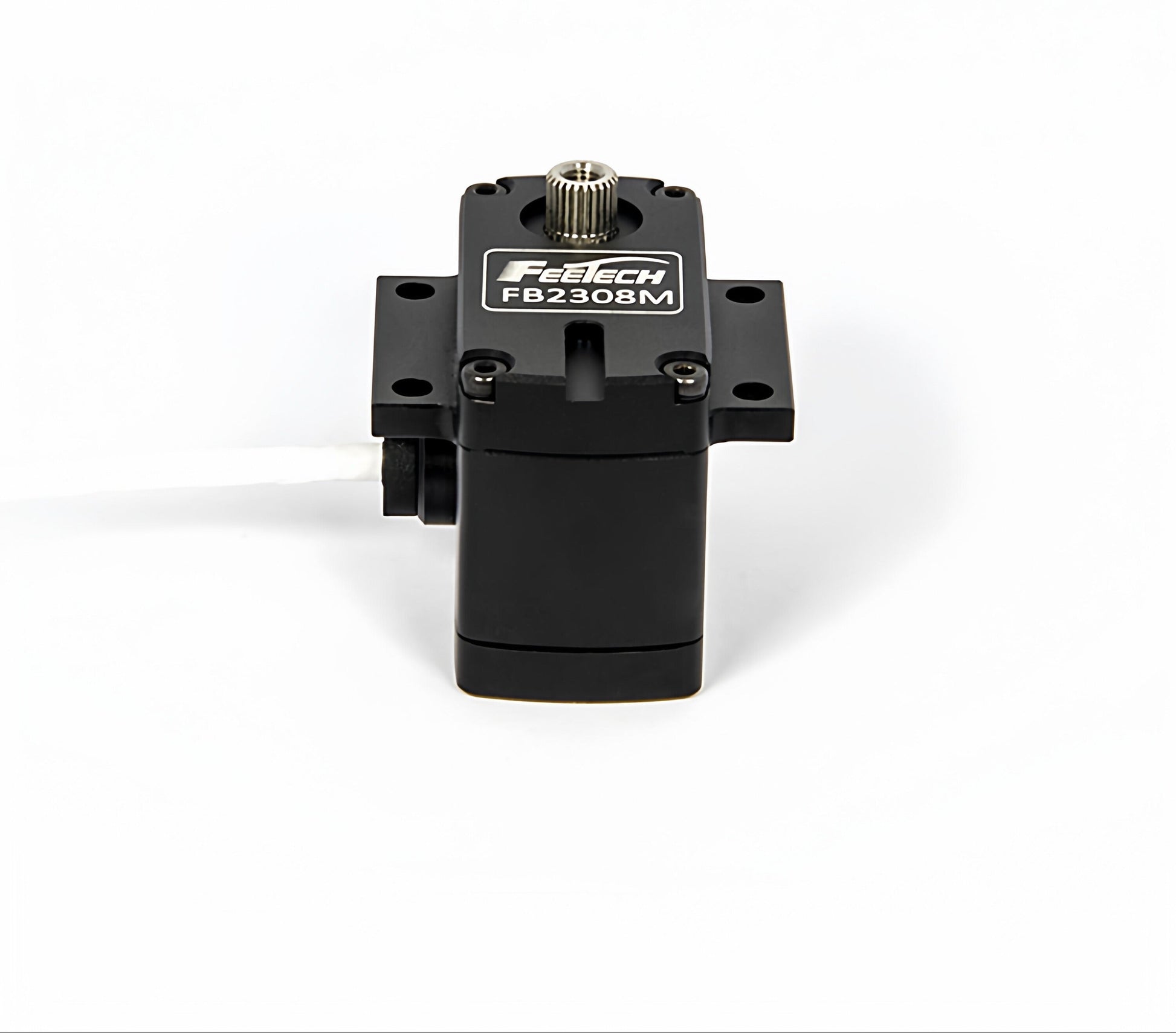

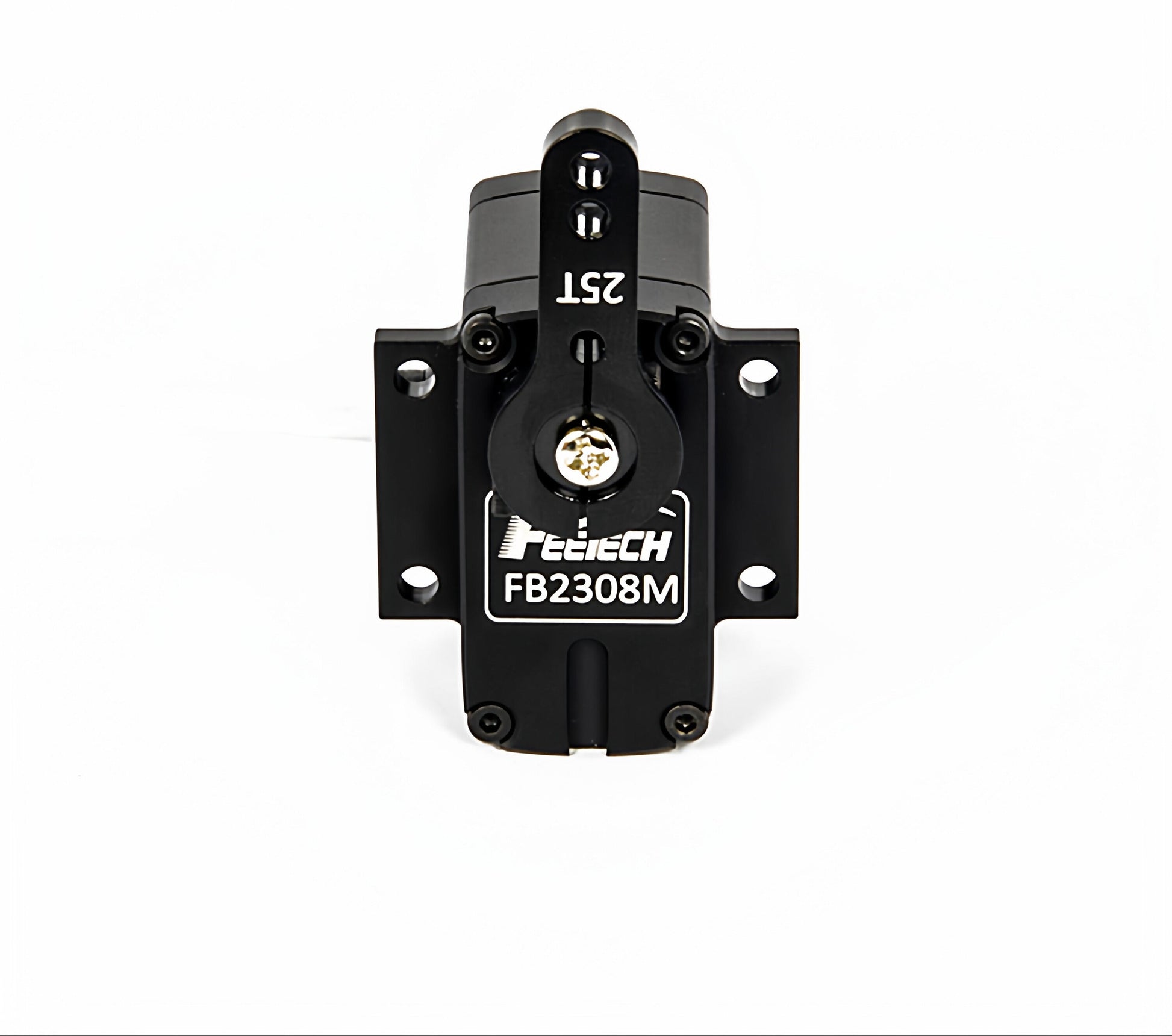

The FEETECH FB2308M is a high-precision industrial-grade brushless digital servo designed for robotics, automation equipment, AGV systems, smart machinery, and harsh operating environments. Featuring a 12-bit magnetic encoder, steel gear transmission, brushless motor architecture, and IP67 waterproof protection, this servo delivers stable 360° controllable rotation with high durability and positioning accuracy.
Its compact aluminum alloy housing and steel gear train provide excellent mechanical strength and long operational life, making it suitable for continuous-duty industrial and robotic applications.
Key Features
- 12-bit magnetic encoder for precise position feedback
- Brushless motor design for longer lifespan and higher efficiency
- Full metal housing with steel gears
- IP67 waterproof and dustproof protection
- 360° controllable rotation
- High precision digital control
- Low gear backlash ≤0.5°
- Industrial-grade durability
- PWM control compatible
- Suitable for robotics, AGV, automation equipment, and smart devices
Technical Specifications
| Item | Specification |
|---|---|
| Model | FB2308M |
| Motor Type | Brushless Motor |
| Rotation Angle | 360° |
| Encoder | 12-bit Magnetic Encoder |
| Gear Material | Steel Gear |
| Housing Material | Metal Case |
| Waterproof Rating | IP67 |
| Operating Voltage | 7.2V–12V |
| Weight | 59.5±1g |

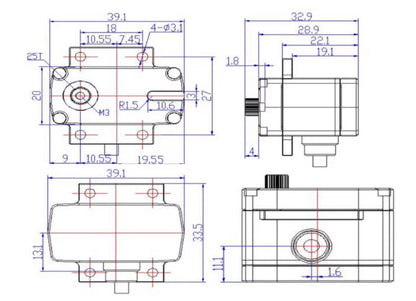

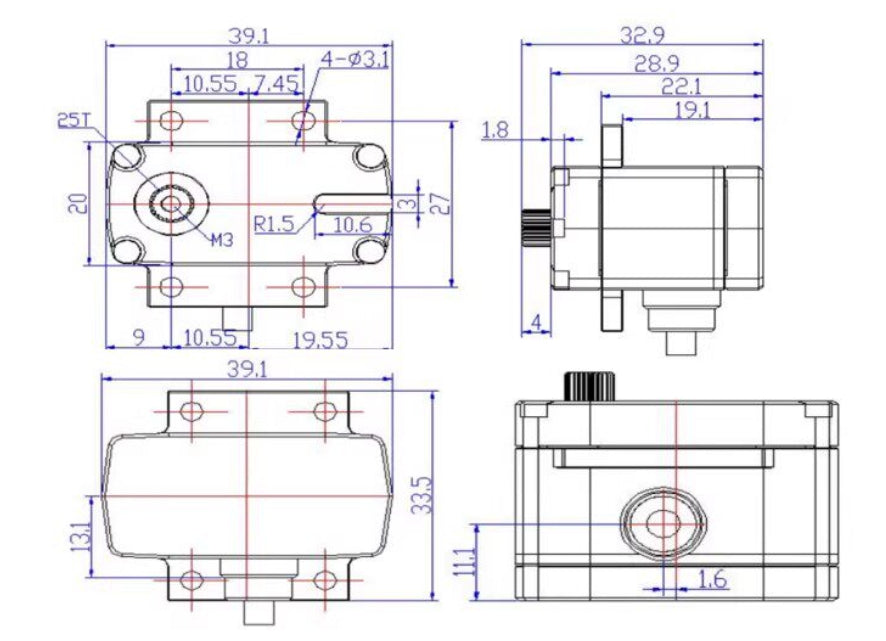

| Size | 39.1 × 33.5 × 28.9 mm |
| No-load Speed | 0.133sec/60° (75RPM) @12V |
| Stall Torque | 7kg.cm @12V |
| Rated Torque | 2.3kg.cm @12V |
| No-load Current | 135mA @12V |
| Rated Current | 360mA @12V |
| Stall Current | 1.1A @12V |
| Dead Band | ≤0.5° |
| PWM Range | 500–2500μsec |
| Feedback Voltage | 0.1V/2500μsec – 4.9V/500μsec |
| Electronic Protection | Stall protection after 3 seconds |
| Cable Length | 23cm |
Applications
- Robotic arms
- AGV robots
- Industrial automation systems
- Smart actuators
- Waterproof robotic projects
- Embedded control systems
- Mechanical equipment
- Educational robotics
- Motion control platforms
Package Includes
- 1 × FEETECH FB2308M Servo Motor

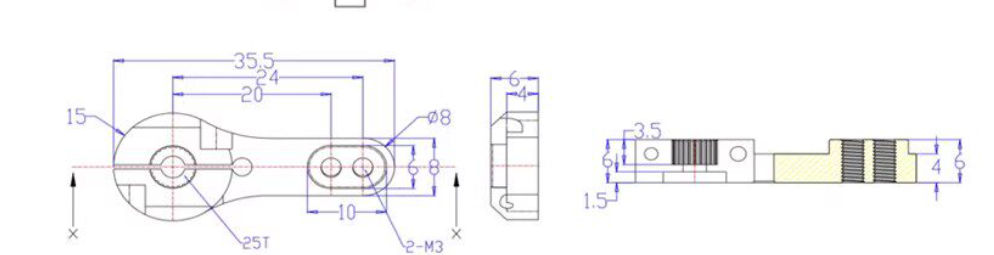

- Servo Accessories Kit
- Connection Cable
