Product Description

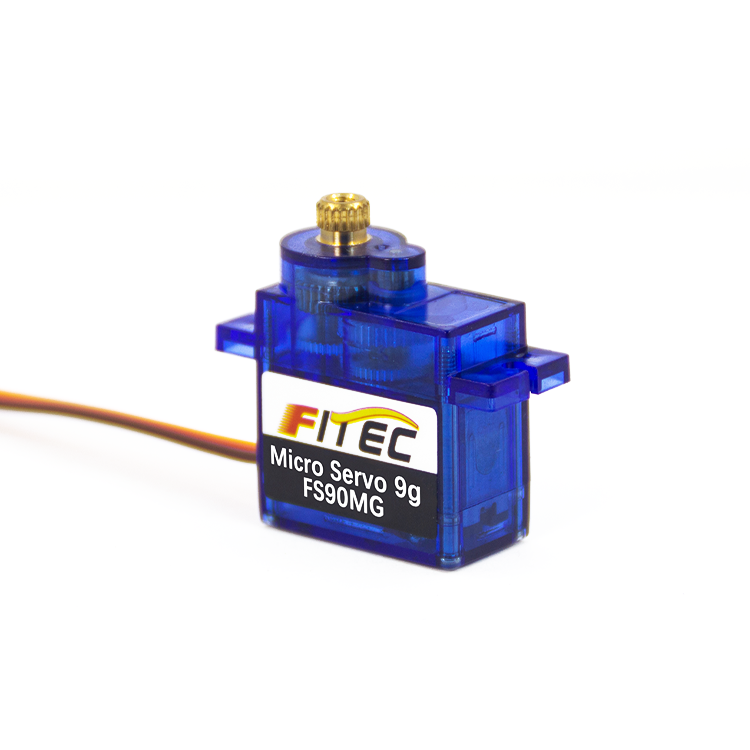

The FEETECH FS90MG is a lightweight 9g digital micro servo featuring durable metal gears, precise control, and 180° rotation. Designed for RC helicopters, fixed-wing aircraft, robotics, DIY projects, and Arduino applications, it delivers reliable torque and fast response in a compact form factor.
Key Features
- Metal Gear Transmission for improved durability and wear resistance
- Compact 9g Micro Servo design
- 180° Rotation Angle
- Digital Comparator Control System
- Suitable for RC Helicopters, Airplanes, Robots, Smart Cars, and DIY Electronics
- Fast Response and Stable Performance
- Lightweight Transparent Blue Housing
- Compatible with Arduino, STM32, Raspberry Pi PWM control
Specifications
| Item | Specification |
|---|---|
| Model | FS90MG |
| Brand | FEETECH |
| Servo Type | Digital Micro Servo |
| Operating Voltage | 3.3V–6V |
| Speed @ 4.8V | 0.087 sec/60° |
| Speed @ 6V | 0.07 sec/60° |
| Stall Torque @ 4.8V | 1.8 kg·cm |
| Stall Torque @ 6V | 2.2 kg·cm |
| Rated Torque @ 4.8V | 0.6 kg·cm |
| Rated Torque @ 6V | 0.75 kg·cm |
| No-load Current @ 4.8V | 190mA |
| No-load Current @ 6V | 220mA |
| Stall Current @ 4.8V | 600mA |
| Stall Current @ 6V | 800mA |
| Gear Material | Metal Gear |
| Motor Type | Core Motor |
| Control Signal | PWM |
| Dead Band Width | ≤8μs |
| Rotation Angle | 180° (500–2500μsec) |
| Connector Wire Length | JR/PVC/25cm |
| Weight | 12.7 ± 1g |
| Output Shaft | 20T / 4.7mm |
Applications
- RC Helicopters
- RC Airplanes
- Remote Control Cars
- Robot Arms
- Arduino Robotics Projects
- Smart Car Steering Systems
- Educational STEM Projects
- DIY Electronic Devices

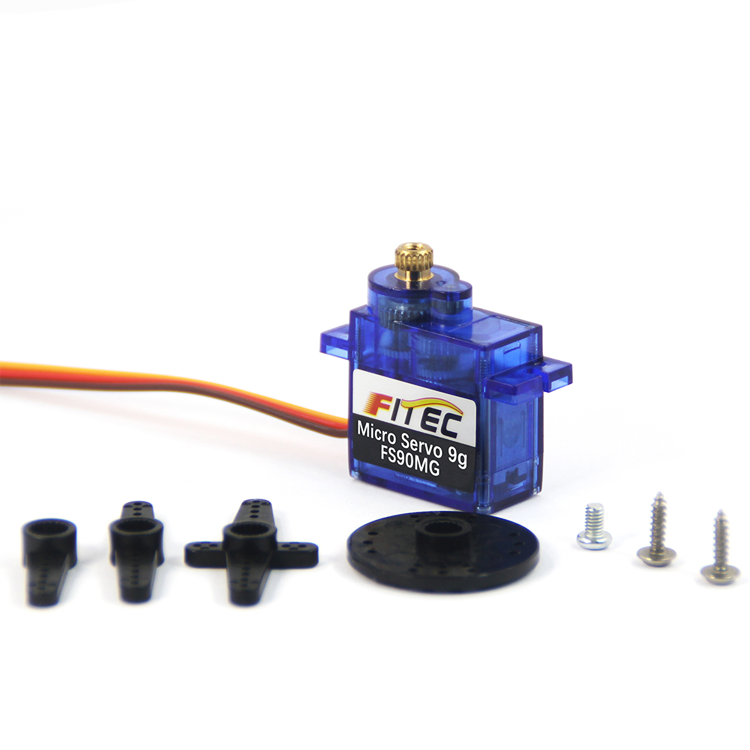

Packing List
- 1 × FEETECH FS90MG Micro Servo
- 1 × Servo Horn Set
- 1 × Mounting Screw Kit
