Product Overview

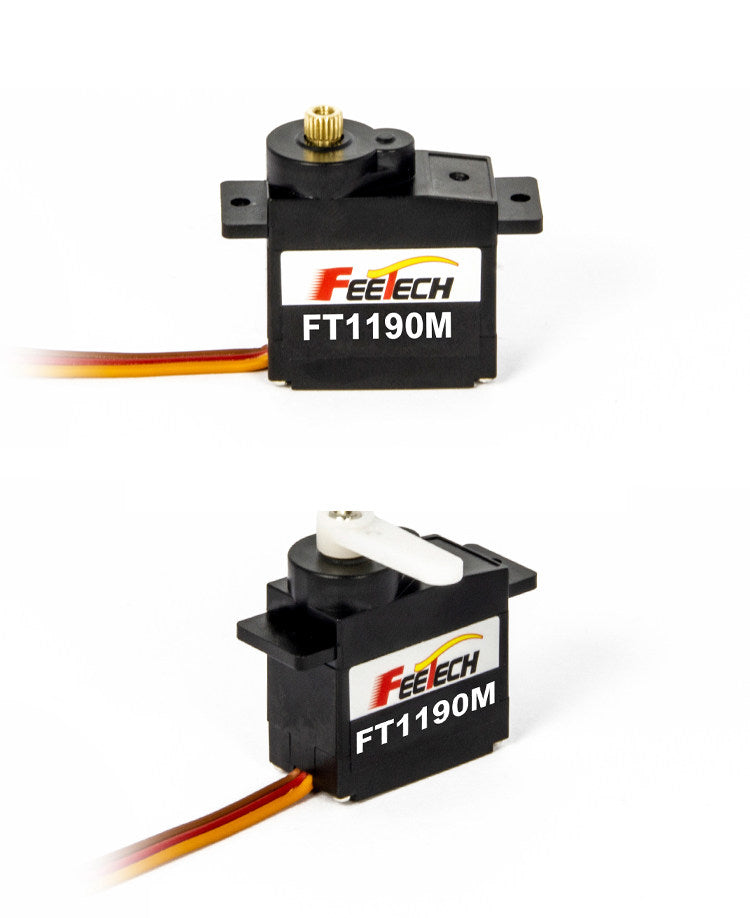

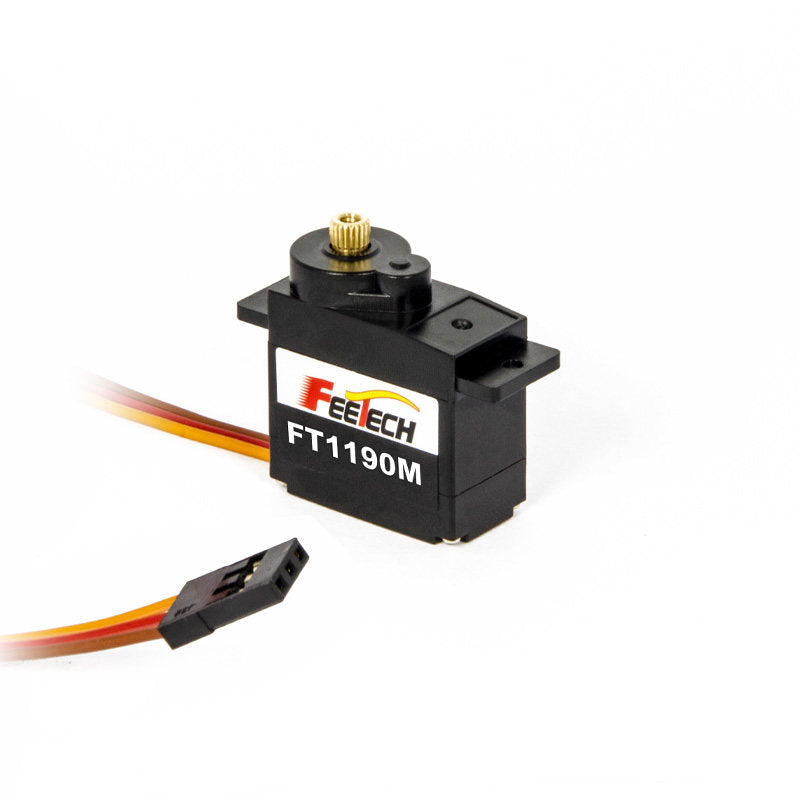

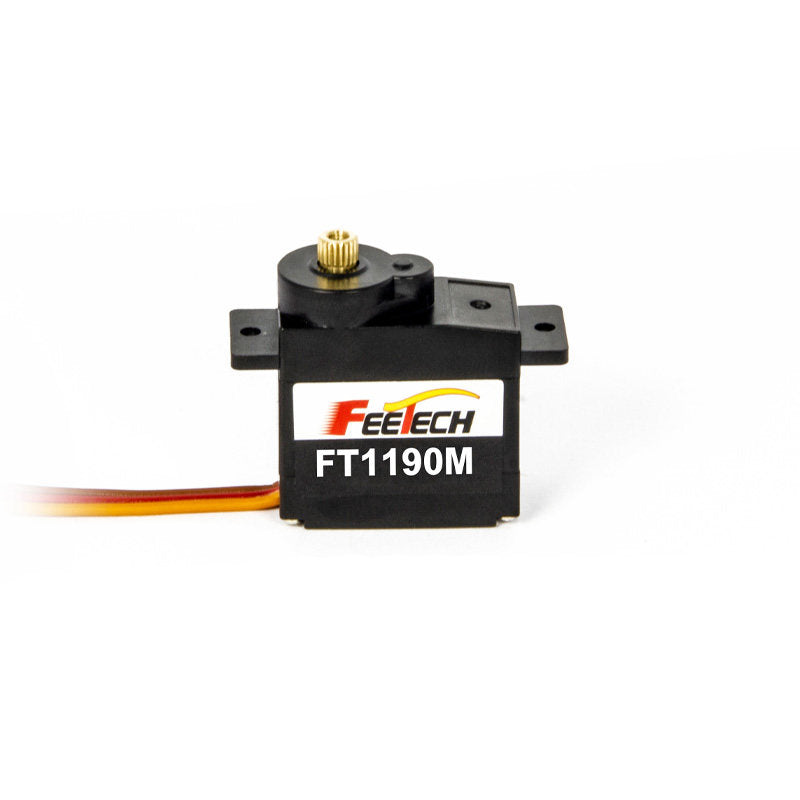

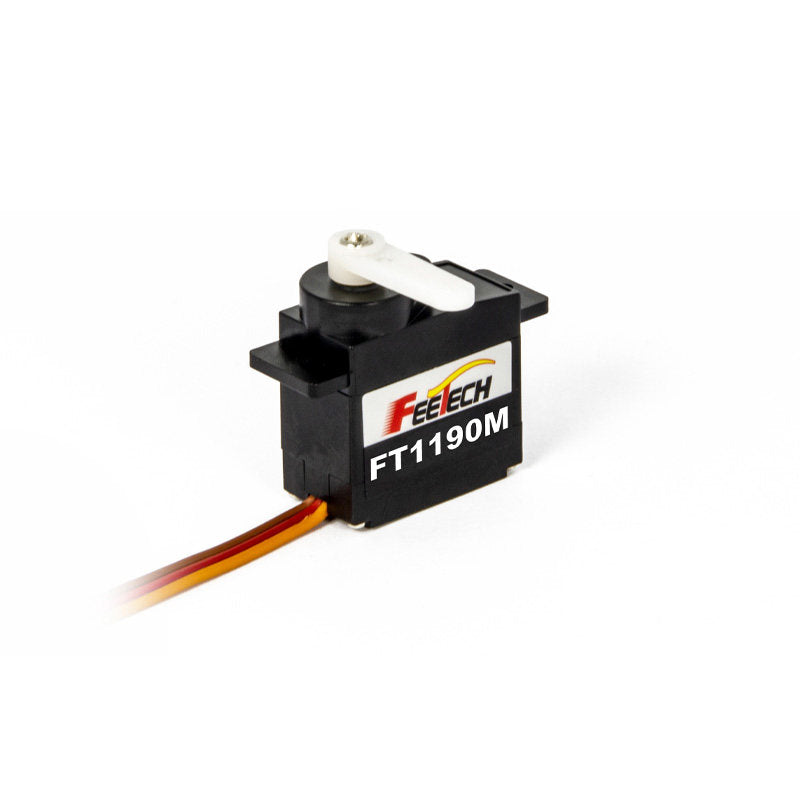

The FEETECH FT1190M is a high-performance 9g digital servo designed for RC aircraft, robotics, STEM projects, and intelligent motion control applications. Featuring a coreless motor, metal gear transmission, and durable PC housing, the FT1190M delivers fast response, stable torque output, and extended service life compared to conventional iron-core servos.
With up to 3.5KG.cm stall torque and 200° rotation support, this servo is suitable for lightweight robotic joints, model aircraft control surfaces, DIY robotic mechanisms, and embedded automation systems.
Key Features
- Coreless motor for faster response and smoother operation
- High-strength metal gears for improved durability
- Digital control with high positioning precision
- Long service life design for continuous operation
- 200° wide-angle rotation support
- Compact 9g lightweight structure
- Compatible with Futaba/JR standard interfaces
- High-strength PC housing with impact resistance
Applications
- RC airplanes and helicopters
- DIY robotics projects
- Humanoid robot joints
- Smart toys and educational kits
- Lightweight robotic arms
- Motion control systems
- Embedded automation projects
- STEM and maker applications
Technical Specifications
| Item | Specification |
|---|---|
| Model | FT1190M |
| Type | Digital Servo |
| Motor Type | Coreless Motor |
| Gear Material | Metal Gear |
| Operating Voltage | 4.8V–6V |
| Stall Torque | 3.5KG.cm |
| Rotation Angle | 200° |
| Servo Weight | 9g Class |
| Housing Material | High-strength PC |
| Control Interface | PWM |
| Connector Type | JR / Futaba Compatible |

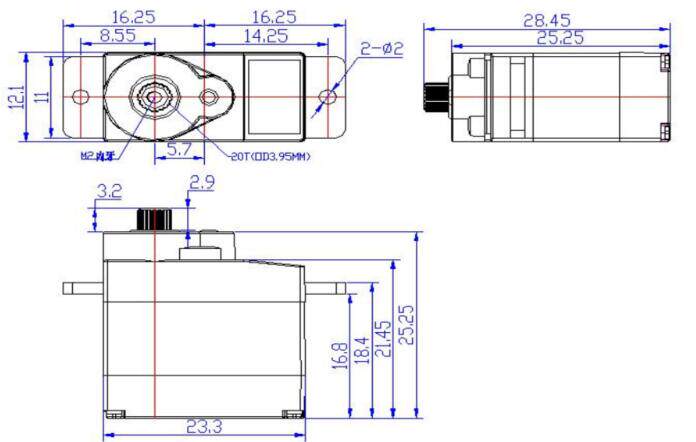

| Output Spline | 20T (Approx. Ø3.95mm) |
Product Advantages
Coreless Motor Technology
The FT1190M adopts a high-efficiency coreless motor structure, providing quicker acceleration, reduced inertia, and smoother movement performance.
Durable Metal Gear Transmission
Precision metal gears improve wear resistance and significantly extend operational lifespan under repeated load conditions.
Long-Life Reliability
Designed for extended continuous operation, suitable for demanding maker and robotics environments.
Compact Lightweight Design
9g-class compact dimensions make integration easier for miniature robots, RC models, and space-constrained mechanisms.

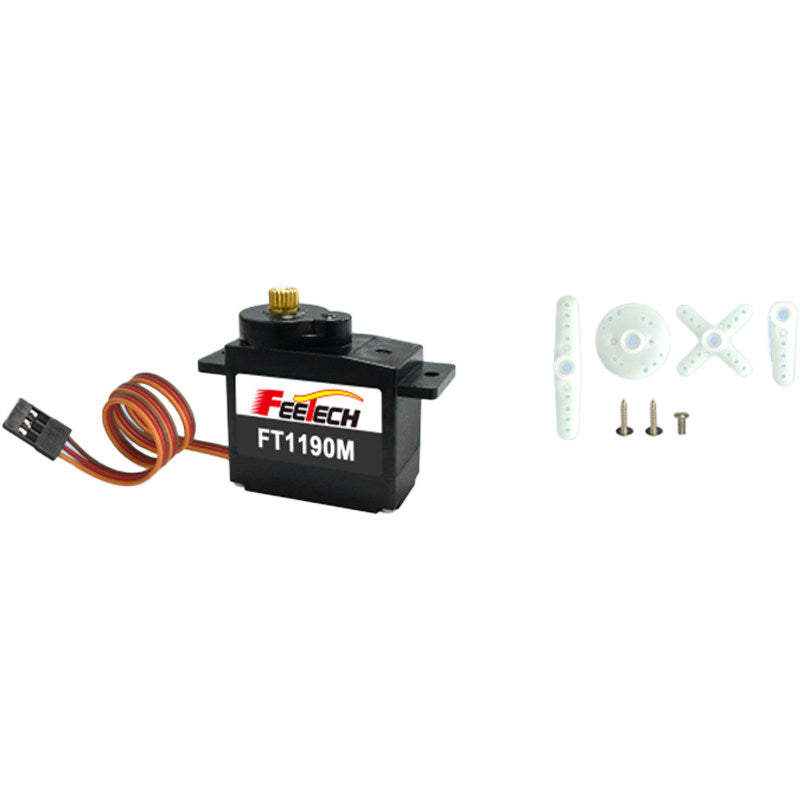

Package Includes
- 1 × FEETECH FT1190M Digital Servo
- 1 × Servo Horn Set
- 1 × Mounting Hardware Kit
