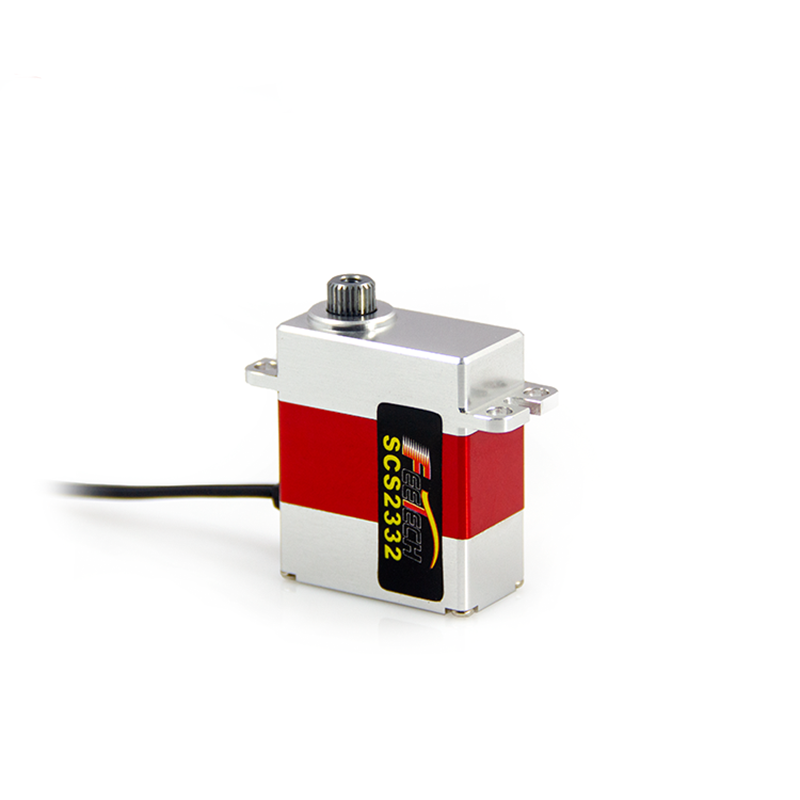

Product Overview
The FEETECH SCS2332 is a compact TTL serial bus smart servo designed for robot finger joints, miniature robotic systems, humanoid robots, and lightweight automation applications. Featuring a full metal housing, metal gear transmission, and coreless motor design, this micro smart servo delivers fast response, smooth motion control, and reliable long-term operation.
With support for TTL serial communication, multi-servo networking, and programmable angle control, the SCS2332 is ideal for compact robotic joints and embedded motion control projects.
Key Features
Compact Micro Servo Design
Ultra-compact structure measuring only 23.2 × 12.1 × 28.5mm for miniature robotic applications.
4.5KG High Torque Output
Provides up to 4.5kg.cm stall torque at 6V while maintaining lightweight construction.
Full Metal Housing
CNC aluminum alloy housing improves:
- Structural rigidity
- Heat dissipation
- Durability
- Wear resistance
Metal Gear Transmission
High-precision metal gears provide smoother operation and longer service life.
Coreless Motor Technology
Coreless motor design offers:
- Faster response speed
- Higher efficiency
- Lower inertia
- Reduced vibration
TTL Serial Bus Communication
Supports TTL serial bus networking for synchronized multi-servo control.
Programmable Rotation Angle
Supports:
- 0–300° angle control
- Wheel mode
- Multi-servo coordinated control
Real-Time Feedback Functions
Supports feedback for:
- Position
- Speed
- Voltage
- Temperature
- Load
Applications
- Robot finger joints
- Humanoid robots
- Bionic robotic hands
- Educational robotics
- Embedded robotics
- Intelligent motion control
- Small robotic arms
- RC robotic mechanisms
- Automation prototypes
- Research projects
- Related Collections→
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SCS2332 |
| Servo Type | TTL Bus Smart Servo |
| Operating Voltage | 4.8V–7.4V |
| Weight | 20g |
| Dimensions | 23.2 × 12.1 × 28.5mm |
| Communication Protocol | Half-Duplex Asynchronous Serial Communication |
| Communication Level | TTL |
| Baud Rate | 38400–1000000bps |
| Position Resolution | 300° / 1024 |
| Rotation Angle | 300° Programmable |
| Output Shaft | 25T |
| No-load Current | 150mA @6V |
| Static Current | 6mA @6V |
| Stall Current | 1200mA @6V |
| Stall Torque | 4.5kg.cm @6V |
| Rated Torque | 1.5kg.cm @6V |
| No-load Speed | 0.09sec/60° (111RPM @6V) |
| Operating Temperature | -15°C to 70°C |
| Motor Type | Coreless Motor |
| Gear Material | Metal Gear |
Interface Definition
| Pin | Function |
|---|---|
| S | Signal |
| V | Vin |
| G | GND |

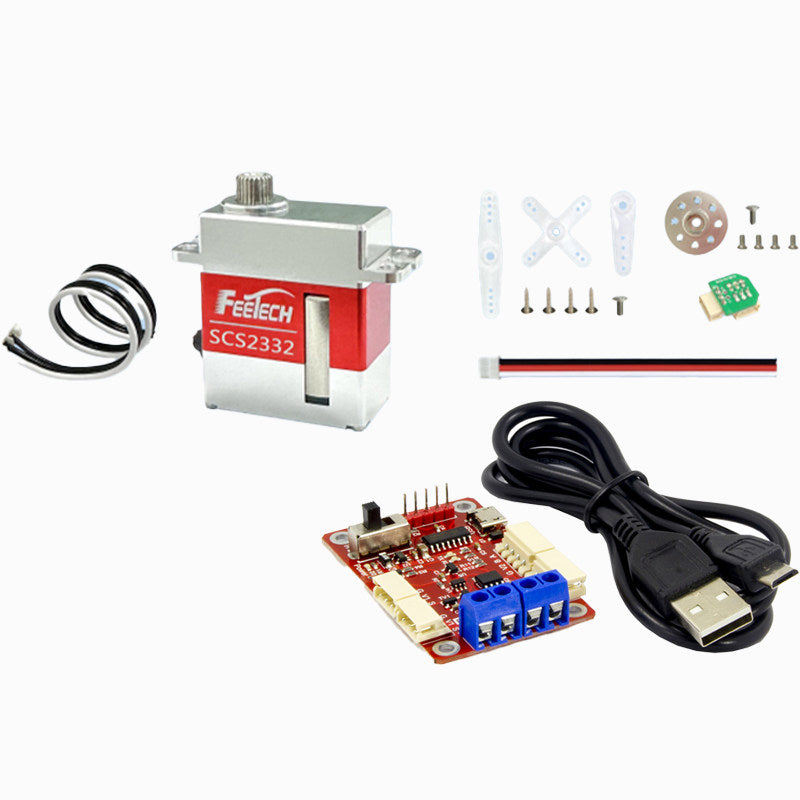

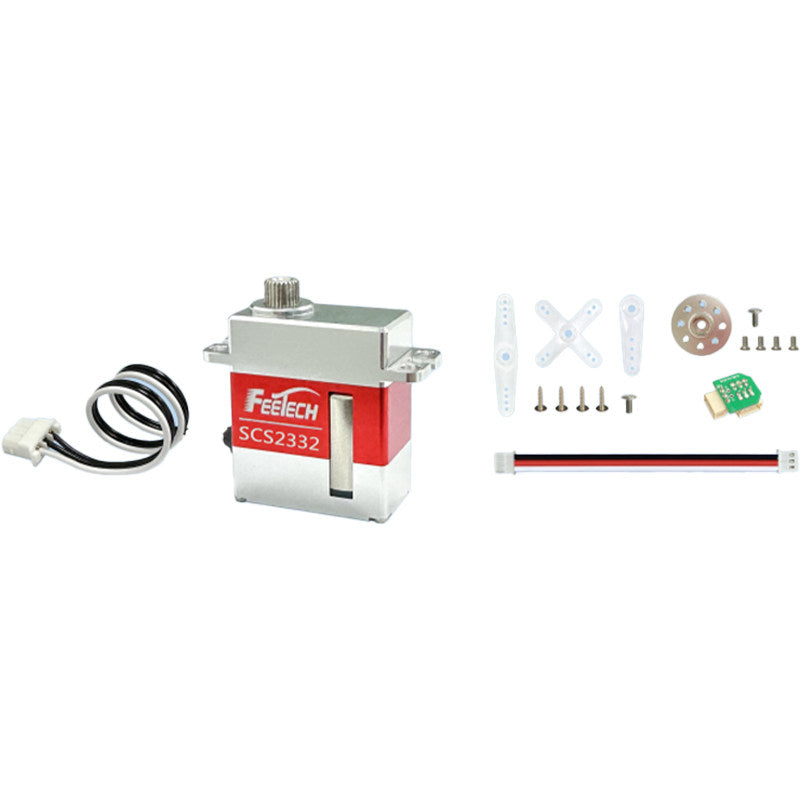

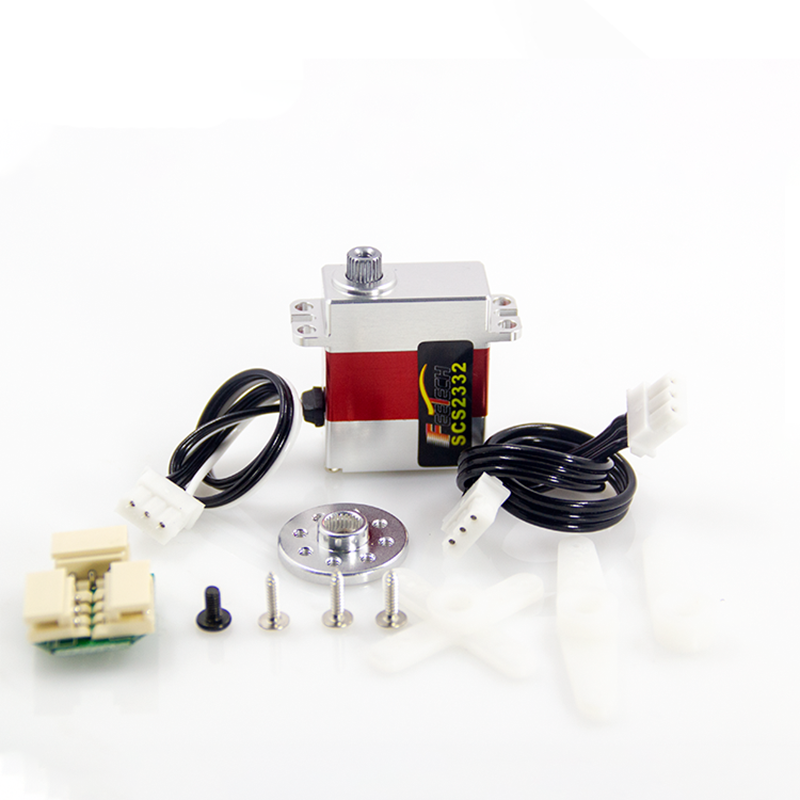

Package Includes
- 1 × FEETECH SCS2332 Smart Servo
- Servo Horn Set
- Mounting Screws
- Connection Cable
