Product Overview

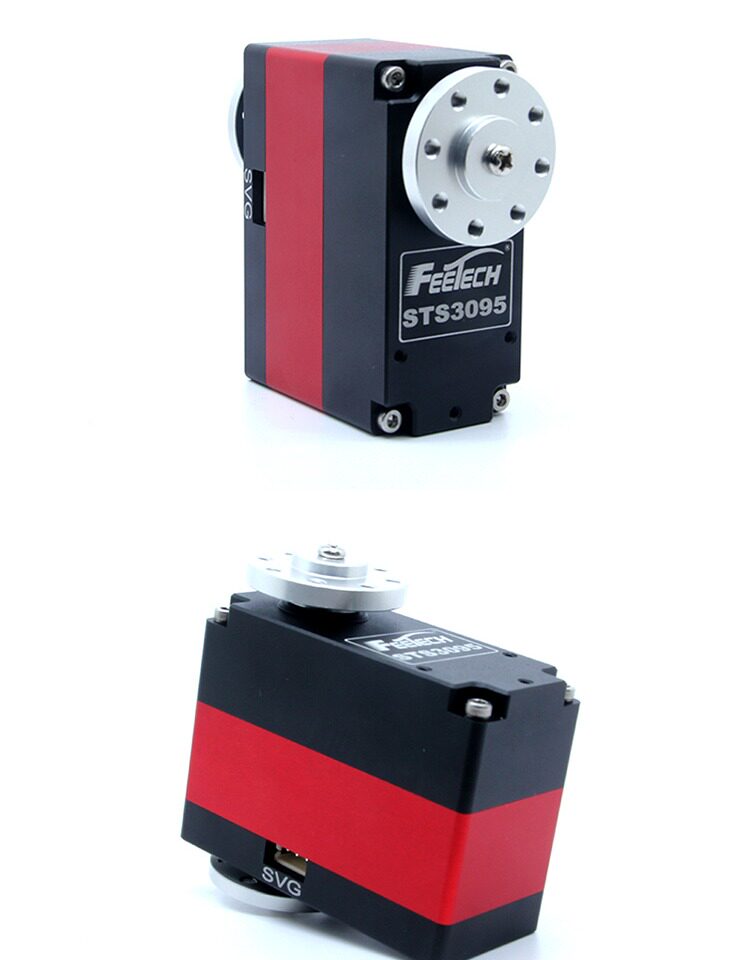

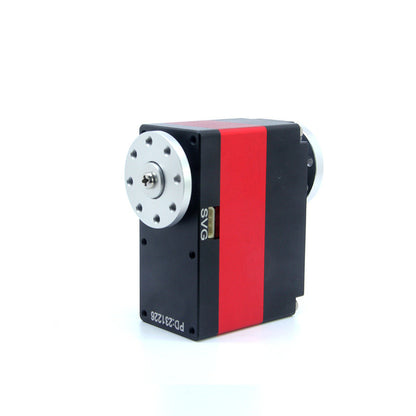

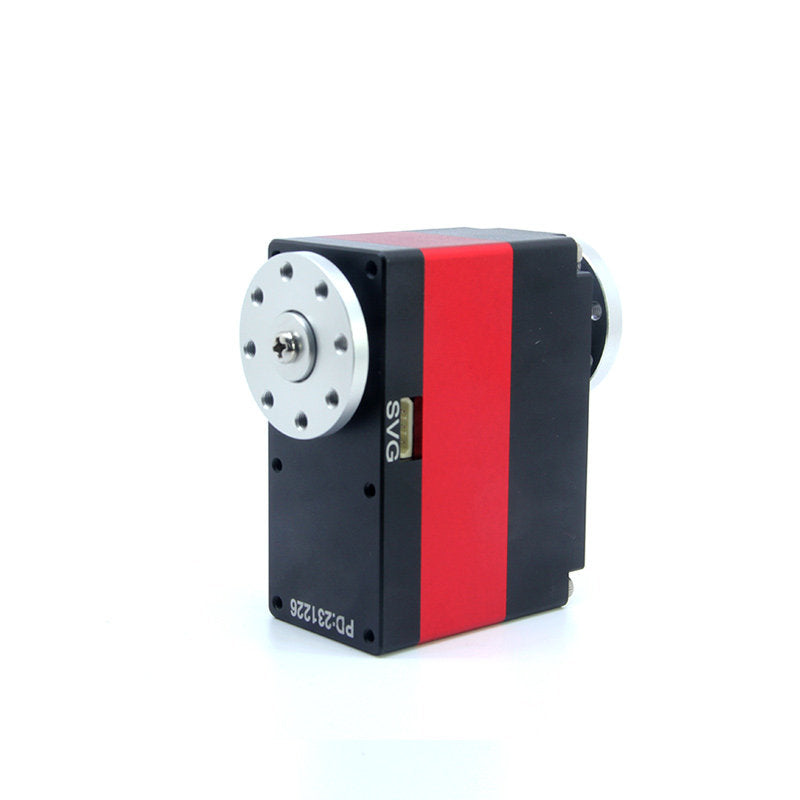

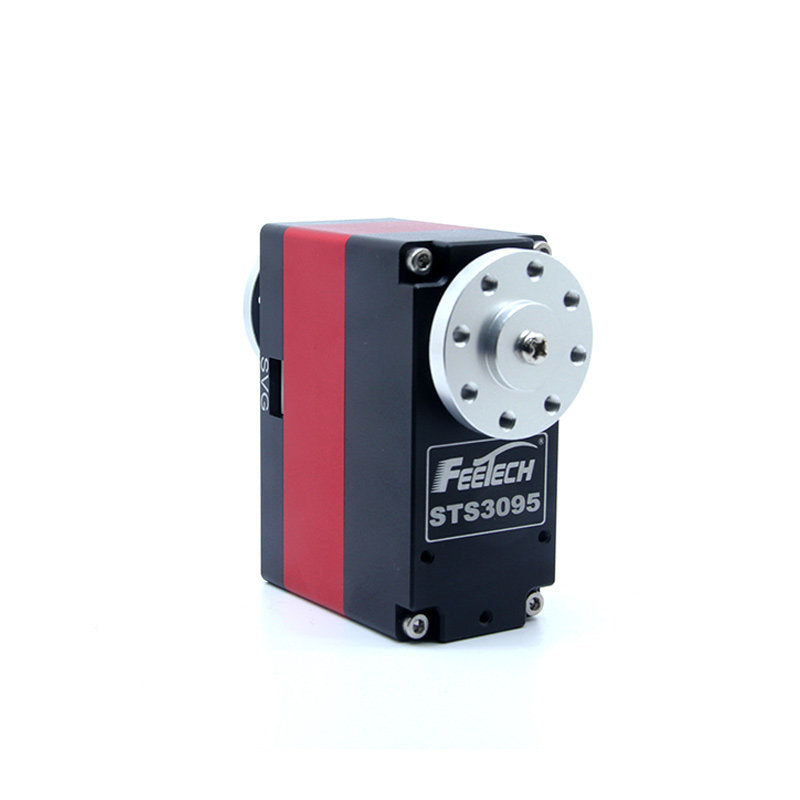

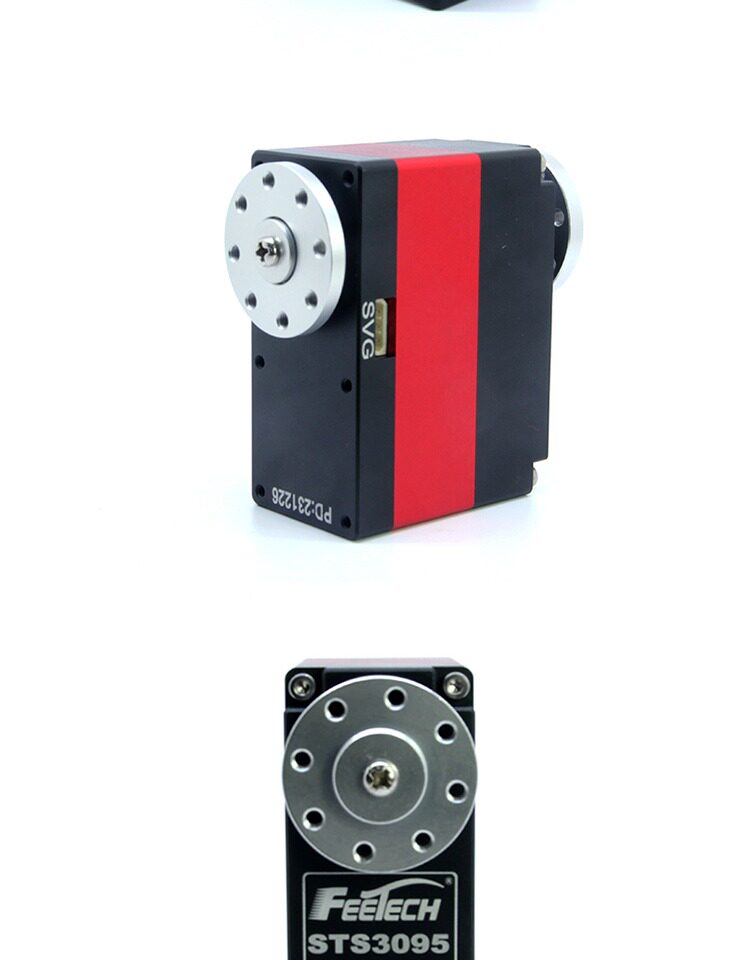

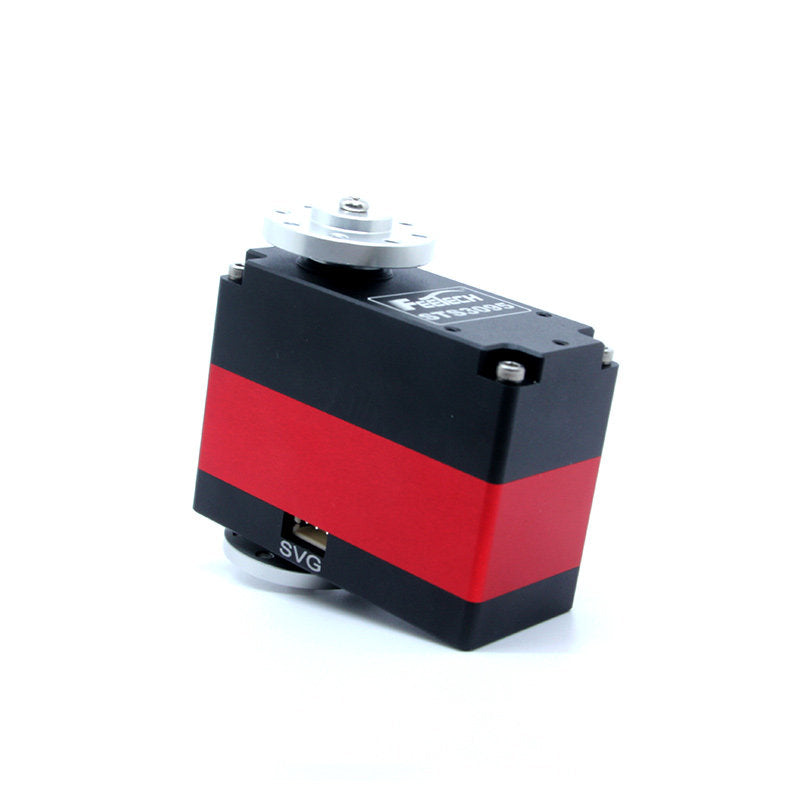

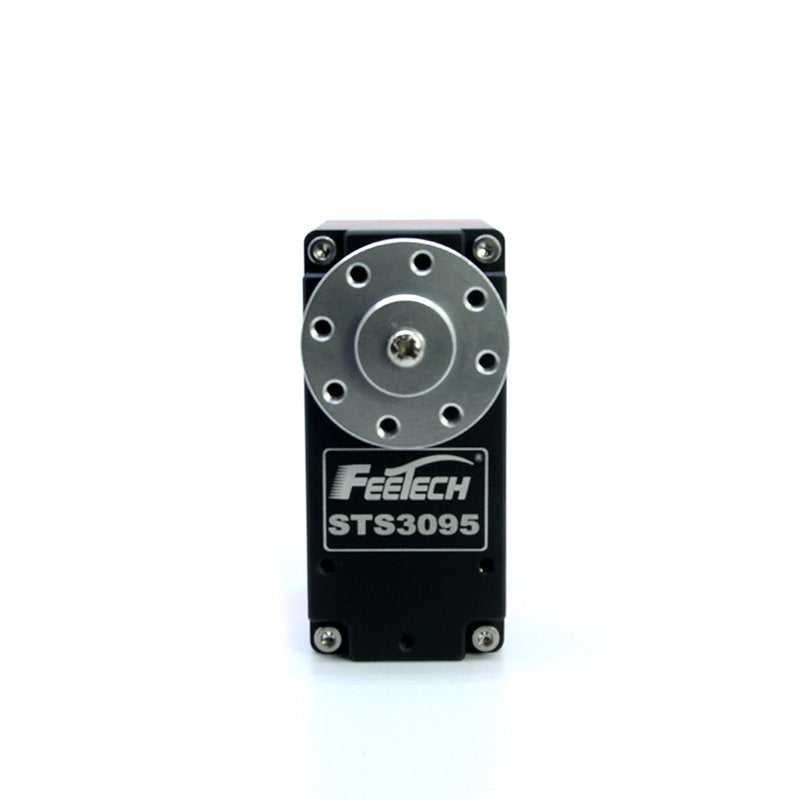

The FEETECH STS3095 is a high-torque intelligent serial bus servo designed for robotics, automation systems, robotic joints, and motion control applications.
It features a full metal gear transmission system, dual shaft aluminum alloy housing, magnetic encoder feedback, and 360° controllable rotation.
The servo supports serial bus communication with real-time feedback including position, speed, current, voltage, and load information.
Key Features
- High torque up to 95kg.cm
- 360° controllable rotation
- Magnetic encoder feedback
- Dual shaft structure
- Full metal gear transmission
- Aluminum alloy housing
- Serial bus communication
- Position / speed / current / voltage / load feedback
- Locked-rotor protection
- Over-current protection
- Overheat protection
- Multi-mode operation switching
- One-key middle position calibration
Technical Specifications
| Item | STS3095-C001 | STS3095-C002 |
|---|---|---|
| Operating Voltage | 6–9V | 12V |
| Stall Torque | 95kg.cm @7.4V | 95kg.cm @12V |
| No-load Speed | 35RPM @7.4V | 31RPM @12V |
| Stall Current | 9.5A @7.4V | 9.8A @12V |
| Rated Torque | 22.5kg.cm @7.4V | 22.5kg.cm @12V |
| Rated Current | 2.2A @7.4V | 2.2A @12V |
| Rotation Angle | 360° (0~4095) | 360° (0~4095) |
| Weight | 194.5g | 194.5g |
Mechanical Specifications
| Item | Specification |
|---|---|
| Model | STS3095 |
| Housing Material | Aluminum Alloy |
| Gear Material | Hardened Stainless Steel Combination |
| Shaft Type | Dual Shaft |
| Servo Type | Serial Bus Servo |
| Dimensions | Approx. 65 × 30 × 48 mm |
Feedback Functions
Supported feedback information:
- Position feedback
- Speed feedback
- Current feedback
- Voltage feedback
- Load feedback
Protection Functions
- Locked-rotor protection
- Over-current protection
- Overheat protection
Applications
Suitable for:
- Robot joints
- Robotic arms
- Humanoid robots
- Automation equipment
- Educational robots
- Motion control systems
- DIY robotics projects

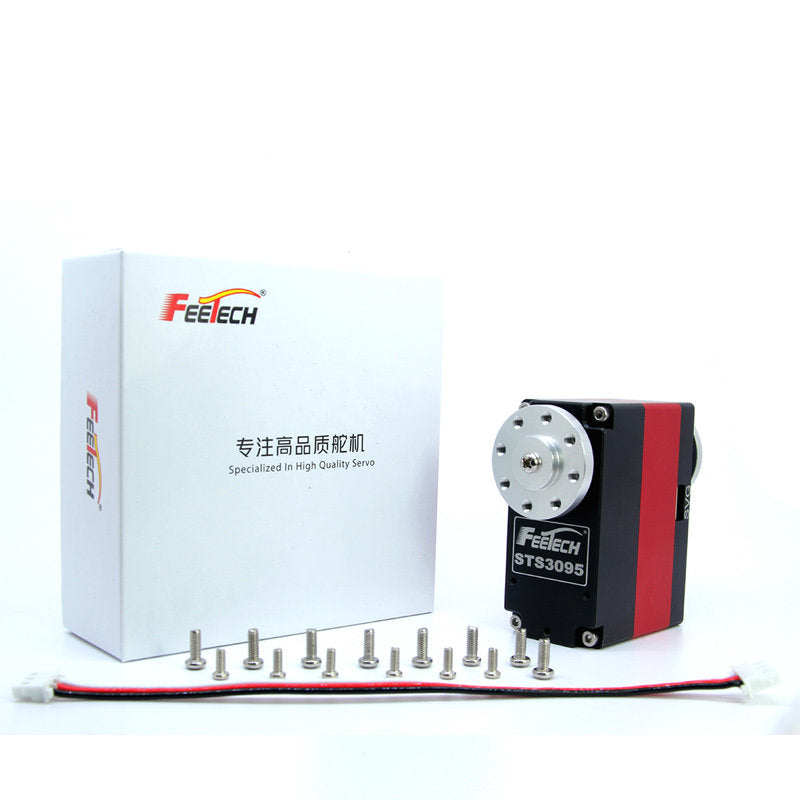

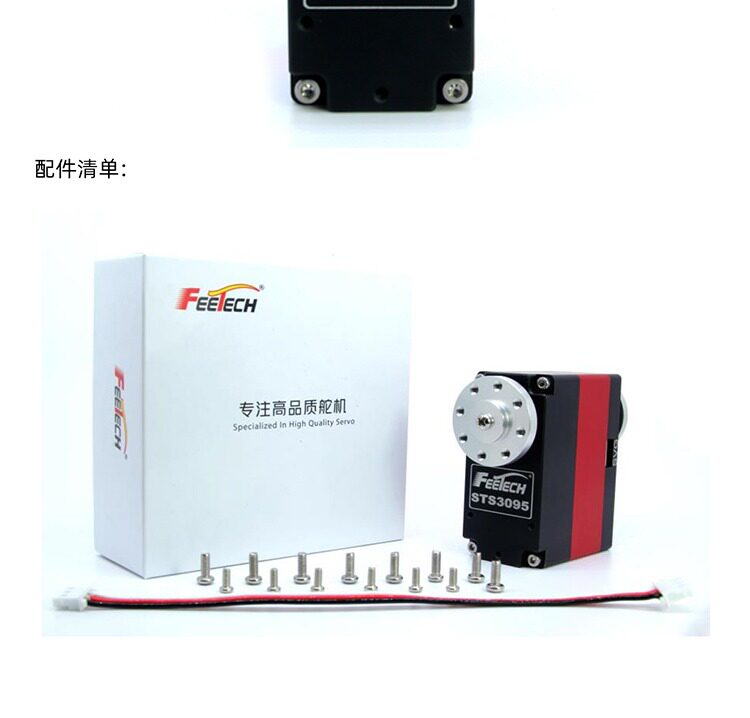

Package Includes
Servo Only Version
- 1 × STS3095 Servo
- Servo Cable
- Mounting Screws
Servo + URT Debug Board Version
- 1 × STS3095 Servo
- 1 × URT Debug Board
- 1 × USB Cable
- Servo Cable
- Mounting Screws
