Product Description
Overview

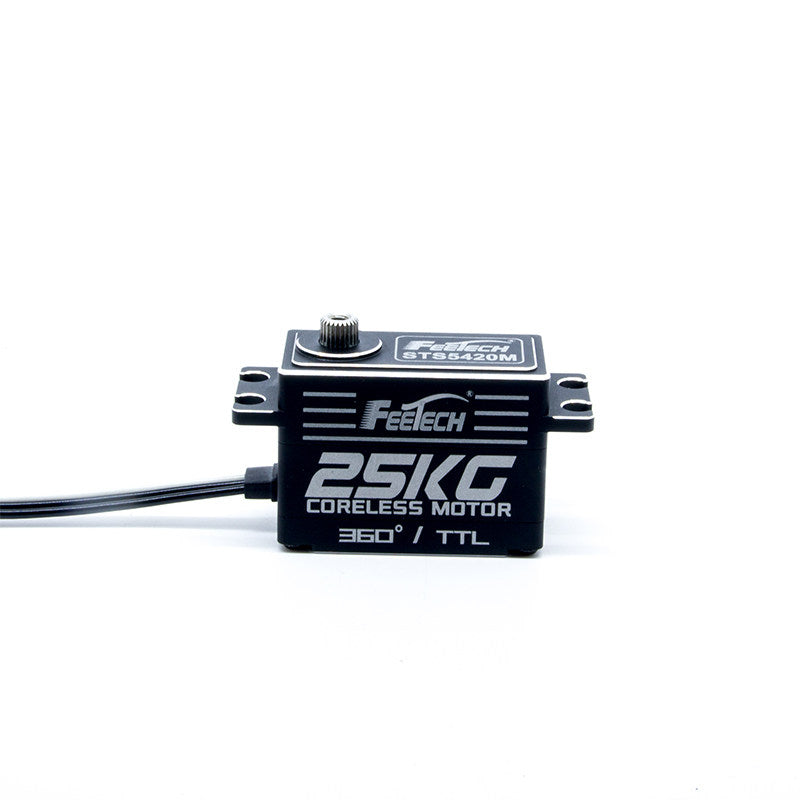

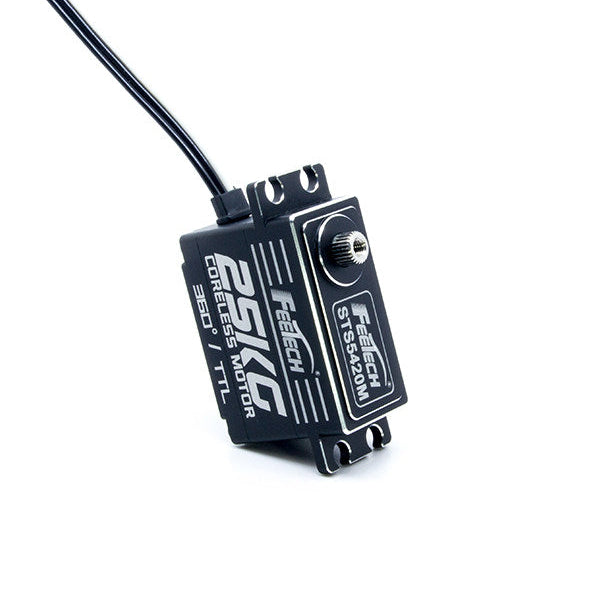

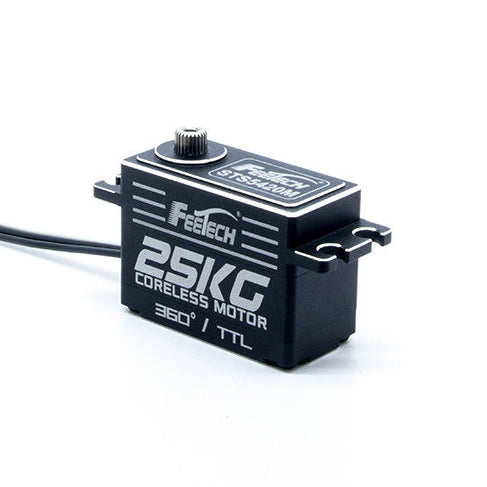

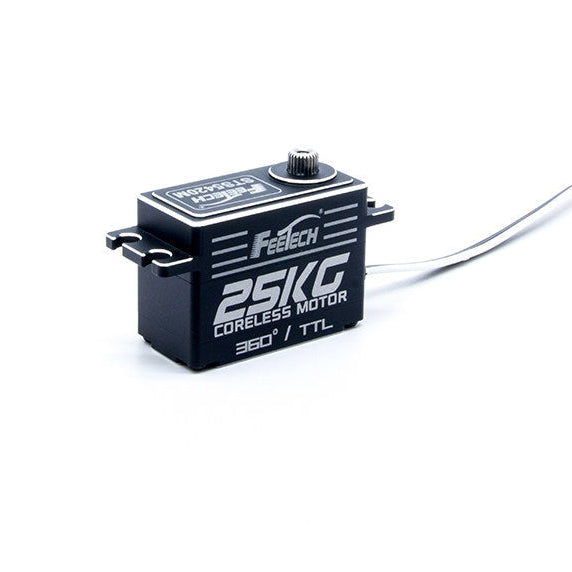

The FEEtech STS5420M is a compact low-profile bus servo designed for robotics and precision motion control. It features a coreless motor, magnetic encoder, and 360° position control (0–4096), making it suitable for multi-turn and continuous rotation applications.
Key Features
- 25KG Stall Torque @ 7.4V – Suitable for medium-load robotic joints
- 360° Rotation (0–4096 Position Control)
- Magnetic Encoder Feedback – Stable and repeatable positioning
- Coreless Motor – Fast response and smooth operation
- Metal Gear Train – Improved durability
- TTL Bus Communication – Supports multi-servo control
- Low Profile Size (40.6×20×30mm) – Easy integration in compact designs
- Programmable Parameters – ID, speed, acceleration, position
Specifications
| Parameter | Value |
|---|---|
| Model | STS5420M |
| Brand | FEEtech |
| Size | 40.6 × 20 × 30 mm |
| Weight | 65.5 g |
| Voltage Range | 4.8V – 8.4V |
| Stall Torque | 25 kg·cm @ 7.4V |
| Rated Torque | 8.3 kg·cm @ 7.4V |
| No-load Speed | 0.111 sec/60° (≈90 RPM) |
| No-load Current | 480 mA |
| Stall Current | 4.7 A |
| Rated Current | 1150 mA |
| Motor Type | Coreless Motor |
| Gear Material | Metal |
| Encoder | Magnetic Encoder |
| Control | TTL Bus |
| Rotation | 360° (0–4096) |
| Dead Band | ≤ 0.5° |
| Reduction Ratio | 1:258 |
Interface
- GND
- VCC
- Signal (TTL)

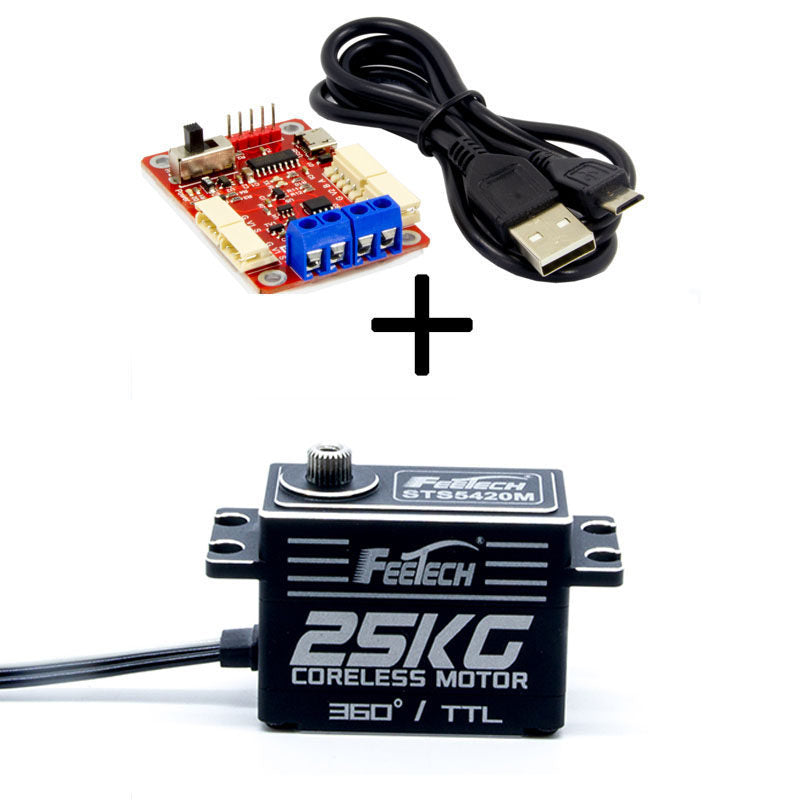

Development Support
Compatible with:
- Arduino
- STM32
- PC / Java / C++ / C#
Supports debugging via official software.
Applications
- Robotic arms
- Humanoid robots
- Gimbal systems
- Automation equipment
- DIY robotics
Important Notes
- Recommended working torque: 1/3–1/5 of stall torque
- Servo quantity depends on power supply capacity
- Supports multi-servo bus networking
