Description

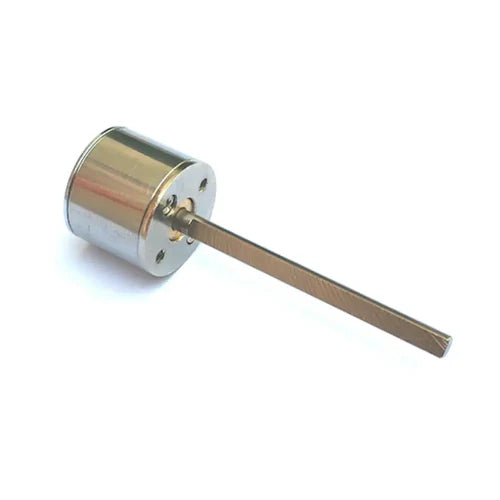

The FingerTech Silver Spark 16mm Replacement Gearbox 33:1 is a high-precision replacement part designed for the FingerTech ‘Viper’ Combat Robot Kit V2. Featuring a durable 33:1 metal gearbox and compact 16 mm diameter, it ensures smooth power transfer and long-lasting performance in small robotics and combat applications.
This gearbox is ideal as a replacement or spare part for your existing Silver Spark motor setup. Combine it with Snap Wheels, Snap Hubs, and tinyESCs for a complete drive solution. Simply solder your connections and your robot is ready for precise motion control.
Key Features
• Replacement gearbox for FingerTech “Viper” Combat Robot Kit V2
• High-efficiency 33:1 metal gear reduction for superior torque output
• Compact 16 mm design ideal for lightweight combat robots
• Operates across a wide voltage range of 3 V–18.5 V
• Easy integration with Snap Wheels, Snap Hubs, and tinyESCs
• Durable metal housing ensures longevity under load
• Compatible with 3 mm D-shaped motor shafts
Specifications
| Parameter | Value |
|---|---|
| Product Type | Replacement Gearbox |
| Gear Ratio | 33:1 |
| Operating Voltage | 3 V – 18.5 V ( > 10 V may reduce motor life ) |
| Nominal Voltage | 6 V DC |
| No-Load Speed | 11,530 rpm |
| No-Load Current | 0.09 A |
| Stall Current | 1.3 A |
| Stall Torque | 0.0461 kg·cm ( 0.64 oz-in ) |
| Gearbox Diameter | 16 mm ( 0.63 in ) |
| Shaft Diameter | 3 mm ( 0.12 in ) with flat |
| Material | Metal gearbox casing |
| Compatible Kit | FingerTech Viper Combat Robot Kit V2 |
What’s Included
• 1 × FingerTech Silver Spark 16 mm Replacement Gearbox ( 33:1 )
