Product Description
Overview

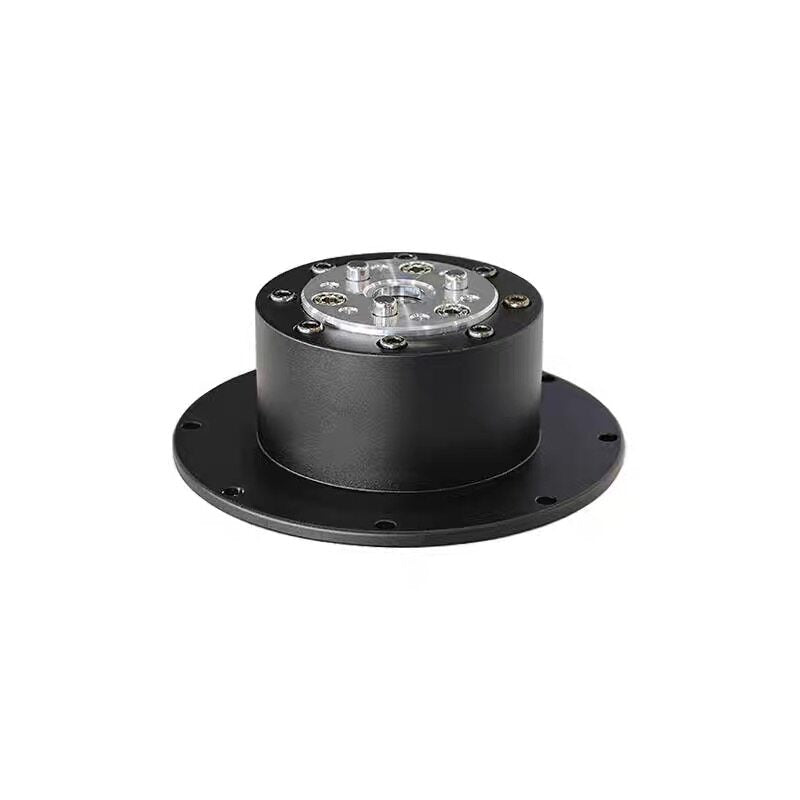

The G8-60 planetary gearbox is a compact and integrated reducer designed for robotic joint applications. It is specifically adapted for the GIM6010-8 motor, offering a precise and stable transmission solution in a 60mm form factor.
With a reduction ratio of 1:8, this gearbox is suitable for applications requiring controlled speed reduction and increased output torque, such as robotic joints, pan-tilt systems, and precision rotary platforms.
Key Features
- Designed for GIM6010-8 motor compatibility
- Compact 60mm flange structure
- Planetary gearbox design for stable transmission
- Reduction ratio: 1:8
- Multi-hole mounting interface for flexible integration
- Integrated structure suitable for robotic joints
- Rigid housing with precision-machined components
Mechanical Structure

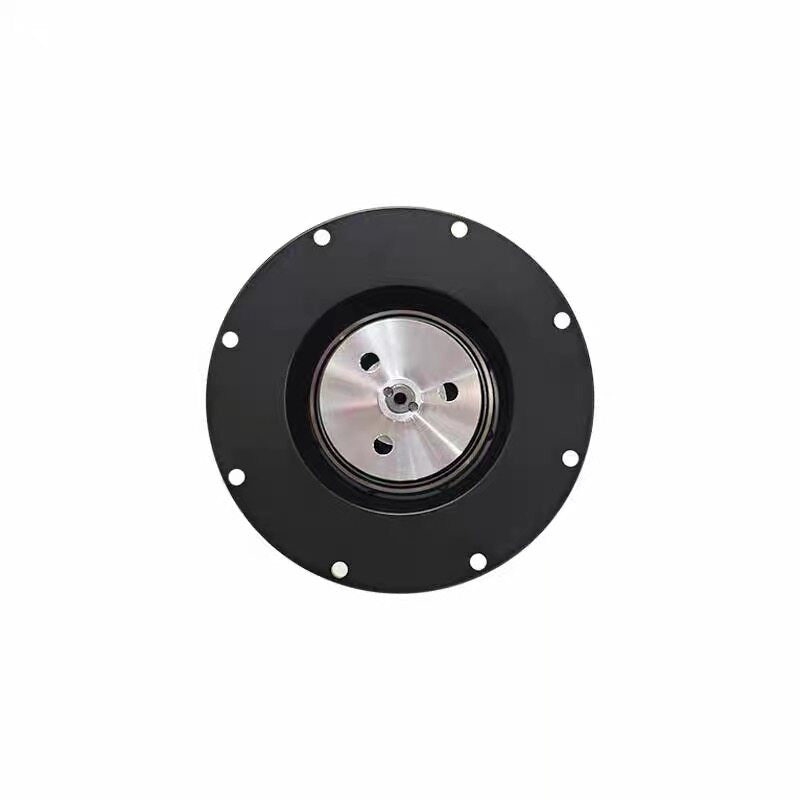

- Circular flange base with evenly distributed mounting holes
- Central output interface with multiple threaded holes
- Integrated gearbox housing design
- Compact axial length structure
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | G8-60 |
| Gear Type | Planetary Gearbox |
| Reduction Ratio | 1:8 |
| Compatible Motor | GIM6010-8 |
| Outer Diameter | Ø80 mm (flange) |
| Body Diameter | Ø50 mm |
| Mounting Holes | 8 × Ø3.2 through holes |
| Output Interface | 6 × M3 threaded holes (effective depth 5 mm) |
| Center Hole | Ø20.4 mm |
| Pin Holes | 3 × Ø4 mm |
| Structure | Integrated flange type |

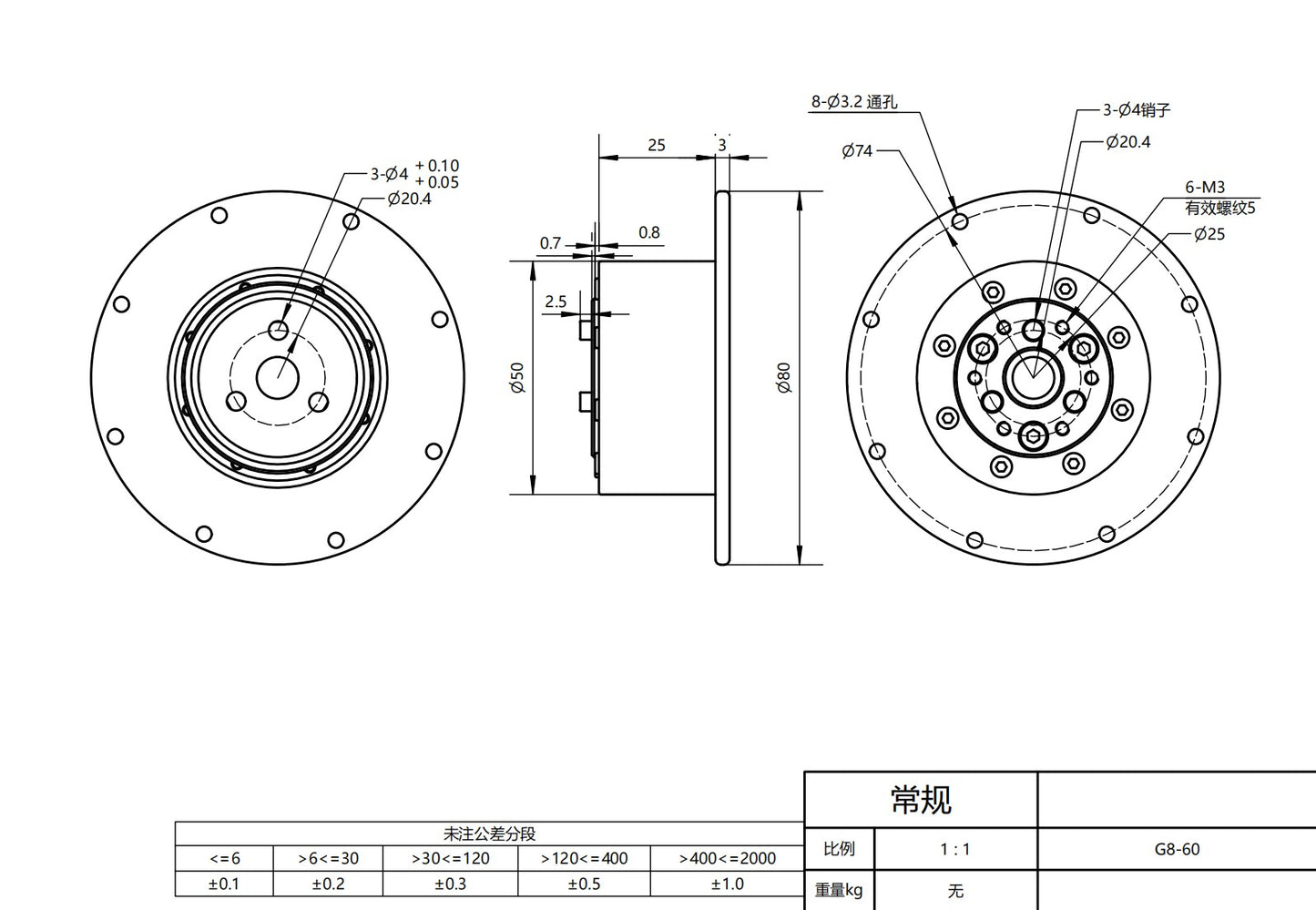

Dimensions
- Flange diameter: Ø80 mm
- Gearbox body diameter: Ø50 mm
- Mounting hole distribution: 8 holes evenly spaced
- Output bolt circle diameter: Ø25 mm
- Central bore: Ø20.4 mm
Applications
- Robot joints
- Humanoid robots
- Robotic arms
- Pan-tilt systems
- Precision rotary platforms
- Automation equipment
Package Includes
- 1 × G8-60 Planetary Gearbox
Notes
- Motor is not included
- Please confirm compatibility with GIM6010-8 before purchase

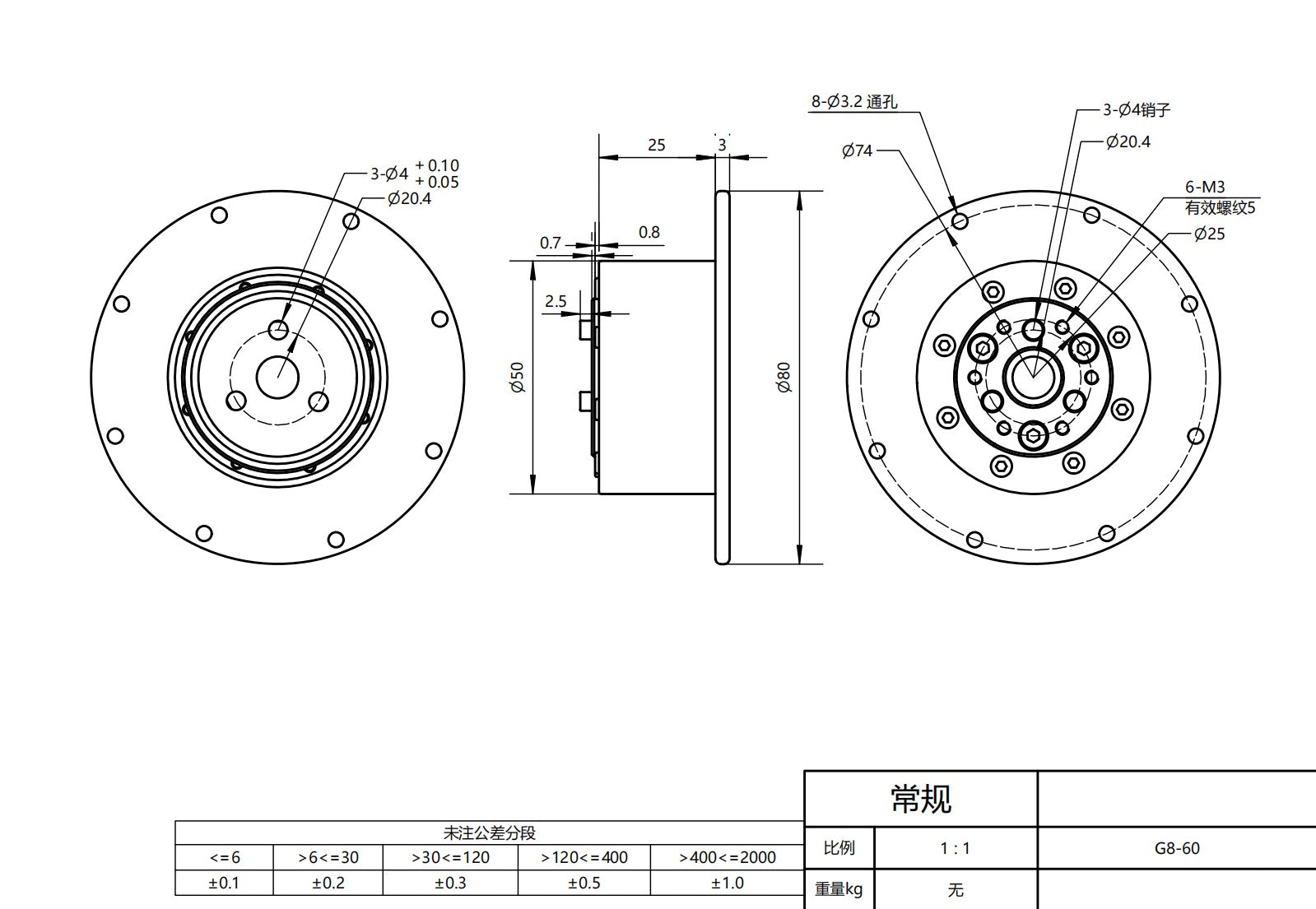

- Refer to the mechanical drawing for detailed installation dimensions
