Overview

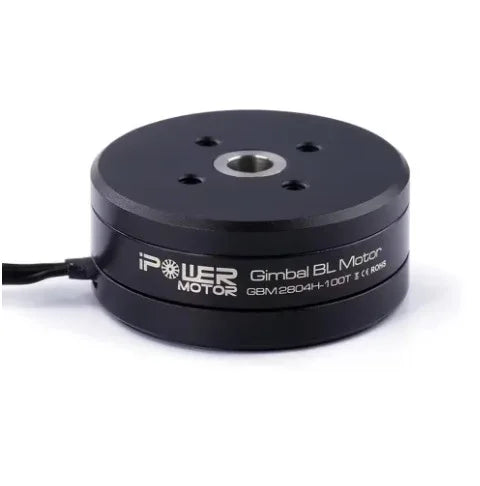

The GBM2804H-100T is a brushless gimbal motor designed for camera stabilization on small multirotor platforms, including GoPro camera setups. Its brushless direct-drive design supports gimbal systems that require controlled camera movement and stabilization.
Key Features
- 100-turn pre-wound hollow-shaft configuration
- 12N14P motor configuration
- Designed for camera gimbal stabilization
- Suitable for camera loads in the 200g-400g range
Specifications
| Model | GBM2804H-100T |
|---|---|
| Weight | 41.5g |
| Motor dimensions | 35mm x 15mm |
| Stator diameter | 28mm x 4mm |
| Copper wire OD | 0.19mm |
| Configuration | 12N14P |
| Resistance | 11.2 ohms |
| Base center pitch | 16mm and 19mm |
| Winding | 100 turns, hollow shaft |
| Camera range | 200g-400g |
| Test voltage | 11.1V |
| Maximum voltage | 14.8V |
| Test current | 0.0099 A |
| Maximum current | 5A |
| Test rotation speed | 1637 rpm |
| Maximum rotation speed | 2180 rpm |
For product selection or technical support related to this brushless gimbal motor, contact customer service at robotdoo.com.
