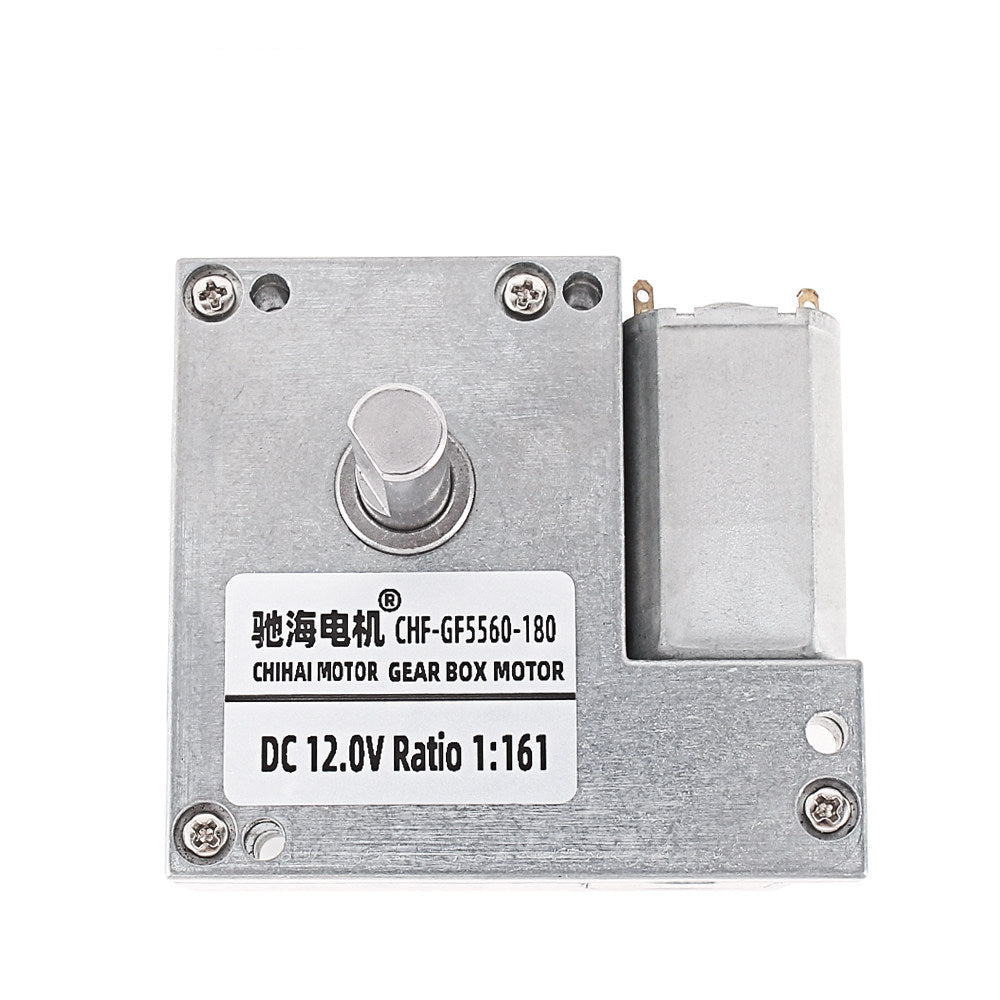

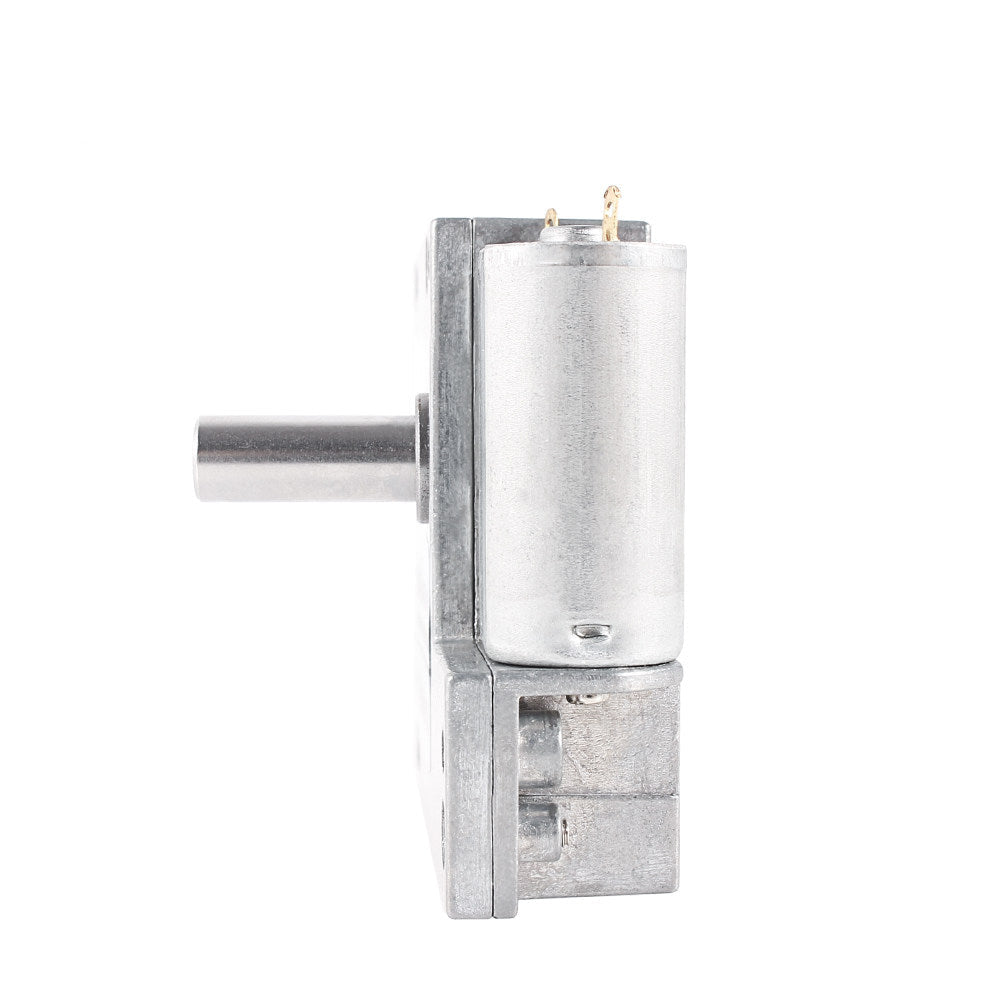

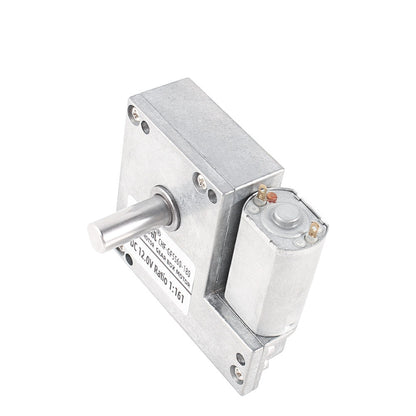

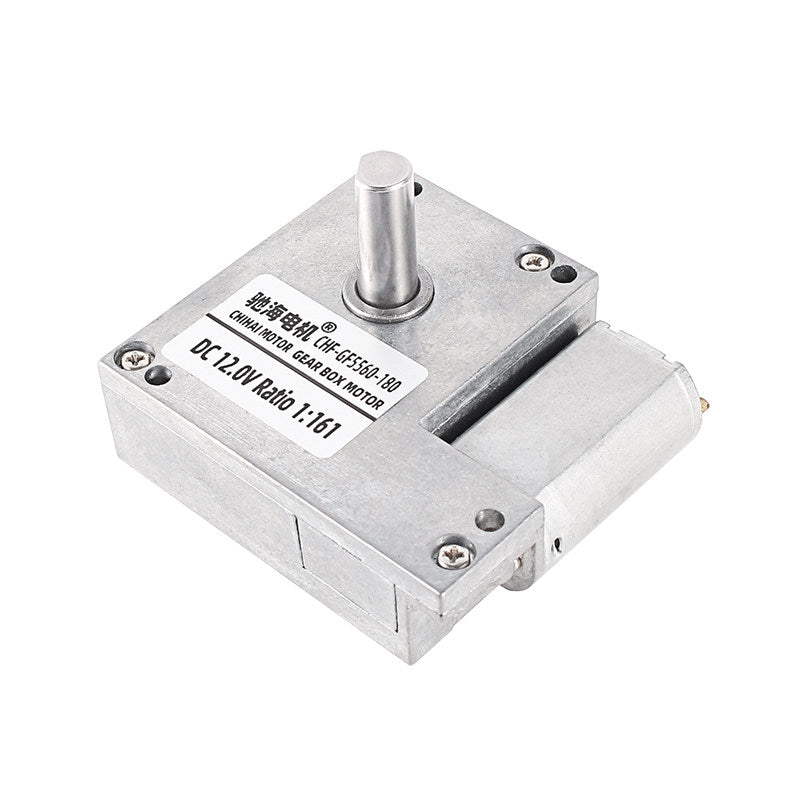

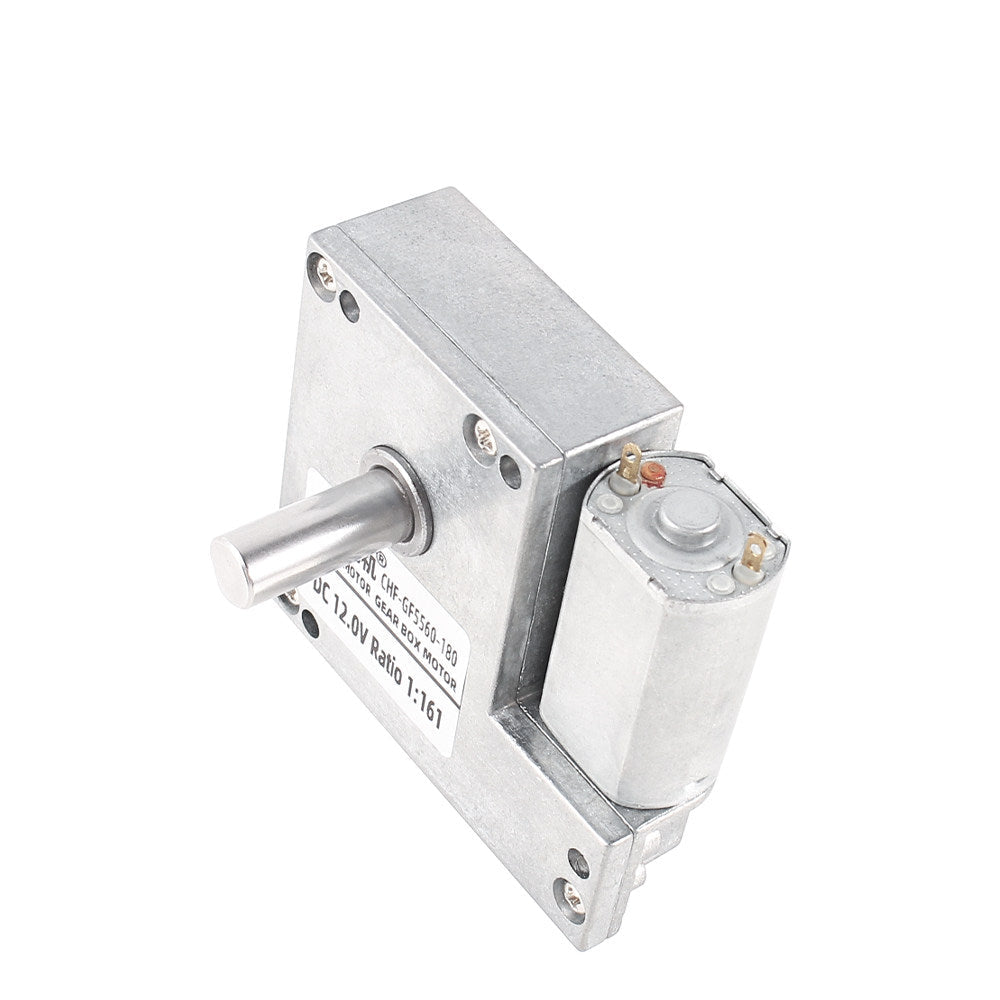

Description
The GF5560-180 6V DC Worm Gear Motor combines a compact permanent-magnet DC motor with a worm gear reduction gearbox for low-speed, high-torque applications.
The worm gear transmission provides self-locking characteristics, making the motor suitable for mechanisms that need to resist reverse driving when power is removed.
Six gear ratios are available from 26.9:1 to 1400:1, providing a wide selection of output speeds and torque levels for robotics, automation equipment, electric locks, rotating mechanisms and DIY projects.
Key Features
- 6V DC worm gear motor
- Self-locking worm gear transmission
- High torque at low speed
- Six selectable gear ratios
- Compact flat gearbox
- 8 mm D-shaped output shaft
- Reversible CW/CCW rotation
- Low-noise gear transmission
- Suitable for robotics and automation
Variant Performance

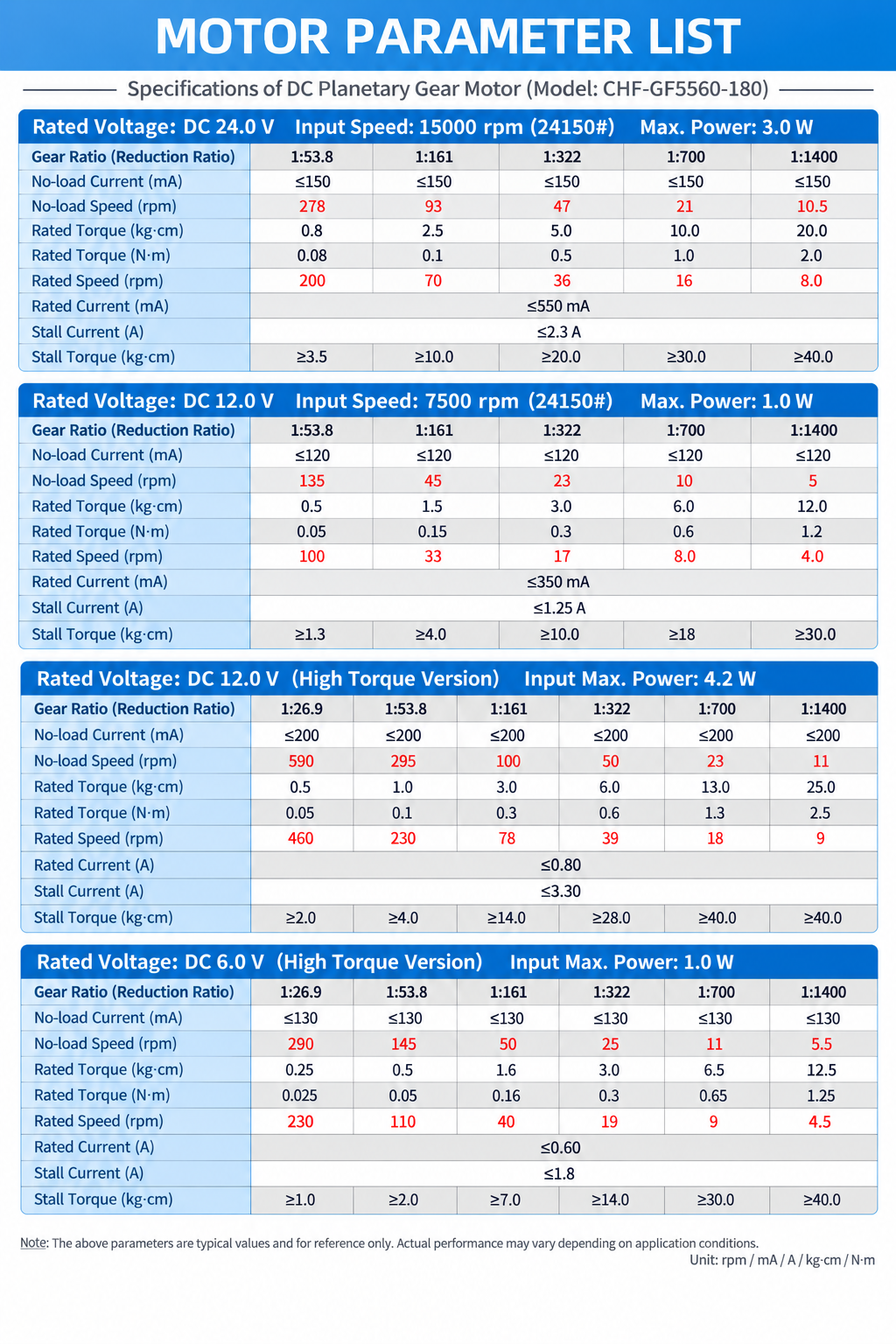

| Gear Ratio | No-Load Speed | Rated Speed | Rated Torque |
|---|---|---|---|
| 26.9:1 | 290 RPM | 230 RPM | 0.25 kg·cm |
| 53.8:1 | 145 RPM | 110 RPM | 0.5 kg·cm |
| 161:1 | 50 RPM | 40 RPM | 1.6 kg·cm |
| 322:1 | 25 RPM | 19 RPM | 3.0 kg·cm |
| 700:1 | 11 RPM | 9 RPM | 6.5 kg·cm |
| 1400:1 | 5.5 RPM | 4.5 RPM | 12.5 kg·cm |
Specifications
| Specification | Value |
|---|---|
| Model | GF5560-180 |
| Motor Type | Permanent Magnet DC Gear Motor |
| Gearbox Type | Worm Gear |
| Rated Voltage | DC 6V |
| Maximum Input Power | 1.0 W |
| No-Load Current | ≤130 mA |
| Rated Current | ≤0.60 A |
| Stall Current | ≤1.8 A |
| Gear Ratios | 26.9:1 – 1400:1 |
| Output Shaft Diameter | 8 mm |
| Output Shaft Length | 21 mm |
| D-Flat Length | 15 mm |
| Rotation | CW / CCW |
| Approx. Weight | 200 g |
| Drive Feature | Self-Locking |
Applications
- Robotics
- Automated mechanisms
- Electric locks
- Rotating platforms
- Opening and closing mechanisms
- Small lifting mechanisms
- Positioning mechanisms
- DIY automation projects
What’s Included
- 1 × GF5560-180 6V DC Worm Gear Motor
FAQ
Is this motor self-locking?
The worm gear transmission provides self-locking characteristics and resistance to reverse driving.
Can the motor rotate in both directions?
Yes. The direction can be reversed by changing the DC power polarity.
Which gear ratio should I choose?
Choose a lower gear ratio for higher speed or a higher gear ratio for lower speed and greater output torque.
Does this version include a power supply or speed controller?
No. This listing includes the motor only.
What size is the output shaft?
The motor uses an 8 mm D-shaped output shaft approximately 21 mm long.
