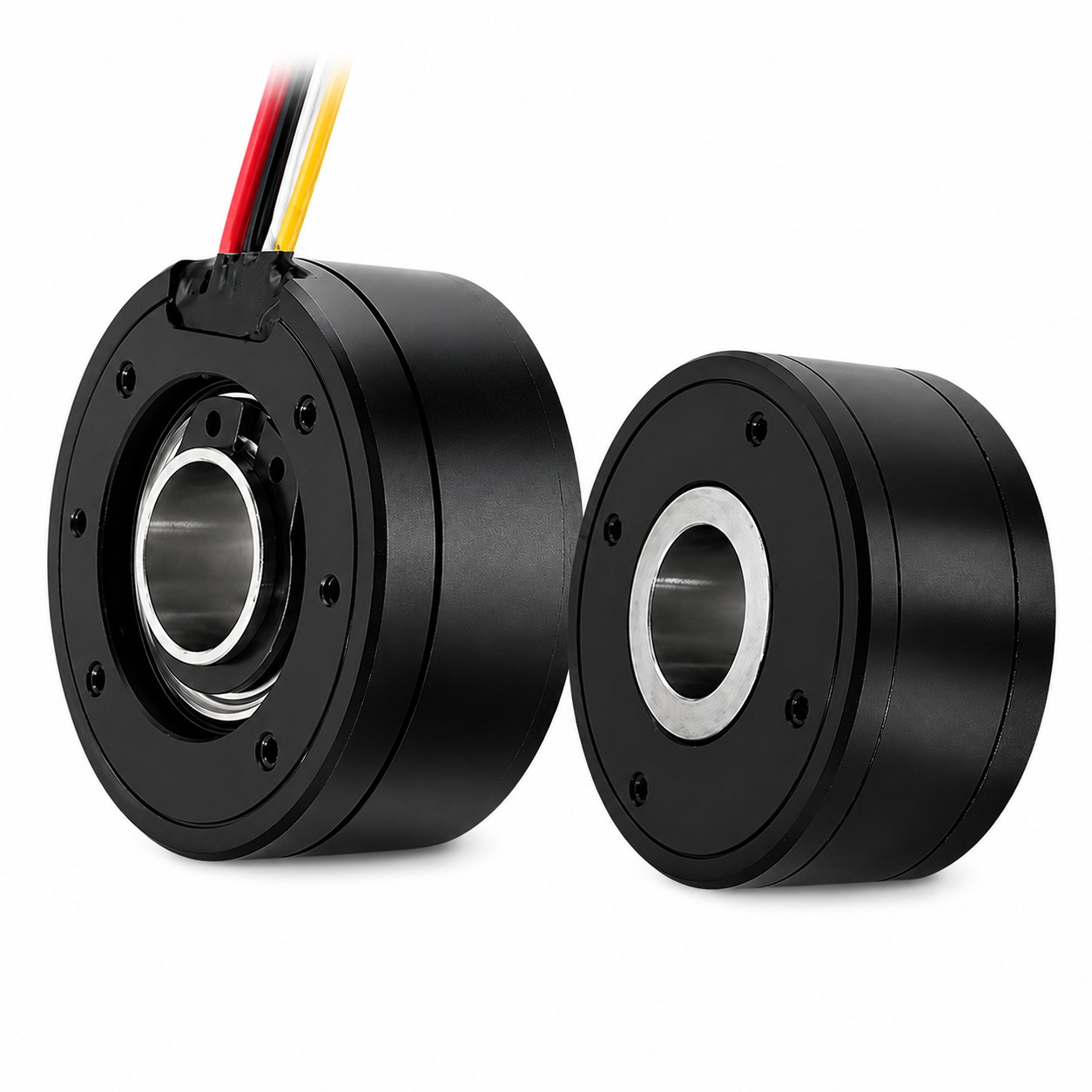

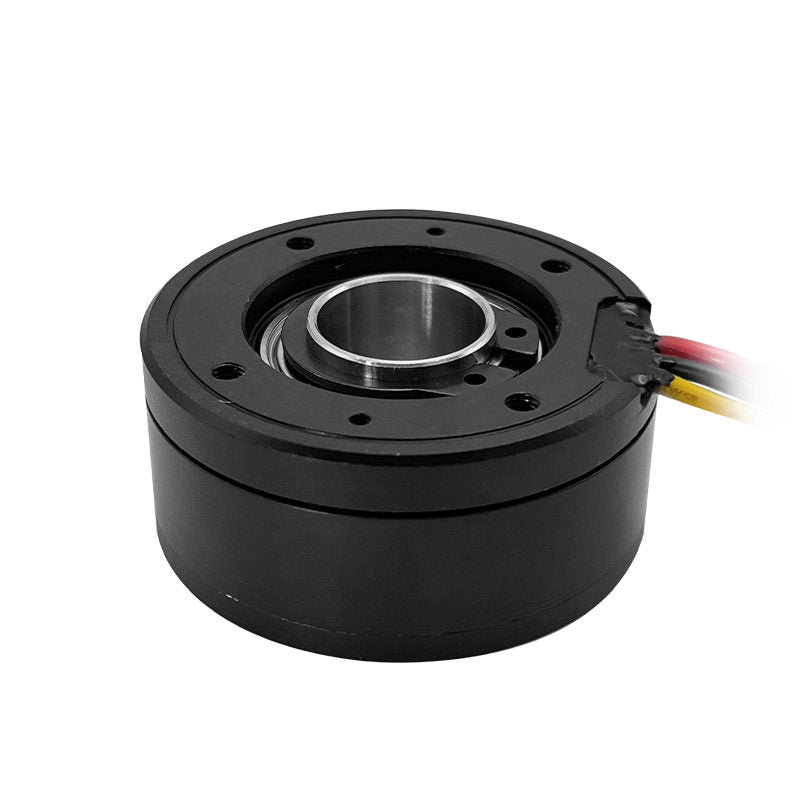

GM5830H 58mm Hollow Shaft Brushless Gimbal Motor
The GM5830H is a high-torque direct-drive brushless gimbal motor designed for robotic joints, UAV payload systems, camera stabilizers, LiDAR platforms, rotary positioning systems, and industrial automation applications.
Featuring a large 58mm outer rotor design, hollow shaft construction, and low KV rating, the GM5830H delivers smooth low-speed operation, high torque output, and excellent motion control performance. The motor supports external sinusoidal or square-wave drivers and is suitable for precision positioning systems requiring quiet operation and minimal vibration.
Its hollow shaft architecture simplifies cable routing, encoder integration, slip-ring installation, and robotic joint design, making it ideal for advanced robotics and intelligent automation equipment.
Key Features
-
High torque direct-drive brushless motor
-
Hollow shaft design for cable management and encoder integration
-
Large 58mm outer rotor structure
-
Smooth low-speed operation
-
Suitable for robotic joints and gimbal systems
-
UAV payload and airborne camera platform compatible
-
Supports sine wave and square wave motor controllers
-
Lightweight aluminum housing
-
Reliable performance from -40°C to +100°C
-
Optimized for precision motion control applications
Typical Applications
-
Robotic Joint Systems
-
Direct Drive Robotics
-
UAV Camera Gimbals
-
Airborne Payload Platforms
-
LiDAR Systems
-
Security Monitoring Equipment
-
Rotary Turntables
-
VR Motion Systems
-
Intelligent Toys
-
Industrial Automation Equipment
-
Medical Devices
-
Personal Care Equipment
-
Precision Positioning Systems

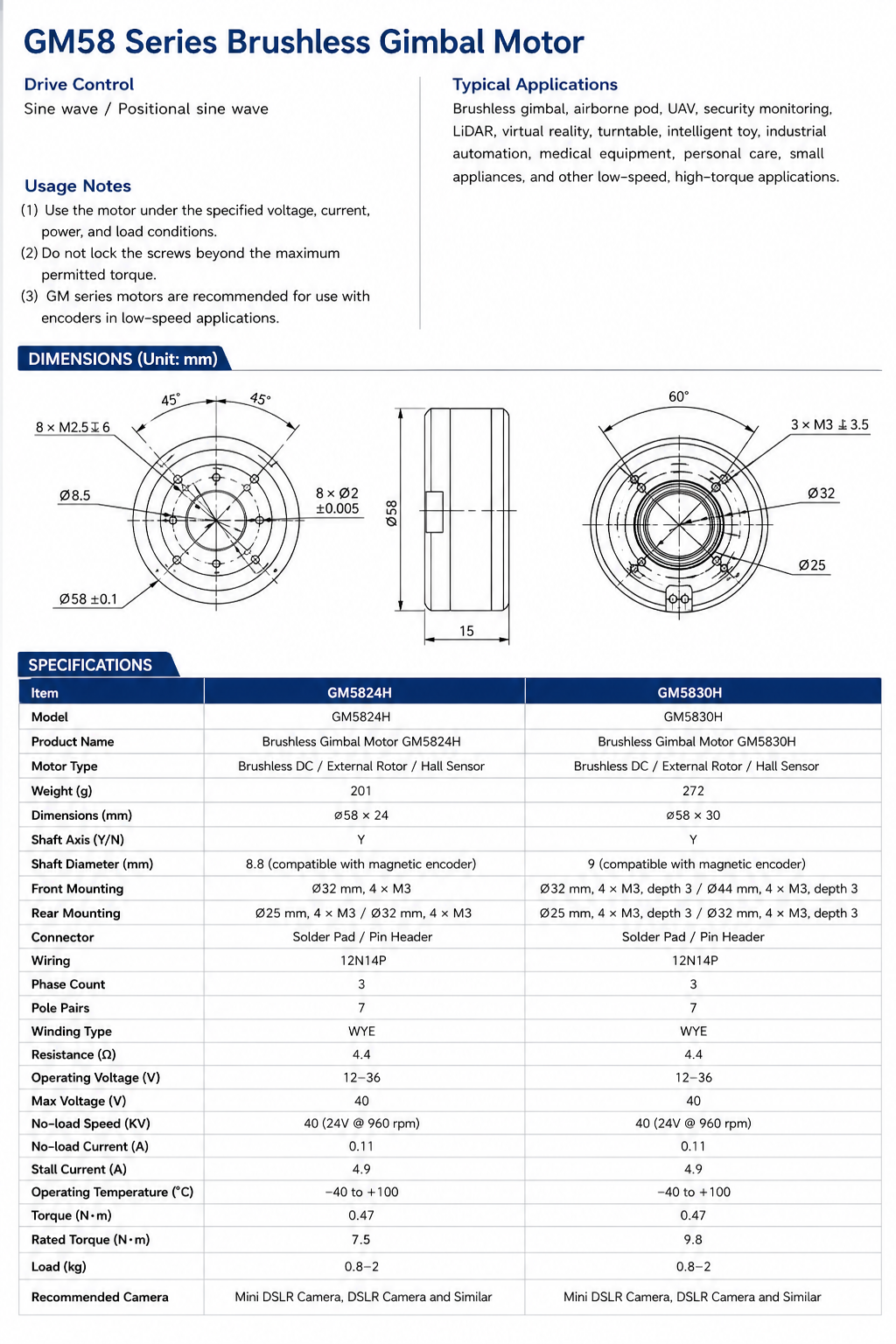

Specifications
| Parameter | Value |
|---|---|
| Model | GM5830H |
| Motor Type | Brushless DC Outrunner Motor |
| Structure | 12N14P |
| Phase Number | 3 |
| Pole Pairs | 7 |
| Winding Type | WYE |
| Weight | 272g |
| Motor Diameter | 58mm |
| Motor Height | 30mm |
| Hollow Shaft | Yes |
| Hollow Shaft Diameter | 9mm |
| Voltage Range | 14.8V–36V |
| Maximum Voltage | 40V |
| KV Rating | 35KV |
| Speed @24V | 850RPM |
| No Load Current | 0.09A |
| Stall Current | 6.7A |
| Torque | 0.59N·m |
| Resistance | 4.1Ω |
| Inductance | 7.0mH |
| Load Capacity | 1–3kg |
| Driver Included | No |
| Drive Method | Sine Wave / Square Wave |
| Operating Temperature | -40°C to +100°C |
What's Included
- 1 × GM5830H Brushless Gimbal Motor
FAQ
Does the GM5830H include a motor driver?
No. The GM5830H requires an external brushless motor controller.
Is this a direct-drive motor?
Yes. The motor is designed for direct-drive applications requiring smooth motion and high torque at low speeds.
Can this motor be used for robotic joints?
Yes. The hollow shaft design and high torque output make it suitable for robotic joint systems and articulated mechanisms.
Can an encoder be installed?
Yes. The hollow shaft structure allows encoder and cable integration depending on system requirements.
Is the motor suitable for camera gimbals?
Yes. It is commonly used in UAV gimbals, airborne payload systems, DSLR stabilizers, and precision camera platforms.
