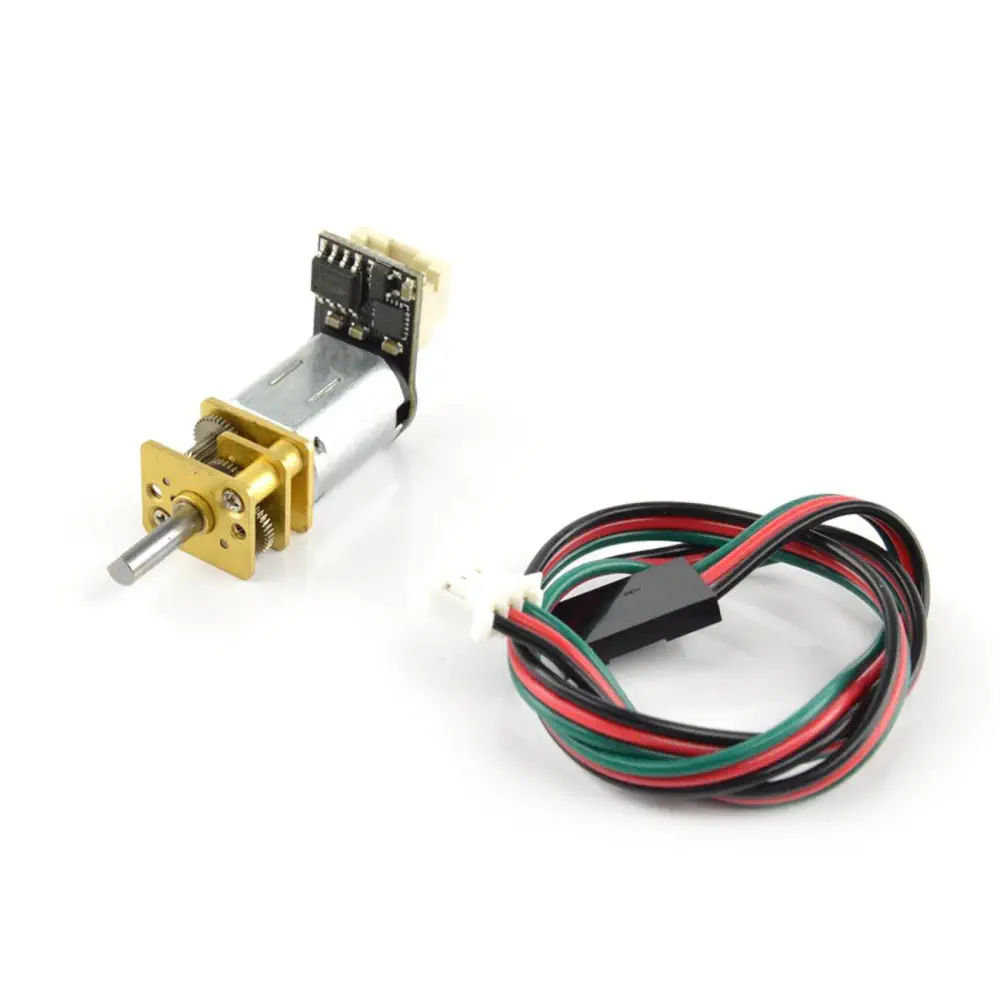

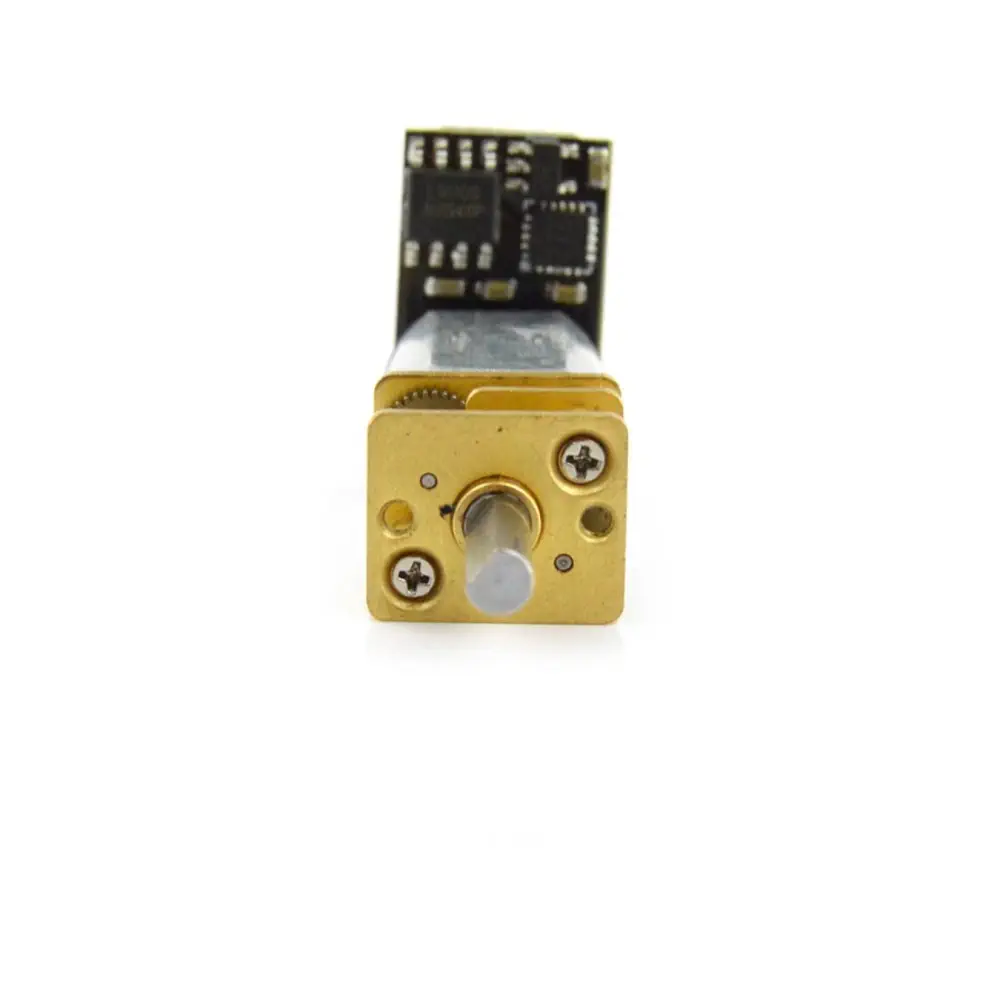

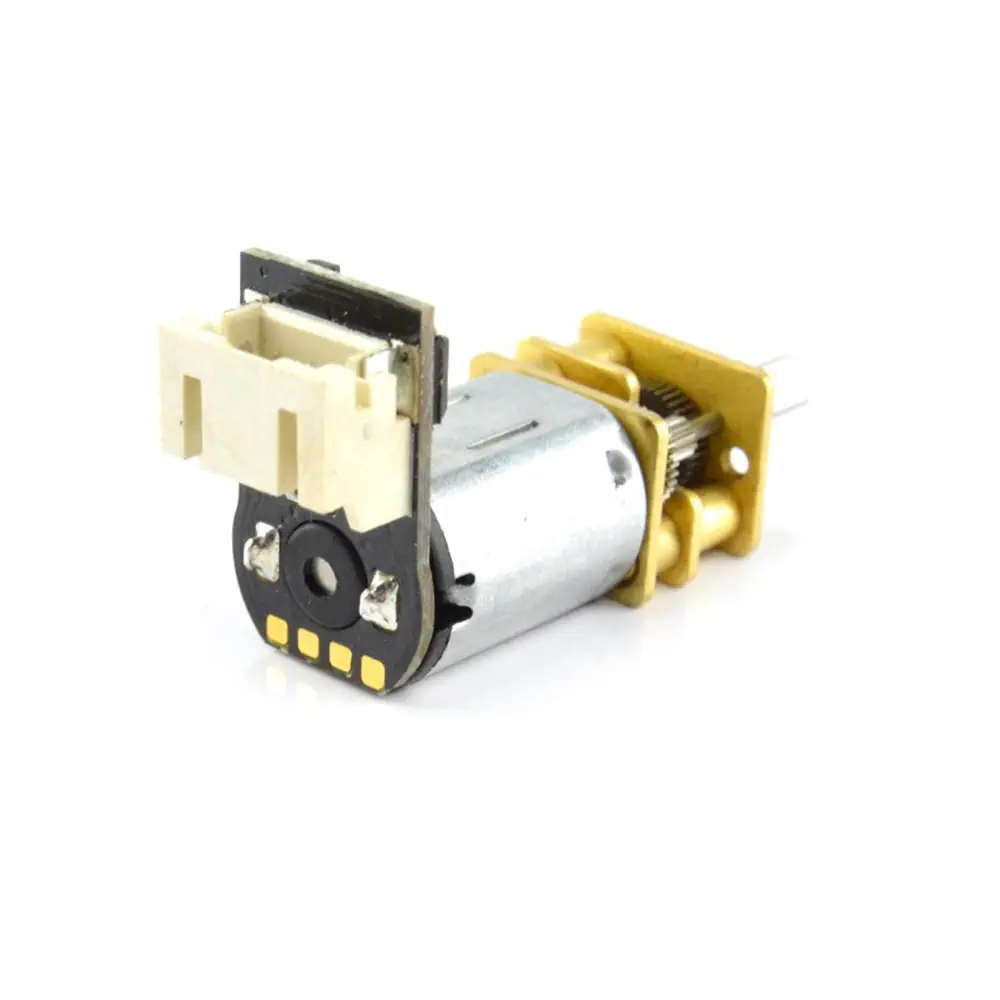

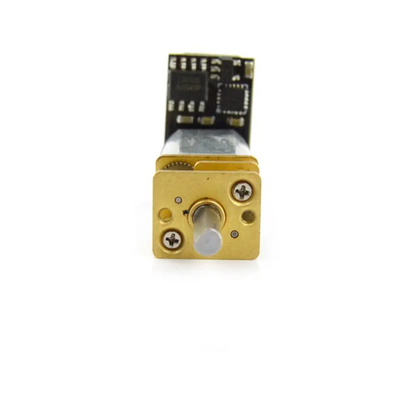

This Gravity DC micro metal gear motor integrates a compact DC motor, metal gearbox, and onboard driver into a single unit, simplifying wiring and control for small robotic and automation projects. With a 30:1 gear reduction, it provides improved torque at low speed while supporting forward, reverse, and PWM speed control through a simple control interface. Its small size and low power consumption make it suitable for educational robotics, mobile platforms, and lightweight actuator systems.
Product Description
General Description
This Gravity DC micro metal gear motor combines a DC motor, metal gear reduction, and integrated driver circuit in a compact form factor. The built-in driver eliminates the need for an external motor controller, allowing direct control through simple logic or PWM signals.
The 30:1 metal gear reduction increases output torque while reducing speed, enabling smoother motion and better control compared with direct-drive micro DC motors. This motor is designed for lightweight motion systems where space, simplicity, and efficiency are key considerations.
Mechanical / Electrical Characteristics
-
Integrated motor driver for simplified control
-
Metal gear reduction for improved durability
-
30:1 gear ratio balancing torque and speed
-
Supports forward and reverse rotation
-
PWM speed control compatible with microcontrollers
-
Compact size for space-constrained designs
This motor is intended for light mechanical loads and is not designed for high-torque or heavy industrial applications.
Typical Use Cases
-
Micro robotics motion modules
-
Small mobile robot drive systems
-
Educational robotics projects
-
Lightweight automation mechanisms
-
Prototyping and control experiments
Basic Specifications
-
Input Voltage Range: 3.5V – 8V DC
-
Motor Type: Brushed DC micro motor
-
Gear Reduction Ratio: 30:1
-
Control Method: Direction control + PWM speed control
-
Gear Material: Metal
-
Form Factor: Compact micro motor assembly
Performance may vary depending on supply voltage, load conditions, and duty cycle.
Notes Before Installation
-
Use a regulated DC power supply within the specified voltage range
-
Avoid prolonged stall conditions to prevent overheating
-
Not suitable for high-load or continuous heavy-duty operation
-
Ensure proper signal grounding when using PWM control
Package Includes
-
1 × Gravity DC Micro Metal Gear Motor with Integrated Driver (30:1)
