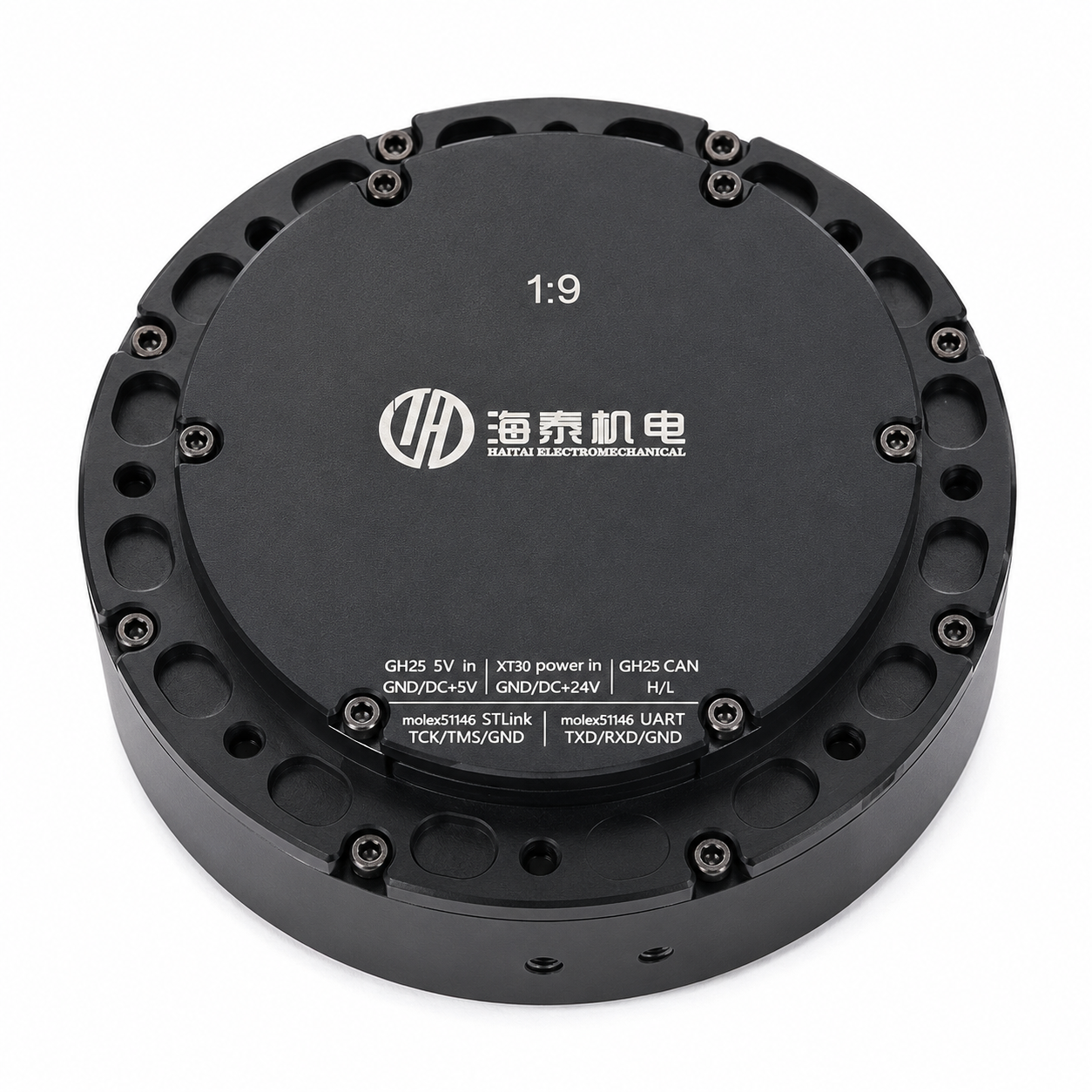

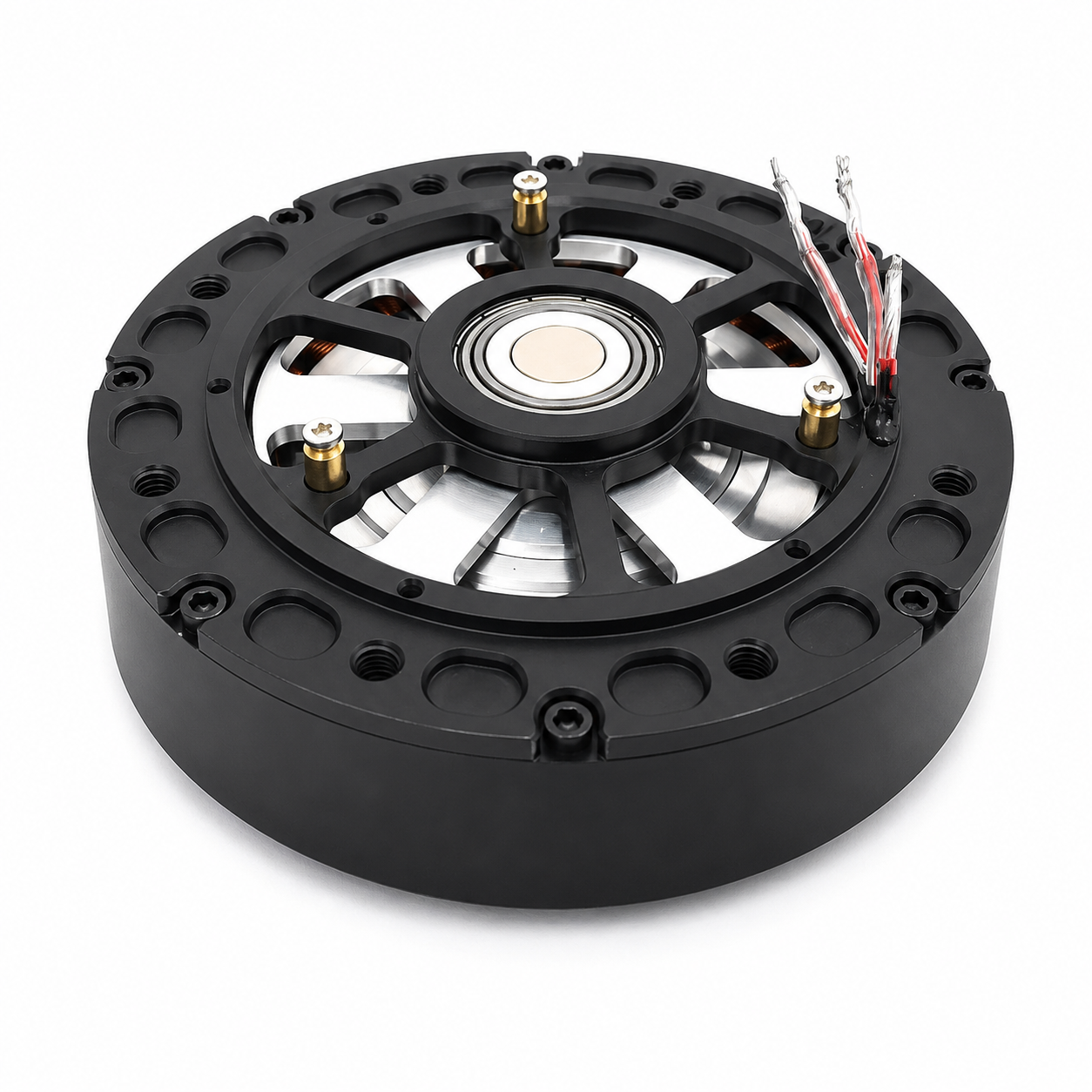

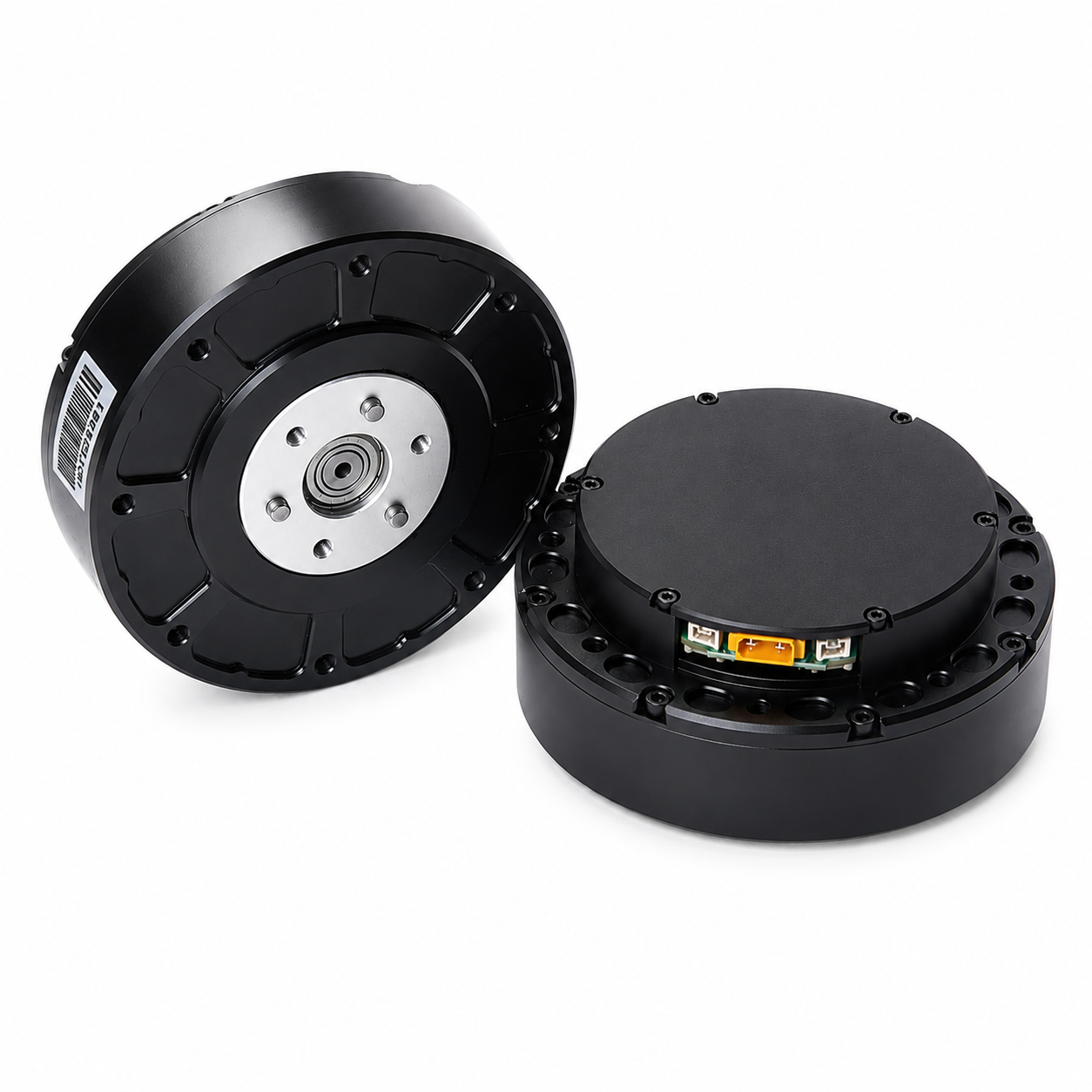

High-Torque Robot Joint Actuator for Advanced Motion Control
The HAITAI HT8108 Series Robot Joint Actuator is a high-performance integrated servo actuator engineered for humanoid robots, quadruped robots, robotic arms, exoskeletons, and advanced automation systems. Combining a brushless DC servo motor, precision planetary gearbox, magnetic encoder, and CAN bus servo driver into one compact module, the HT8108 delivers high torque density, exceptional positioning accuracy, and reliable closed-loop motion control.
Available in HT8108-J6 (6:1) and HT8108-J9 (9:1) gear ratios, the actuator allows designers to select either higher speed or higher output torque according to different robotic joint requirements.
Supporting MIT-compatible CAN communication, torque control, velocity control, and position control, the HT8108 integrates easily into modern robotic platforms requiring responsive and precise motion.
Key Features
- Integrated Brushless Servo Motor
- Precision Planetary Gear Reducer
- Integrated CAN Servo Driver
- MIT-Compatible CAN Communication
- High Torque Density Design
- Compact Lightweight Construction
- Closed-Loop Servo Control
- 12-bit High Resolution Encoder
- Low Backlash Planetary Gearbox (<6 arcmin)
- Steel Planetary Gears
- Supports Independent External Encoder
- Designed for Humanoid Robot Joints
- Ideal for Robot Dogs, Robotic Arms & Exoskeletons

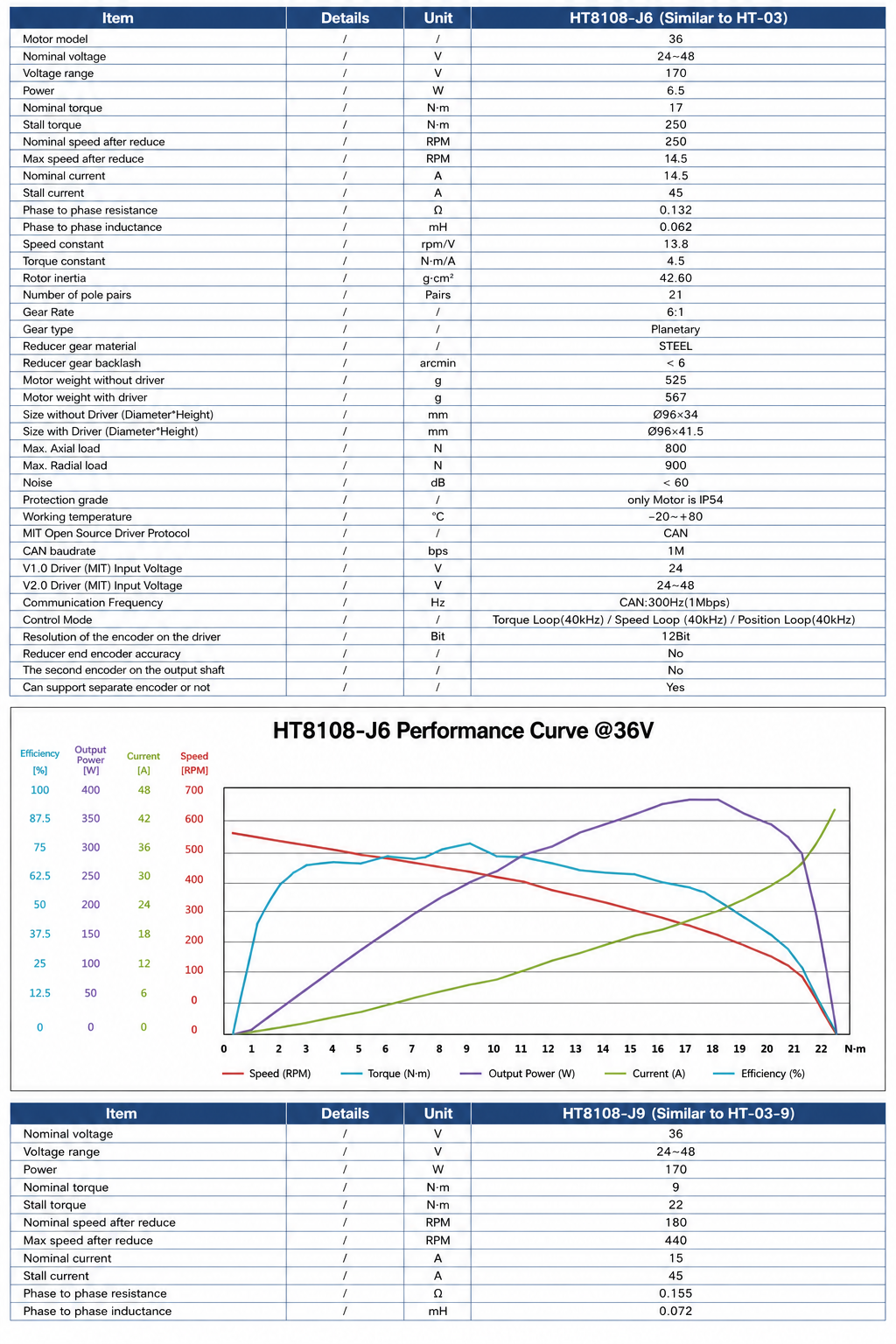

Specifications
HT8108-J6
| Parameter | Specification |
|---|---|
| Model | HT8108-J6 |
| Rated Voltage | 36V |
| Voltage Range | 24–48V |
| Rated Power | 170W |
| Rated Torque | 6.5 N·m |
| Stall Torque | 17 N·m |
| Rated Speed | 250 RPM |
| Maximum Speed | 650 RPM |
| Rated Current | 14.5A |
| Stall Current | 45A |
| Gear Ratio | 6:1 |
| Gear Type | Planetary |
| Gear Material | Steel |
| Gear Backlash | <6 arcmin |
| Pole Pairs | 21 |
| Torque Constant | 0.45 N·m/A |
| Speed Constant | 13.8 rpm/V |
| Weight (Motor) | 525 g |
| Weight (Driver Version) | 567 g |
| Size (Motor) | Ø96 × 34 mm |
| Size (Driver Version) | Ø96 × 41.5 mm |
| Max Axial Load | 800 N |
| Max Radial Load | 900 N |
| Protection | IP54 (Motor Only) |
| Communication | CAN |
| Baud Rate | 1 Mbps |
| Encoder Resolution | 12-bit |
| Control Modes | Torque / Speed / Position |
HT8108-J9
| Parameter | Specification |
|---|---|
| Model | HT8108-J9 |
| Rated Voltage | 36V |
| Voltage Range | 24–48V |
| Rated Power | 170W |
| Rated Torque | 9 N·m |
| Stall Torque | 22 N·m |
| Rated Speed | 180 RPM |
| Maximum Speed | 440 RPM |
| Rated Current | 15A |
| Stall Current | 45A |
| Gear Ratio | 9:1 |
| Gear Type | Planetary |
| Gear Material | Steel |
| Gear Backlash | <6 arcmin |
| Pole Pairs | 21 |
| Torque Constant | 0.60 N·m/A |
| Speed Constant | 9.357 rpm/V |
| Weight (Motor) | 525 g |
| Weight (Driver Version) | 567 g |
| Size (Motor) | Ø96 × 34 mm |
| Size (Driver Version) | Ø96 × 41.5 mm |
| Max Axial Load | 800 N |
| Max Radial Load | 900 N |
| Protection | IP54 (Motor Only) |
| Communication | CAN |
| Baud Rate | 1 Mbps |
| Encoder Resolution | 12-bit |
| Control Modes | Torque / Speed / Position |
Applications
- Humanoid Robot Joints
- Quadruped Robot Legs
- Robotic Arms
- Exoskeleton Systems
- Biped Robots
- Industrial Robot Joints
- Autonomous Mobile Robots (AMR)
- AGV Steering Systems
- Rehabilitation Robots
- Research Robotics Platforms
- Precision Motion Systems
- Automation Equipment
Package Includes
- 1 × HT8108 Robot Joint Actuator
- Integrated Planetary Gearbox
- Integrated Magnetic Encoder
- Driver Version (if selected)
