Description

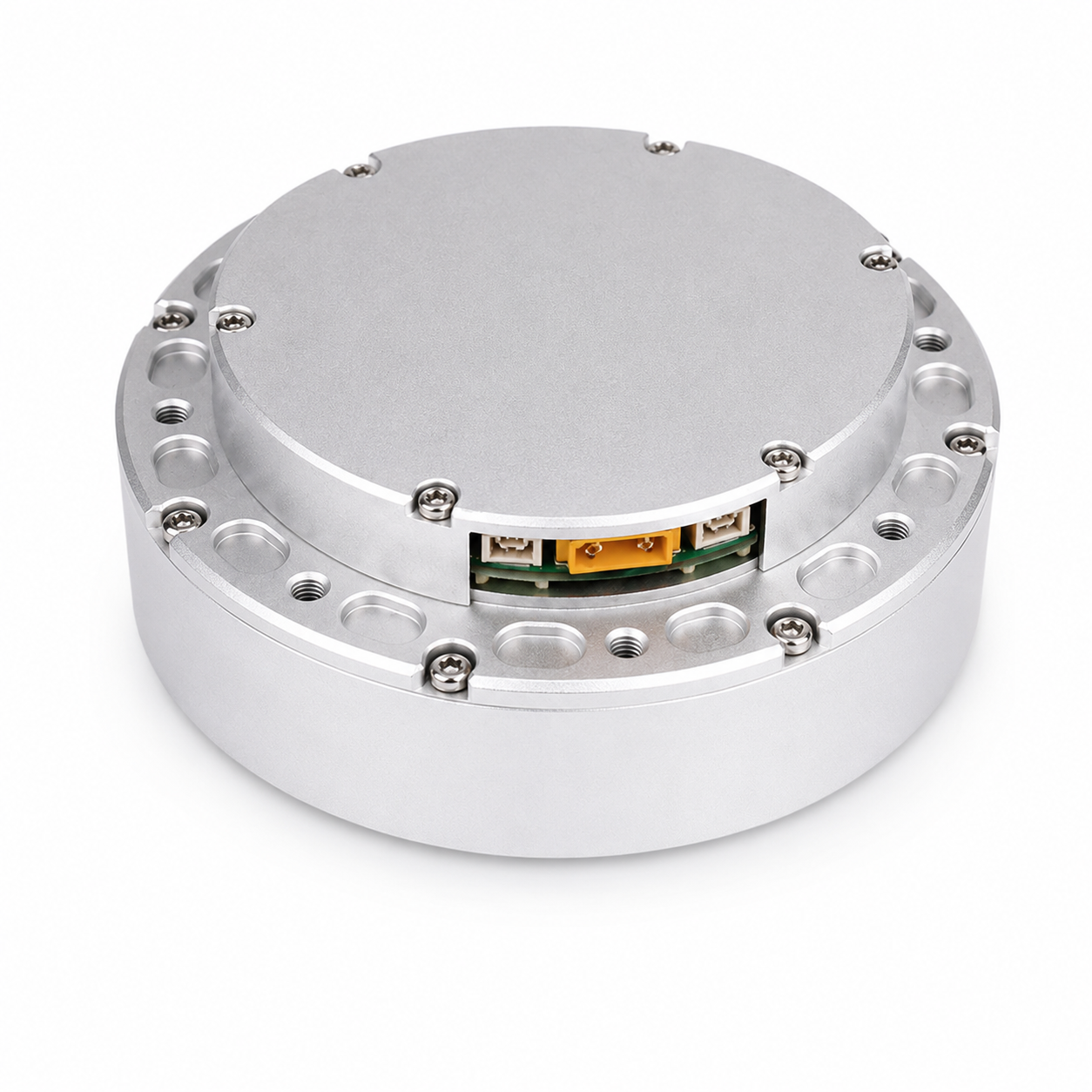

High-Torque Integrated Servo Actuator for Humanoid Robots & Industrial Robotics
The HAITAI HT8115 Series Robot Joint Actuator is a high-performance integrated servo solution developed for demanding robotic applications requiring exceptional torque density, precision motion control, and compact mechanical integration. Combining a high-efficiency brushless servo motor, precision planetary gearbox, high-resolution encoder, and intelligent CAN servo driver, the HT8115 provides outstanding dynamic performance for next-generation robotic systems.
Available in HT8115-J6 (6:1) and HT8115-J9 (9:1) gear ratios, the HT8115 Series supports a wide range of robotic applications including humanoid robots, quadruped robots, collaborative robots, robotic manipulators, exoskeleton systems, autonomous mobile robots, and intelligent automation equipment.
With support for MIT-compatible CAN communication, multiple servo control modes, and a compact lightweight design, the HT8115 offers reliable closed-loop motion control while simplifying mechanical and electrical integration.
Compared with the HT8108 Series, the HT8115 is optimized for applications requiring higher output torque and increased load capacity, making it well suited for larger robotic joints such as hips, knees, shoulders, and heavy-duty articulated mechanisms.
Features
- High Torque Integrated Robot Joint Actuator
- Brushless DC Servo Motor
- Precision Planetary Gear Reducer
- Integrated CAN Servo Driver
- MIT-Compatible Communication Protocol
- High Strength Steel Planetary Gears
- Low Backlash (<6 arcmin)
- High Dynamic Response
- Closed-Loop Position, Velocity and Torque Control
- Compact Lightweight Aluminum Housing
- Supports Independent Encoder
- Designed for Humanoid & Quadruped Robots
- Ideal for High Load Robotic Joints

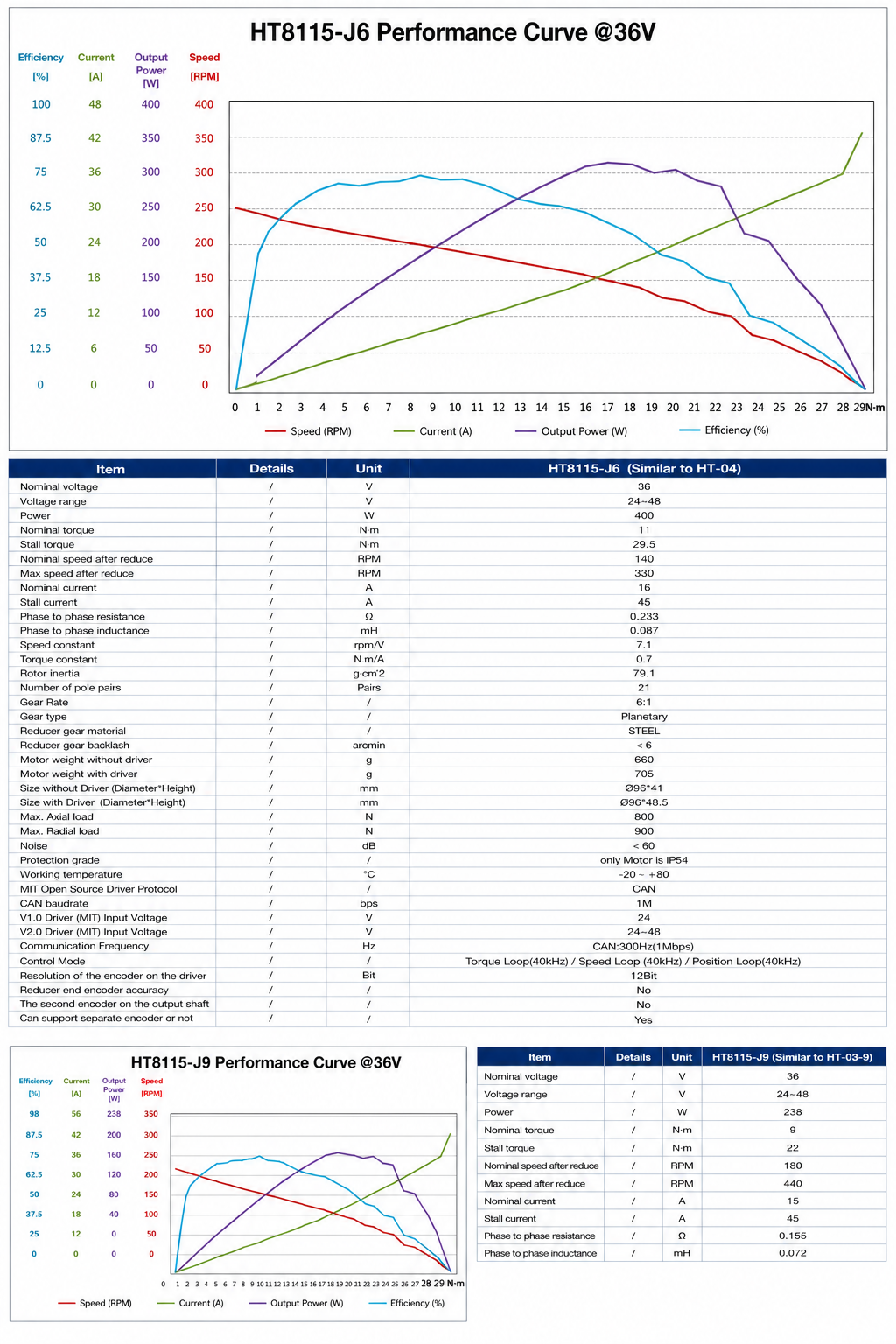

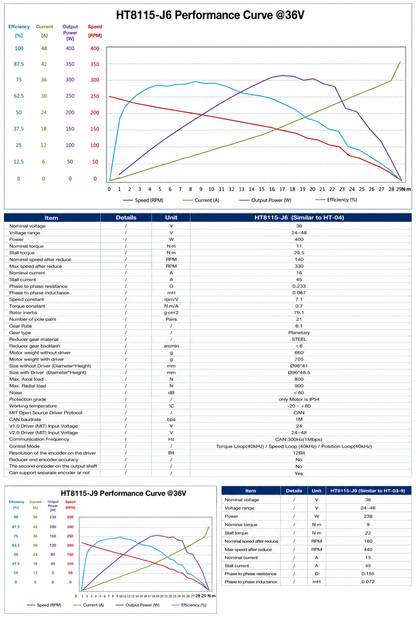

Specifications
HT8115-J6
| Parameter | Specification |
|---|---|
| Model | HT8115-J6 |
| Motor Type | Brushless DC Servo Actuator |
| Rated Voltage | 36V |
| Voltage Range | 24–48V |
| Rated Power | 160W |
| Rated Torque | 10 N·m |
| Peak Torque | 25 N·m |
| Rated Speed | 165 RPM |
| Maximum Speed | 330 RPM |
| Rated Current | 12A |
| Peak Current | 45A |
| Gear Ratio | 6:1 |
| Gearbox | Precision Planetary |
| Gear Material | Steel |
| Backlash | <6 arcmin |
| Pole Pairs | 21 |
| Encoder | 12-bit |
| Communication | CAN |
| Baud Rate | 1 Mbps |
| Control Modes | Torque / Velocity / Position |
| Weight (Motor) | 660 g |
| Weight (Driver Version) | 705 g |

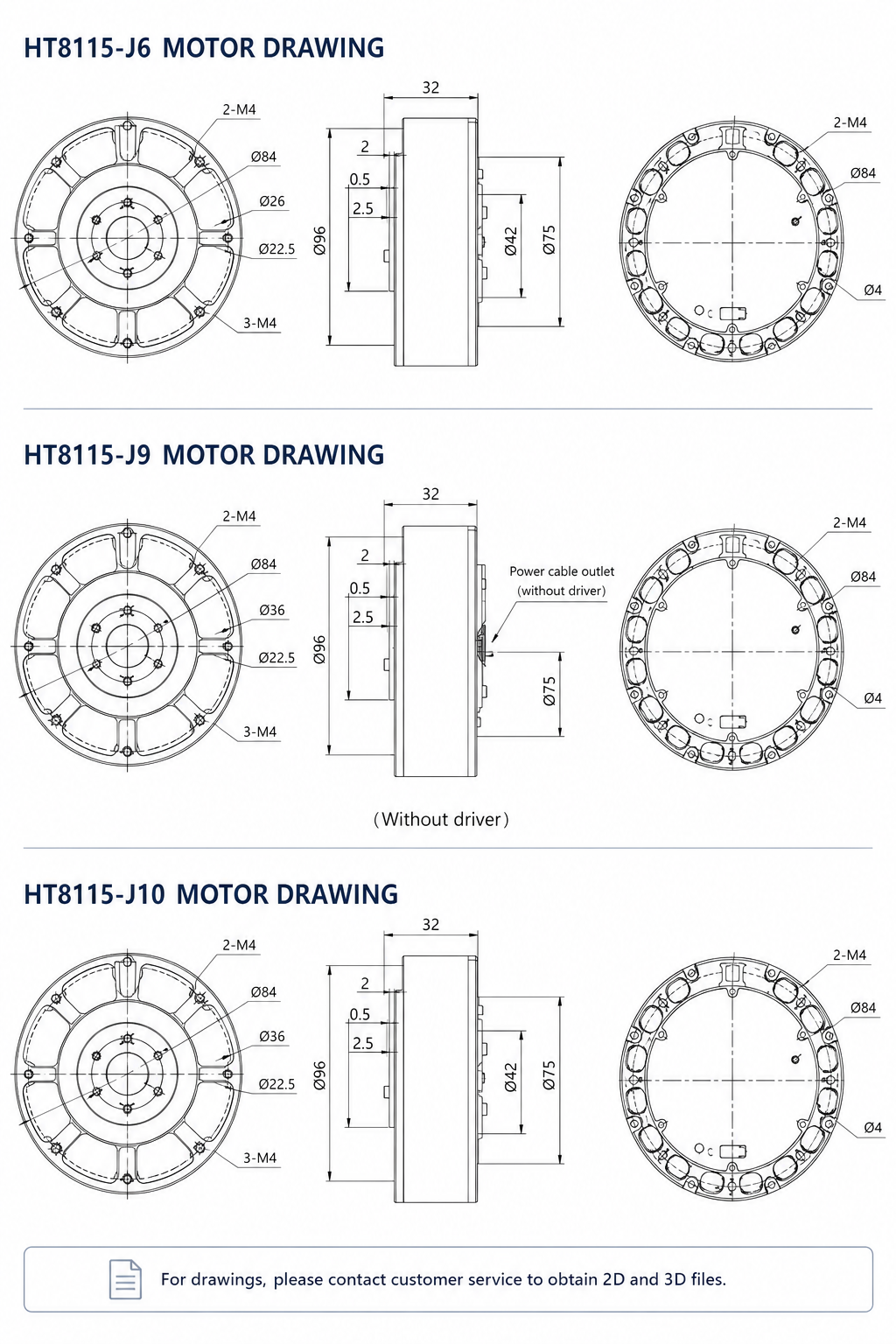

| Motor Size | Ø96 × 41 mm |
| Driver Version Size | Ø96 × 48.5 mm |
| Maximum Axial Load | 800 N |
| Maximum Radial Load | 900 N |
| Protection Rating | IP54 (Motor Only) |
| Operating Temperature | -20°C to +80°C |
HT8115-J9
| Parameter | Specification |
|---|---|
| Model | HT8115-J9 |
| Motor Type | Brushless DC Servo Actuator |
| Rated Voltage | 36V |
| Voltage Range | 24–48V |
| Rated Power | 160W |
| Rated Torque | 14 N·m |
| Peak Torque | 35 N·m |
| Rated Speed | 110 RPM |
| Maximum Speed | 220 RPM |
| Rated Current | 13A |
| Peak Current | 45A |
| Gear Ratio | 9:1 |
| Gearbox | Precision Planetary |
| Gear Material | Steel |
| Backlash | <6 arcmin |
| Pole Pairs | 21 |
| Encoder | 12-bit |
| Communication | CAN |
| Baud Rate | 1 Mbps |
| Control Modes | Torque / Velocity / Position |
| Weight (Motor) | 660 g |
| Weight (Driver Version) | 705 g |
| Motor Size | Ø96 × 41 mm |
| Driver Version Size | Ø96 × 48.5 mm |
| Maximum Axial Load | 800 N |
| Maximum Radial Load | 900 N |
| Protection Rating | IP54 (Motor Only) |
| Operating Temperature | -20°C to +80°C |
Applications
- Humanoid Robot Hip Joints
- Humanoid Robot Knee Joints
- Robot Shoulder Actuators
- Robot Elbow Joints
- Quadruped Robot Legs
- Robotic Arms
- Collaborative Robots (Cobots)
- Exoskeleton Systems
- AGV & AMR Motion Systems
- Industrial Automation
- Research & Educational Robotics
- Intelligent Motion Platforms
Package Includes
- 1 × HAITAI HT8115 Robot Joint Actuator
- Integrated Planetary Gearbox
- Integrated Encoder
- Integrated CAN Driver (Driver Version Only)
FAQ
What is the difference between HT8115-J6 and HT8115-J9?
HT8115-J6 features a 6:1 planetary gearbox for higher output speed, while HT8115-J9 uses a 9:1 gearbox to provide greater output torque for heavier robotic joints.
Does the actuator support closed-loop control?
Yes. The HT8115 integrates a high-resolution encoder and supports closed-loop torque, speed, and position control.
Which communication interface is supported?
The integrated driver uses CAN Bus communication with MIT-compatible protocol.
Is the driver included?
Two configurations are available:
- Motor + Gearbox
- Motor + Gearbox + Encoder + Driver (CAN)
What robots is HT8115 suitable for?
Humanoid robots, quadruped robots, robotic manipulators, collaborative robots, exoskeletons, and intelligent automation equipment.
