Overview

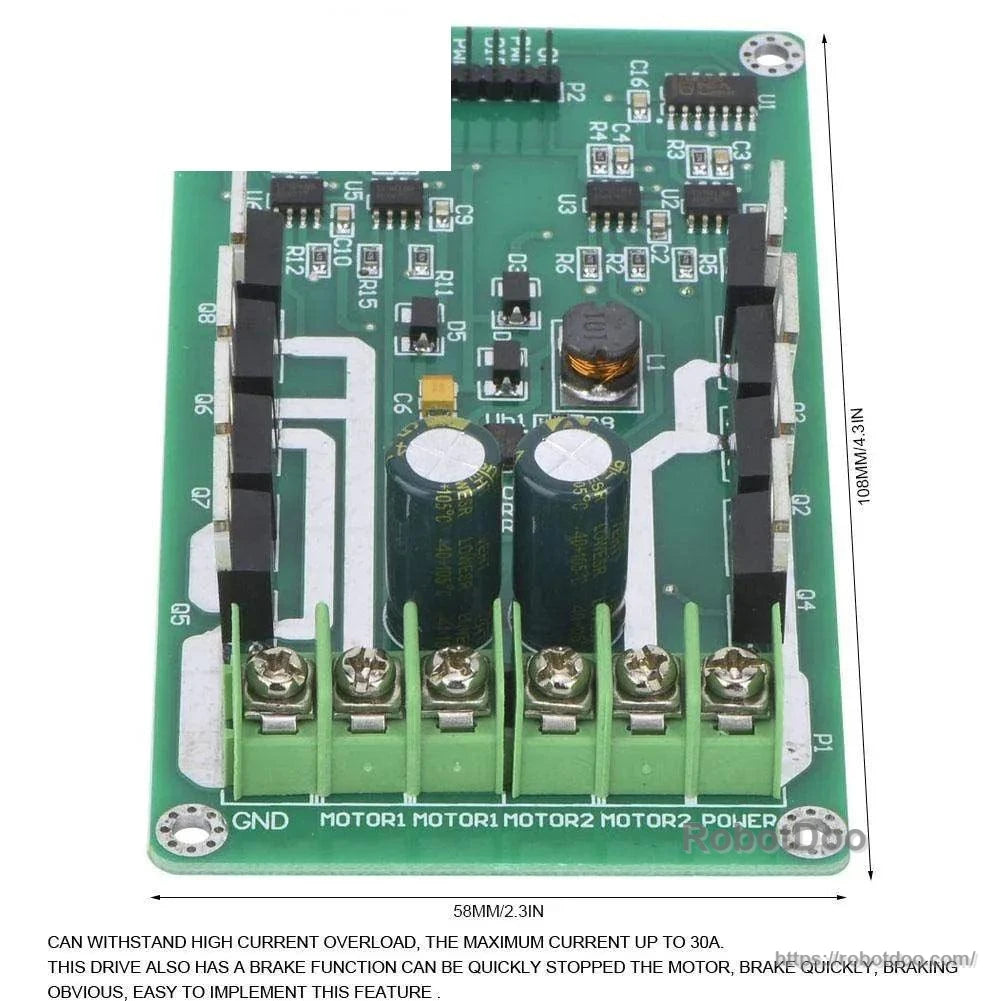

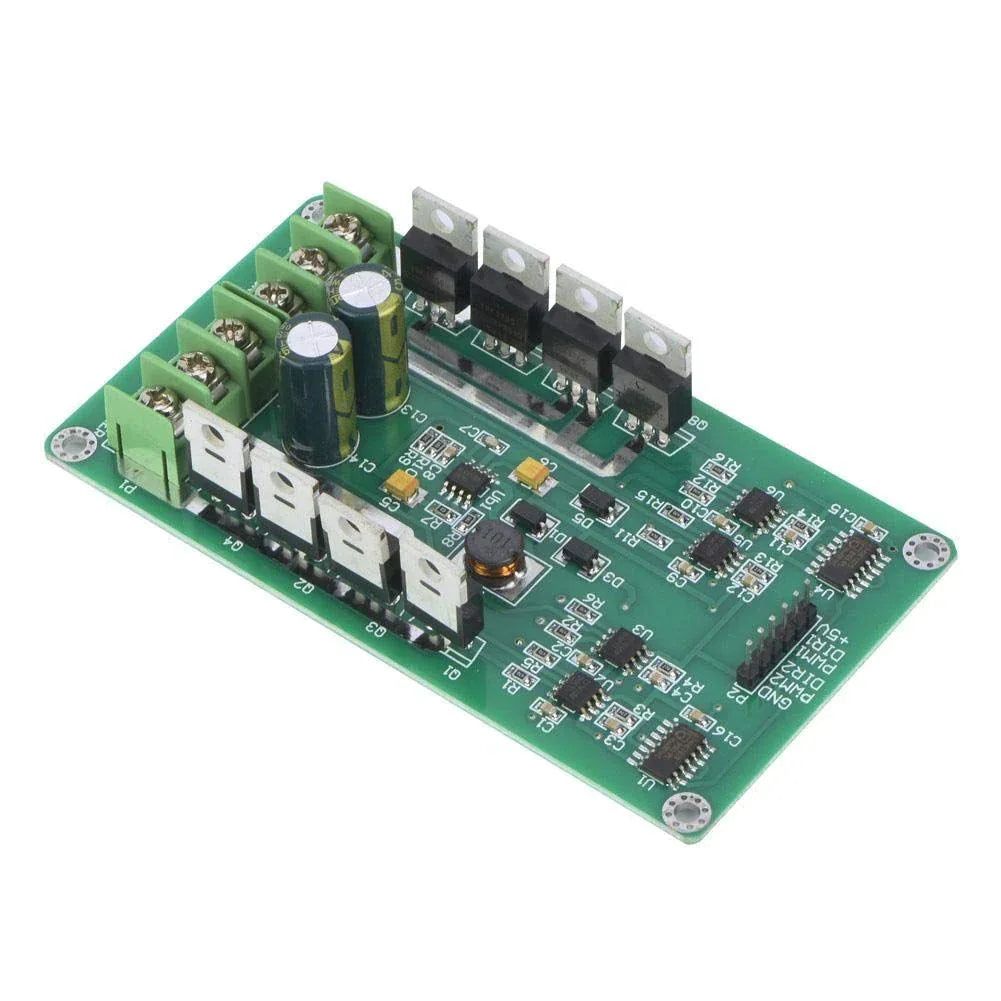

This Industrial Grade High Power Double Motor Driver Module is designed for controlling two DC motors through separate MOTOR1 and MOTOR2 connections. It uses DIR and PWM control signals for motor direction, speed control, and braking in DC motor control circuits.
Key Features
- Dual motor outputs: MOTOR1 and MOTOR2

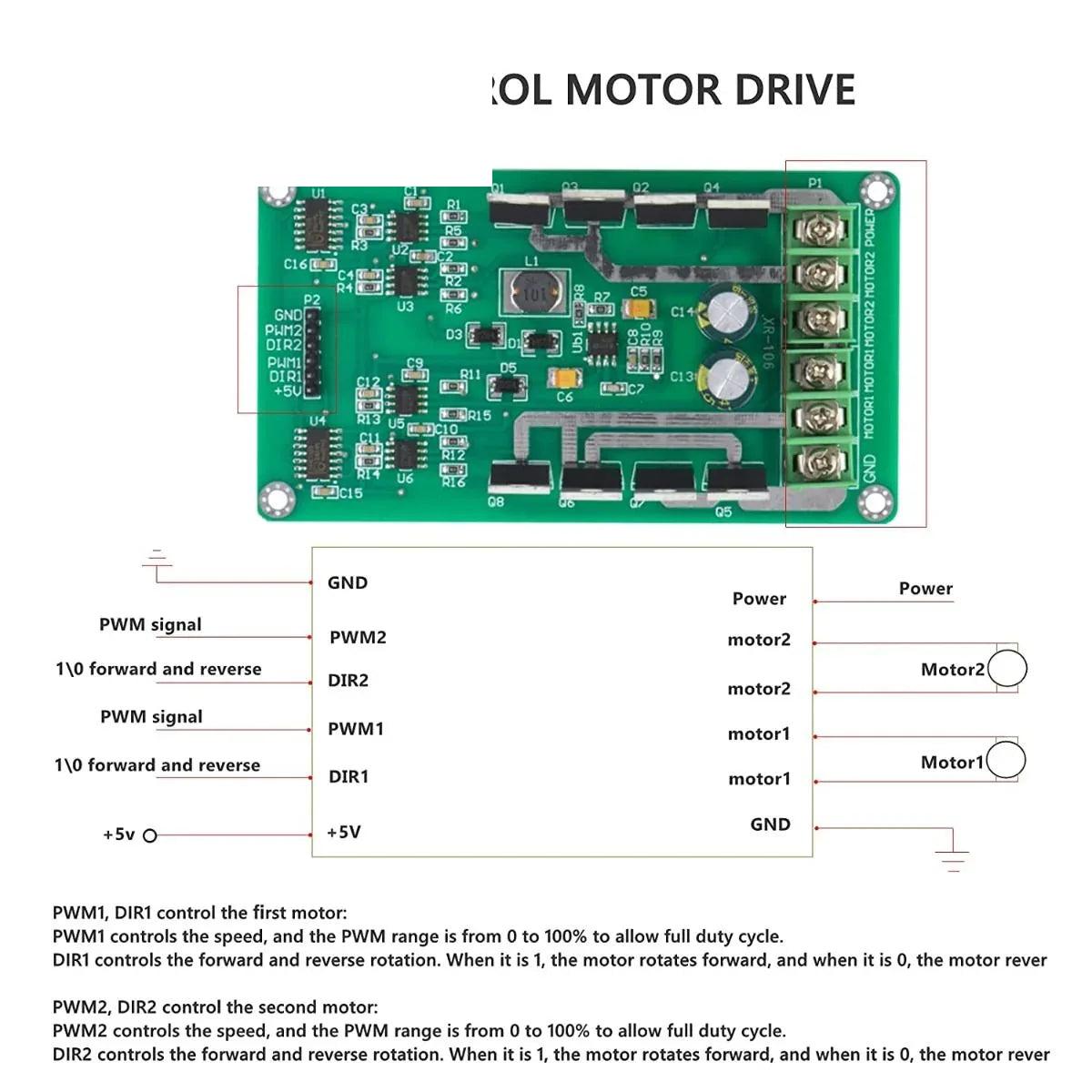

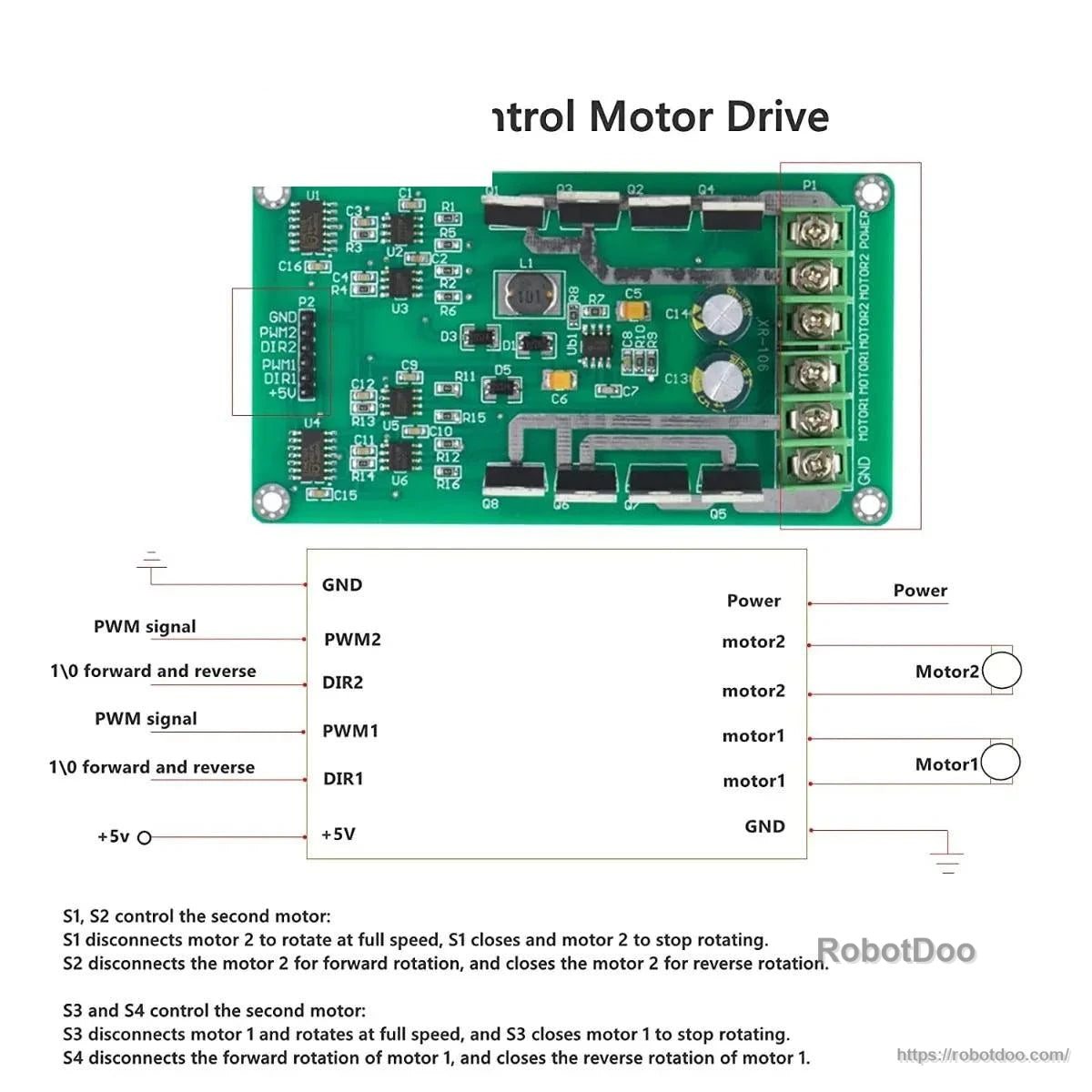

- DIR and PWM control interface

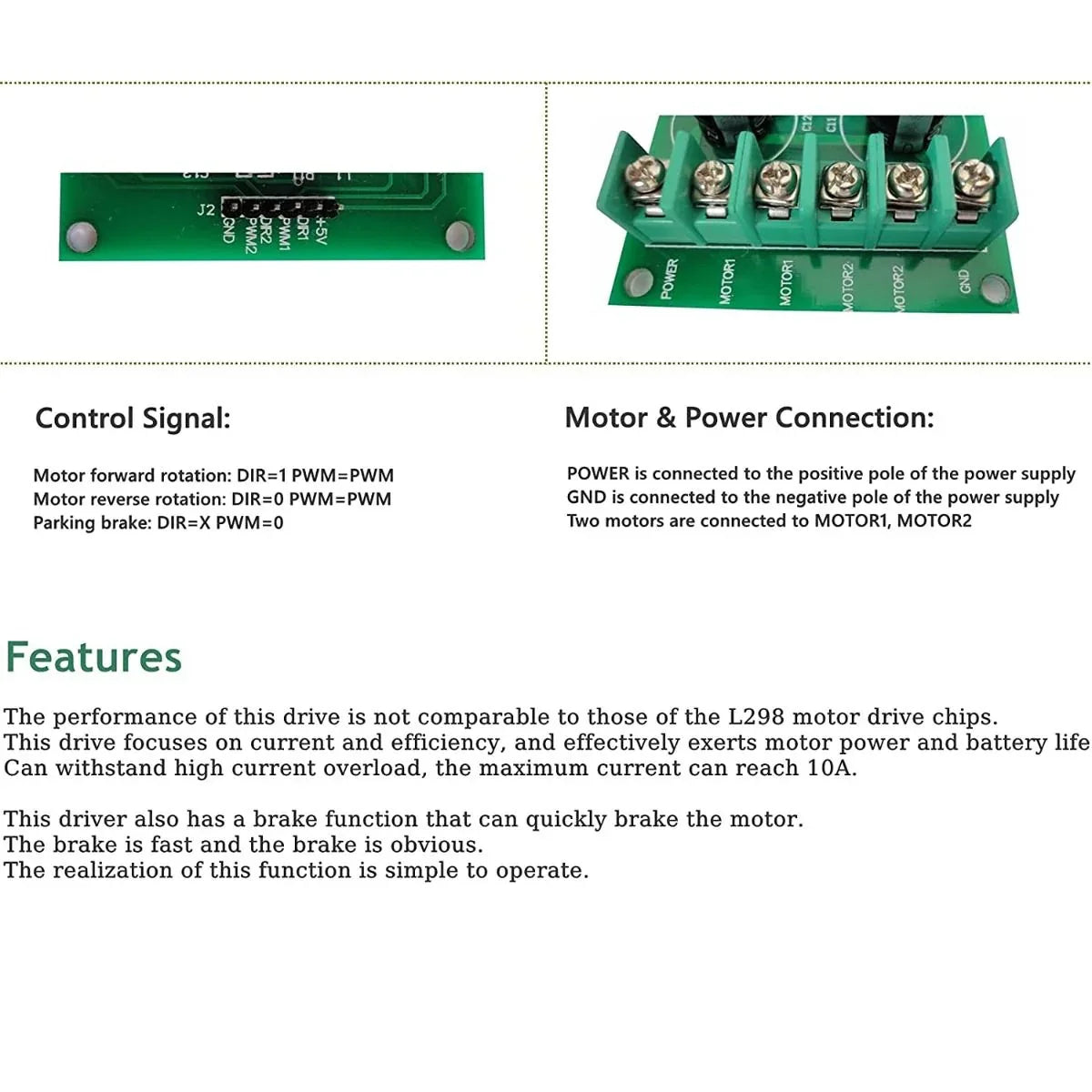

- Forward operation: DIR=1, PWM=PWM
- Reverse operation: DIR=0, PWM=PWM
- Brake control: DIR=X, PWM=0
- Power terminals for positive supply and GND
Specifications
| Product type | Double motor driver module |
| Rated voltage | 3V-36V |
| Rated current | 15A |
| Peak current | 30A |
| Motor connections | MOTOR1, MOTOR2 |
| Control signals | DIR, PWM |
Applications
Suitable for DC motor control circuits and electronics design projects, including student robotics and smart car projects. For product support, contact RobotDoo.
