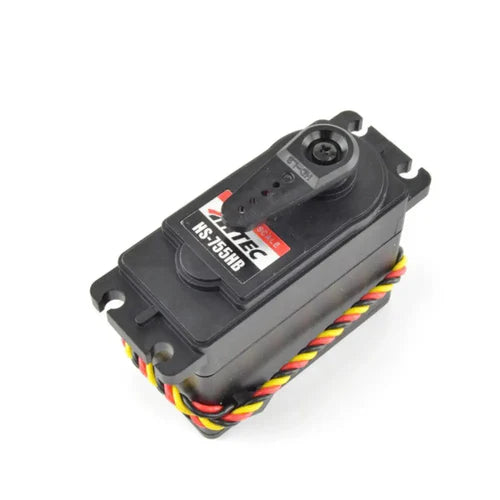

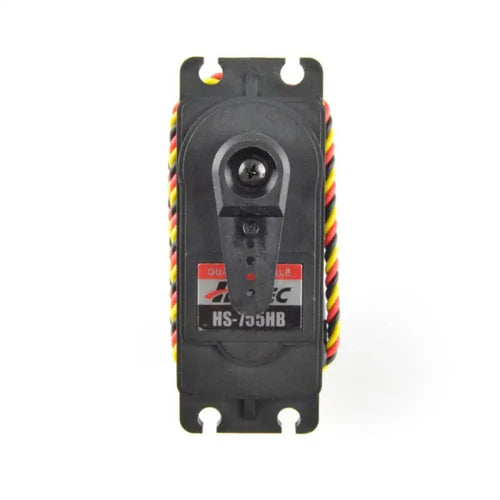

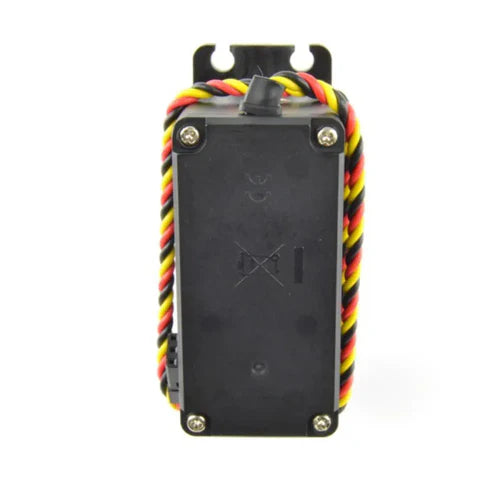

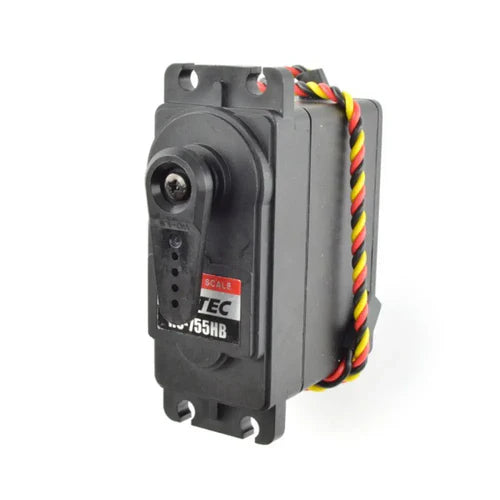

Hitec HS-755HB Giant Scale Servo Motor – Karbonite Gears, 13.2 kg-cm Torque, 0.23 sec/60°, Heavy-Duty Performance for Large-Scale RC Models

Product Description
The Hitec HS-755HB Giant Scale Servo Motor is designed for applications requiring high torque, durability, and precision. Replacing the popular HS-700, this upgraded model delivers stronger torque and improved overall performance.

Equipped with Hitec’s revolutionary Karbonite gear train, the HS-755HB offers gear strength four times greater than standard nylon gears, ensuring exceptional wear resistance even after hundreds of thousands of cycles. This makes it ideal for large-scale RC models, robotics, and heavy-duty control systems where reliability is critical.

The servo’s precise movement is backed by a speed of 0.23 sec/60°, while its 13.2 kg-cm (183 oz-in) torque at 6V provides the muscle to handle demanding loads. The robust build and giant scale size (59 x 29 x 50 mm) make it perfectly suited for large control surfaces or high-stress actuation tasks.

Specifications

• Speed (sec/60°): 0.23

• Torque @ 6V: 13.2 kg-cm / 183 oz-in

• Dimensions: 59 x 29 x 50 mm

• Weight: 110 g / 3.88 oz

• Gear Type: Karbonite (4× stronger than standard nylon)

• Applications: Large-scale RC planes, boats, cars, robotics, and industrial control projects

What’s Included

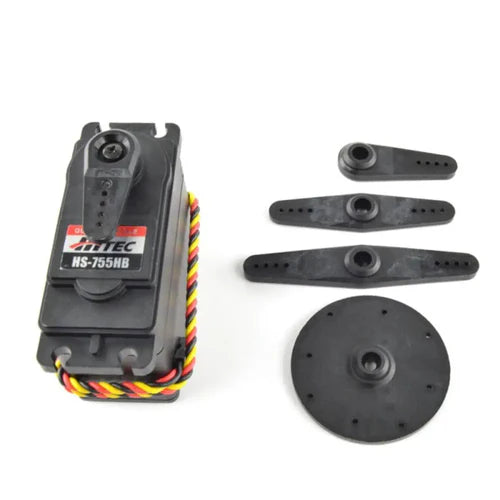

• 1 × Hitec HS-755HB Giant Scale Servo Motor

PDF File

• Datasheet
