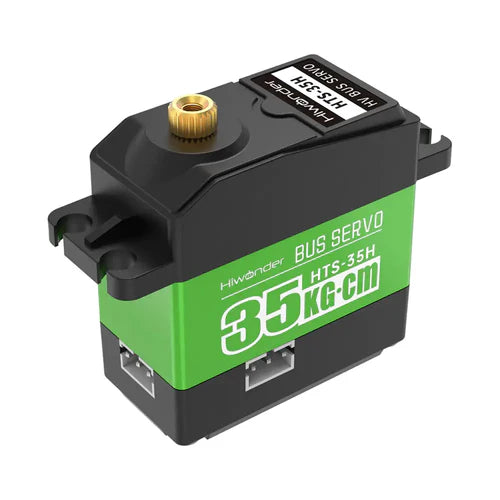

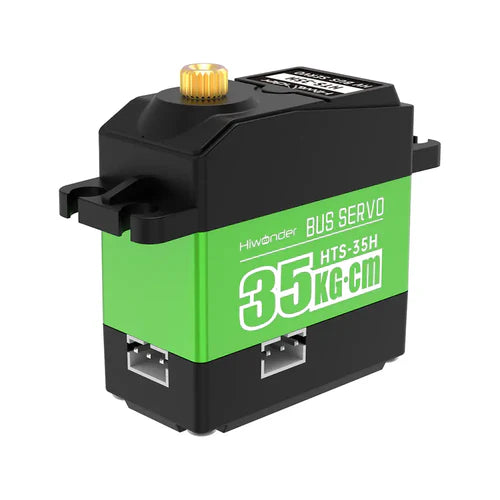

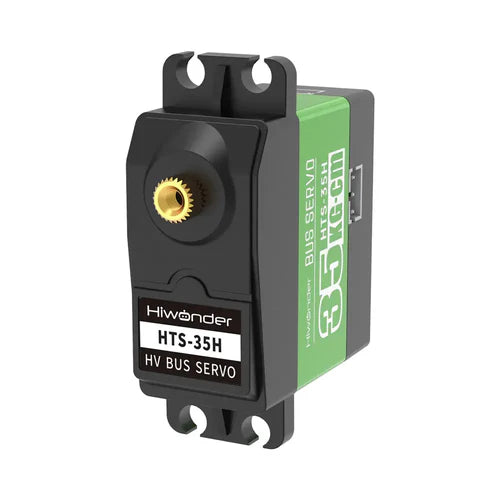

Hiwonder HTS 35H High Voltage Serial Bus Servo – 35KG Torque, All-Metal Gears, Data Feedback, Compatible with Robots, RC Arms, and Bionic Applications

Product Description:
The Hiwonder HTS 35H High Voltage Bus Servo delivers high-precision motion control with robust torque capabilities, making it perfect for advanced robotic applications, bionic robots, and custom RC projects. Engineered with all-metal gears, this intelligent servo supports serial port commands, allowing multiple servos to be controlled simultaneously. Its versatile compatibility ensures seamless operation via phone, handle, or computer control.

Equipped with temperature, voltage, and position feedback, the HTS 35H provides accurate monitoring and reliable performance under high-demand conditions. It offers a wide 0–240° rotation range and precise control with 0.2° accuracy, enabling smooth and responsive motion for robotic arms, automation systems, and more.

Key Features:

• User-friendly ports for easy integration

• High precision and 35KG torque output

• Supports phone, handle, and computer control

• Real-time temperature, voltage, and position feedback

• All-metal gears for durability and reliability

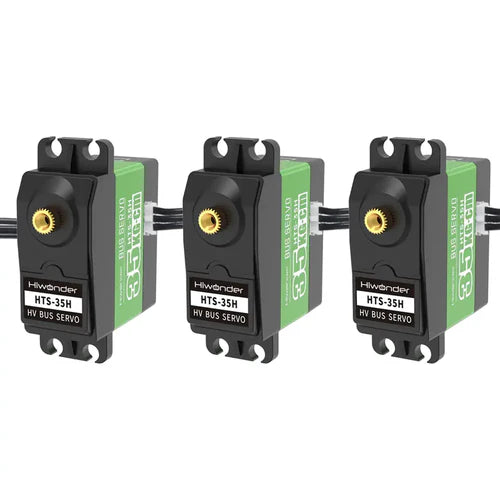

• Serial bus control for simultaneous multi-servo operation

• Dual working modes: Servo Mode and Deceleration Motor Mode

Specifications:

• Name: HTS 35H Serial Bus Intelligent Servo

• Weight: 64 g

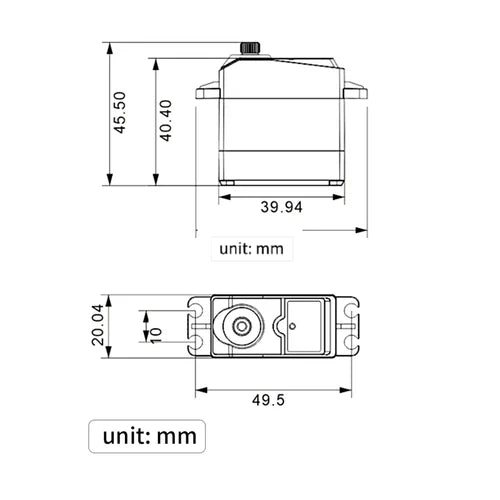

• Dimensions: 54.38 × 20.14 × 45.5 mm

• Working Voltage: 9–12.6 V

• Speed: 0.18 sec/60° at 11.1 V

• Torque: 35 kg·cm at 11.1 V

• Rotation: 0–240°

• No Load Current: 100 mA

• Stalled Current: 3 A

• Servo Accuracy: 0.2°

• Control Method: UART Serial Command

• Communication Baud Rate: 115200

• Servo ID: 0–253 user settable (ID 1 default)

• Data Feedback: Temperature, Voltage, Position

• Gear Material: Metal

• Wire Length: 20 cm

• Connector: PH2.0 3P

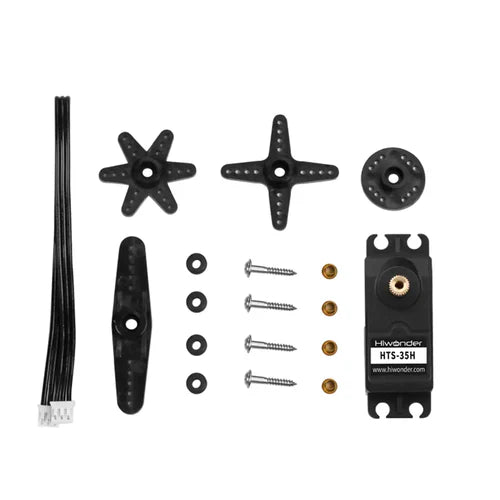

What’s Included:

• 1 × HTS 35H Serial Bus Servo

• 1 × Screw Bag

• 4 × Plastic Servo Horn

• 1 × Servo Wire

Ideal For:

• Robotic arms and automation systems

• Bionic robot development

• RC vehicles and advanced hobby projects

• Multi-servo robotic applications requiring precise feedback
