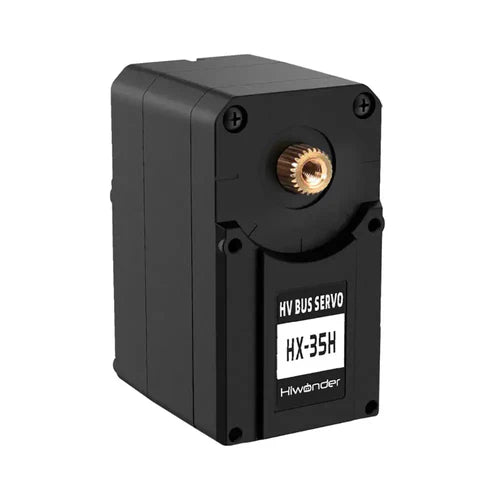

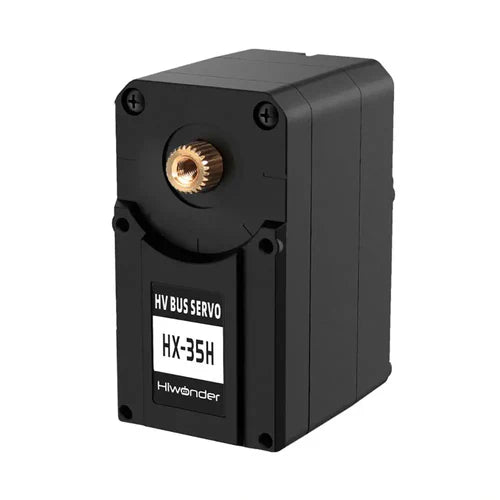

Hiwonder HX 35H Serial Bus High Voltage Servo w/ Double Shaft, 35KG Torque & Data Feedback for Robotics Projects

Description:

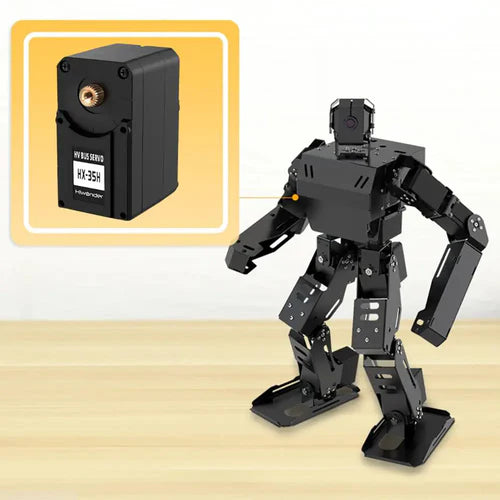

The Hiwonder HX 35H Serial Bus High Voltage Servo is a high-performance servo designed for robotics enthusiasts and developers seeking precision, power, and reliability. Delivering 35kg.cm strong torque and ultra-accurate angle control, this servo is ideal for bionic robots, robotic arms, and complex mechanical systems. Its double-shaft design enhances flexibility for diverse robotic applications.

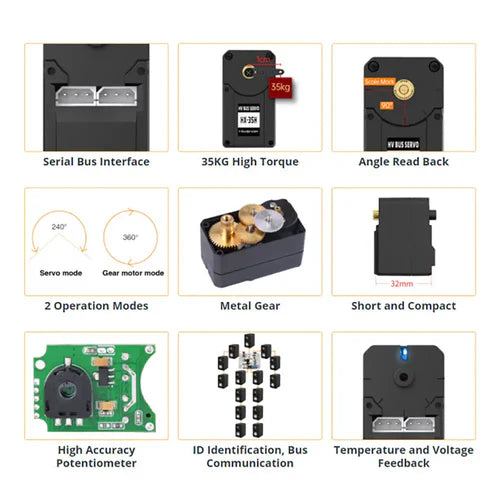

Key Features:

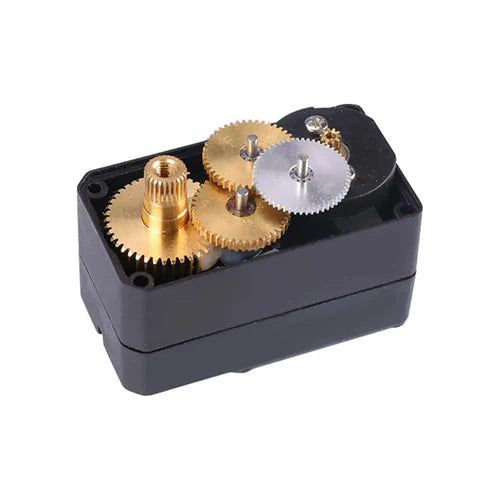

• High Precision & Torque: Equipped with a high-accuracy potentiometer and durable metal gears for precise movements, high torque output, and reduced noise.

• Advanced Feedback Functions: Supports temperature, voltage, and position feedback, enabling safer and smarter operation.

• Dual Working Modes: Operates in both servo mode for angle control and gear motor mode for continuous rotation applications.

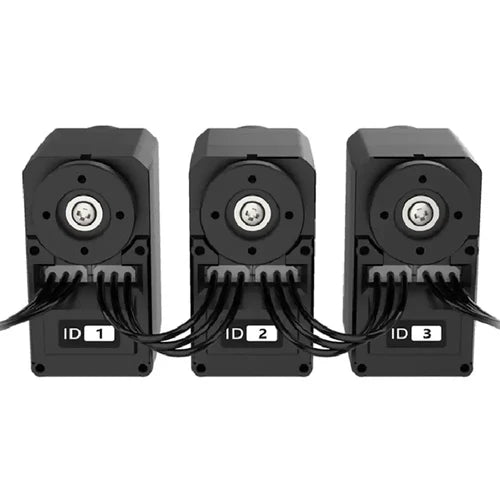

• Clean Serial Bus Interface: Simplifies wiring for multiple servos, maintaining a clean, organized setup for your robot projects.

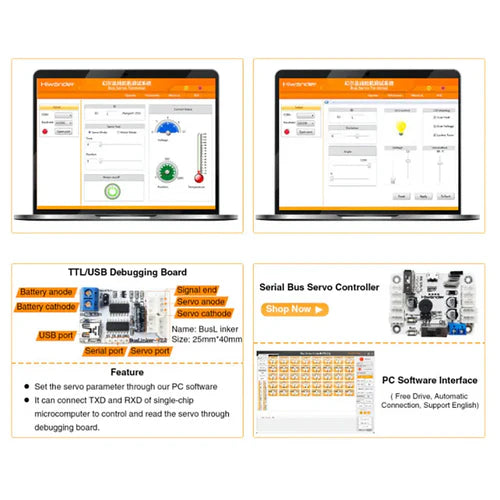

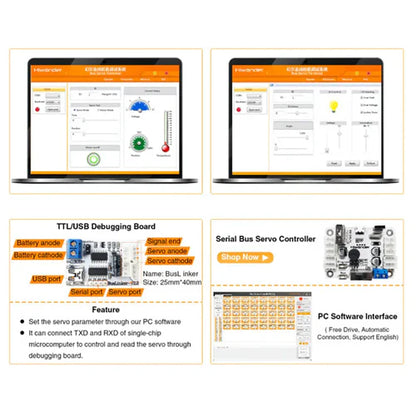

• Wide Compatibility: Includes source code and support for 51 MCU, Arduino, STM32, and Raspberry Pi platforms. Can be controlled via TTL/USB Debugging Board or Serial Bus Servo Controller.

• Reliable Protection: Built-in safeguards prevent stalling and overheating, ensuring long-term durability.

Specifications:

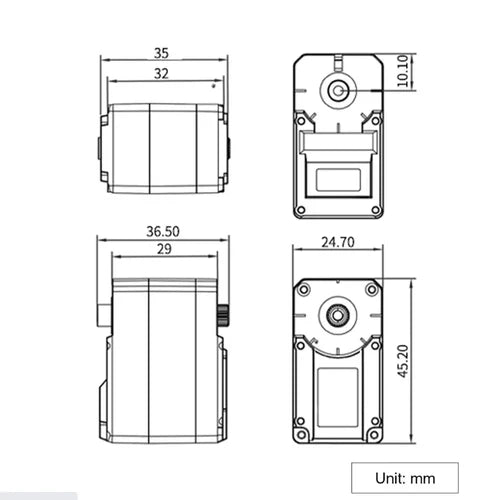

• Dimensions: 45.2 x 24.7 x 35 mm

• Weight: 52g

• Working Voltage: 9–12.6V

• Rotation Speed: 0.18 sec/60° at 11.1V

• Torque: 25kg.cm nominal, 35kg.cm max at 11.1V

• Rotation Range: 0–240°

• Servo Accuracy: 0.3°

• No Load Current: 100mA, Stall Current: 3A

• Control Method: UART Serial Command, Baud Rate: 115200

• Angle Read Back & Data Feedback: Supported

• Gear Material: Metal

• Connector: 5264 3P

• Servo Wire Length: 20cm

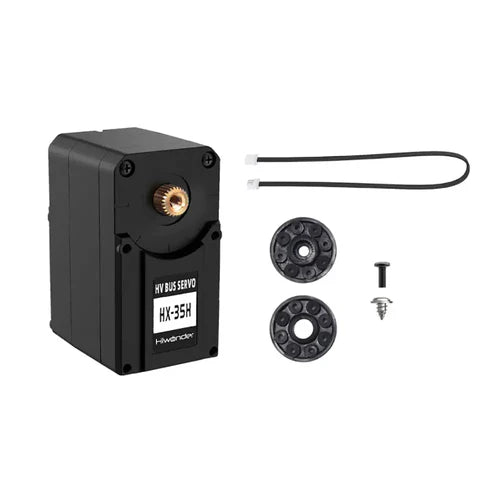

What’s Included:

• 1x HX 35H Servo

• 1x Plastic Main Servo Horn

• 1x Plastic Assistant Servo Horn

• 1x Servo Wire (20cm)

• 1x Screw Bag
