Product Description:

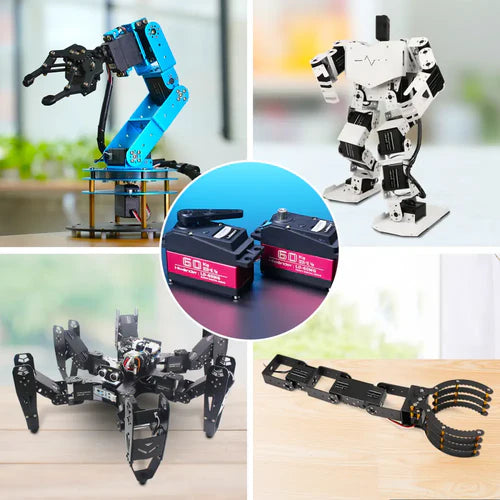

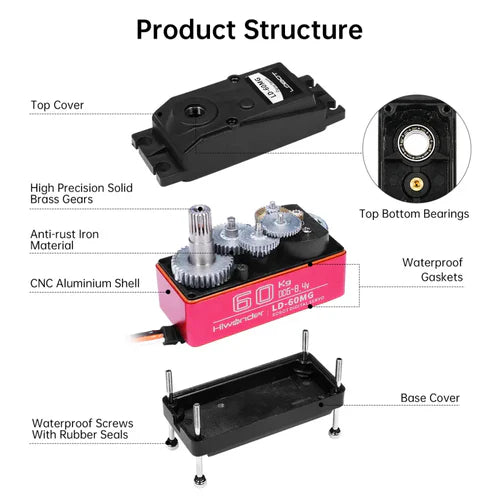

The Hiwonder LD-60MG Digital Servo is a high-performance, single-shaft intelligent servo designed for robotics, RC cars, and robotic arms. With a maximum torque of 60KG.cm, this servo delivers precise control, durability, and reliability for demanding applications. Its fully sealed structure ensures IP67 waterproof protection, while the red oxidized metal shell provides excellent heat dissipation and a sleek appearance.
Key Features:
• High-Quality Metal Motor: Supports higher payloads, withstands impacts, enhances torque, and extends servo lifespan.
• Red Oxidized Metal Shell: Ensures effective heat dissipation and adds a modern, stylish look.

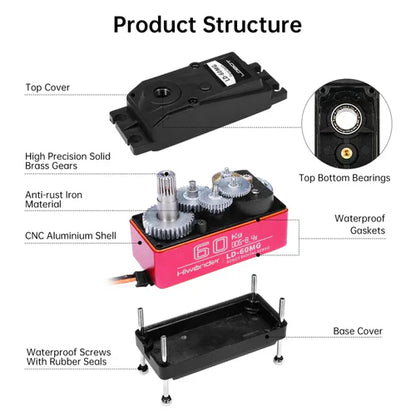

• Stainless Steel Gear: Durable gears provide long-lasting performance and reliable operation.
• 180° Precision Control: High-accuracy potentiometer with PWM pulse width modulation allows fine-tuned positioning.
• 60KG High-Torque Capability: Ideal for robots and robotic arms requiring strong, precise performance.

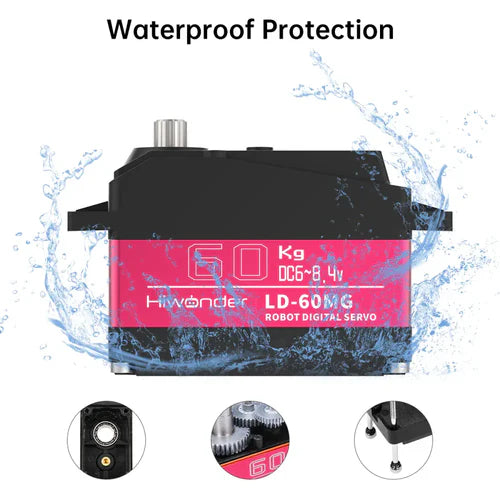

• IP67 Waterproof Standard: Fully sealed structure protects against moisture in everyday environments.

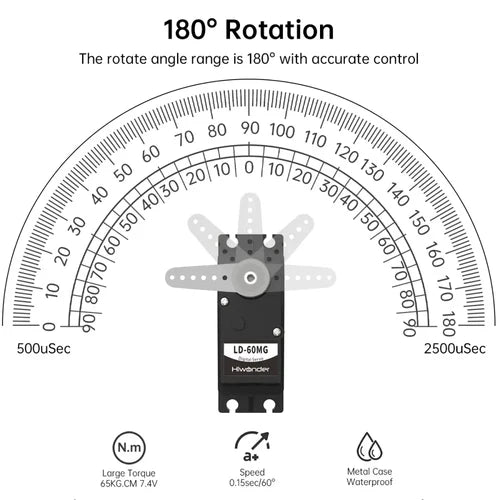

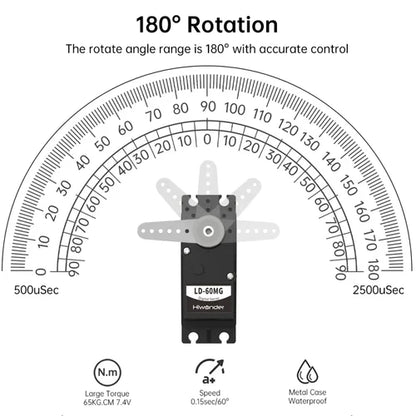

• 180° Rotation: Controllable range of 0°–180° with excellent linearity; can rotate 360° when power is off.

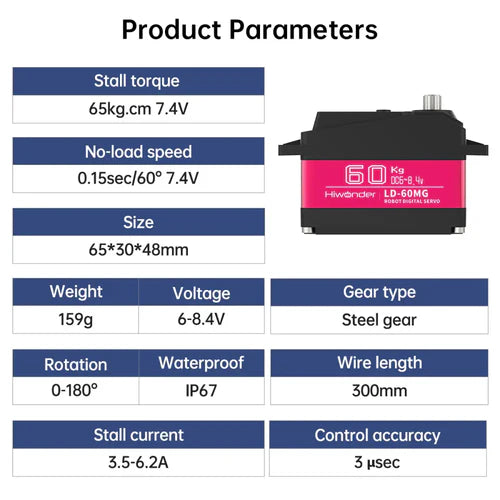

Specifications:
• Weight: 159g

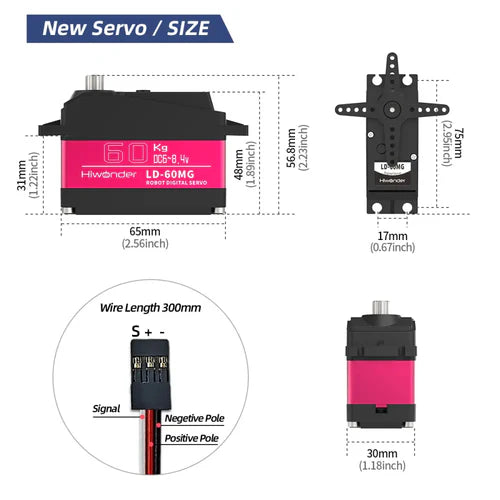

• Dimensions: 653048mm
• Working Voltage: 6–8.4V
• Stall Current: 3.5–6.2A
• No-Load Speed: 0.17 sec/60° @6V, 0.15 sec/60° @7.4V, 0.13 sec/60° @8.4V
• Stall Torque: 58kg.cm @6V, 65kg.cm @7.4V, 70kg.cm @8.4V
• Gear Type: Steel
• Standby Current: 4–6mA
• Control Angle: 180°
• Control Accuracy: 3 μsec
• Wire Length: 300mm

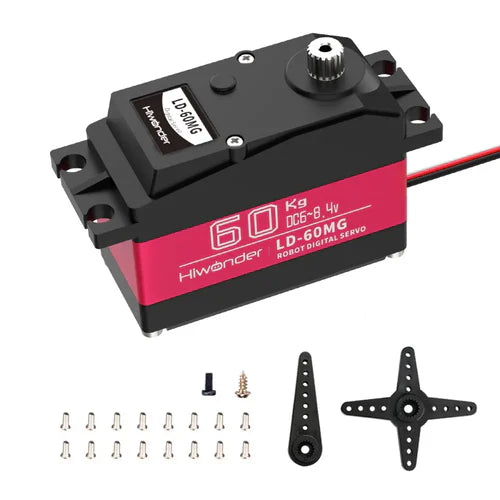

What’s Included:
• 1 × LD-60MG Servo
• 1 × Plastic Servo Horn
• 1 × Screw Bag
