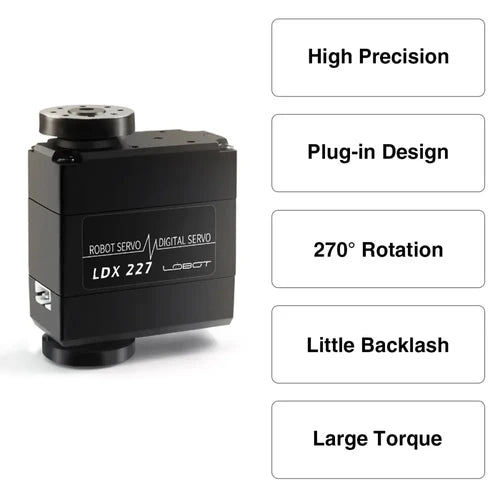

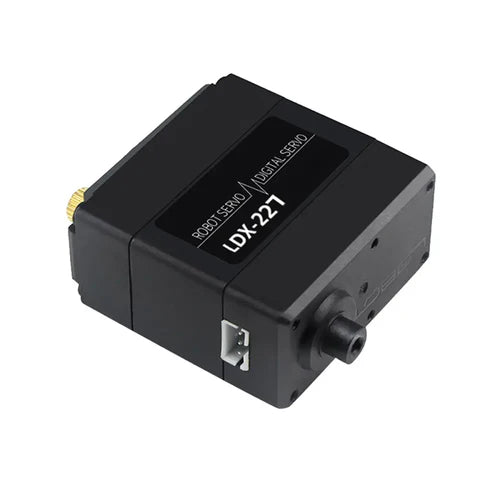

The Hiwonder LDX-227 is a premium full metal gear digital servo designed for robotics applications. Featuring 17kg high torque, dual ball bearings, and a 270° control angle, this servo delivers high precision, durability, and smooth performance. Perfect for building advanced robots requiring accurate and reliable motion.
Features:
• 17kg large torque: 15 kg·cm @6V; 17 kg·cm @7.4V

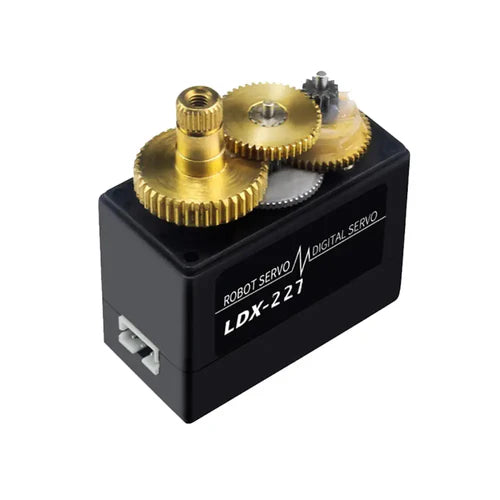

• Full metal gear for improved accuracy and extended service life
• Dual ball bearing: one driving and one assistant ball bearing for stability
• High-precision potentiometer with innovative design for superior linearity
• Accurate and linear movement to support complex robotic mechanisms
• Convenient plug-in wire for easy installation and replacement

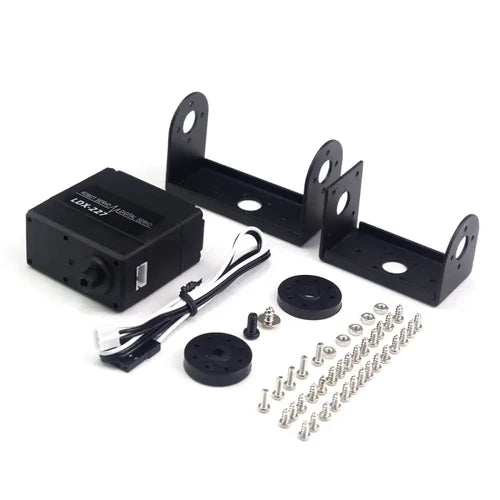

What's Included:
• 1* Digital servo
• 1* 30cm servo wire
• 1* Primary servo horn (4mm / 0.157in thick)
• 1* Assistant servo horn (2mm / 0.078in thick)
• 15* M25 self-tapping screws

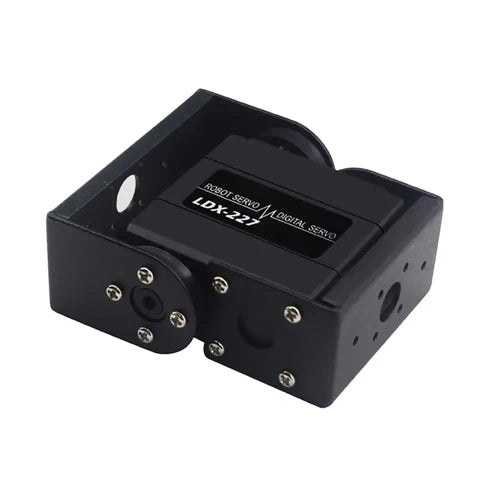

• 2 Brackets

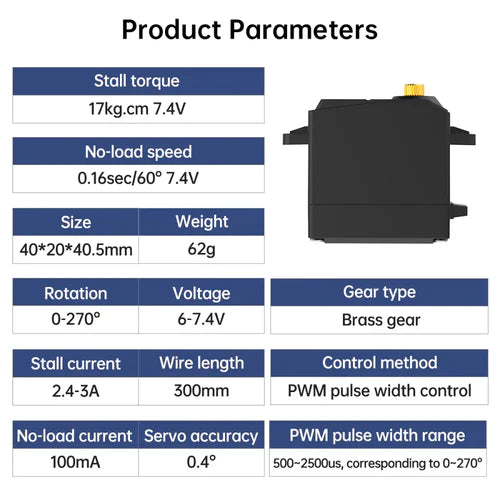

Dimensions & Specifications:
• Weight: 57g (2.01oz)

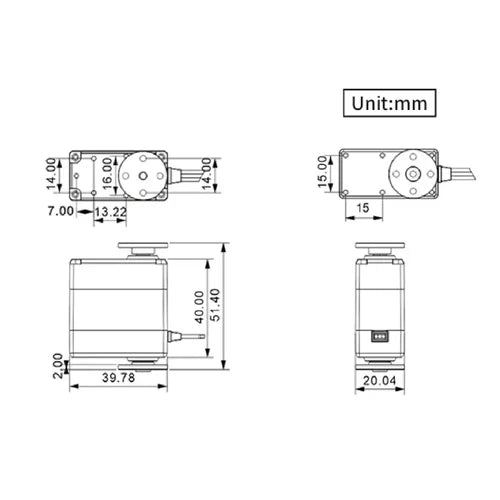

• Dimensions: 40mm20mm51.4mm (1.57in0.78in2.02in)
• Speed: 0.16 sec/60° (7.4V)
• Accuracy: 0.4°
• Torque: 17kg large torque (15 kg·cm @6V; 17 kg·cm @7.4V)
• Working Voltage: 6–8.4V
• Min Working Current: 1A
• No-load Current: 100mA
• Spline: 25T (6mm diameter)
• Default Wire: 30cm (13.78in)
• Control Method: PWM
• Pulse Width: 500–2500µs (0–270°)
• Duty Ratio: 0.5ms–2.5ms
• Pulse Period: 20ms
