Product Description

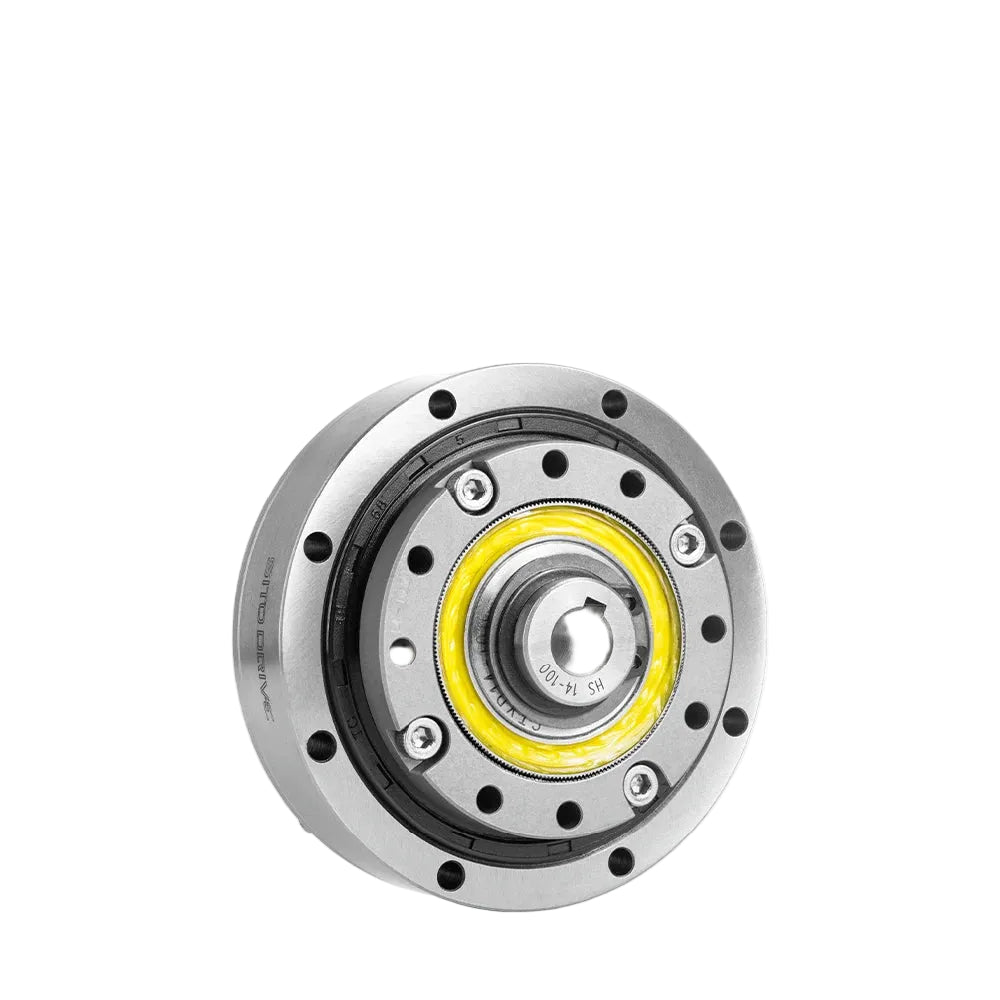

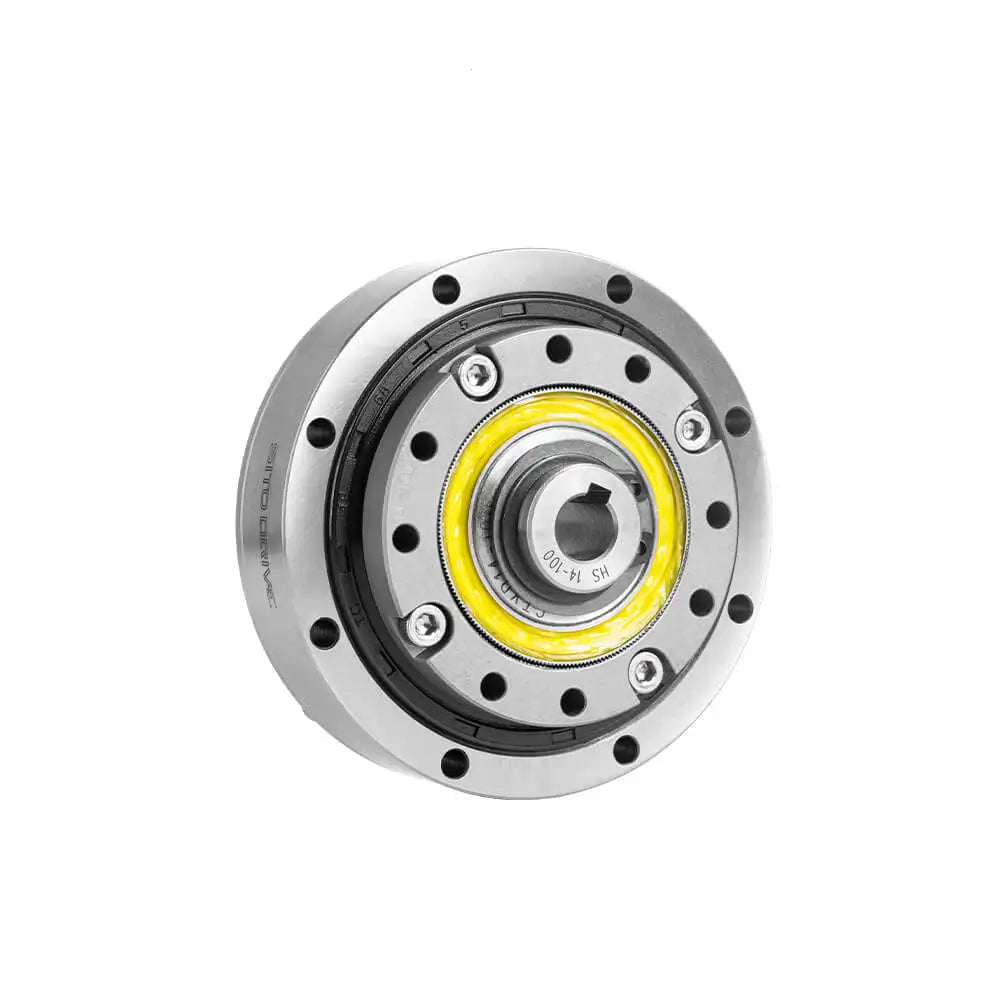

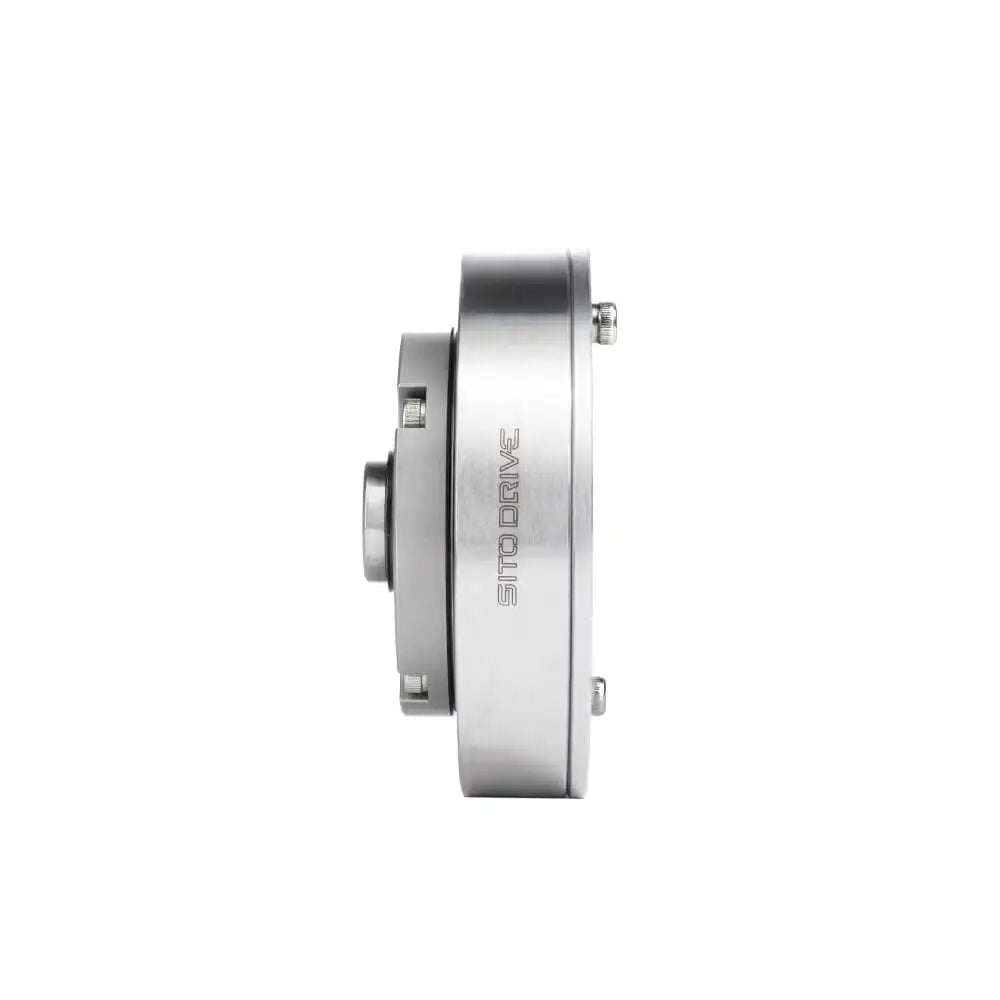

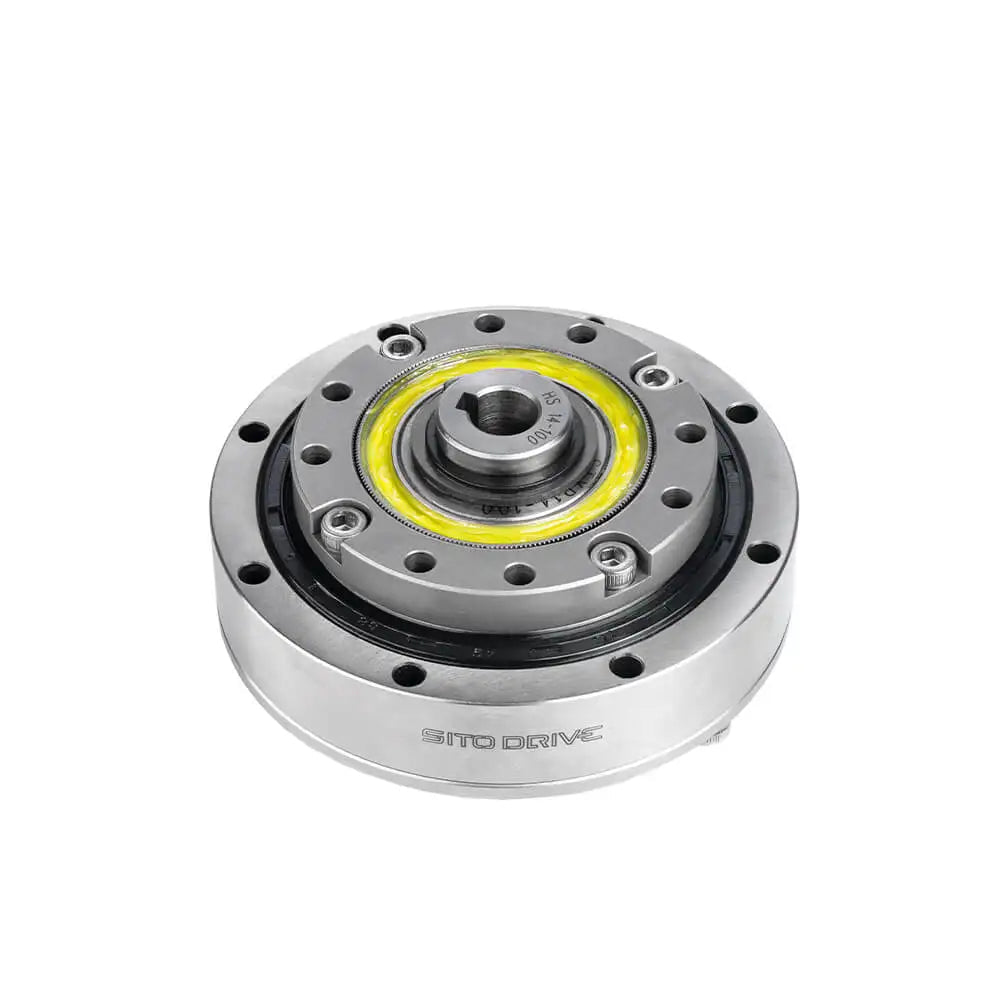

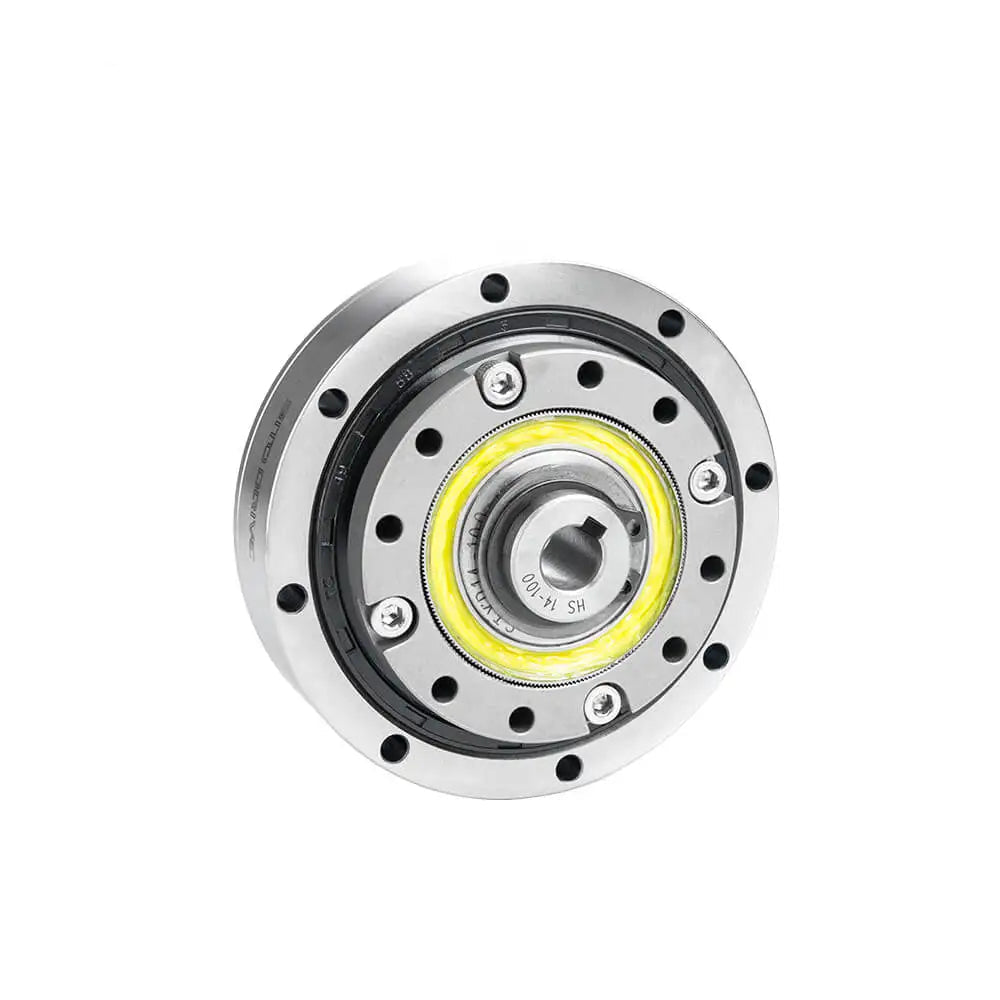

The HS-14-I Strain Wave Gear Reducer is a high-precision harmonic drive gearbox engineered for compact robotic and automation systems requiring high torque density and ultra-low backlash.
With a diameter of 70 mm and thickness of only 29.5 mm, this reducer delivers exceptional performance in space-constrained applications. The flexspline is manufactured using advanced heat treatment processes and ultra-fine ADI materials to ensure superior fatigue strength, durability, and vibration damping.
The S-tooth harmonic design improves meshing contact, reduces friction, and enhances transmission smoothness. Designed for precision motion systems, the HS-14-I provides reliable positioning accuracy and long service life.

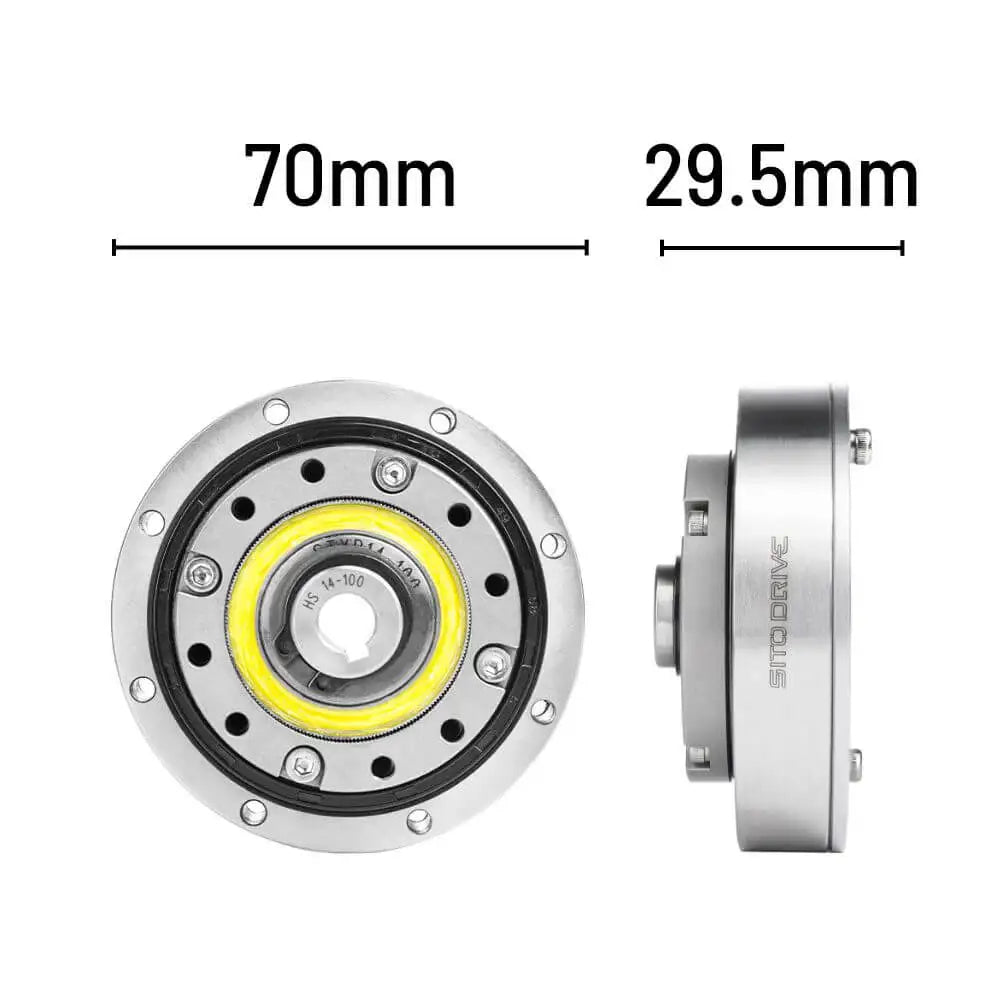

Mechanical Dimensions
-
Outer Diameter: Φ70 mm
-
Thickness: 29.5 mm
-
Weight: ≤0.374 kg
-
Mounting Holes: 8 × Ø3.5 through holes
-
Output Bore: Ø8 H7
-
Detailed dimensional drawing available upon request
Specifications
Available Gear Ratios
30 / 50 / 80 / 100
Performance Parameters
| Parameter | 30 | 50 | 80 | 100 |
|---|---|---|---|---|
| Rated Torque @2000rpm (Nm) | 4 | 5.4 | 7.8 | 7.8 |
| Limit Repeated Peak Torque (Nm) | 9 | 18 | 23 | 28 |
| Limit Average Torque (Nm) | 6.8 | 6.9 | 11 | 11 |
| Limit Momentary Peak Torque (Nm) | 17 | 35 | 47 | 54 |
| Maximum Input Speed (rpm) | 8500 | 8500 | 8500 | 8500 |
| Limit Average Input Speed (rpm) | 3500 | 3500 | 3500 | 3500 |
| Moment of Inertia (×10⁻⁴ kg·m²) | 0.033 | 0.033 | 0.033 | 0.033 |
| Backlash (arcsec) | ≤20 | ≤20 | ≤10 | ≤10 |
Advanced Engineering Features
✔ Ultra-Fine ADI Material
-
Self-lubricating properties
-
Low temperature rise
-
Excellent vibration damping
-
Wide operating temperature range
-
Extended service life
✔ High-Precision Heat Treatment
-
Optimized hardness and toughness balance
-
Improved fatigue strength
-
Stable long-term performance
✔ Innovative S-Tooth Design
-
Reduced friction coefficient
-
Improved load distribution
-
Enhanced durability
-
Smoother transmission
✔ Precision Manufacturing
-
Integrated compound cutting tool process
-
Post-deformation finishing for flexspline
-
Full meshing contact accuracy
Applications
-
Robotic arms
-
Collaborative robots (Cobot joints)
-
Medical automation equipment
-
Aerospace positioning systems
-
Semiconductor equipment
-
High-precision servo systems
Package Includes
-
1 × HS-14-I Harmonic Drive Reducer (Selected Ratio)
