Product Description

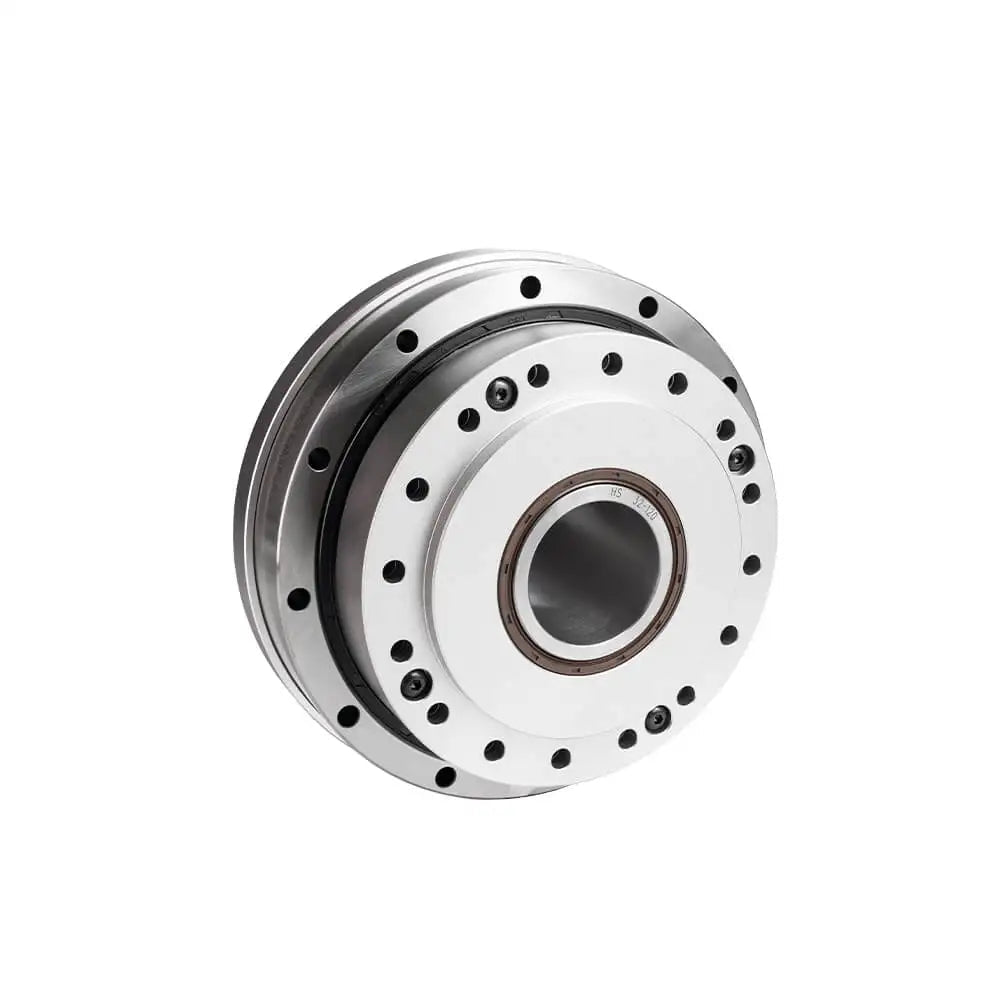

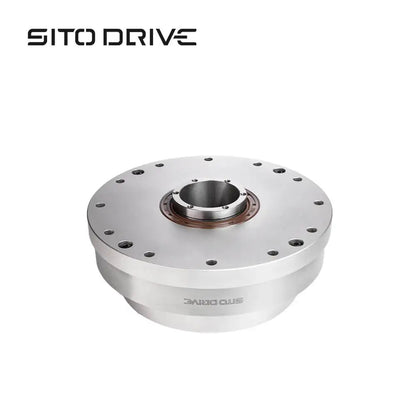

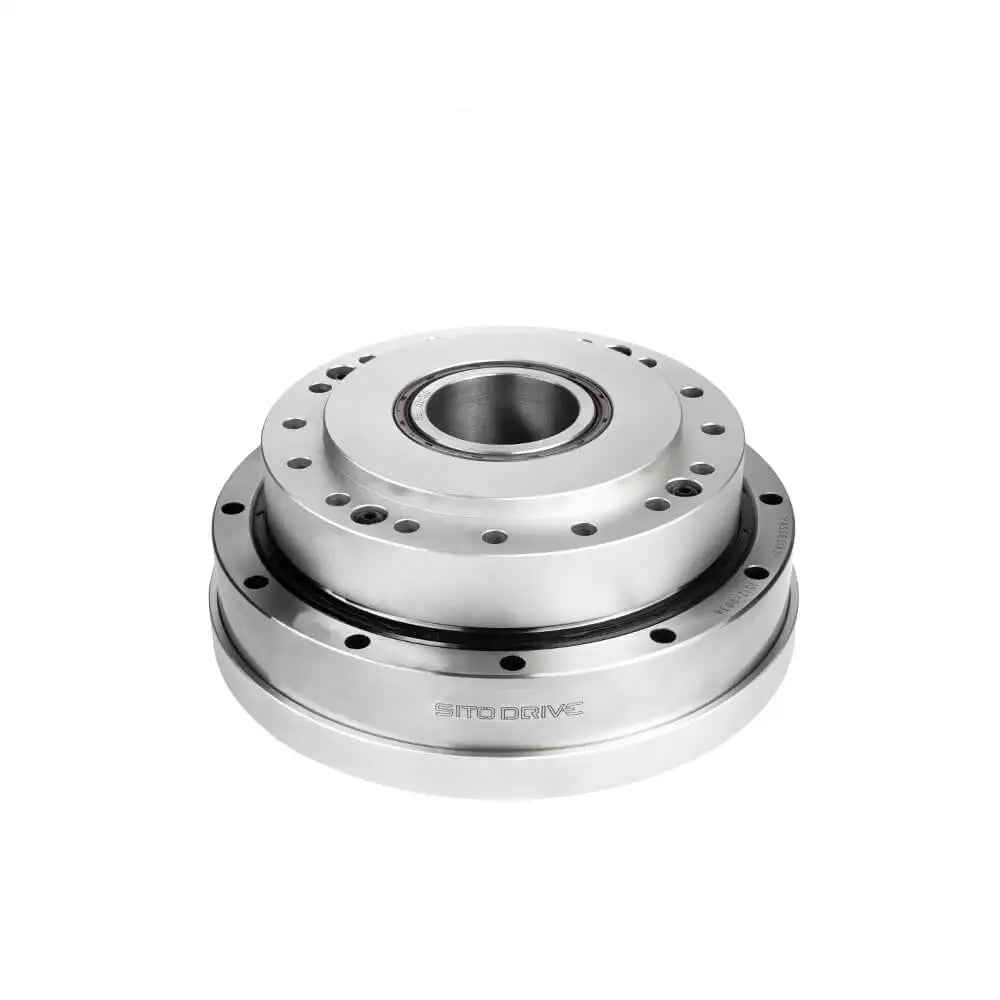

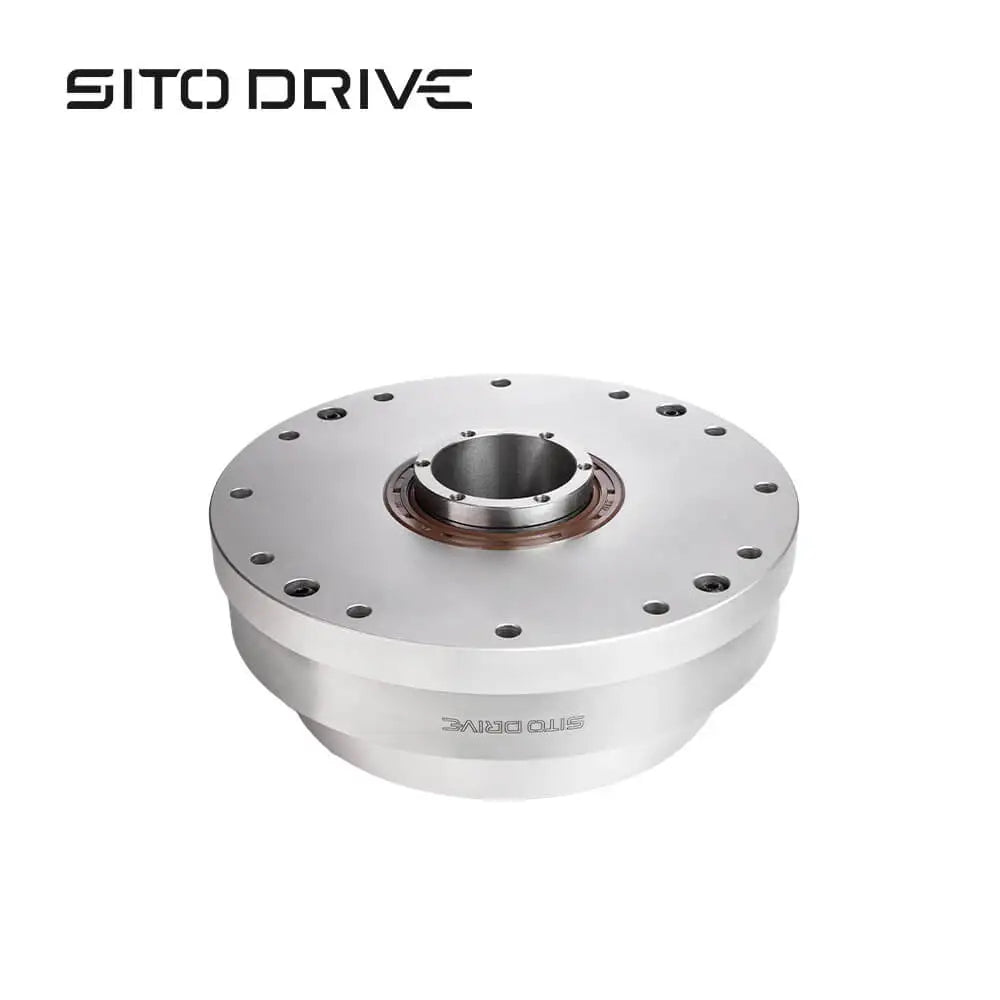

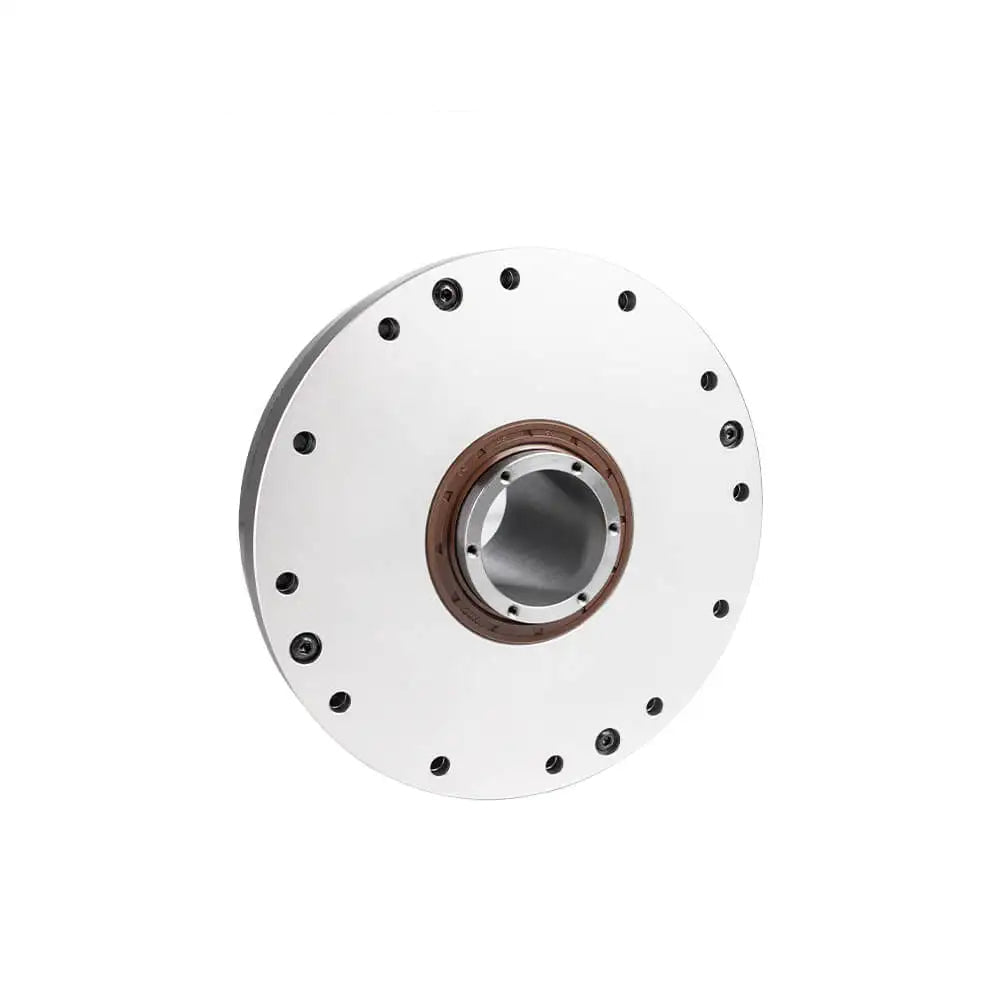

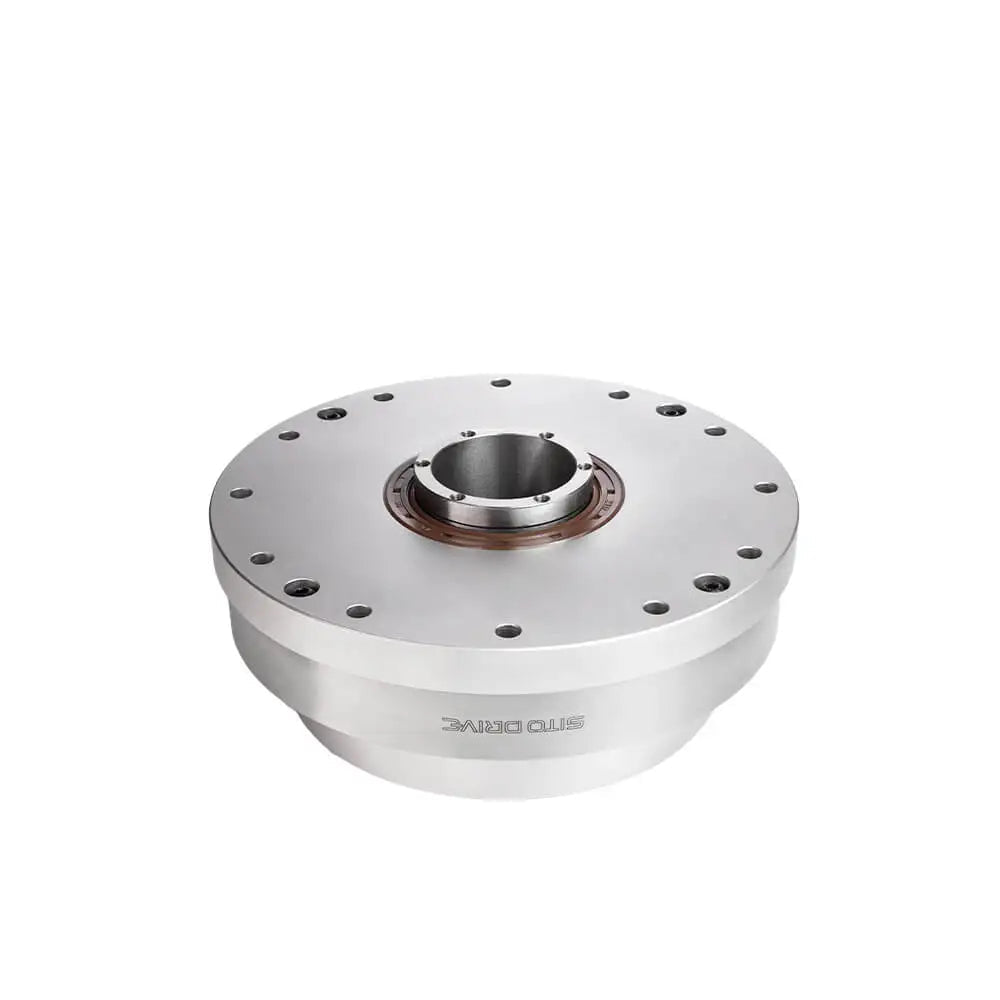

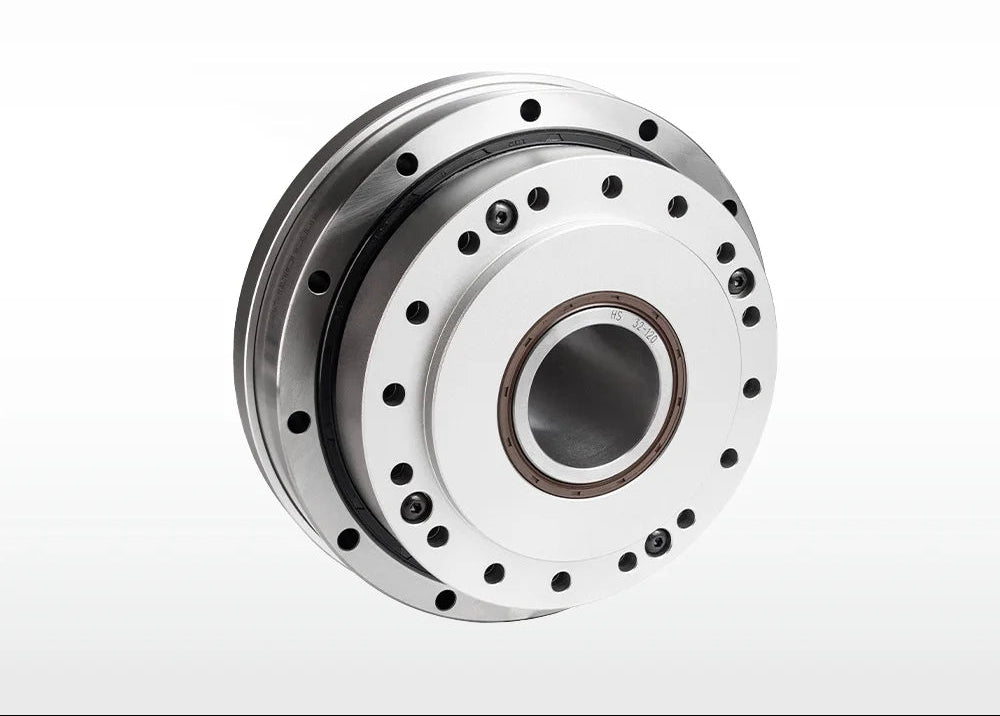

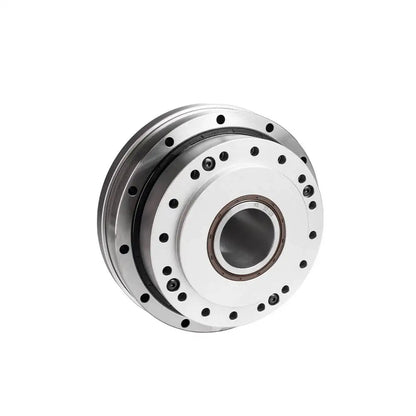

The HS-32-II Hollow Shaft Harmonic Drive Reducer is a high-performance strain wave gearbox engineered for industrial robotic joints, collaborative robots, and precision automation systems requiring high torque density and ultra-low backlash.
With a 147 mm outer diameter and 65.1 mm compact axial length, this reducer provides exceptional torsional rigidity and load capacity while maintaining precise positioning accuracy.
Its hollow shaft design allows convenient cable routing, sensor integration, and compact joint assembly, making it ideal for humanoid robots and multi-axis robotic arms.
Manufactured using ultra-fine Austempered Ductile Iron (ADI) materials, advanced heat treatment technology, and innovative S-tooth profile geometry, the HS-32-II delivers superior fatigue resistance, vibration damping, and long-term operational stability.
Designed for demanding servo-driven systems, this model ensures smooth transmission, reduced friction, and extended service life even under high dynamic loads.
Mechanical Dimensions
Outer Diameter: Φ147 mm
Thickness: 65.1 mm
Weight: ≤3.411 kg
Hollow Shaft Bore: Φ40.5 mm
Mounting Holes: 12 × Ø5.5 through holes
Detailed dimensional drawings available upon request
Specifications
Advanced Engineering Features
✔ Ultra-Fine ADI Material
Self-lubricating properties
Low temperature rise
Excellent vibration damping
Wide operating temperature range
Extended service life
✔ High-Precision Heat Treatment Technology
Optimized hardness and toughness balance
Enhanced fatigue resistance
Stable long-term mechanical performance
Fully implemented in mass production
✔ Special Processing Techniques for Flexspline
Post-deformation finishing
Full meshing tooth contact
Improved load distribution
Reduced friction and wear
✔ Innovative S-Tooth Profile Design
Lower friction coefficient
Smoother torque transmission
Improved contact efficiency
Enhanced durability
✔ Integrated Machining Tool Design
Compound cutting technology
High accuracy tooth profile control
Consistent batch precision
✔ Comprehensive Testing Laboratory
Full-spectrum performance testing
Service life validation
Torsional stiffness verification
Load capacity inspection
Applications
Industrial robotic arms
Humanoid robot joints
Collaborative robots (Cobots)
Medical robotic systems
Aerospace positioning mechanisms
Semiconductor equipment
High-precision servo actuators
Package Includes
1 × HS-32-II Hollow Shaft Harmonic Drive Reducer (Selected Ratio)
