DESCRIPTION
HT1105 Micro Brushless Gimbal Motor
The HT1105 is an ultra-compact three-phase brushless gimbal motor designed for miniature stabilization systems and precision motion control. Featuring a lightweight aluminum housing and optional high-resolution magnetic encoder, it delivers smooth low-speed torque, accurate positioning and reliable closed-loop control.

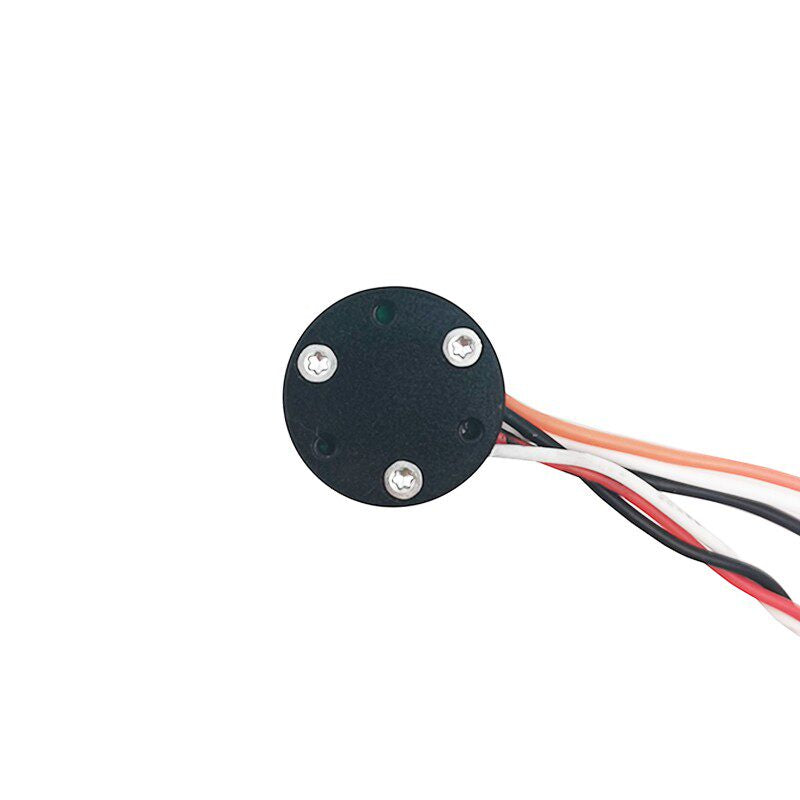

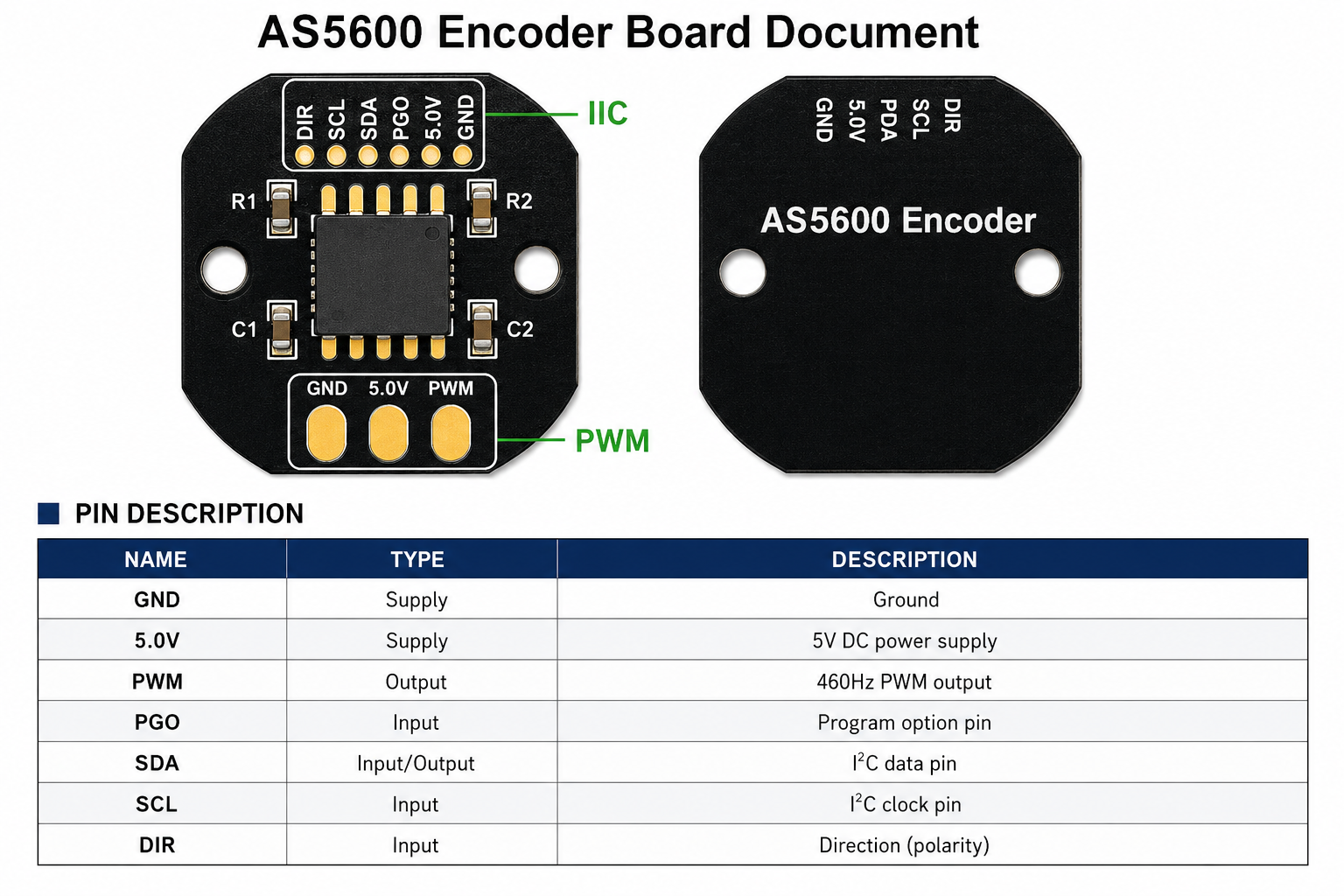

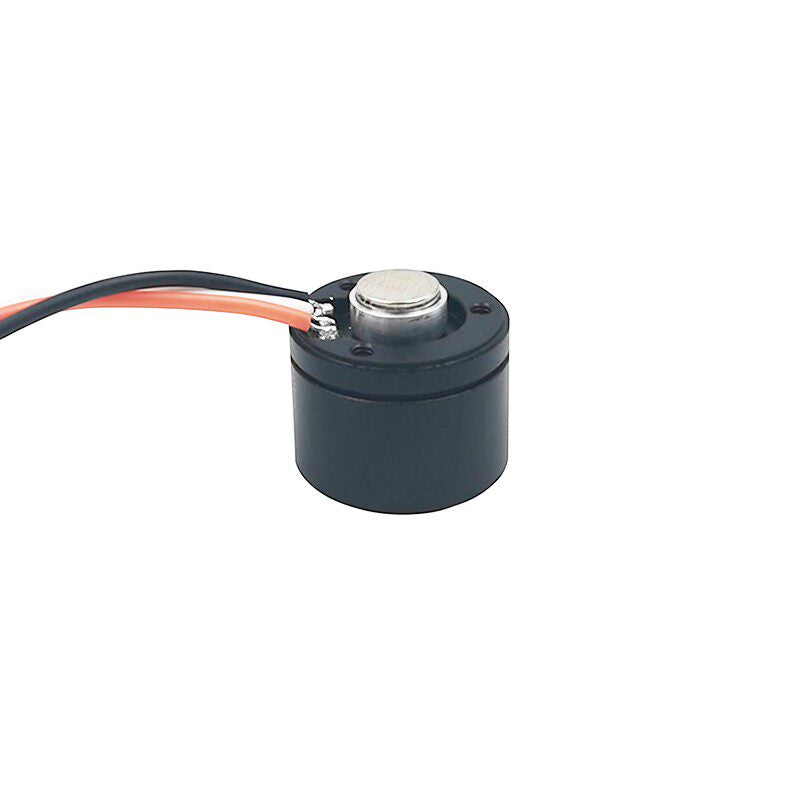

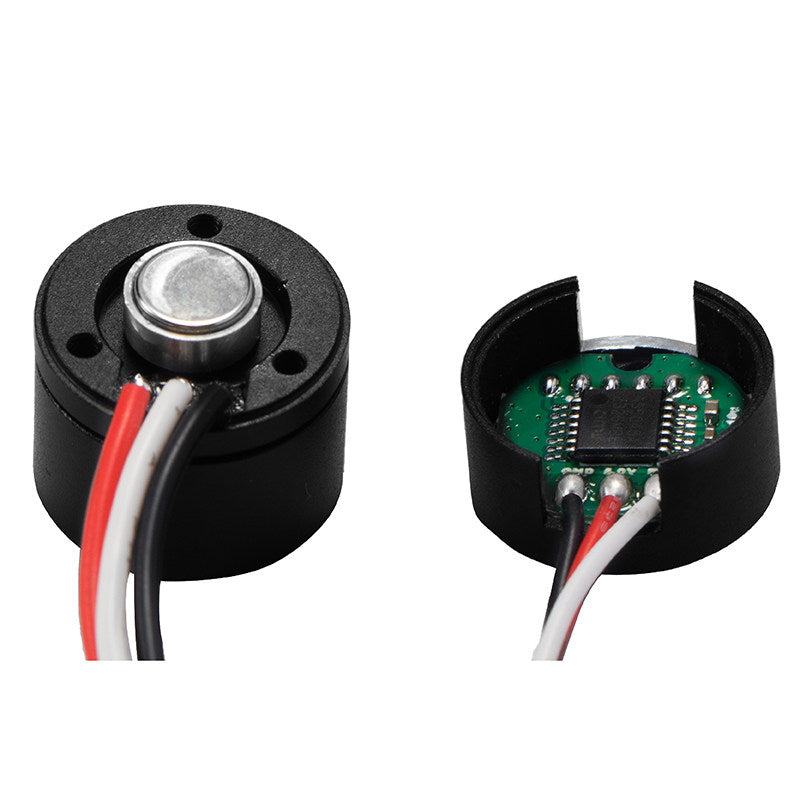

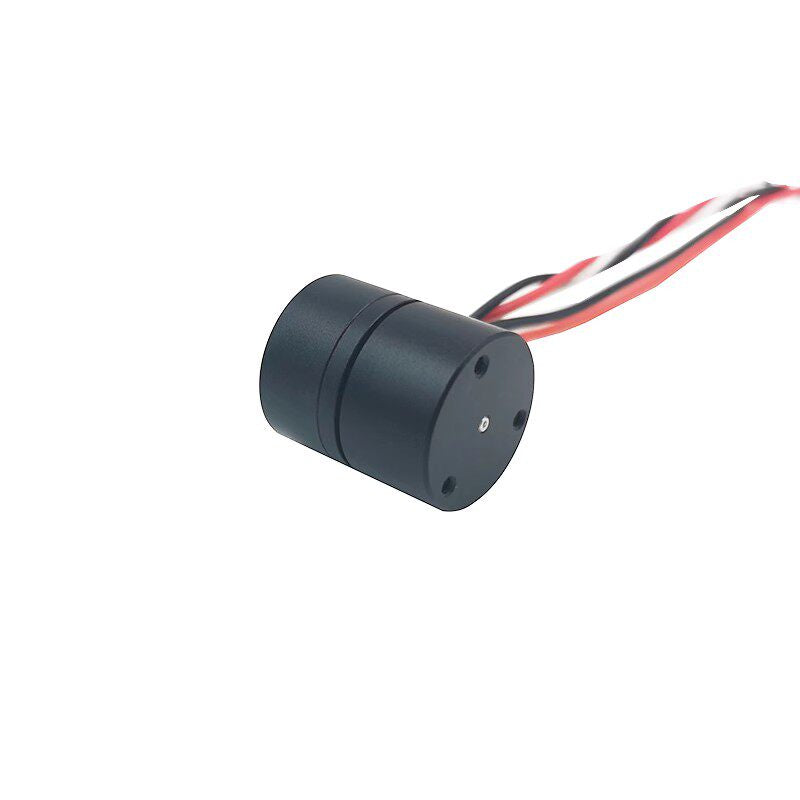

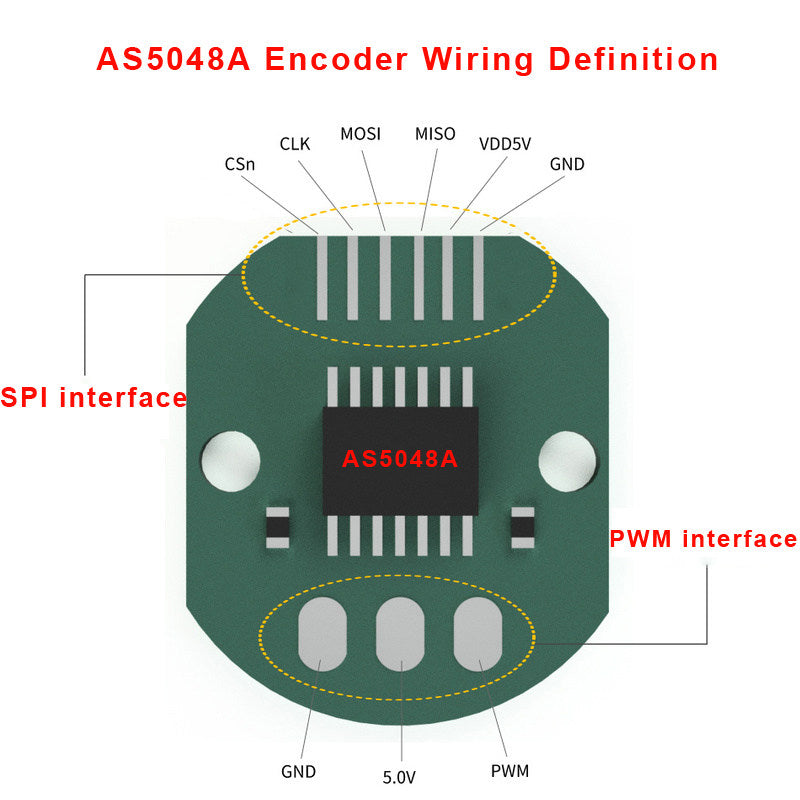

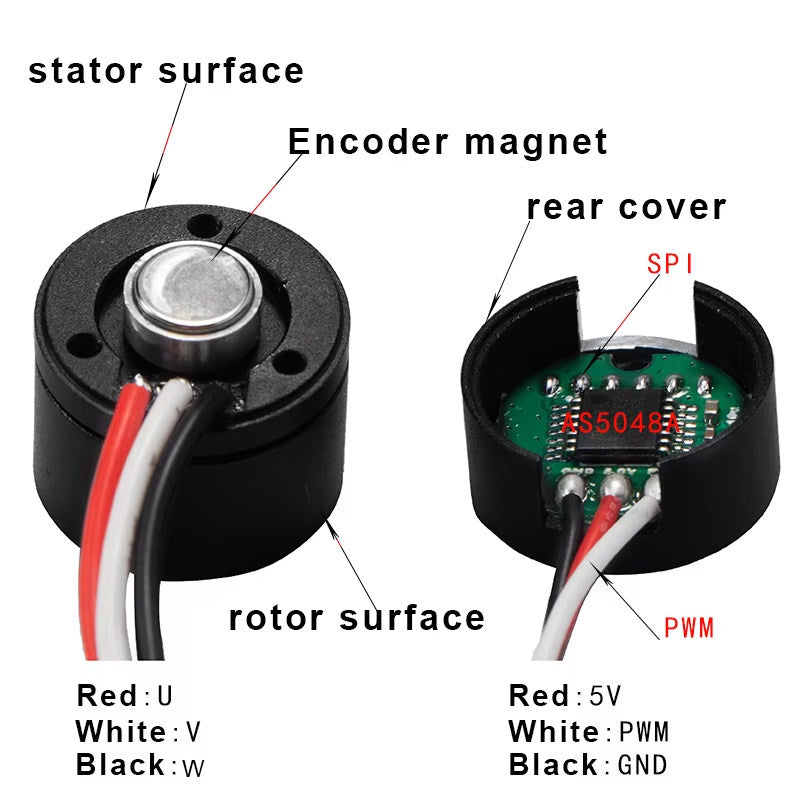

Optional encoder configurations include AS5600, AS5048A and AS5047P, making the motor suitable for camera stabilization, UAV payloads, robotic joints, optical systems and precision rotary mechanisms.
Features
- Ultra-compact brushless gimbal motor
- Three-phase BLDC design
- Lightweight aluminum housing
- Smooth low-speed operation
- Low cogging torque
- Optional AS5600 encoder
- Optional AS5048A encoder
- Optional AS5047P encoder
- PWM / SPI / I²C encoder options
- High positioning accuracy
- Low power consumption
- Long service life
- Easy installation
- Suitable for closed-loop servo control

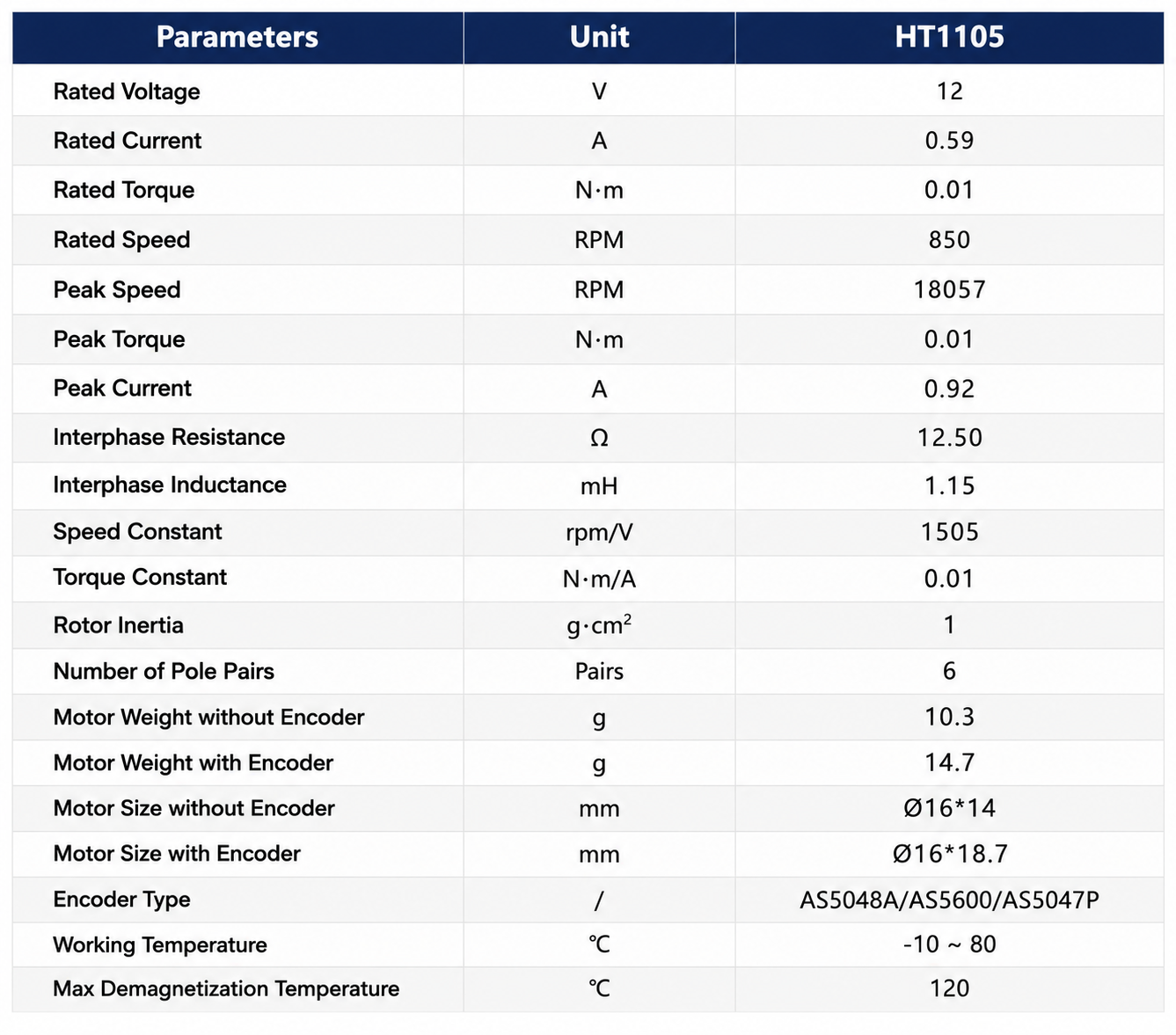

Specifications

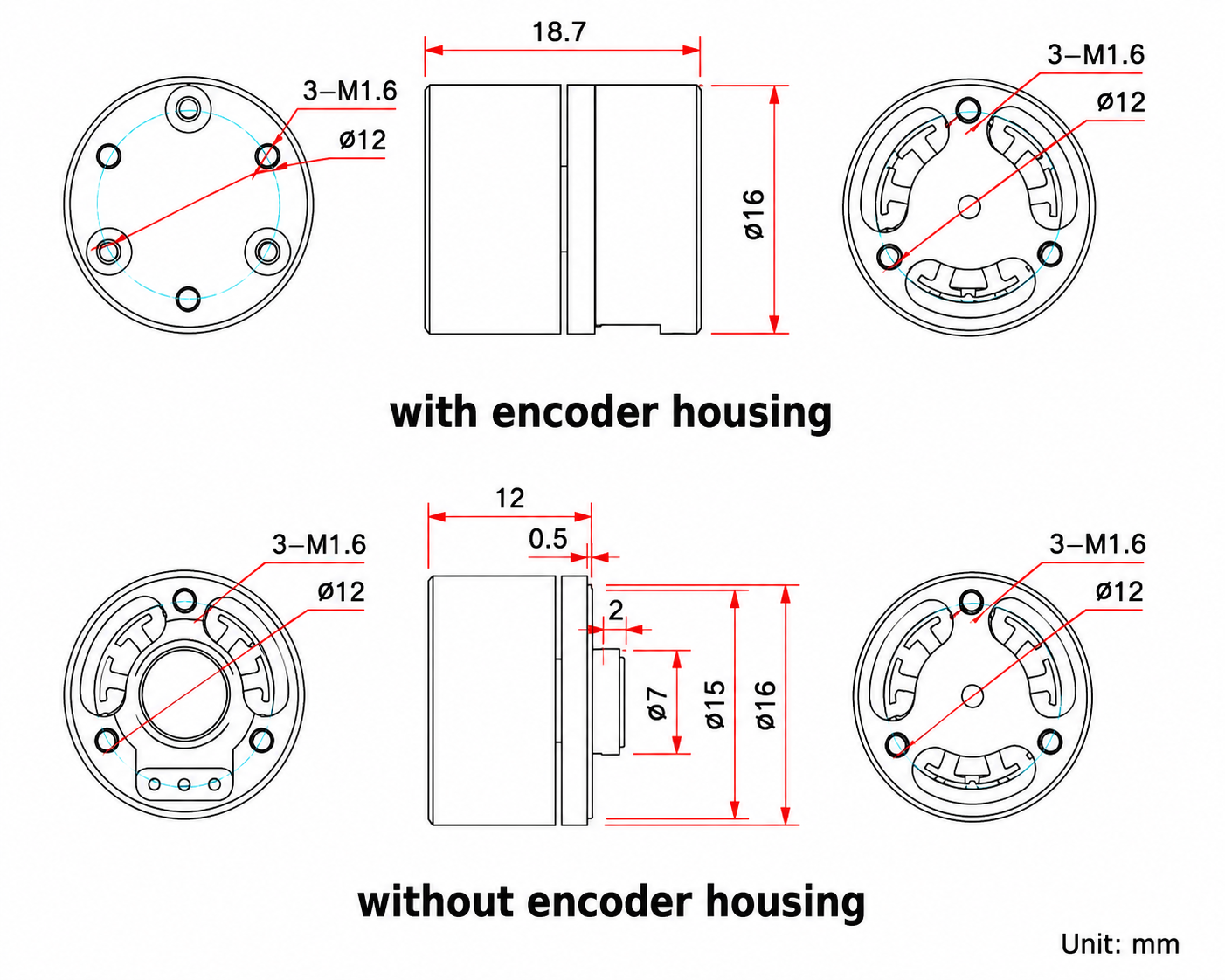

| Item | Specification |
|---|---|
| Model | HT1105 |
| Rated Voltage | 12 V |
| Rated Current | 0.59 A |
| Rated Torque | 0.01 N·m |
| Rated Speed | 850 RPM |
| Peak Speed | 18057 RPM |
| Peak Torque | 0.01 N·m |
| Peak Current | 0.92 A |
| Phase Resistance | 12.50 Ω |
| Phase Inductance | 1.15 mH |
| Speed Constant | 1505 rpm/V |
| Torque Constant | 0.01 N·m/A |
| Rotor Inertia | 1 g·cm² |
| Pole Pairs | 6 |
| Motor Size (Without Encoder) | Ø16 × 14 mm |
| Motor Size (With Encoder) | Ø16 × 18.7 mm |
| Weight (Without Encoder) | 10.3 g |
| Weight (With Encoder) | 14.7 g |
| Encoder Options | AS5600 / AS5048A / AS5047P |
| Working Temperature | -10°C to 80°C |
| Max Demagnetization Temperature | 120°C |
Applications
- Micro Camera Gimbal
- UAV Gimbal
- Drone Camera
- Mini PTZ Camera
- Optical Stabilization
- Robot Joint
- Robotic Arm
- Precision Servo System
- Motion Control
- Embedded Robotics
- Vision Systems
- Educational Robotics
- Inspection Equipment
- Scientific Instruments
Package Includes
Motor Only
or
Motor + Selected Encoder Module
