DESCRIPTION
HT2205 Brushless Gimbal Motor with Optional Magnetic Encoder
The HT2205 brushless gimbal motor is a compact high-performance direct-drive motor designed for lightweight camera stabilization systems, FPV gimbals, UAV payloads, robotics and precision motion control projects.
Multiple encoder configurations are available including AS5048A, AS5047P and AS5600 magnetic encoders, providing accurate rotor position feedback for closed-loop FOC control systems.
Its lightweight construction, smooth torque output and compact dimensions make it suitable for embedded motion systems where size and weight are critical.
Key Features
- Compact 26.3mm diameter direct-drive gimbal motor
- 12V operating voltage
- Optional AS5048A magnetic encoder
- Optional AS5047P magnetic encoder
- Optional AS5600 magnetic encoder
- Suitable for FOC control applications
- High speed constant of 469 RPM/V
- Lightweight design starting from 22.4g
- Smooth low cogging operation
- Ideal for FPV camera stabilization systems
- Supports UAV and robotics projects

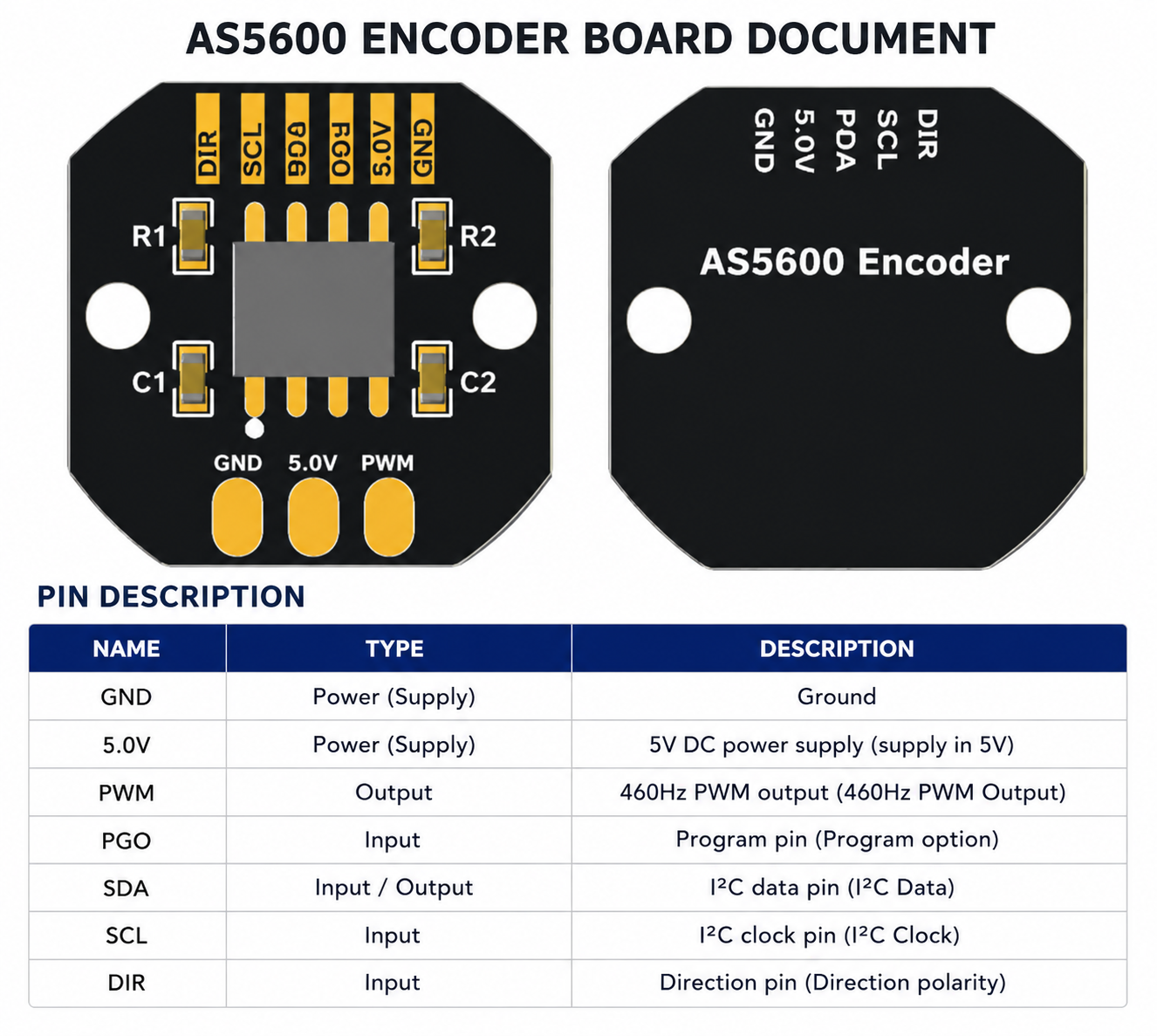

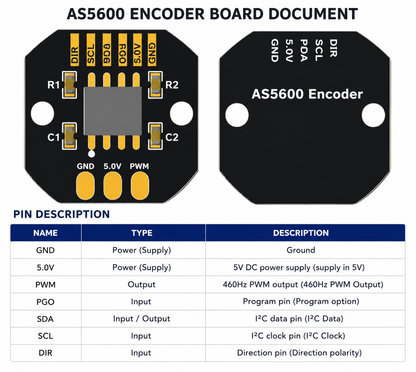

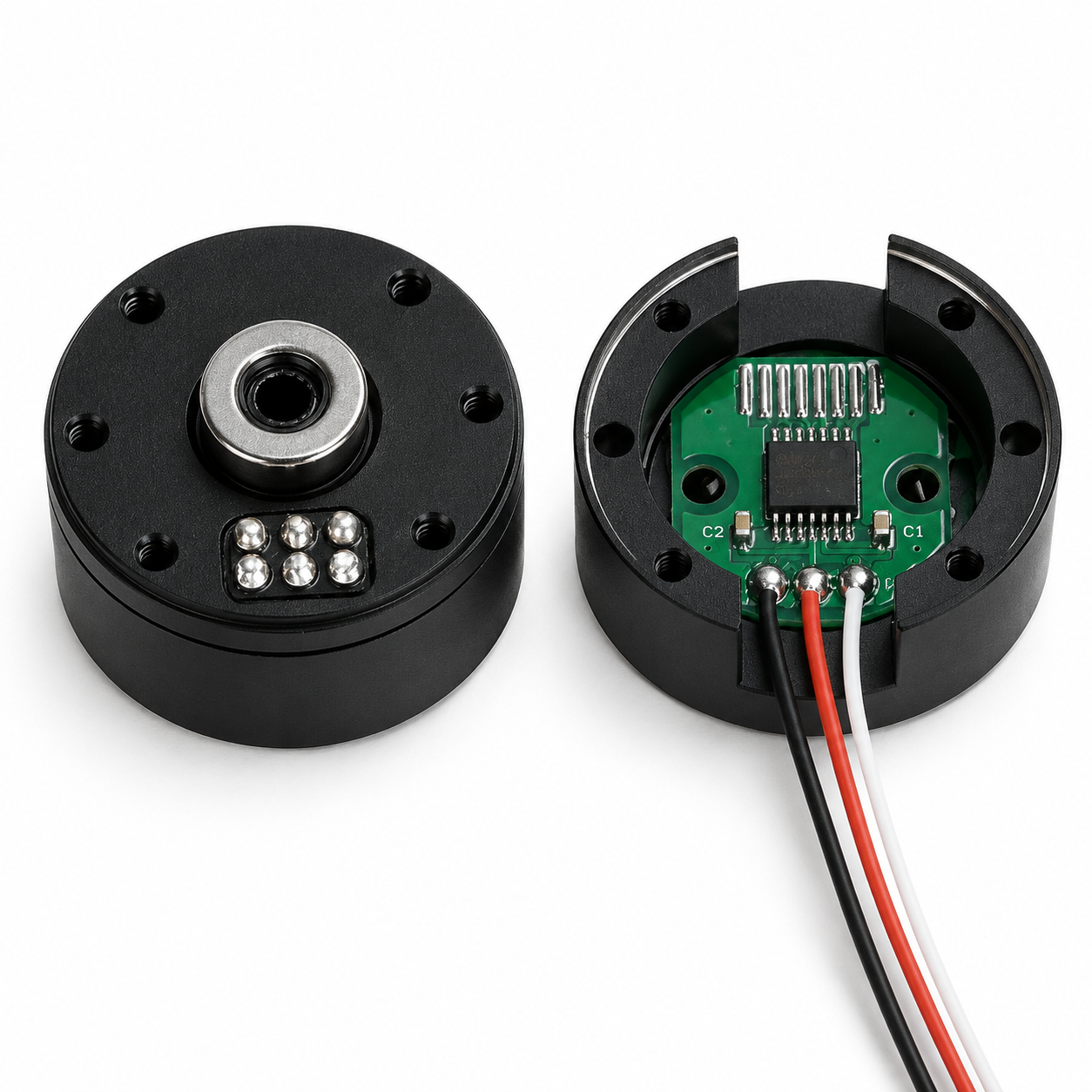

Encoder Options
| Variant | Description |
|---|---|
| Motor Only | Motor without encoder |
| AS5600 Encoder | I2C and PWM position feedback |

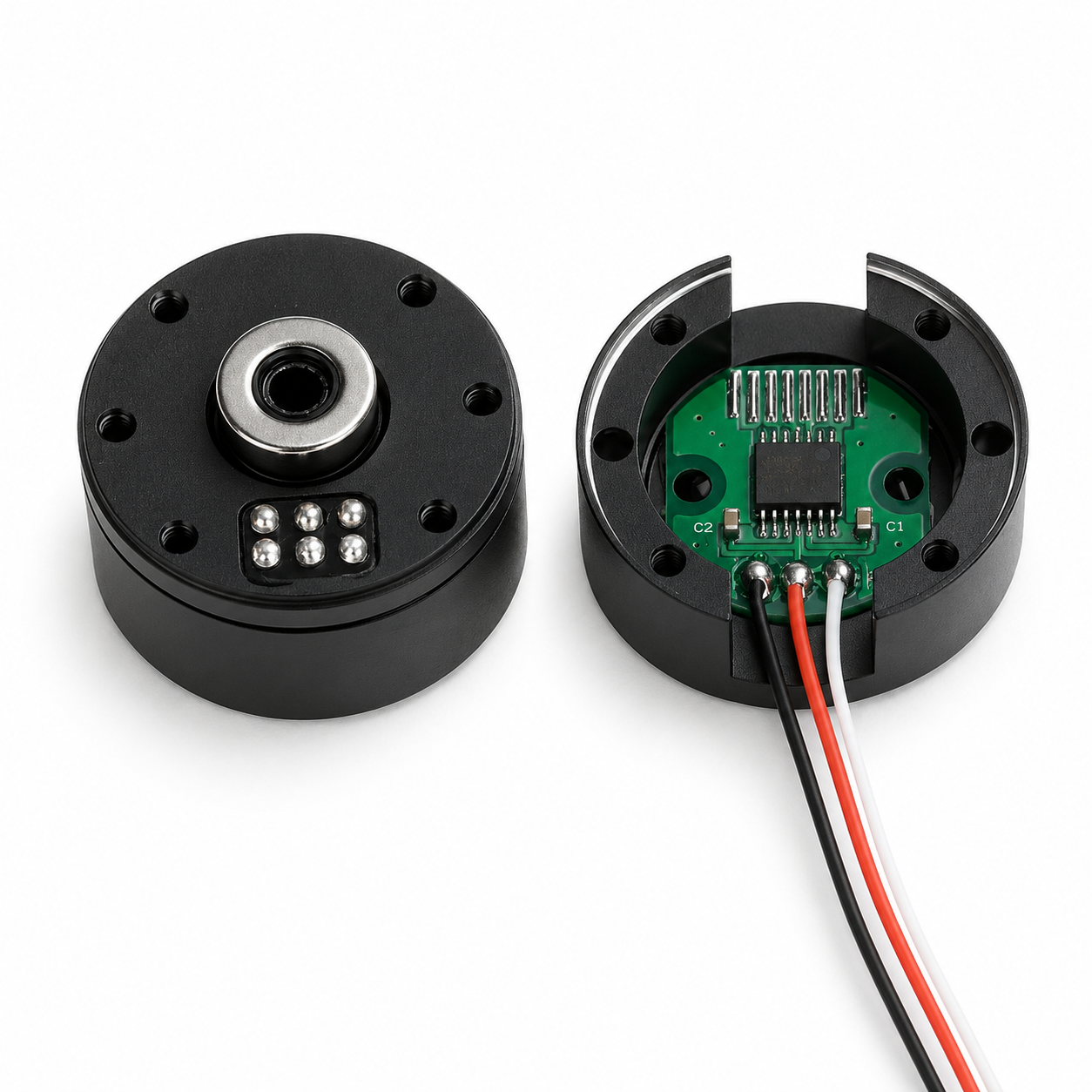

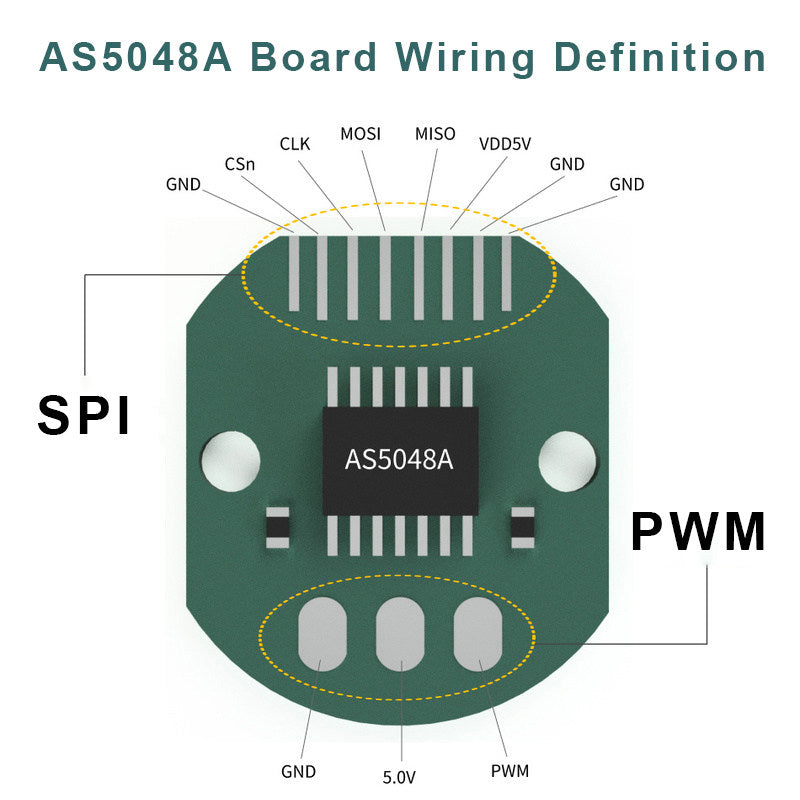

| AS5048A Encoder | SPI and PWM position feedback |
| AS5047P Encoder | High-speed SPI encoder |

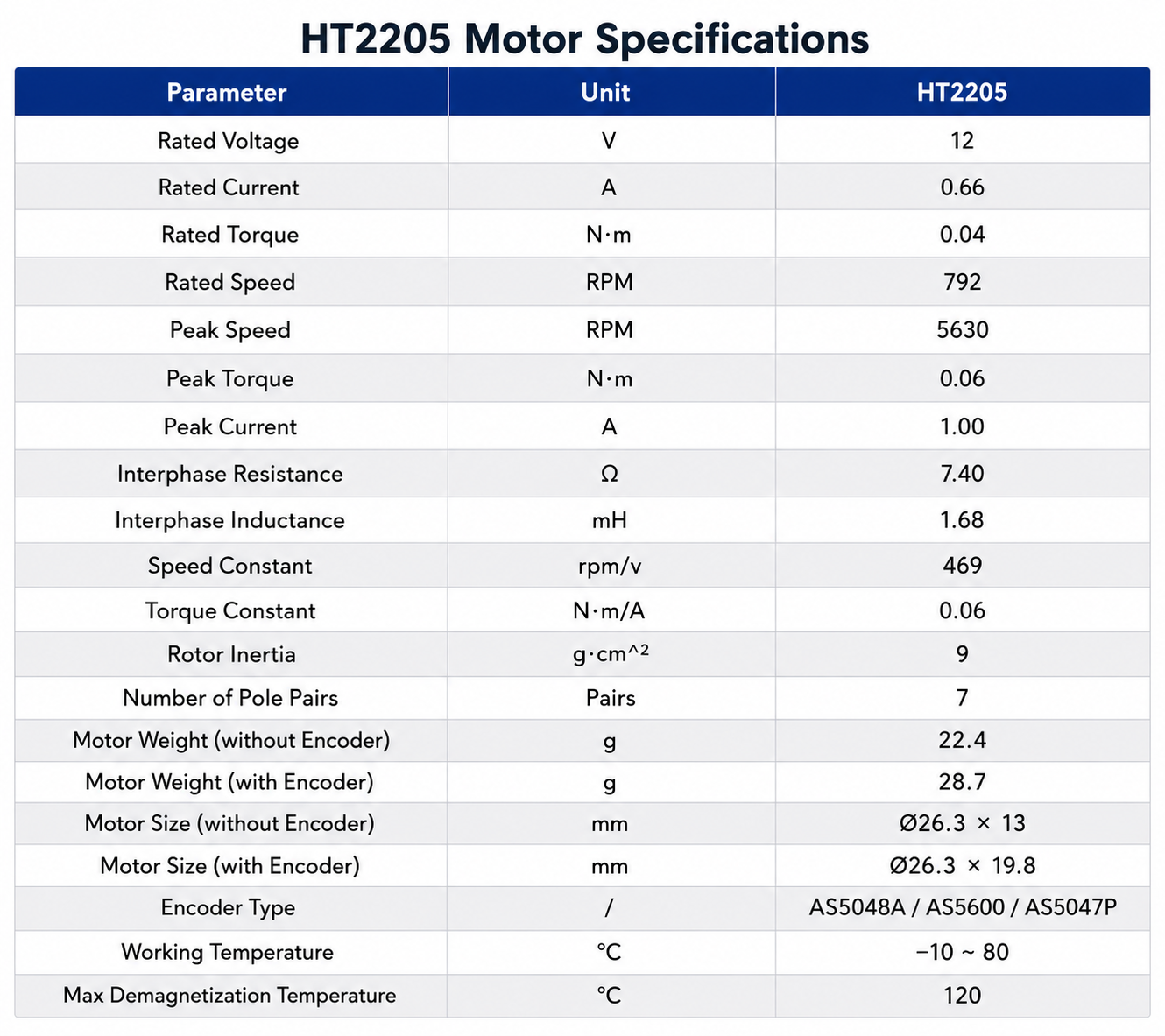

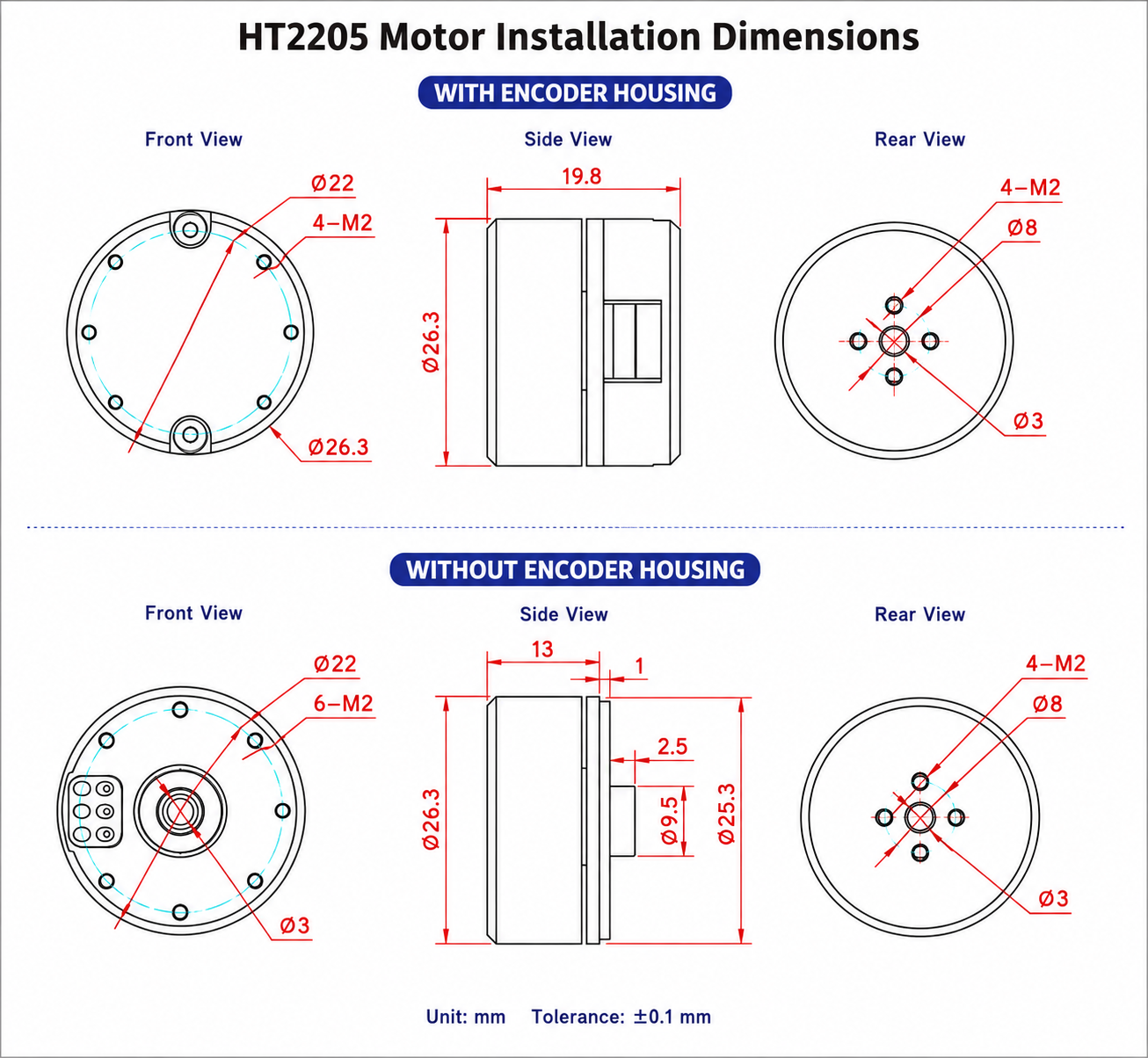

Specifications
Applications
- FPV Camera Gimbals
- UAV Payload Stabilization
- Mini Camera Platforms
- Robotic Joints
- Precision Motion Control
- Educational Robotics
- FOC Development Platforms
- DIY Mechatronics Projects
- Embedded Motion Systems
Package Includes
Motor Only Variant
- 1 × HT2205 Brushless Gimbal Motor

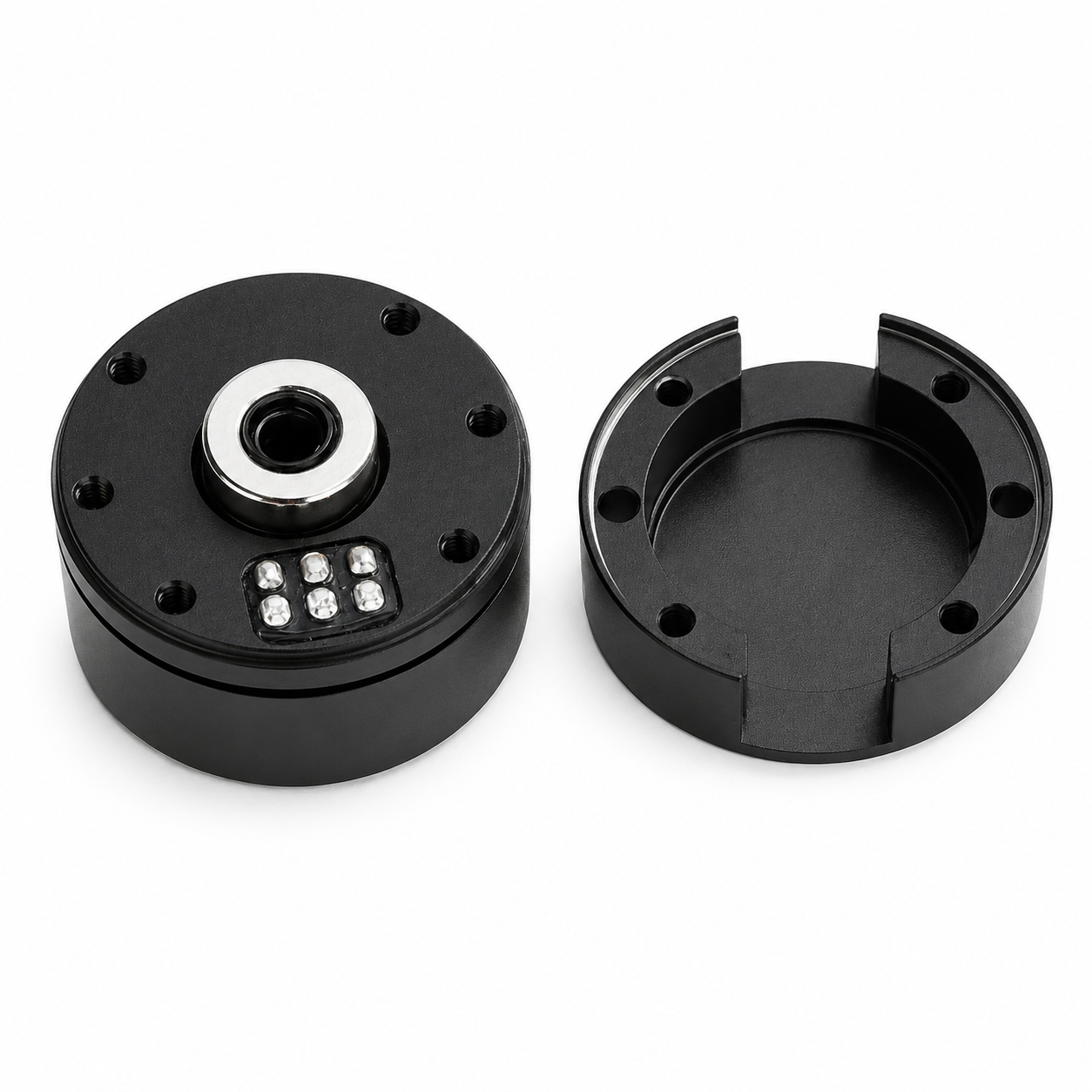

Encoder Variants
- 1 × HT2205 Brushless Gimbal Motor
- 1 × Selected Encoder Module
- Rear Cover Assembly
