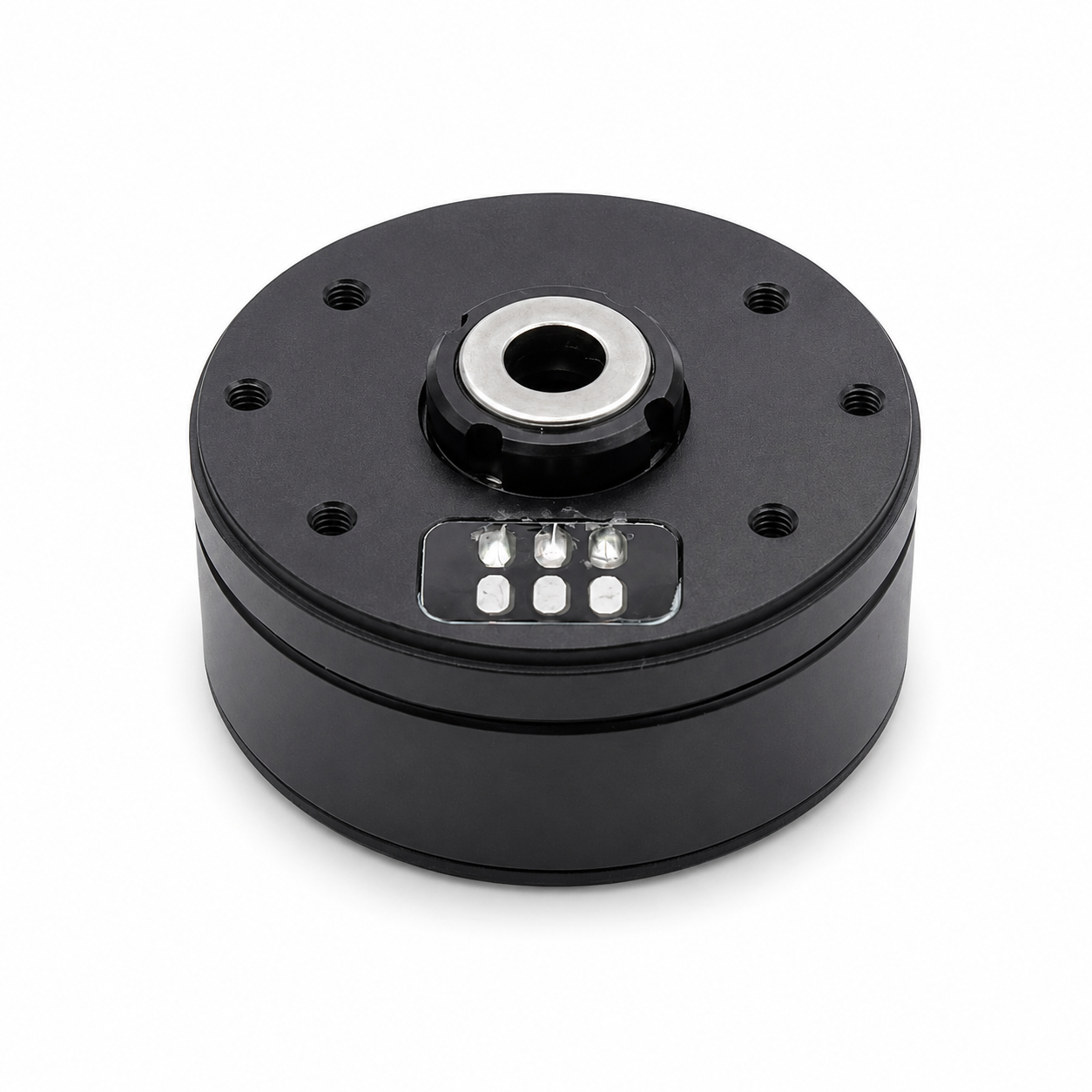

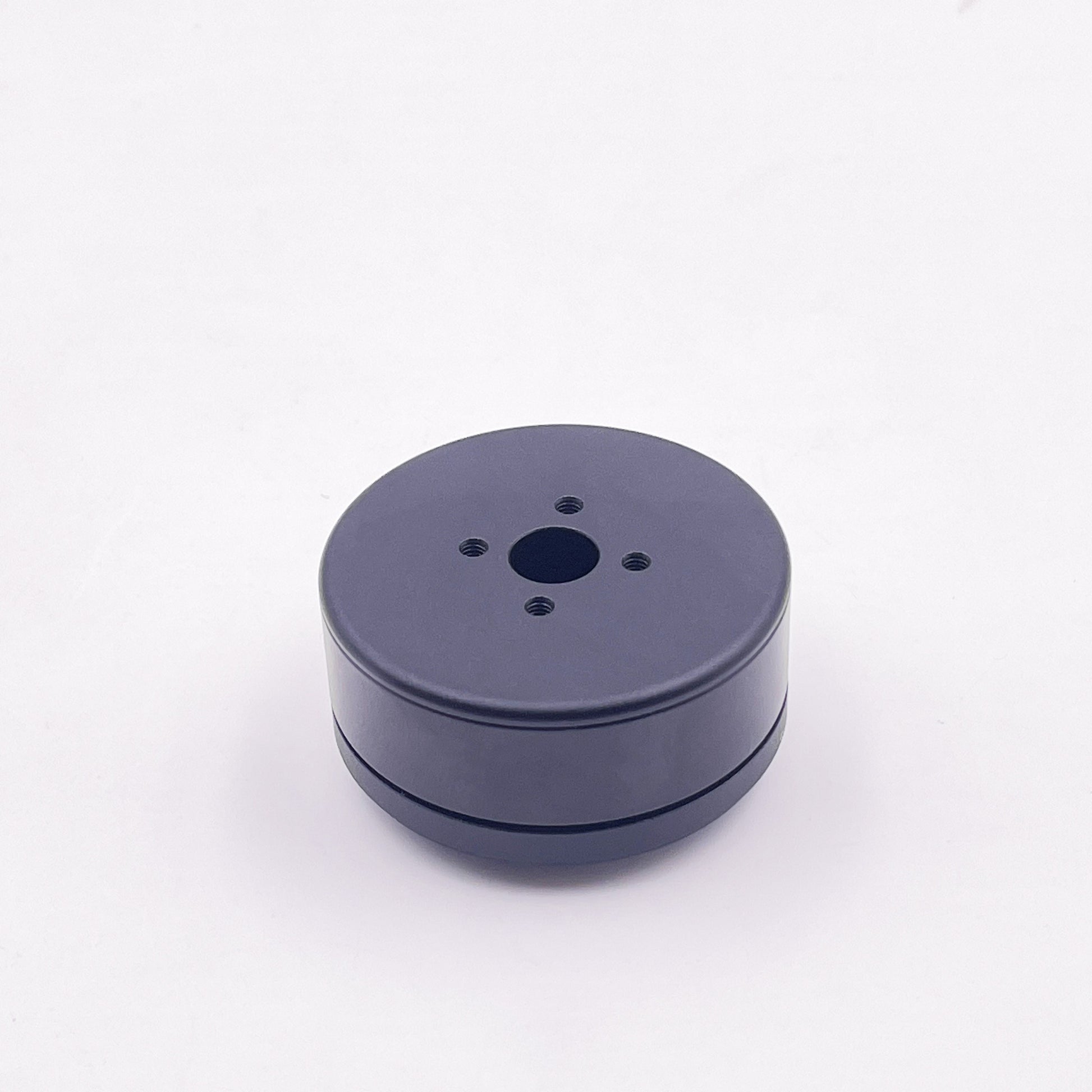

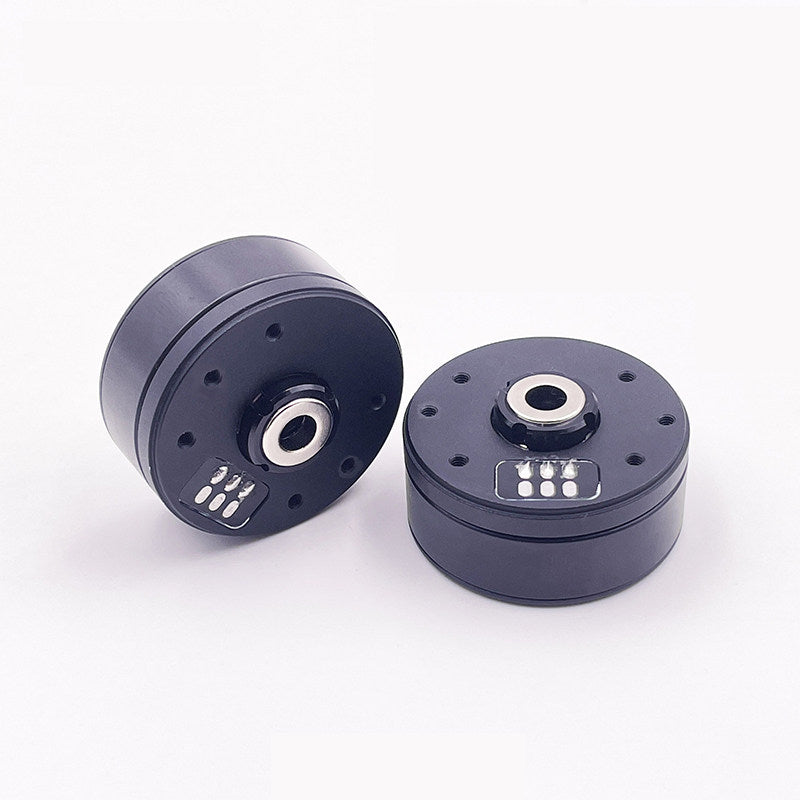

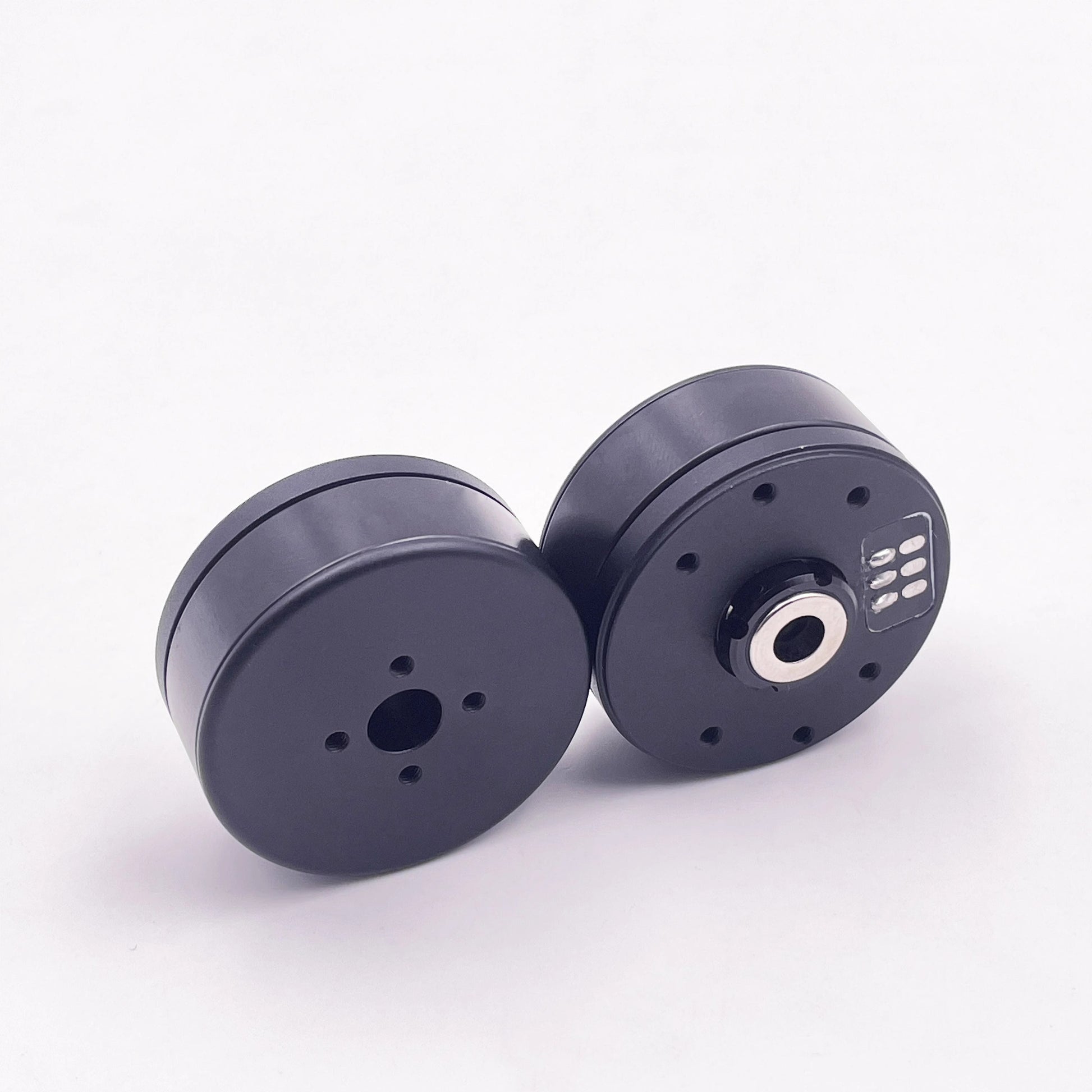

HT2806 Hollow Shaft Brushless Gimbal Motor
The HT2806 is a compact hollow shaft brushless gimbal motor engineered for high-precision stabilization systems. Its lightweight frameless construction and center-through-hole design make cable routing simple while reducing overall system weight.
Optional magnetic encoder modules (AS5600, AS5048A or AS5047P) provide accurate rotor position feedback for closed-loop servo control, making the motor suitable for professional camera gimbals, UAV payloads, robotic pan-tilt mechanisms and precision automation equipment.
Features
- Compact hollow shaft frameless BLDC motor
- Large center hole for cable routing
- High torque at low speed
- Smooth and low cogging operation
- Optional AS5600 magnetic encoder
- Optional AS5048A magnetic encoder
- Optional AS5047P magnetic encoder
- High positioning accuracy
- Lightweight aluminum housing
- Easy installation
- Suitable for closed-loop control
- Long service life

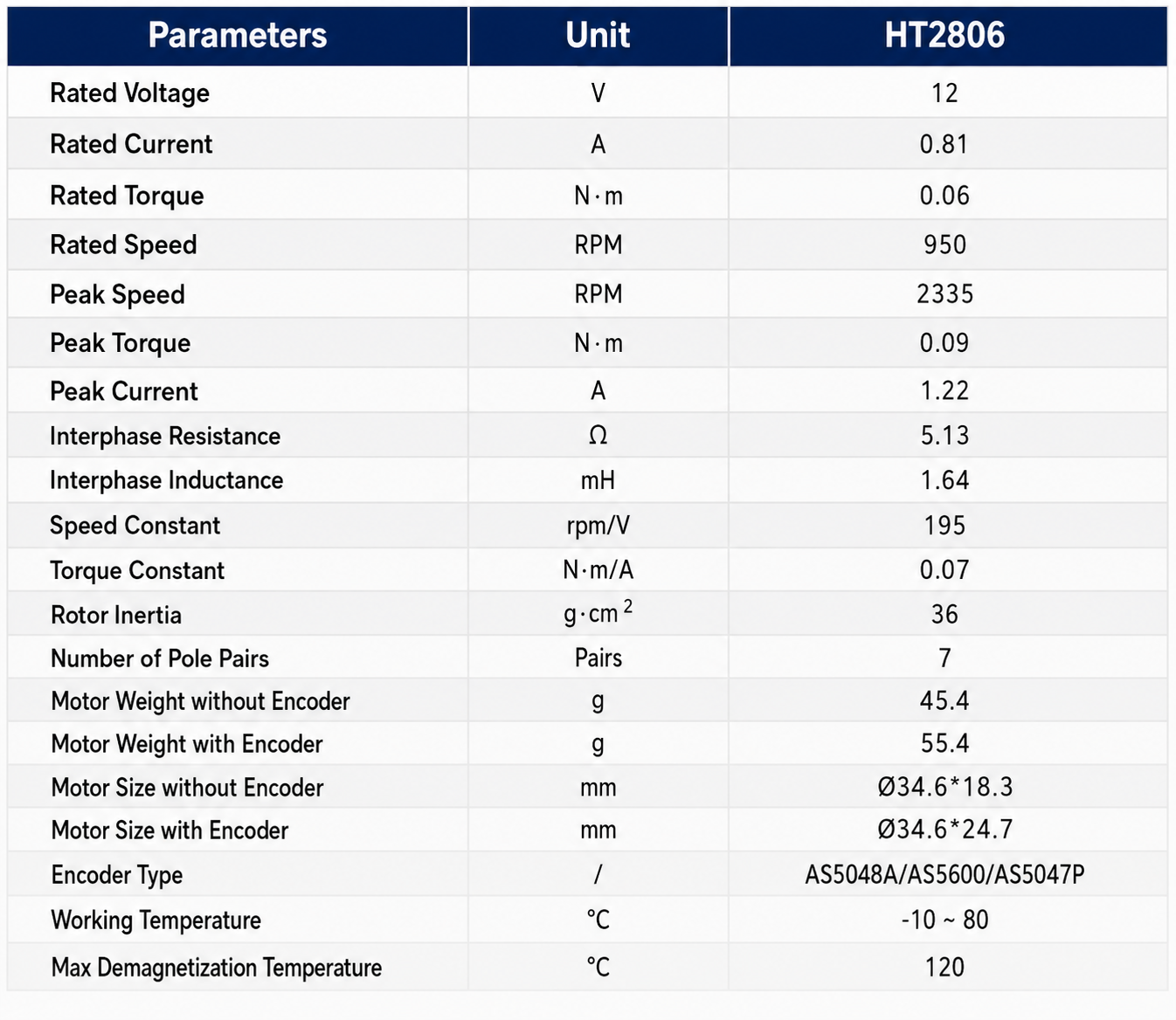

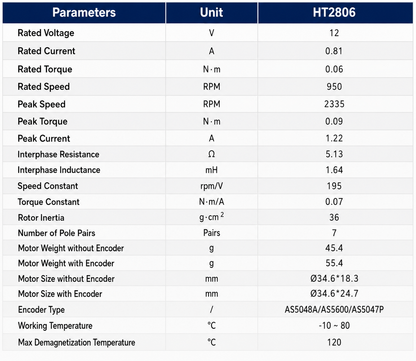

Specifications

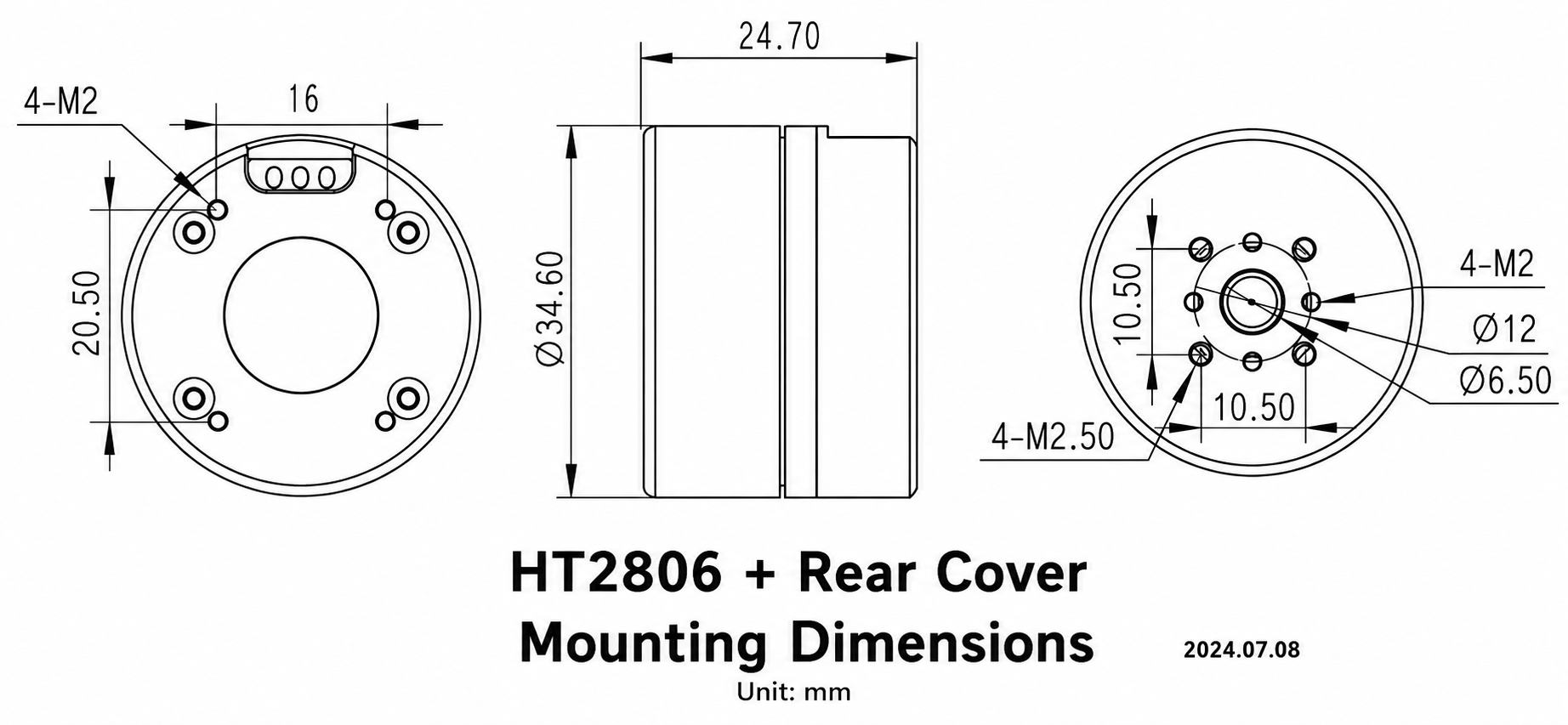

| Item | Value |
|---|---|
| Model | HT2806 |
| Rated Voltage | 12 V |
| Rated Current | 0.81 A |
| Rated Torque | 0.06 N·m |
| Rated Speed | 950 RPM |
| Peak Speed | 2335 RPM |
| Peak Torque | 0.09 N·m |
| Peak Current | 1.22 A |
| Phase Resistance | 5.13 Ω |
| Phase Inductance | 1.64 mH |
| Speed Constant | 195 rpm/V |
| Torque Constant | 0.07 N·m/A |
| Rotor Inertia | 36 g·cm² |
| Pole Pairs | 7 |
| Motor Size (Without Encoder) | Ø34.6 × 18.3 mm |
| Motor Size (With Encoder) | Ø34.6 × 24.7 mm |
| Weight (Without Encoder) | 45.4 g |
| Weight (With Encoder) | 55.4 g |
| Encoder Options | AS5600 / AS5048A / AS5047P |
| Working Temperature | -10°C to 80°C |
| Max Demagnetization Temperature | 120°C |
