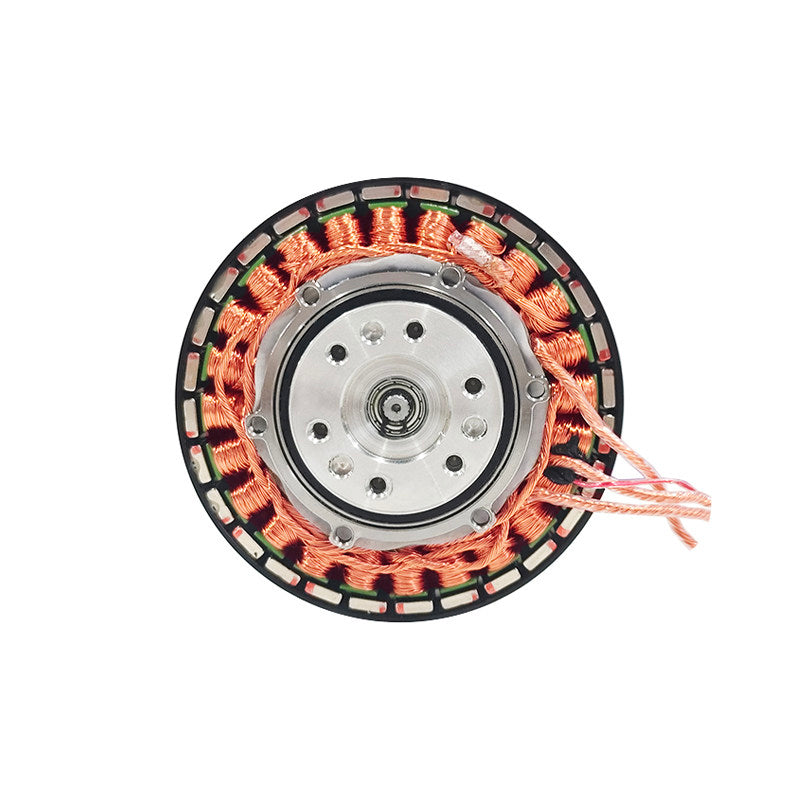

HWG Series Frameless Brushless Planetary Gear Motor
The HWG Series frameless brushless planetary gear motors are engineered for high-performance robotic joint applications requiring high torque density, compact dimensions, and exceptional motion precision.
Designed specifically for exoskeleton systems, rehabilitation devices, humanoid robots, collaborative robots, and industrial automation, these integrated planetary gear motors provide smooth low-speed control, high torque output, and excellent positioning accuracy.
Featuring precision multi-strand full-slot winding technology, hardened steel planetary gears, low backlash transmission, and IP54 protection, the HWG Series delivers reliable long-term operation in demanding robotic applications.
Features
- High torque density frameless BLDC joint motor
- Integrated precision planetary gearbox
- Lightweight compact structure
- Full-slot multi-strand precision winding
- High efficiency brushless permanent magnet motor
- Steel planetary gear transmission
- Low backlash (15 arcmin)
- IP54 protection rating
- High radial and axial load capacity
- Smooth low-speed operation
- Optimized for robotic joint control
- Suitable for continuous duty applications
- Wide operating temperature range (-20°C to +65°C)
Applications
- Robotic Exoskeleton Systems
- Rehabilitation Robots
- Humanoid Robots
- Collaborative Robots (Cobots)
- Service Robots
- Medical Assistive Robots
- Industrial Automation
- Research Robotics
- Robot Joint Modules
- Motion Control Systems
Specifications
| Item | Specification |
|---|---|
| Motor Type | Frameless Brushless DC Gear Motor |
| Gearbox | Precision Planetary Gear |
| Rated Voltage | 24 V |
| Voltage Range | 12–48 V (HWG7010-J12.5) |
| Gear Material | Steel |
| Gear Backlash | 15 arcmin |
| Pole Pairs | 14 / 21 (Depending on Model) |
| Protection Rating | IP54 |
| Working Temperature | -20°C to +65°C |
| Max Axial Load | 225 N |
| Max Radial Load | 900 N |
| Weight | 260–375 g (Model Dependent) |
Model Specifications

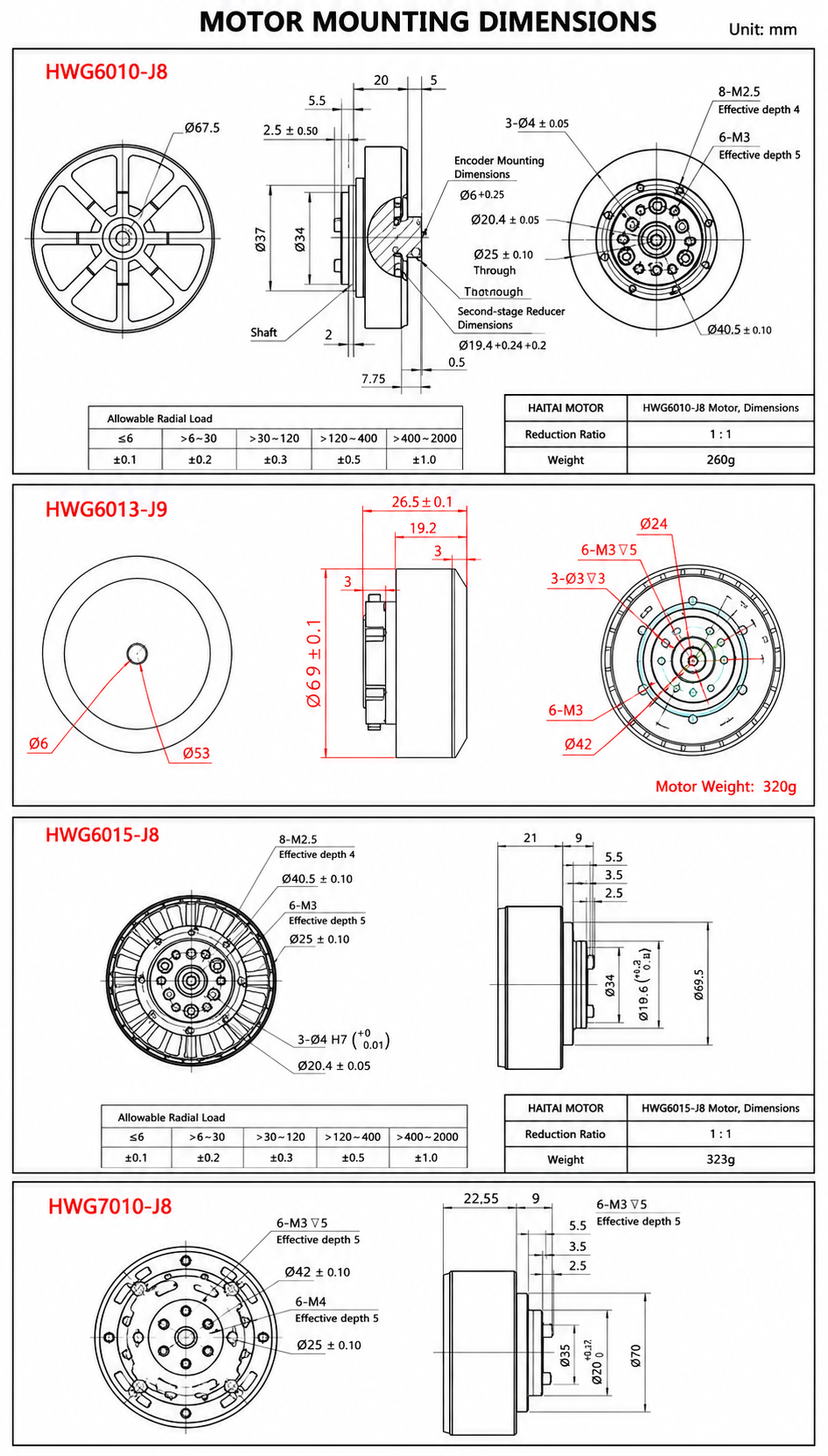

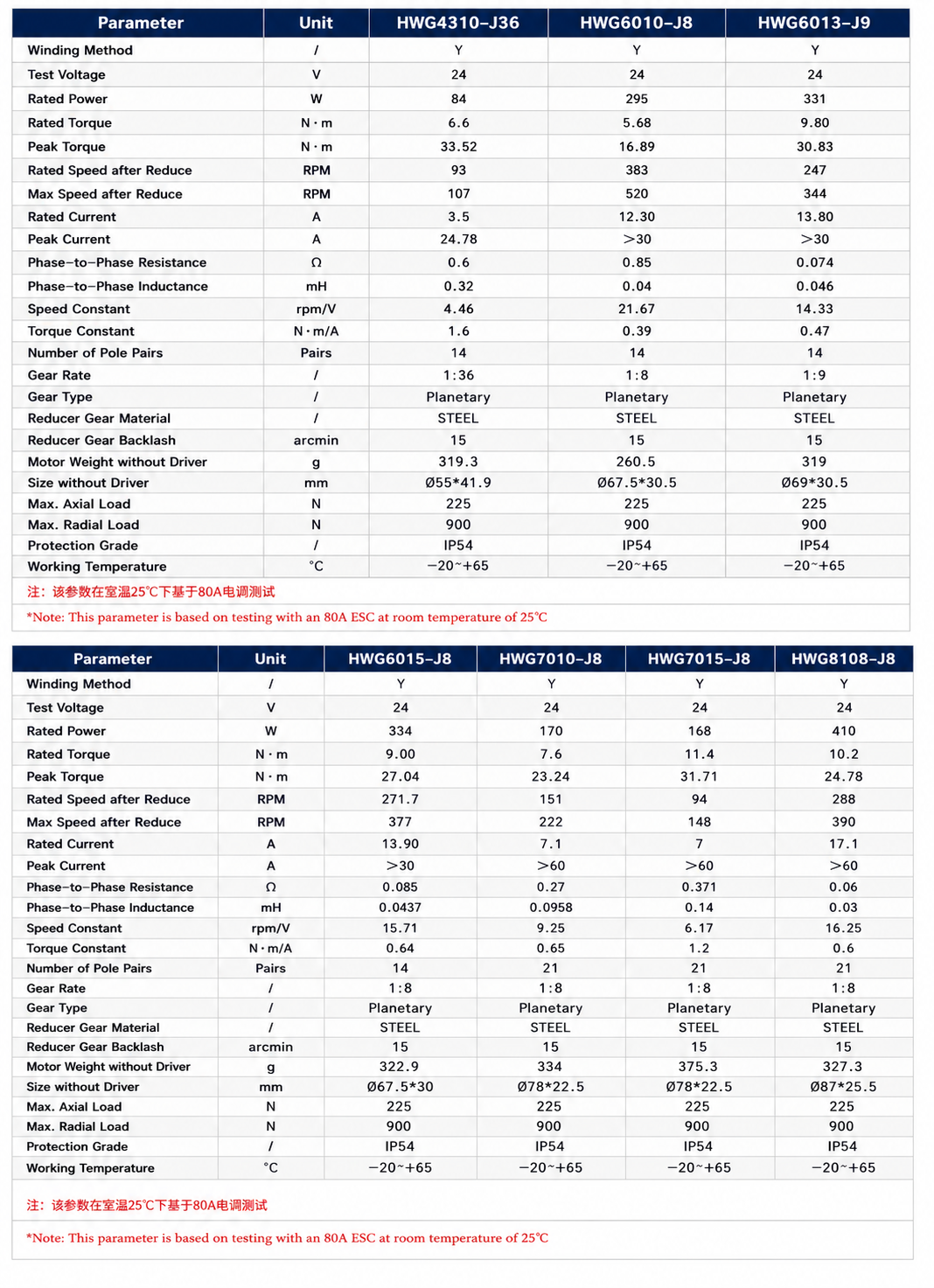

| Model | Rated Power | Rated Torque | Peak Torque | Gear Ratio | Weight |
|---|---|---|---|---|---|
| HWG4310-J36 | 84 W | 6.6 Nm | 33.52 Nm | 1:36 | 319 g |

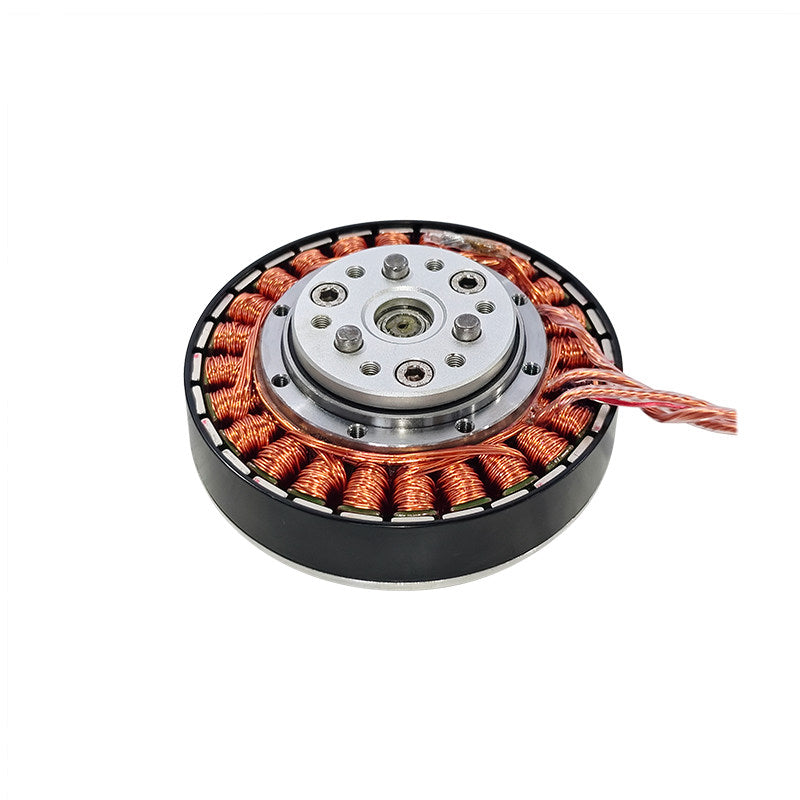

| HWG6010-J8 | 295 W | 5.68 Nm | 16.89 Nm | 1:8 | 260 g |

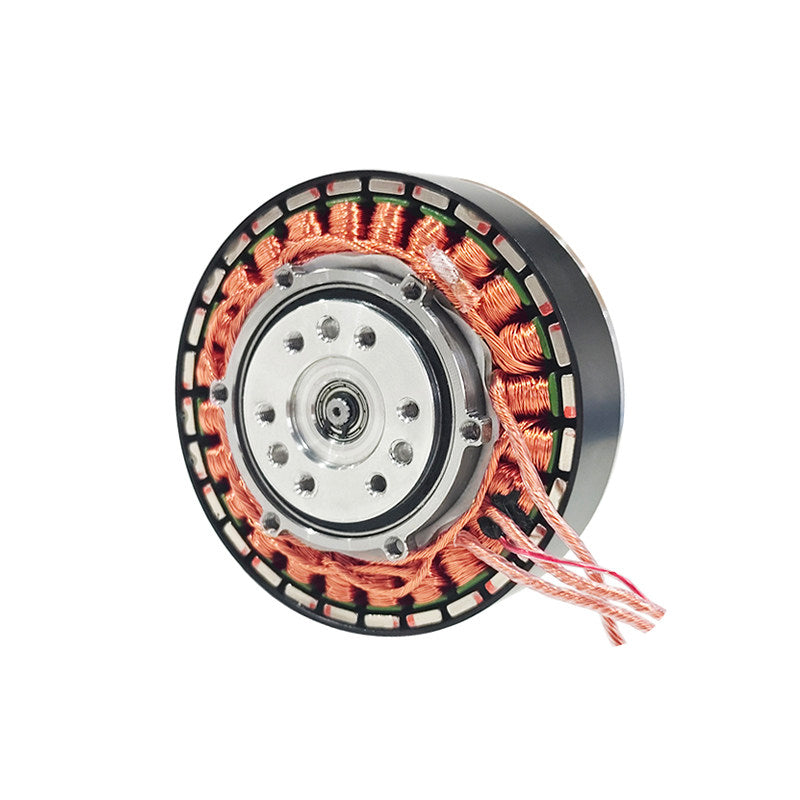

| HWG6013-J9 | 331 W | 9.8 Nm | 30.83 Nm | 1:9 | 319 g |
| HWG6015-J8 | 334 W | 9.0 Nm | 27.04 Nm | 1:8 | 323 g |

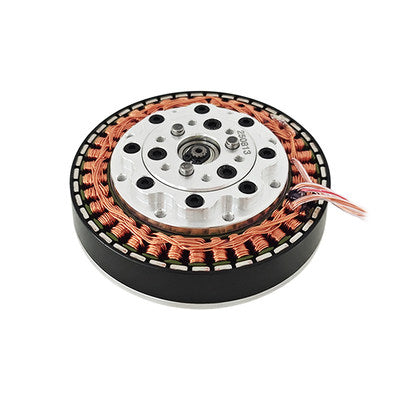

| HWG7010-J8 | 170 W | 7.6 Nm | 23.24 Nm | 1:8 | 334 g |

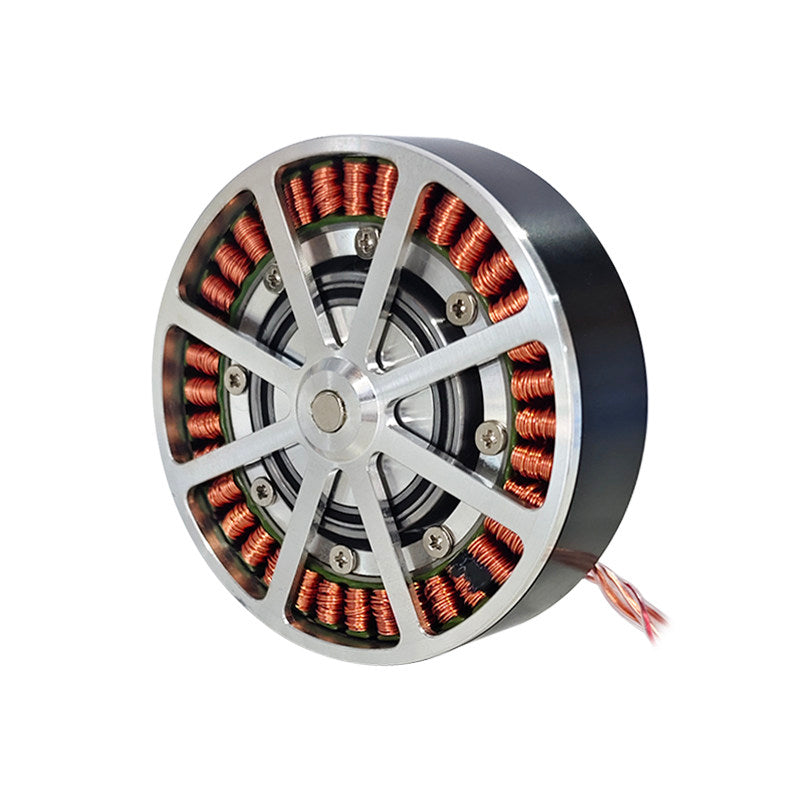

| HWG7015-J8 | 168 W | 11.4 Nm | 31.71 Nm | 1:8 | 375 g |

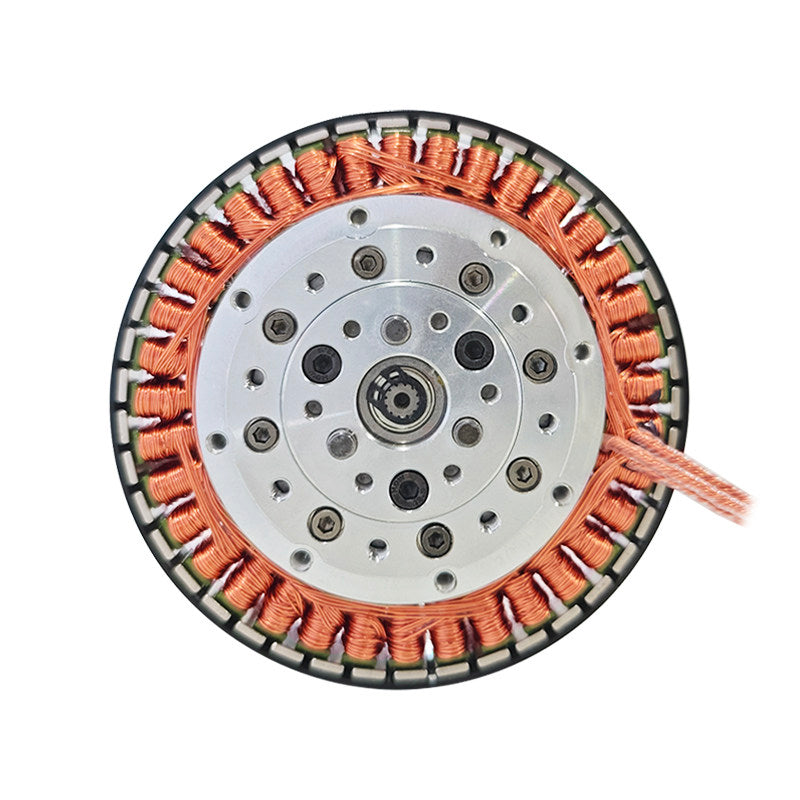

| HWG8108-J8 | 410 W | 10.2 Nm | 24.78 Nm | 1:8 | 327 g |

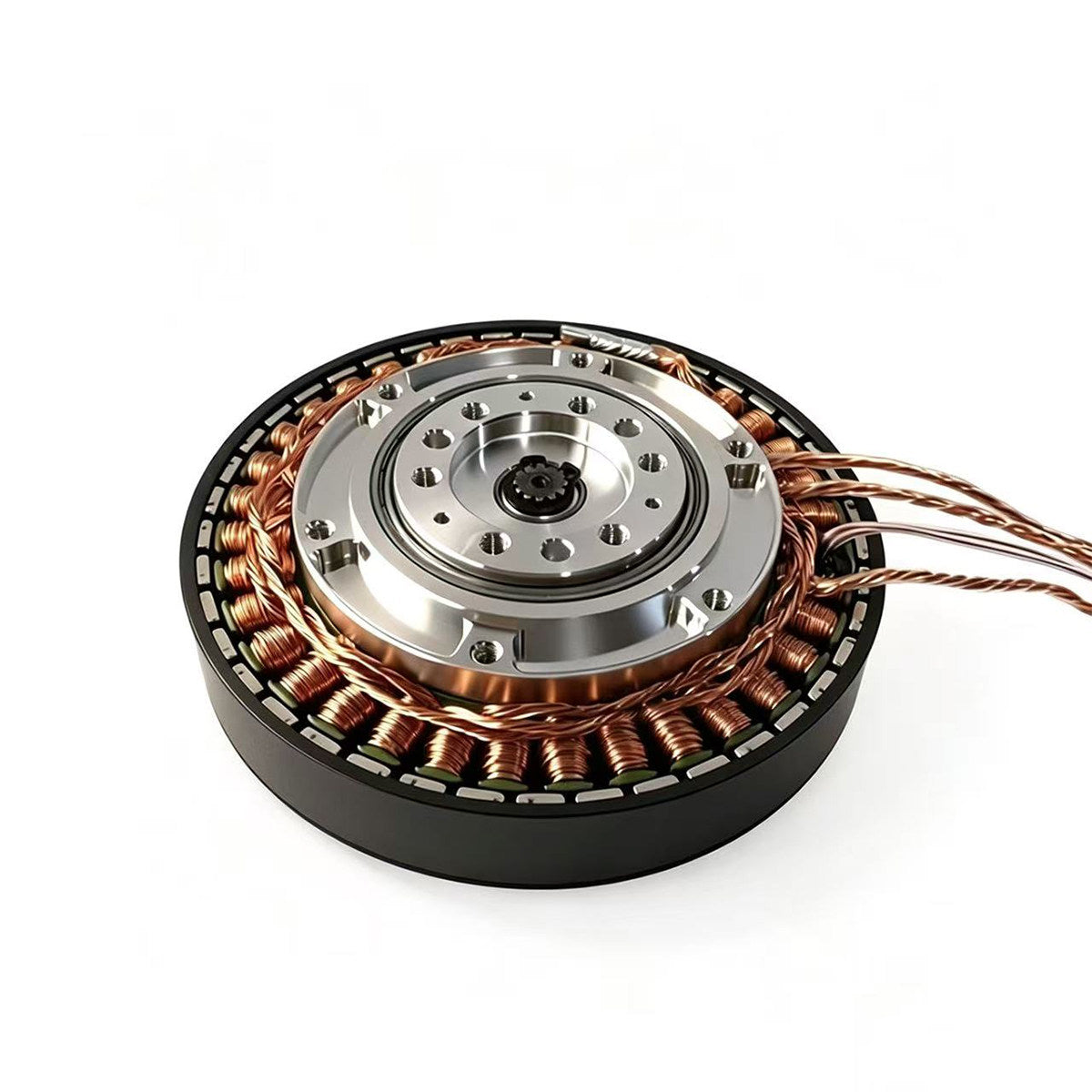

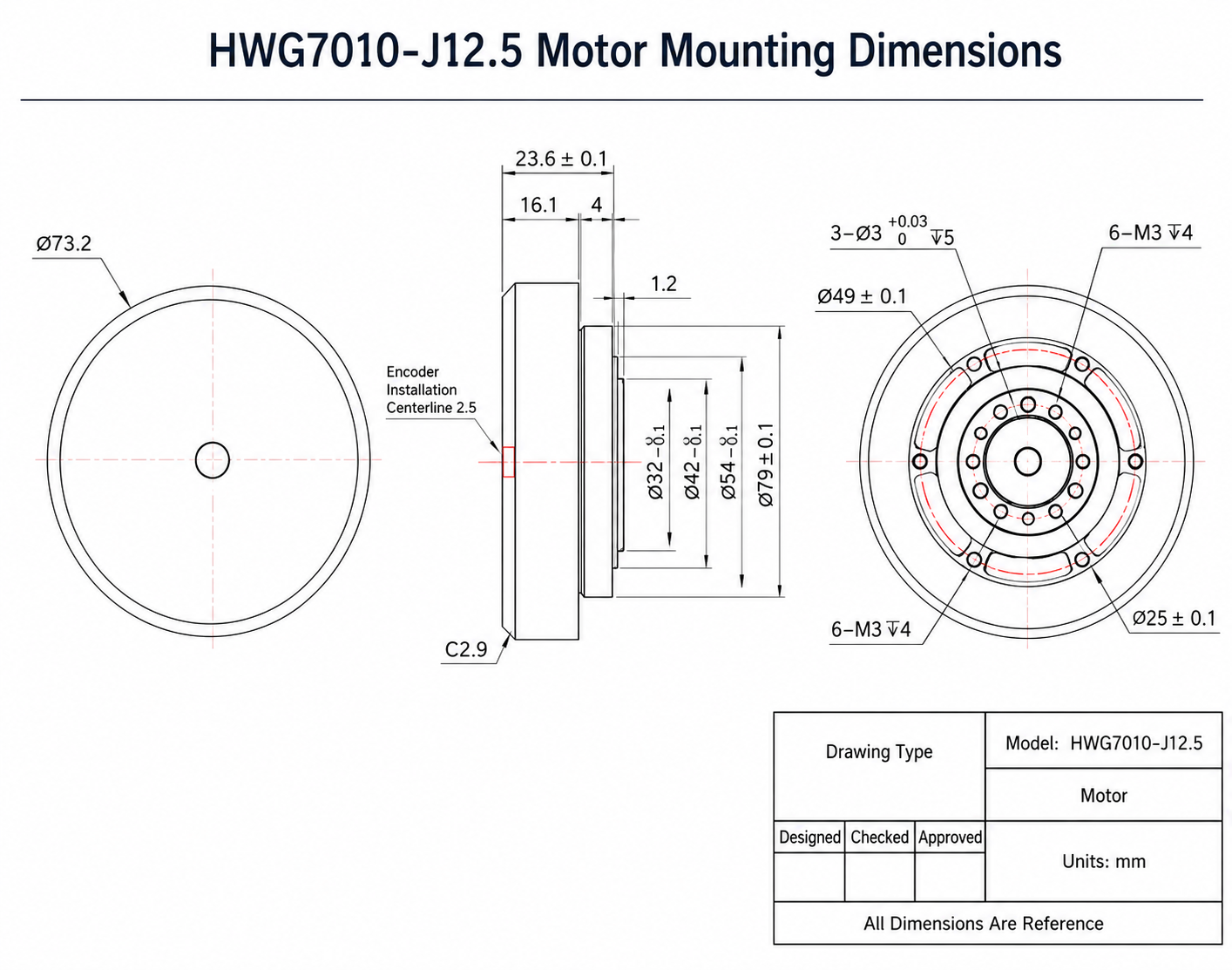

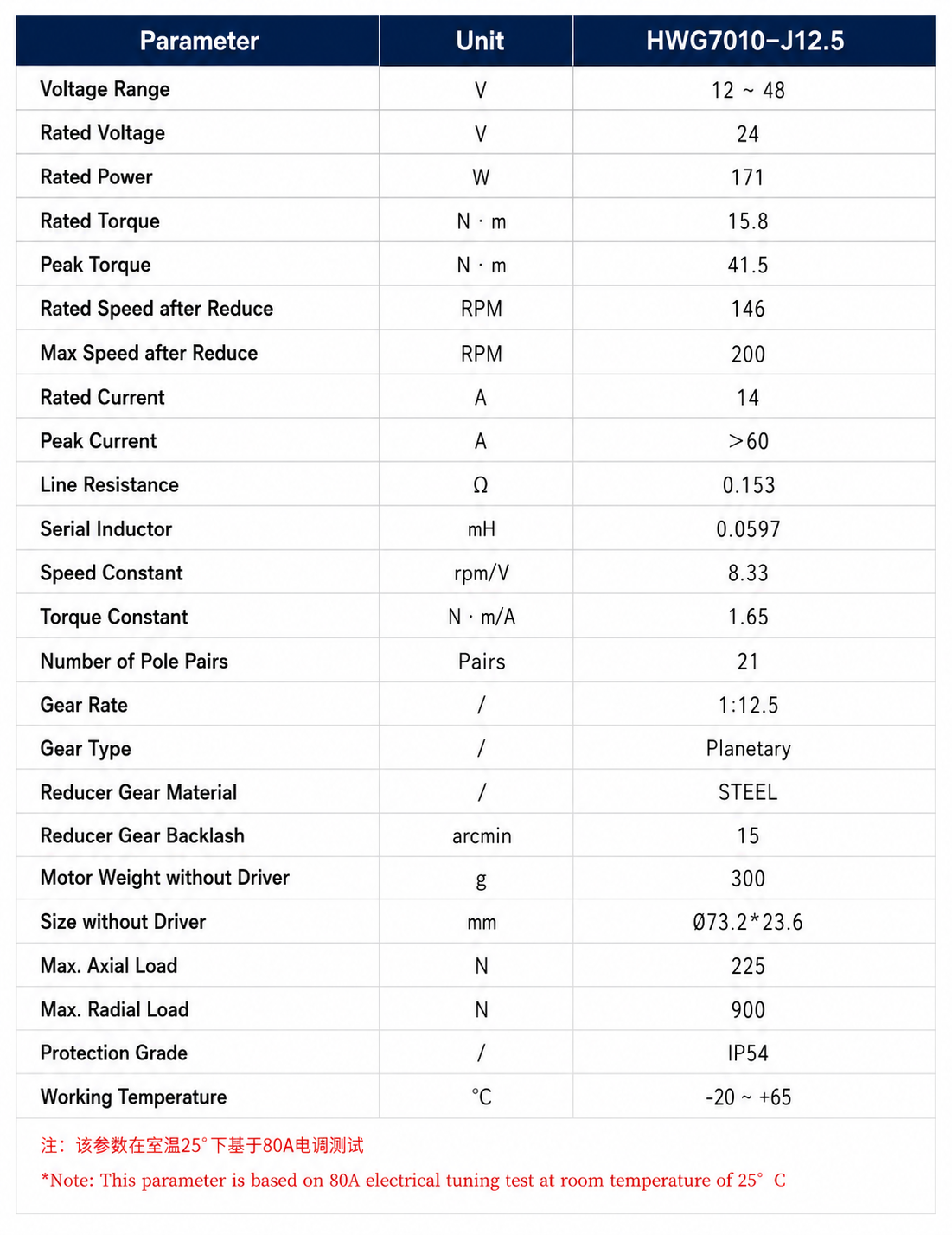

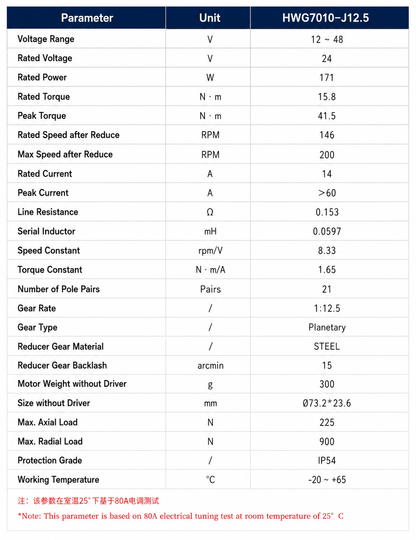

| HWG7010-J12.5 | 171 W | 15.8 Nm | 41.5 Nm | 1:12.5 | 300 g |
