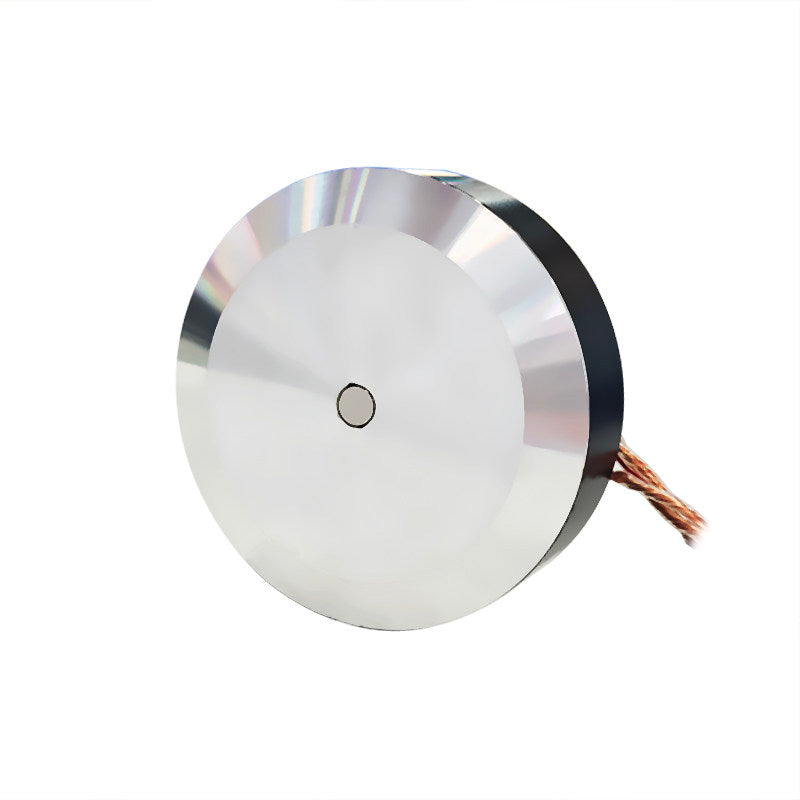

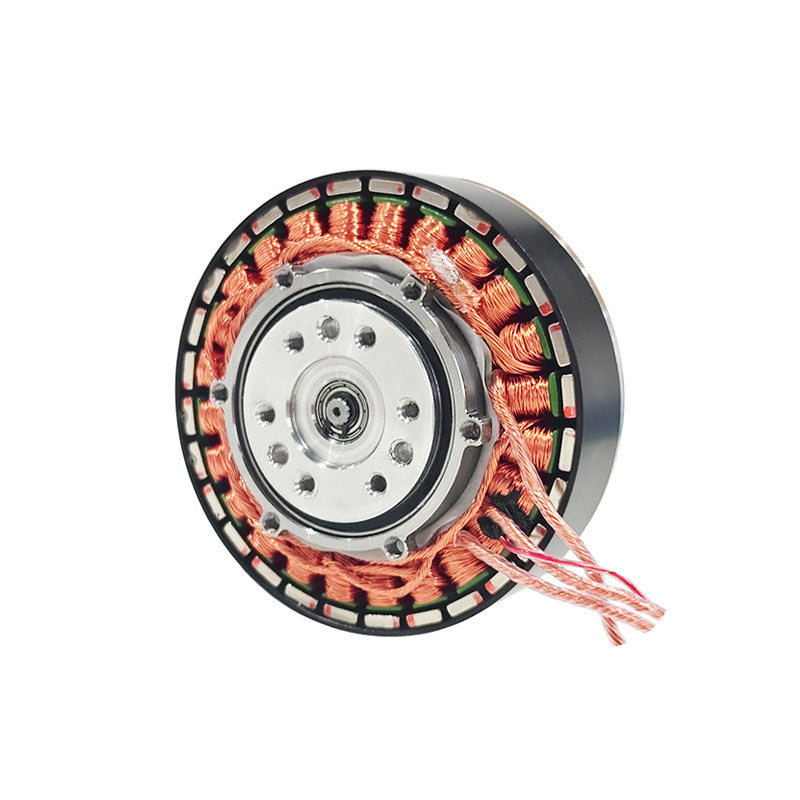

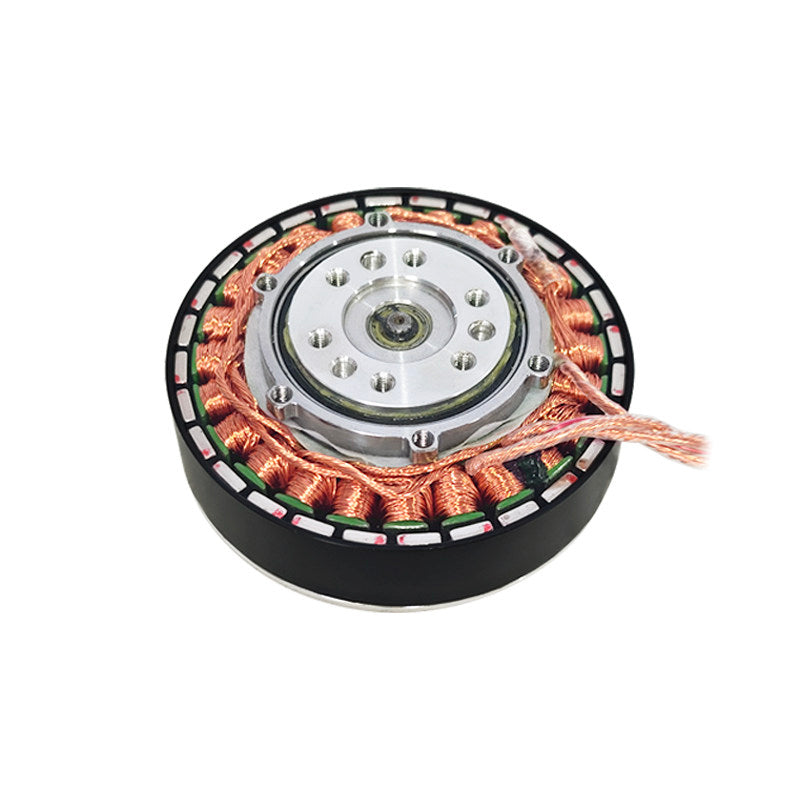

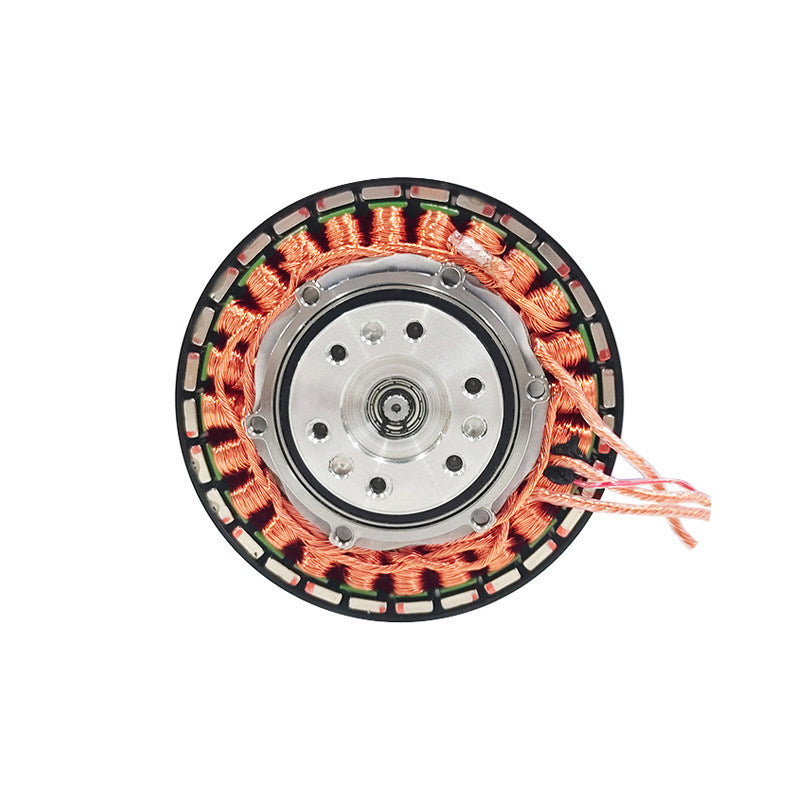

HWG6013-J9 Frameless Brushless Joint Motor with Integrated Planetary Gearbox
The HWG6013-J9 is a compact frameless brushless joint motor designed for robotic joints, exoskeleton systems, AGV actuators, collaborative robots, and precision motion control applications.
Featuring a high-efficiency outer rotor brushless motor combined with a 1:9 planetary gearbox, the unit delivers up to 9.8Nm rated torque and 30.83Nm peak torque while maintaining a lightweight 320g structure.
Its frameless architecture enables seamless integration into custom robotic joints, reducing system volume and improving torque density for advanced robotic designs.
The motor supports 24V operation and provides excellent dynamic response, low backlash transmission, and high reliability for continuous industrial and research applications.
Suitable for:
- Humanoid Robots
- Robotic Arms
- Exoskeleton Robots
- Service Robots
- AGV & AMR Systems
- Industrial Automation Equipment
- Research & Development Platforms
- Custom Motion Control Projects
Key Features
- Frameless brushless joint motor design
- Integrated 1:9 planetary gearbox
- 24V operating voltage
- 9.8Nm rated output torque
- 30.83Nm peak torque
- 247RPM rated output speed
- Low backlash planetary transmission
- Compact Ø69mm installation size
- Lightweight 320g structure
- IP54 protection rating
- Steel planetary gear construction
- Suitable for robotic joints and exoskeleton systems

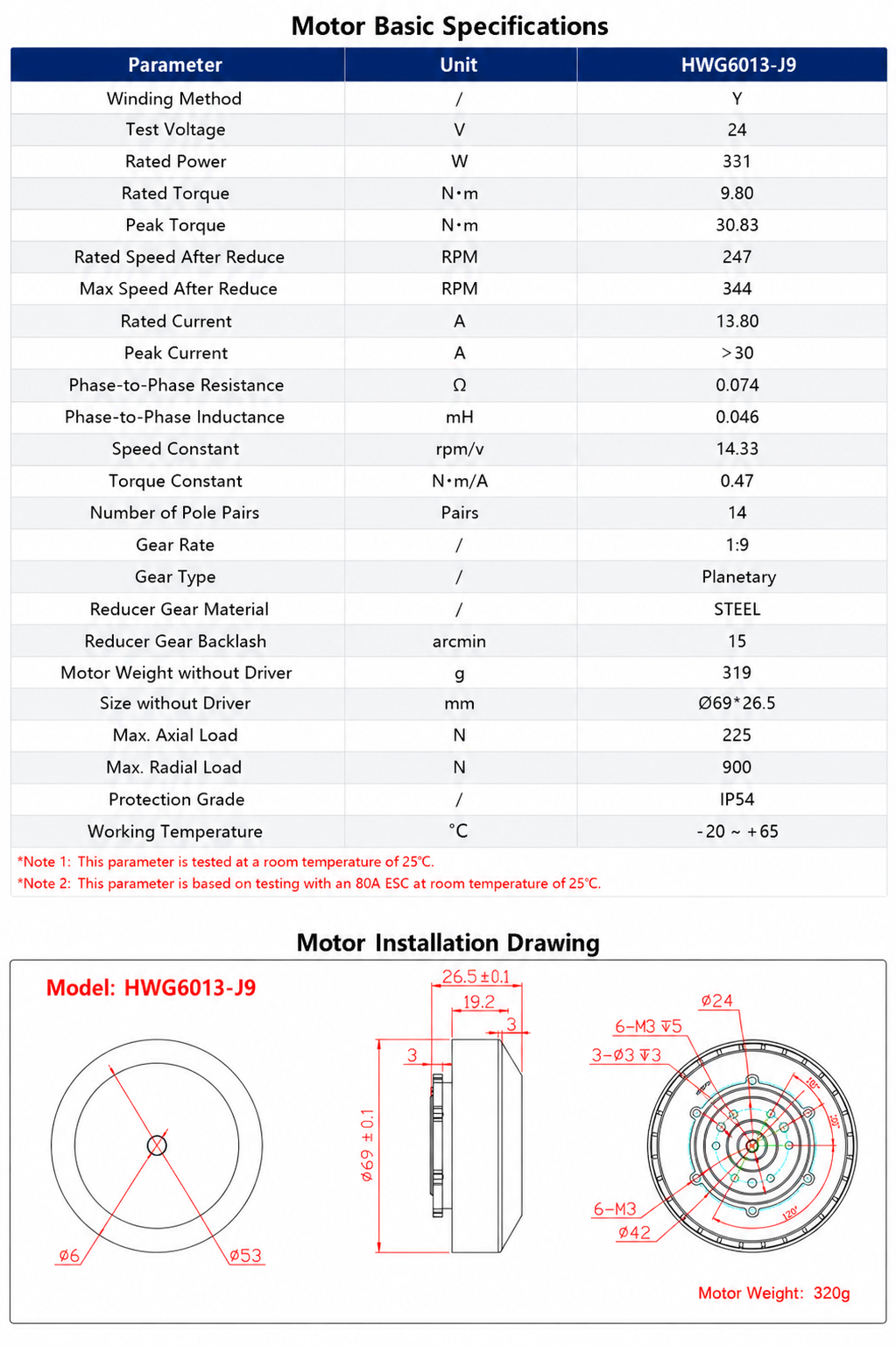

Specifications
| Parameter | Value |
|---|---|
| Model | HWG6013-J9 |
| Motor Type | Frameless Brushless Joint Motor |
| Winding Method | Y |
| Test Voltage | 24V |
| Rated Power | 331W |
| Rated Torque | 9.80Nm |
| Peak Torque | 30.83Nm |
| Rated Speed After Reduction | 247RPM |
| Max Speed After Reduction | 344RPM |
| Rated Current | 13.8A |
| Peak Current | ＞30A |
| Phase-to-Phase Resistance | 0.074Ω |
| Phase-to-Phase Inductance | 0.046mH |
| Speed Constant | 14.33rpm/V |
| Torque Constant | 0.47Nm/A |
| Pole Pairs | 14 |
| Gear Ratio | 1:9 |
| Gear Type | Planetary |
| Gear Material | Steel |
| Backlash | 15 arcmin |
| Protection Rating | IP54 |
| Axial Load Capacity | 225N |
| Radial Load Capacity | 900N |
| Motor Weight | 319g |
| Motor Size | Ø69 × 26.5mm |
| Operating Temperature | -20°C to +65°C |
Package Includes
- 1 × HWG6013-J9 Frameless Brushless Joint Motor
- 1 × Integrated 1:9 Planetary Gearbox
Applications
- Humanoid Robot Joints
- Robotic Arm Actuators
- Exoskeleton Systems
- Rehabilitation Robots
- Service Robots
- Collaborative Robots (Cobots)
- Industrial Automation
- Mobile Robot Platforms
- Research Robotics
- Precision Motion Control Systems
