Product Description

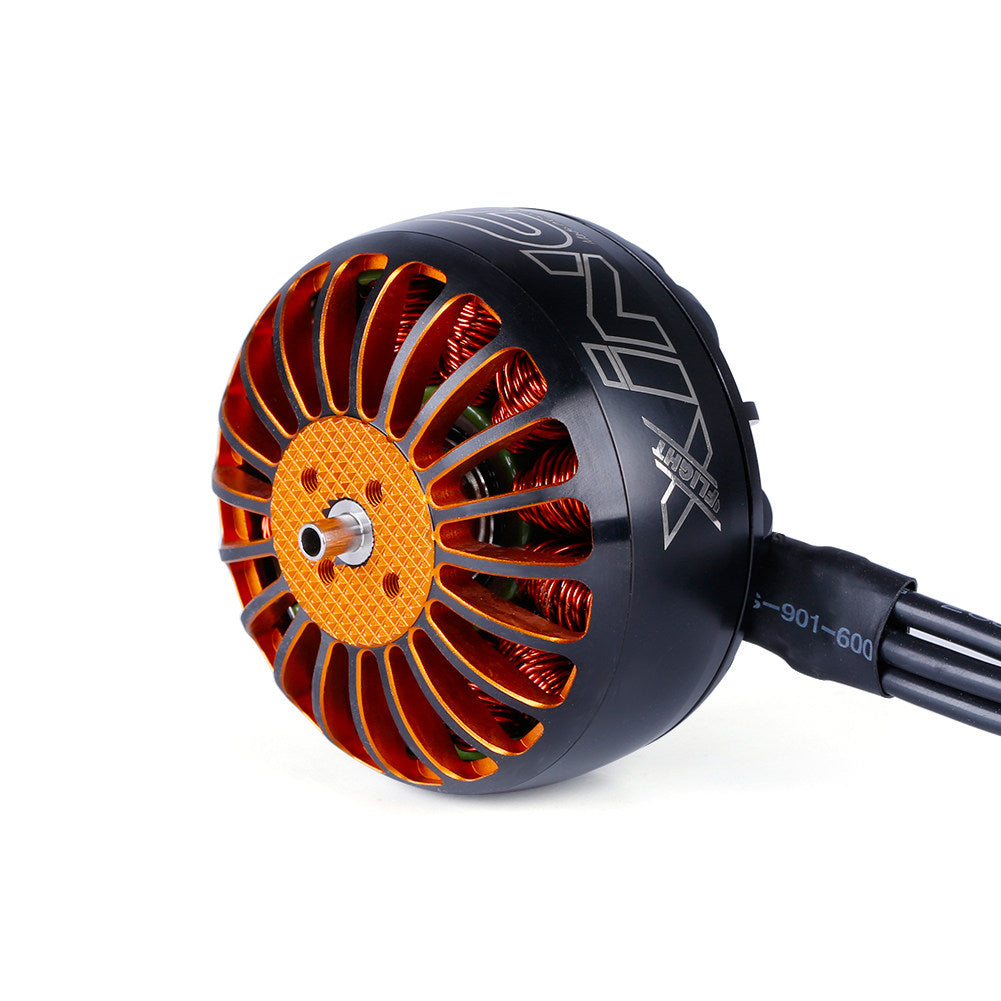

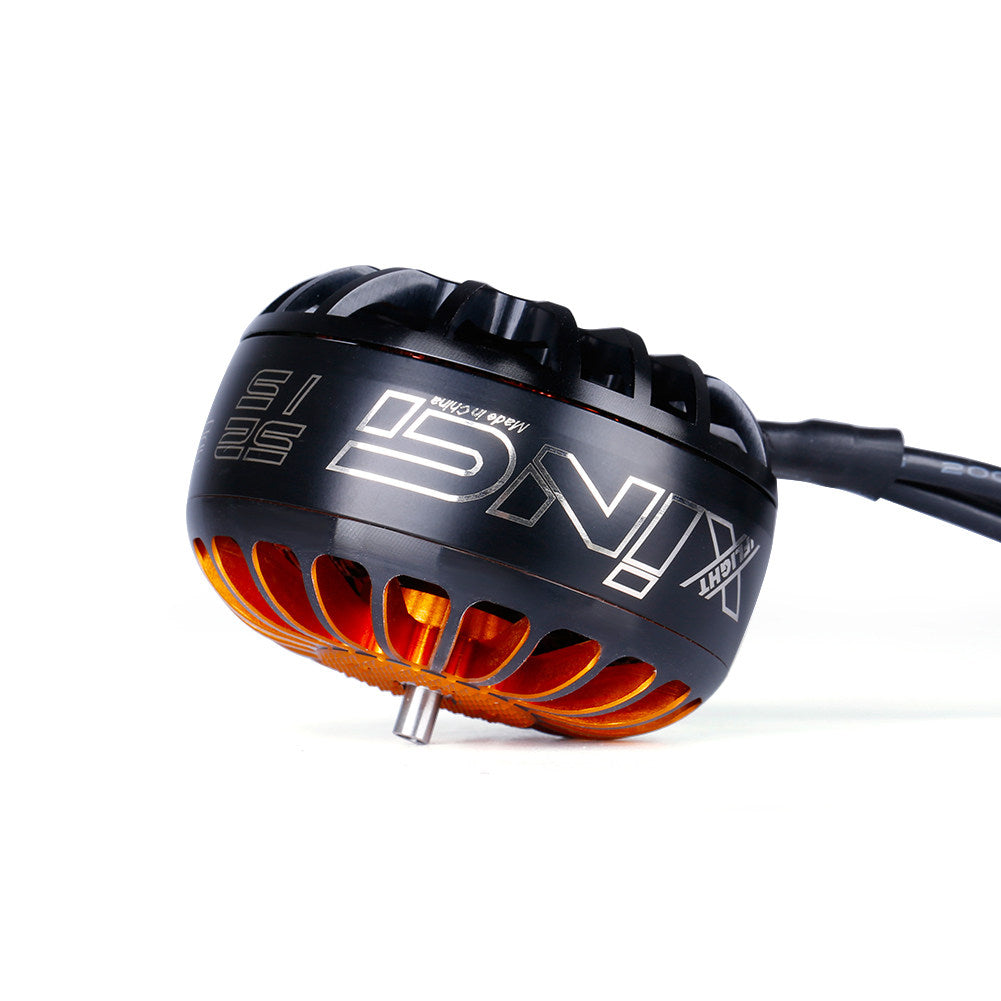

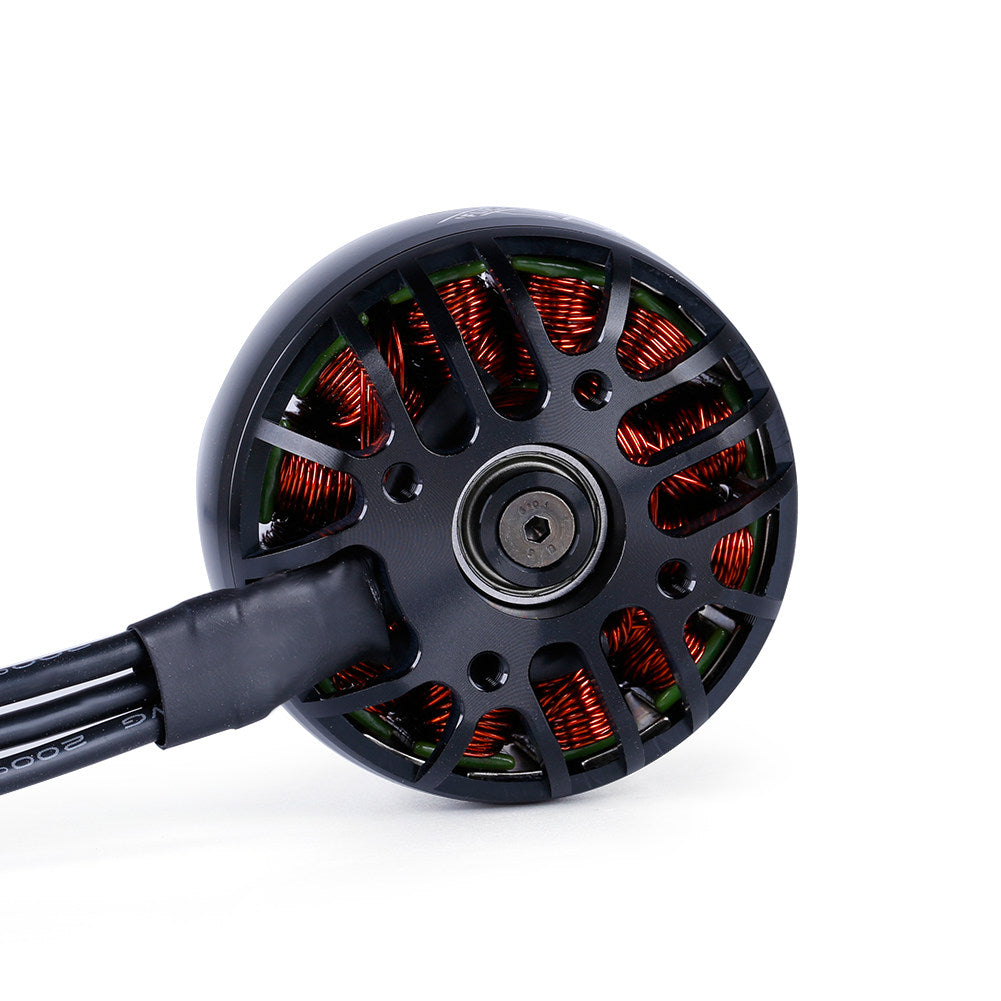

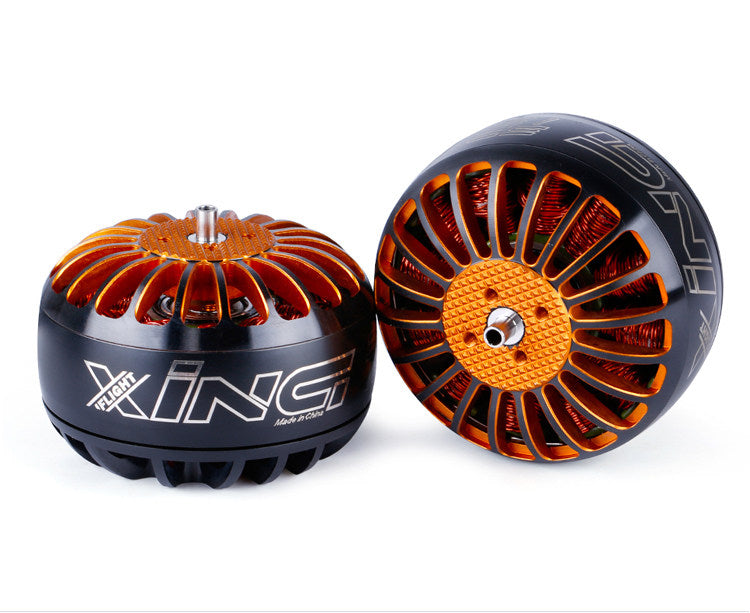

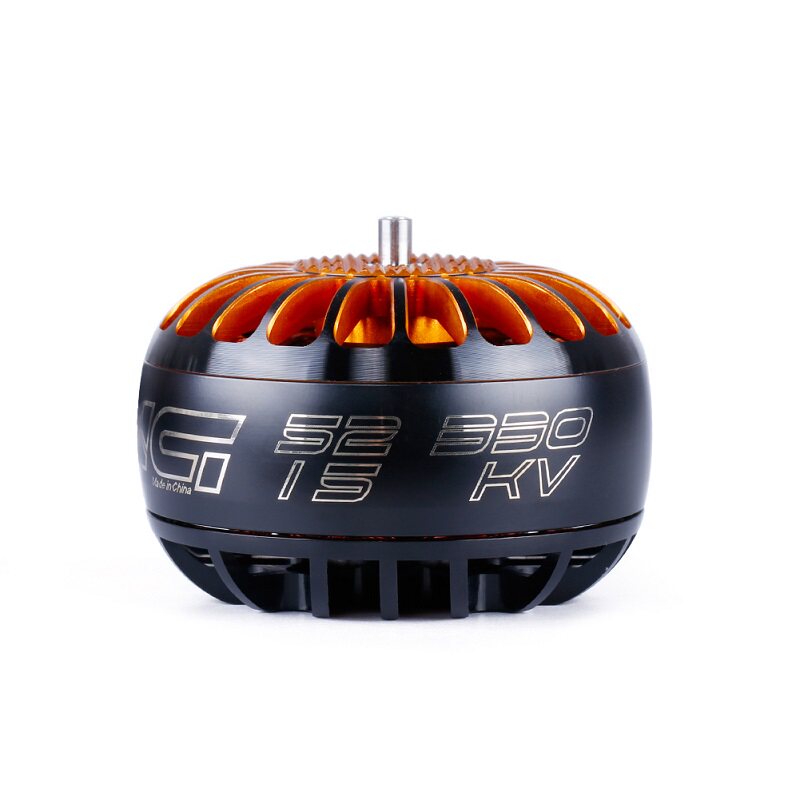

The iFlight XING 5215 X-Class Brushless Motor is a high-power outrunner motor engineered for large FPV drones, X-Class racing drones, heavy-lift UAVs, and industrial aerial platforms. Featuring a large 52×15 stator design, high-efficiency winding, and N48SH curved magnets, this motor delivers exceptional thrust, smooth throttle response, and reliable high-current performance.
Designed for 8S LiPo systems up to 32V, the XING 5215 series is optimized for high-thrust propeller setups and demanding long-duration flight applications. The precision CNC-machined housing, NSK bearings, and multi-strand copper winding ensure durability and stable operation under extreme loads.
Available in multiple KV options including 250KV, 330KV, and 500KV for different thrust and efficiency requirements.
Key Features
- Large 5215 stator design for high thrust output
- Optimized for X-Class FPV and heavy-lift UAV applications
- High-efficiency N48SH arc magnets
- Smooth and responsive throttle control
- CNC-machined aluminum housing
- High-quality NSK bearings
- Supports up to 32V input (8S LiPo compatible)
- Low internal resistance for high current delivery
- Durable multi-strand winding design
- Compatible with large propellers and high-power ESC systems
Applications
- X-Class FPV racing drones
- Heavy-lift UAV platforms
- Industrial drones
- Long-range aerial systems
- Cinematic drone builds
- Custom multirotor aircraft
- Experimental aerospace projects
Specifications

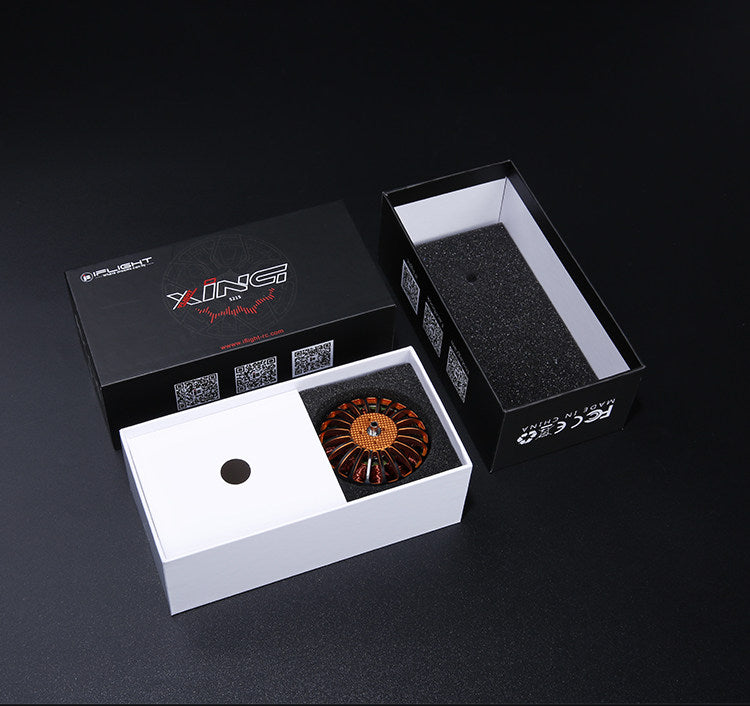

Package Includes
- 1 × iFlight XING 5215 Brushless Motor
- 1 × Propeller Mount
- 1 × Mount Adapter Set
- M3 Screws Set
- M4 Screws Set
- M6 Black Flange Nut
Recommended Setup
| KV Option | Recommended Voltage | Typical Application |
|---|---|---|
| 250KV | 8S LiPo | Heavy lift / Long endurance |
| 330KV | 6S–8S LiPo | Balanced thrust & efficiency |
| 500KV | 6S–8S LiPo | High-thrust X-Class racing |
FAQ
Q1: What type of drones is the XING 5215 motor suitable for?
The XING 5215 is designed for X-Class FPV drones, heavy-lift multirotors, industrial UAVs, and large cinematic drone platforms.
Q2: What battery voltage does this motor support?
The motor supports up to 32V input and is commonly used with 6S to 8S LiPo battery systems.
Q3: What is the difference between 250KV, 330KV, and 500KV?
- 250KV focuses on torque and efficiency for heavy-lift applications
- 330KV provides balanced performance
- 500KV delivers higher RPM and stronger thrust for aggressive flying
Q4: Does the motor include mounting hardware?
Yes. The package includes screws, flange nut, propeller mount, and adapter accessories.
Q5: Is this motor compatible with carbon fiber propellers?
Yes. The XING 5215 is compatible with large carbon fiber propellers commonly used on X-Class drones.
Q6: What ESC rating is recommended?
A high-current ESC rated for at least 80A–120A is recommended depending on KV version and propeller setup.
