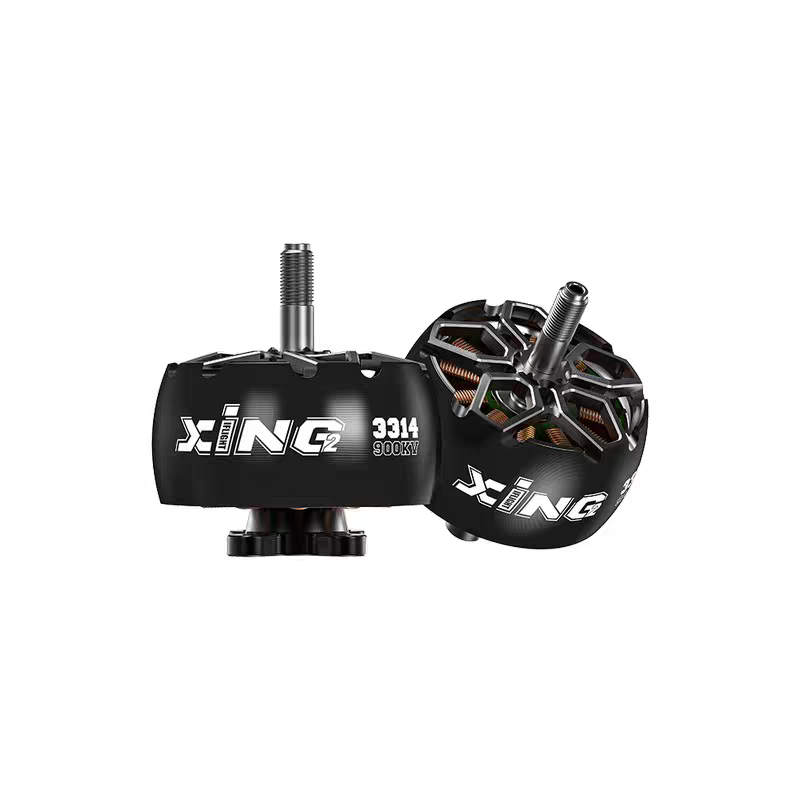

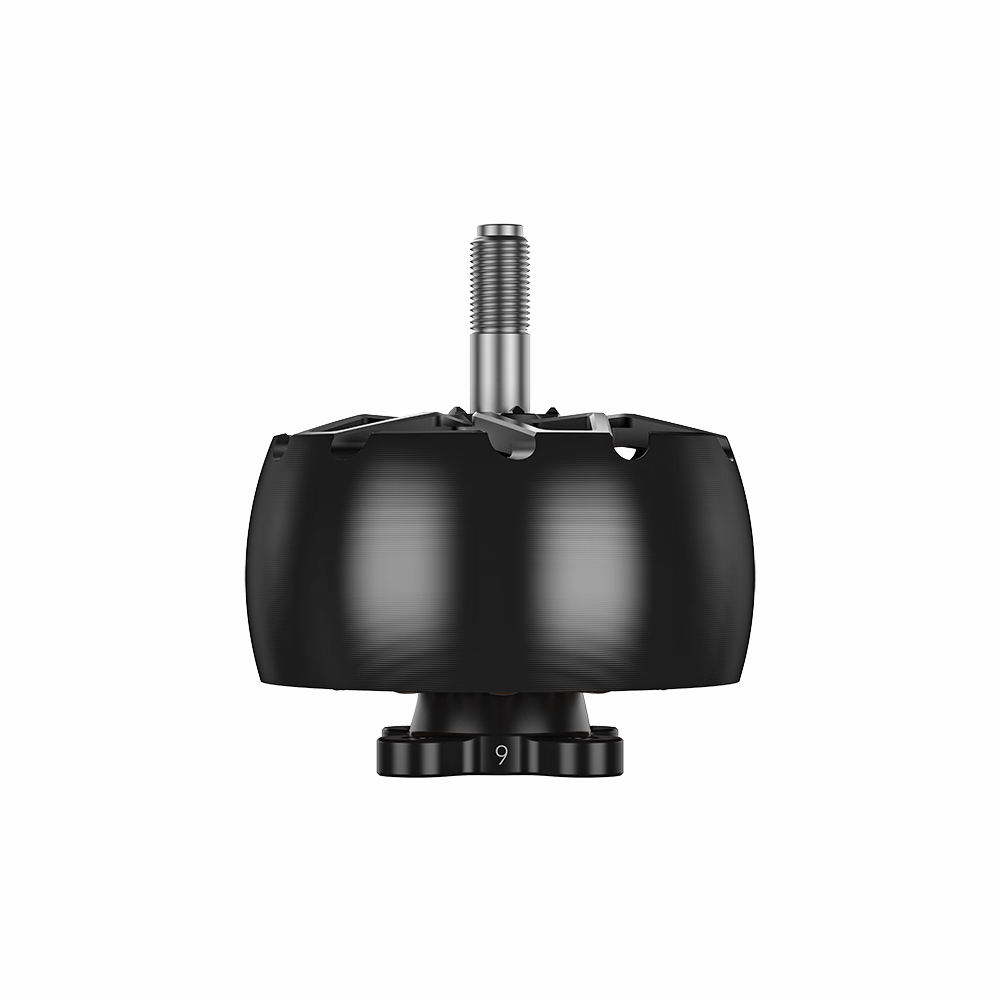

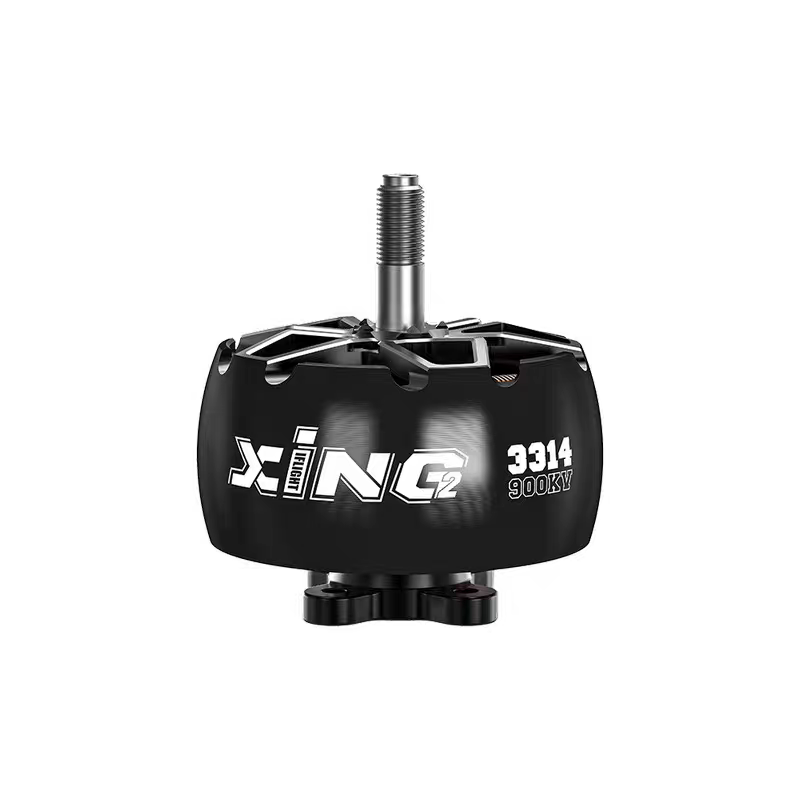

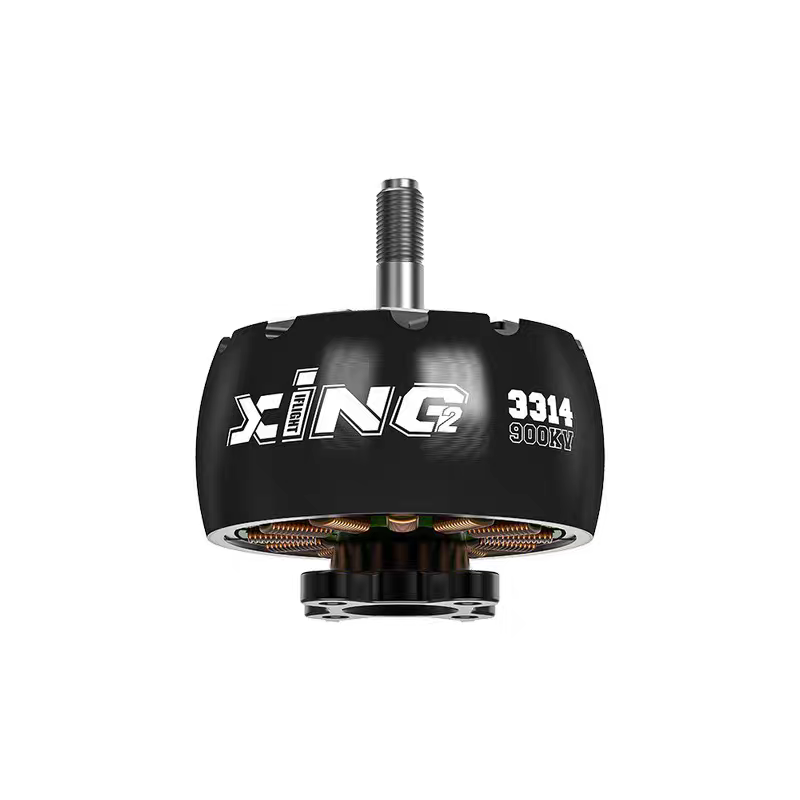

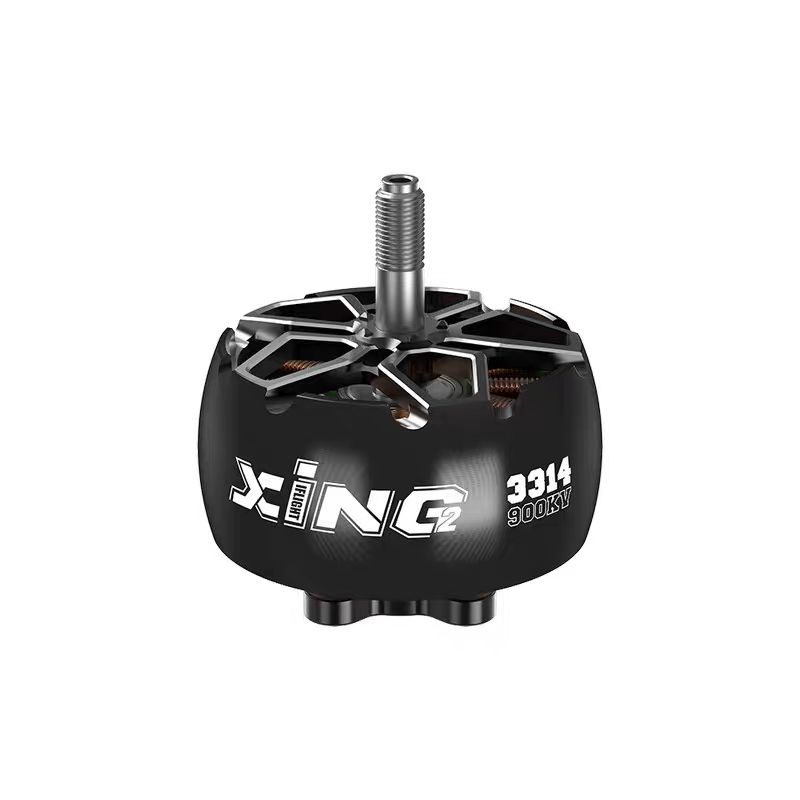

iFlight XING2 3314 900KV FPV Brushless Motor Unibell High Power

Product Description

The iFlight XING2 3314 900KV Unibell Brushless Motor is a next-generation FPV motor engineered for pilots who demand fast response, high efficiency, and long-term reliability. Building on the success of the original XING series, the XING2 features advanced magnetic design and precision construction to deliver a more locked-in and responsive flight experience.

Equipped with N52H curved arc magnets, the motor significantly improves magnetic flux utilization, reducing response delay and improving PID loop translation for smoother and more precise control. The unibell rotor design, combined with a titanium alloy shaft, minimizes air gap and mechanical stress, resulting in higher efficiency and durability under high loads.

Premium NMB bearings ensure smooth, low-noise operation even during aggressive flight, making this motor ideal for heavy-lift FPV builds, long-range drones, and professional aerial platforms.

Key Features

• 900KV unibell brushless motor optimized for FPV applications

• N52H curved arc magnets for faster response and higher efficiency

• Titanium alloy shaft for strength and durability

• Precision NMB bearings for smooth and stable operation

• High power output suitable for demanding flight conditions

• Designed for advanced and professional FPV pilots

Specifications

• Model: XING2 3314

• KV Rating: 900KV

• Weight (Including Wire): 129g

• Input Voltage: 24V

• Interphase Resistance: 36.5 mΩ

• Peak Current: 58.48A

• Maximum Power: 1366.1W

• Rotor Type: Unibell

• Magnet Type: N52H Curved Arc

• Motor Configuration: 12N14P

• Shaft Diameter: 5mm

• Shaft Protruding Length: 17mm

• Bearing Type: NMB

• Bearing Size: φ11 × 5mm

• Lead Length: 400mm / 16AWG

• Winding: Single-strand copper winding

• Mounting Pattern: 19mm φ3mm

Dimensions

• Motor Diameter: 41.9 mm

• Motor Height: 29.8 mm

What’s Included

• 1 × iFlight XING2 3314 900KV Brushless Motor

• 4 × M3×12 Mounting Screws

• 1 × M5 Flange Nut

Applications

• FPV freestyle and cinematic drones

• Heavy-lift multirotors

• Long-range FPV platforms

• Professional aerial robotics projects
