IMU570 High Precision Inertial Measurement Unit
The IMU570 Inertial Measurement Unit (IMU) is a high-performance motion sensing device designed for navigation, motion tracking, and industrial automation systems.
The sensor integrates three-axis gyroscopes, three-axis accelerometers, temperature sensors, and high-precision signal processing circuits to provide accurate real-time measurement of angular velocity and motion dynamics.
Using advanced error compensation algorithms, including temperature compensation, installation error correction, and non-linear calibration, the IMU570 ensures reliable and stable performance in demanding environments.
The device outputs motion data through an RS422 communication interface, making it suitable for high-precision industrial and autonomous systems.
Key Features
• High precision 6-axis IMU (3-axis gyroscope + 3-axis accelerometer)
• Accurate angular velocity measurement for motion control
• Built-in temperature compensation and signal correction
• Advanced non-linear calibration algorithm
• Stable performance in harsh industrial environments
• RS422 / RS485 communication interface
• High bandwidth and low noise sensing technology
• Compact and rugged industrial design
Product Advantages
High Precision Motion Detection
The IMU570 integrates high-grade gyroscopes and accelerometers, enabling precise measurement of angular velocity and motion dynamics for navigation and control systems.
Advanced Error Compensation
Built-in temperature compensation and calibration algorithms ensure stable performance even in environments with large temperature variations.
Industrial Grade Stability
The sensor is designed for long-term operation in demanding environments, providing reliable motion data for professional applications.
High Speed Data Output
The RS422 communication interface ensures stable and fast data transmission for real-time motion monitoring.
Technical Specifications
Attitude Accuracy
| Parameter | Specification |
|---|---|
| Roll / Pitch (Dynamic) | 0.5° |
| Heading Accuracy | 0.5° |
Gyroscope Performance
| Parameter | Specification |
|---|---|
| Measurement Range | ±1800°/s |
| Bias Instability (Allan Variance) | ≤8°/h (−20°C to 70°C) |
| Angle Random Walk | ≤0.13°/√h / ≤0.24°/√h |
| Bias Acceleration Sensitivity | ≤1°/h/g |
| Resolution | ≤0.001°/s |
| Scale Factor Nonlinearity | ≤100 ppm |
| Scale Factor Repeatability | ≤100 ppm |
| Cross Axis Coupling | ≤0.1% |
| Bandwidth | ≥200 Hz |
Accelerometer Performance
| Parameter | Specification |
|---|---|
| Measurement Range | ±38 g |
| Bias Instability (Allan Variance) | 0.019 mg |
| Bias Repeatability | 0.08 mg |
| Velocity Random Walk | 0.04 m/s/√h |
| Full Temperature Bias Error | 0.5 mg |
Electrical Parameters
| Parameter | Specification |
|---|---|
| Power Supply Voltage | +5V ±0.5V (DC) |
| Operating Current | 105 mA ±5 mA |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | −40°C to +85°C |
| Storage Temperature | −40°C to +85°C |
| Vibration Resistance | 10–2000 Hz, 10 g |
| Shock Resistance | 100 g @ 11 ms (three-axis) |
| Weight | 52 g ±5 g |
Communication Interface
| Parameter | Specification |
|---|---|
| Supported Interface | RS422 / RS485 |
| Output Data | Angular velocity, Motion measurement data |
| Protocol | Industrial standard serial communication |

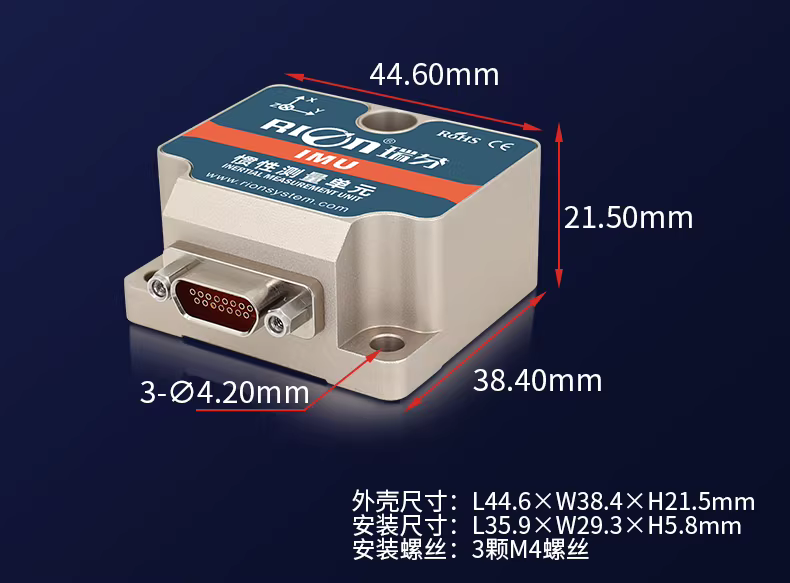

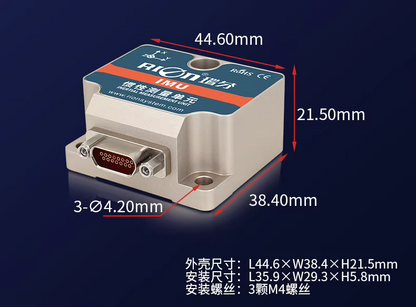

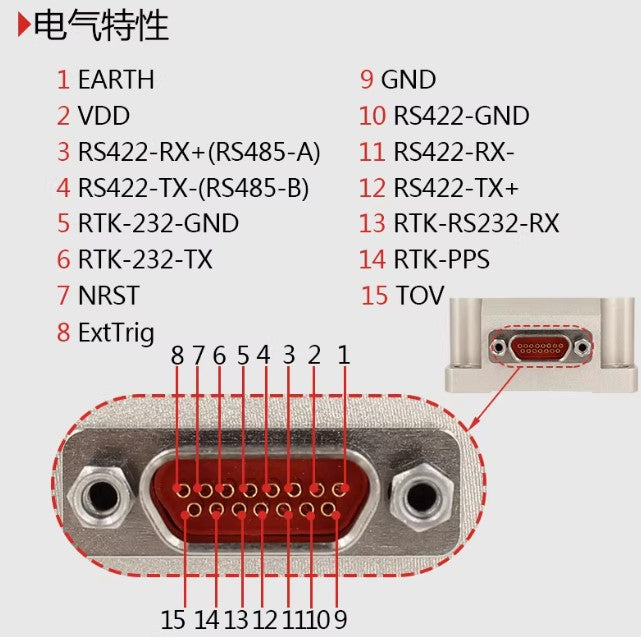

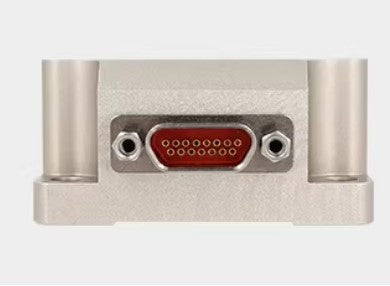

Wiring Definition
Connector Type: J30J-15ZKP
Pin Functions
1 — EARTH (Chassis Ground)
2 — VDD (Power Supply 4.5–7V DC)
3 — RS422-RX+ / RS485-A
4 — RS422-TX- / RS485-B
5 — RTK-232-GND
6 — RTK-RS232-TX
7 — NRST (External Reset)
8 — ExtTrig (External Trigger)
9 — GND (Power Ground)
10 — RS422-GND
11 — RS422-RX-
12 — RS422-TX+
13 — RTK-RS232-RX
14 — RTK-PPS
15 — TOV (Frequency Output)
Installation Notes
Correct installation is essential for accurate motion measurement.
The IMU570 follows the right-hand coordinate system for axis orientation.

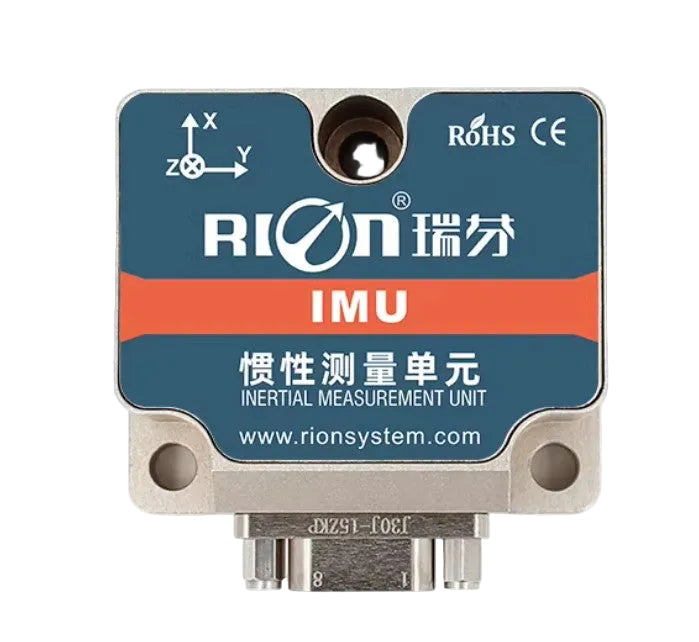

Axis Definition
X-axis: Forward direction from the connector
Y-axis: Right side direction of the device
Z-axis: Downward direction toward the bottom of the unit
To determine rotation direction, follow the right-hand rule:
Point the thumb along the positive axis direction, and the curl direction of the other fingers represents the positive angular velocity direction.
Proper axis alignment ensures accurate measurement of motion data.
Typical Applications
Marine Navigation Systems
Autonomous Driving Systems
UAV Flight Control
Underwater Robotics
Surveying and Mapping Equipment
High-Speed Train Monitoring
Satellite Communication Stabilization
Industrial Motion Control Systems
Package Includes
1 × IMU570 Inertial Measurement Unit
1 × Industrial Connector Interface
