Overview
Intel RealSense LiDAR Camera L515 is a solid-state LiDAR camera peripheral designed for indoor depth sensing and computer vision. It uses proprietary MEMS mirror scanning technology and is specified for an ideal range of 0.25 m to 9 m (range affected by reflectivity). With less than 3.5 W power consumption for depth streaming, it is suited to compact, power-conscious systems. Note: this product has reached End-of-Life (EOL) status and is no longer actively supported or maintained.
Key Features
- Depth technology: LiDAR (laser scanning with MEMS mirror)
- Depth output up to 1024 × 768 at 30 fps (23 million pixels per second)
- RGB camera: 1920 × 1080 at 30 fps, rolling shutter, 2 MP
- Vision processor board: RealSense Vision ASIC
- USB-C 3.1 Gen 1 connector

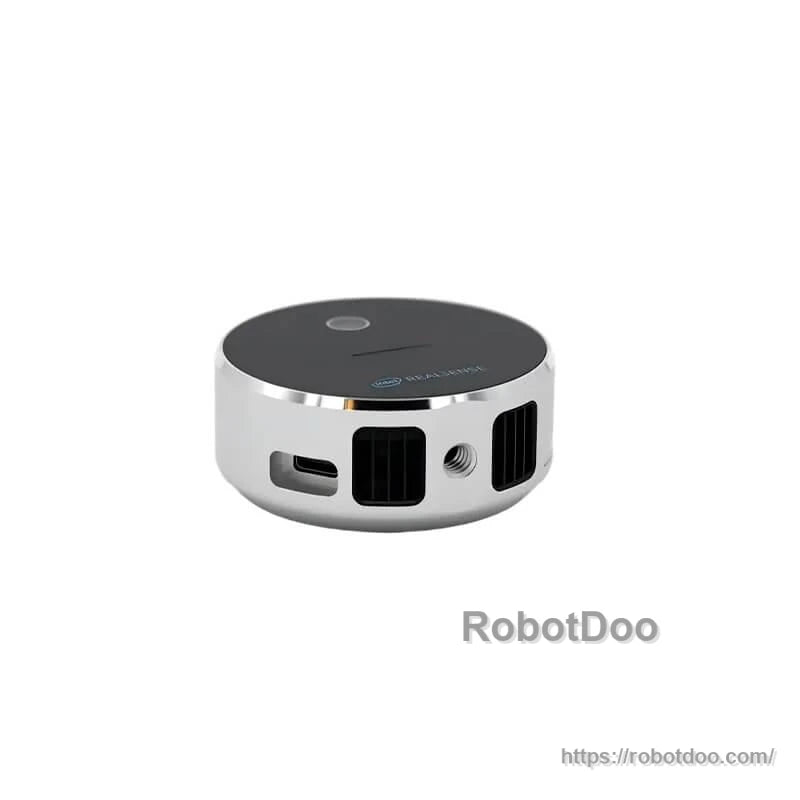

- Mounting points: one 1/4-20 UNC thread and two M3 thread mounting points; tripod support
Specifications
| Use environment | Indoor |
| Image sensor technology | Laser Scanning |
| Depth technology | LiDAR |
| Ideal range | 0.25 m to 9 m (Range affected by reflectivity) |
| Minimum depth distance (Min-Z) at max resolution | ~25 cm |
| Depth accuracy | ~5 mm to ~14 mm through 9 m |
| Depth field of view (FOV) | 70° × 55° (±3°) |
| Depth output resolution | Up to 1024 × 768 |
| Depth frame rate | 30 fps |
| RGB frame rate | 30 fps |
| RGB frame resolution | 1920 × 1080 |
| RGB sensor technology | Rolling Shutter |
| RGB sensor FOV (H × V) | 70° × 43° (±3°) |
| RGB sensor resolution | 2 MP |
| Vision processor board | RealSense Vision ASIC |
| Optical board | Laser; MEMS Mirror |
| Form factor | Camera Peripheral |
| Dimensions | 61 mm diameter; 26 mm height |
| Weight | 100 grams |
| Connector | USB-C 3.1 Gen 1 |
| Mounting mechanism | One 1/4-20 UNC thread mounting point; two M3 thread mounting points; tripod |
| Depth streaming power consumption | Less than 3.5 W |
Applications
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
- Logistics and measurement (volumetric measurement, inventory counting/tracking)
- 3D scanning
Manuals
Intel RealSense LiDAR L515 Datasheet (Rev003)
Details
Intel RealSense L515 is a solid‑state LiDAR depth camera designed for indoor computer‑vision and measurement workflows; note the product is End‑of‑Life (EOL).
Low power draw (under 3.5 W for depth streaming) and a lightweight body help it fit compact robotics and embedded systems.

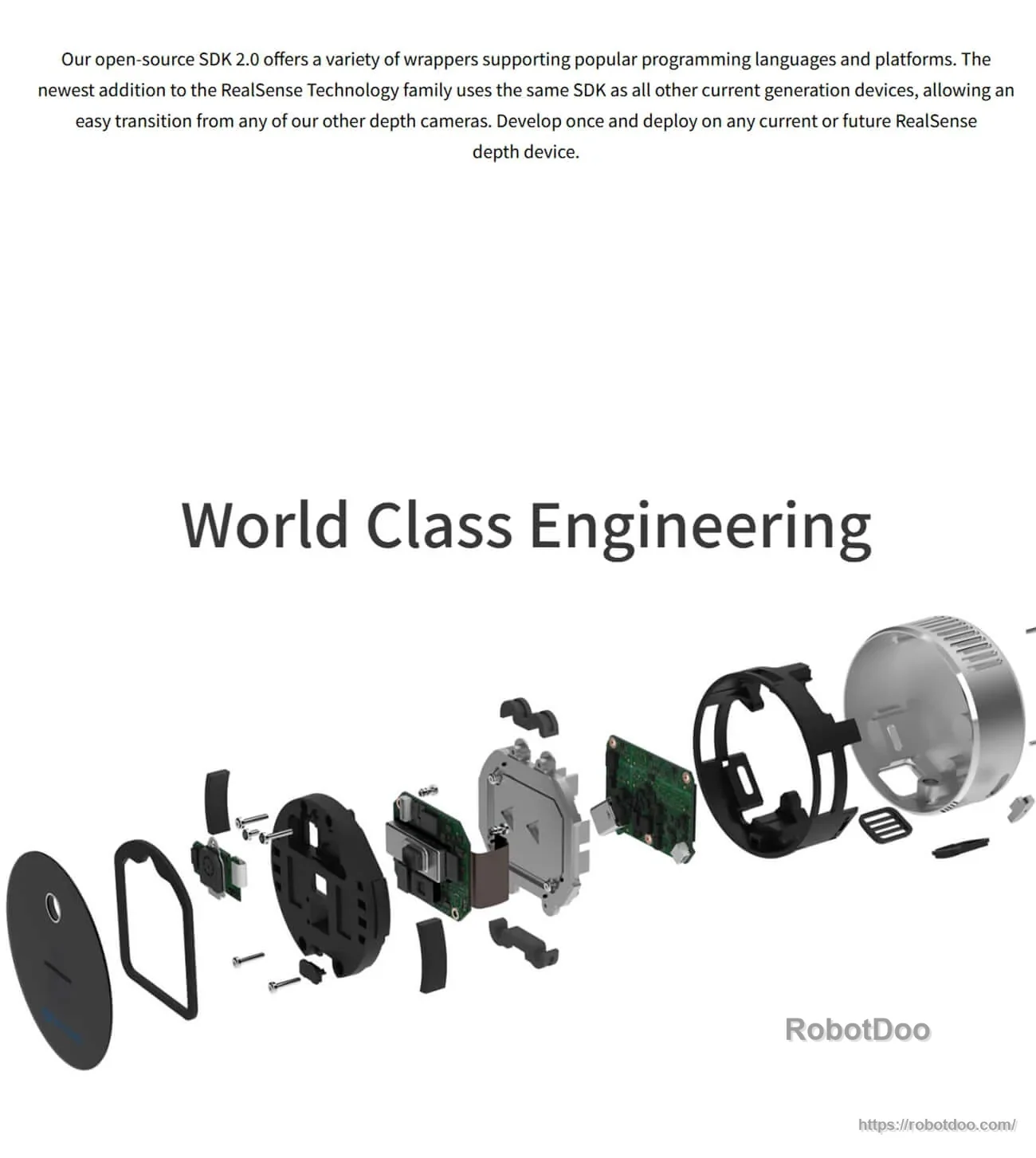

An exploded assembly view highlights the solid‑state design built around RealSense Vision processing hardware.
