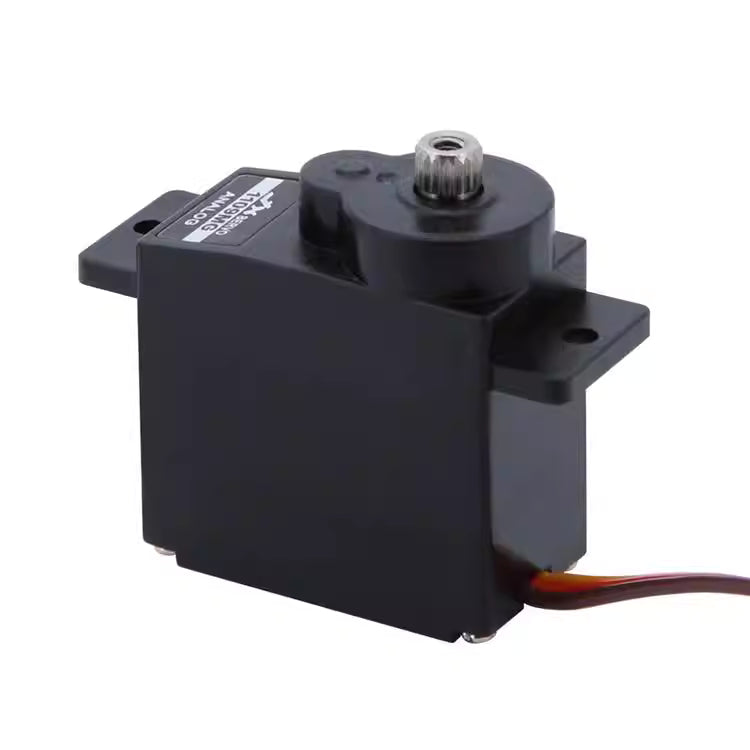

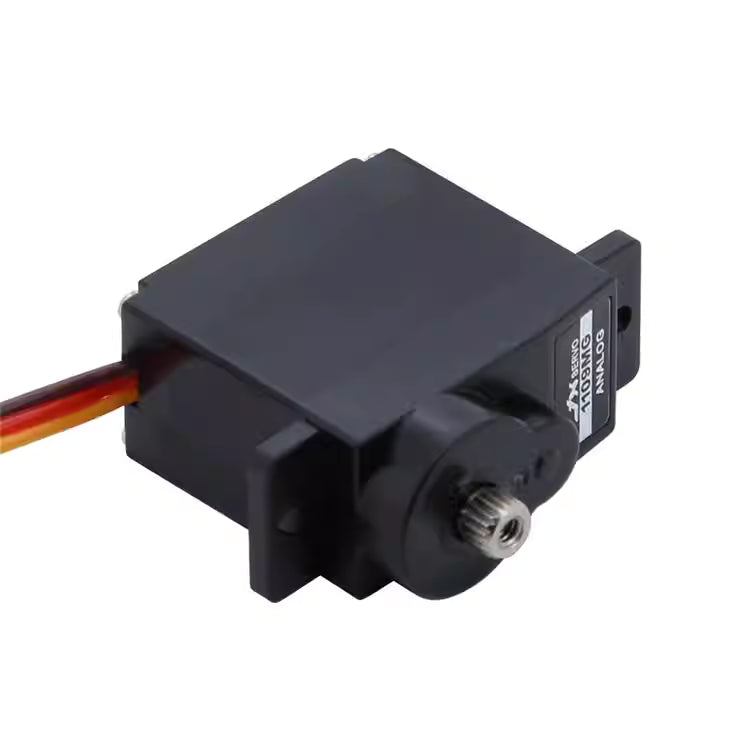

JX PS-1109MG 9g Metal Gear High Torque Servo
The JX PS-1109MG is a compact and high-torque 9g micro servo designed for RC models and lightweight robotics. Featuring a durable metal gear system and precise PWM control, it delivers reliable performance, fast response, and improved strength compared to standard micro servos.
Key Features
- High Torque: Up to 2.5kg·cm @ 6V
- Fast Speed: 0.10s/60° @ 6V
- Metal Gear Construction for durability
- PWM Precision Control (1500µs center)
- Wide Rotation Range up to 180°
- Lightweight design (~11g)
- JR connector for easy integration

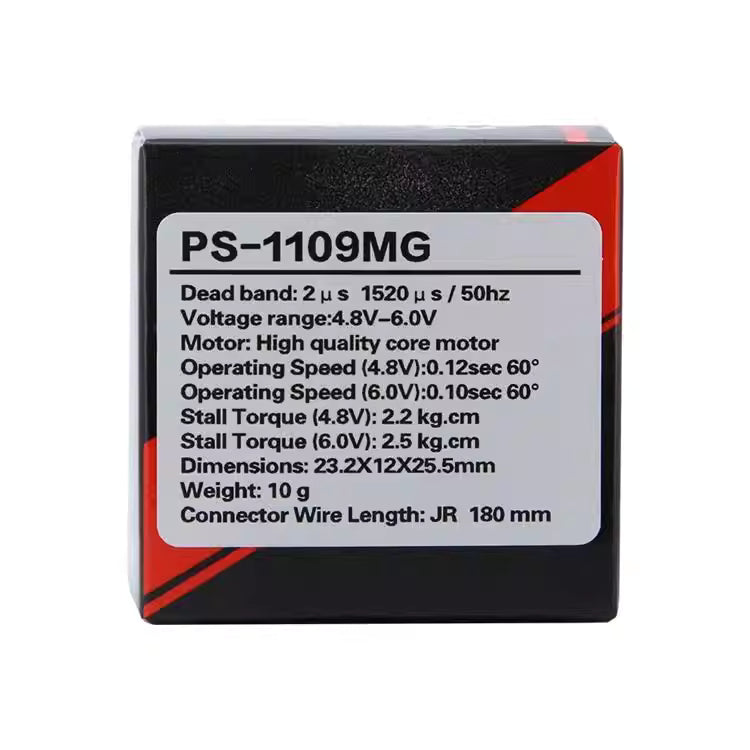

TECHNICAL SPECIFICATIONS
| Category | Specification |
|---|---|
| Model | JX PS-1109MG |
| Control Type | Analog PWM |
| Control System | 1500µs center position |
| Pulse Width Range | 1000–2000µs (90°), 500–2500µs (180°) |
| Max Rotation Angle | 180° |
| Operating Voltage | 4.8V – 6.0V |
| Working Temperature | -20°C to +60°C |
| Stall Torque (4.8V) | 2.2 kg·cm |
| Stall Torque (6.0V) | 2.5 kg·cm |
| Speed (4.8V) | 0.12 sec/60° |
| Speed (6.0V) | 0.10 sec/60° |
| Idle Current (4.8V) | 110 mA |
| Idle Current (6.0V) | 140 mA |
| Load Current (4.8V) | 170 mA |
| Load Current (6.0V) | 260 mA |
| Dead Band | 2 µs |
| Drive Type | Transistor drive |
| Signal Processing | Digital amplifier |
| Motor Type | Core motor |
| Gear Type | Metal gears |
| Bearing | Bushing |
| Case Material | PA66 + 40% fiber |

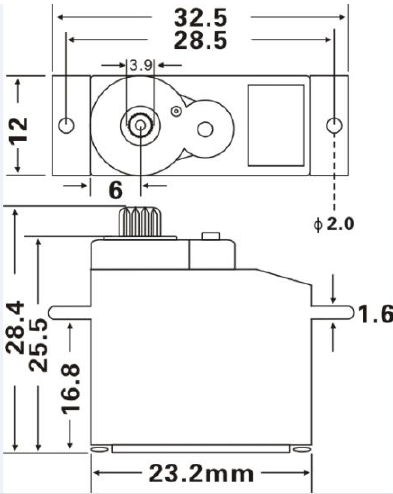

| Dimensions | 23.2 × 12.0 × 25.5 mm |
| Weight | 11g (without accessories) |
| Wire Length | 180 mm |
| Wire Gauge | 26AWG |
| Connector Type | JR plug |
| Wire Definition | Brown: GND / Red: VCC / Orange: Signal |
| Lifetime | >15,000 cycles (no load) |
| Typical Applications | RC car, airplane, helicopter, boat, robotics |
Applications
- RC cars and trucks
- Fixed-wing airplanes & helicopters
- RC boats
- Arduino / Raspberry Pi projects
- DIY robotics
- STEM education kits
- Other similar items→
Important Notes
- This is an analog servo, not suitable for high-precision synchronized systems
- For robotics requiring high stability, consider digital servos
- Use a stable external power supply when driving multiple servos

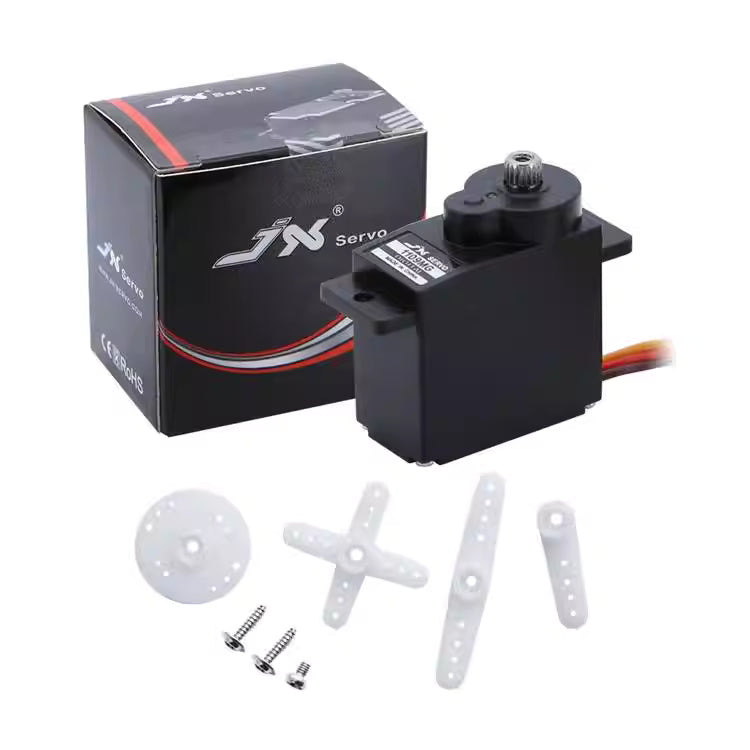

Package Includes
- 1 × JX PS-1109MG Servo
- 1 × Servo Arm Set
- Mounting Screws
