Overview

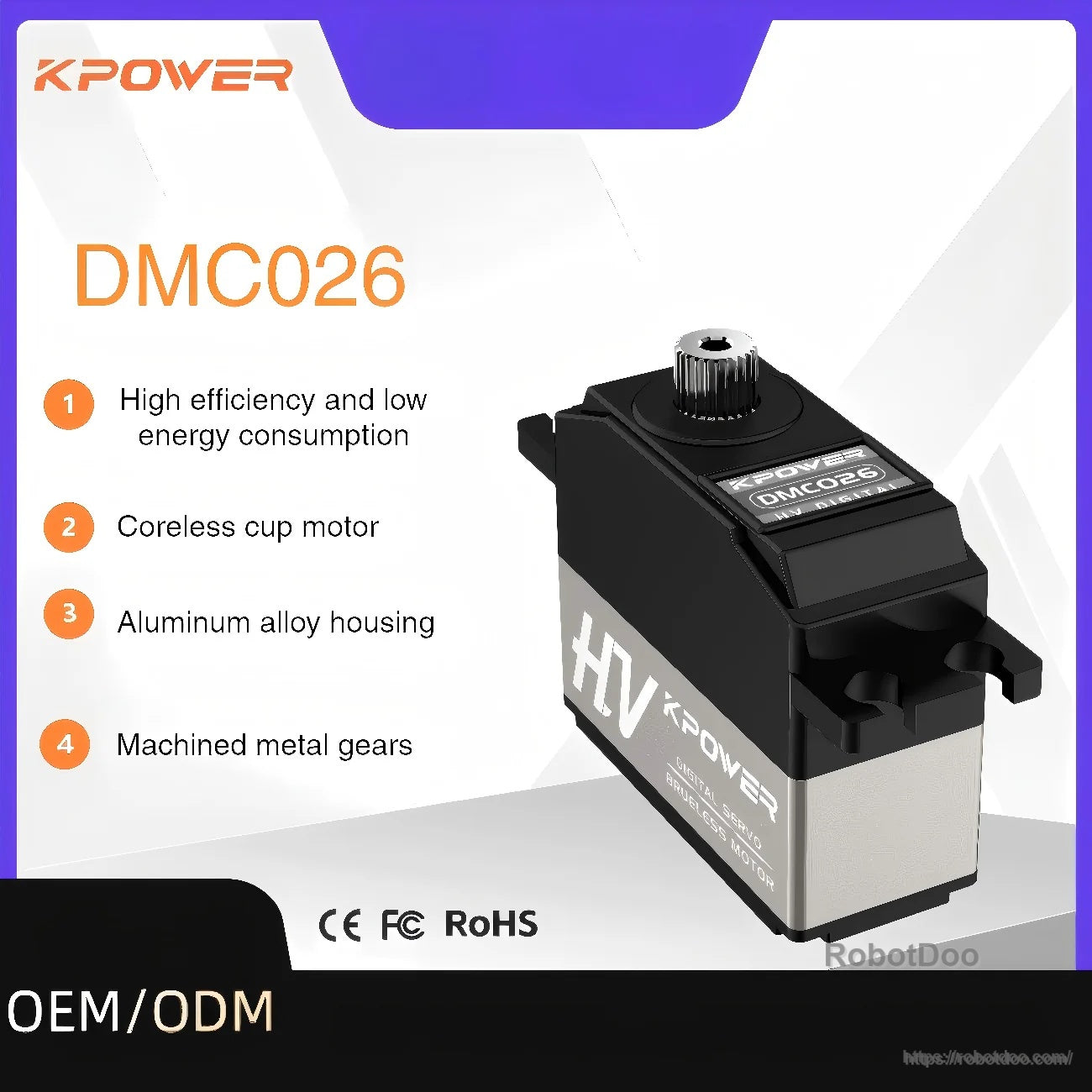

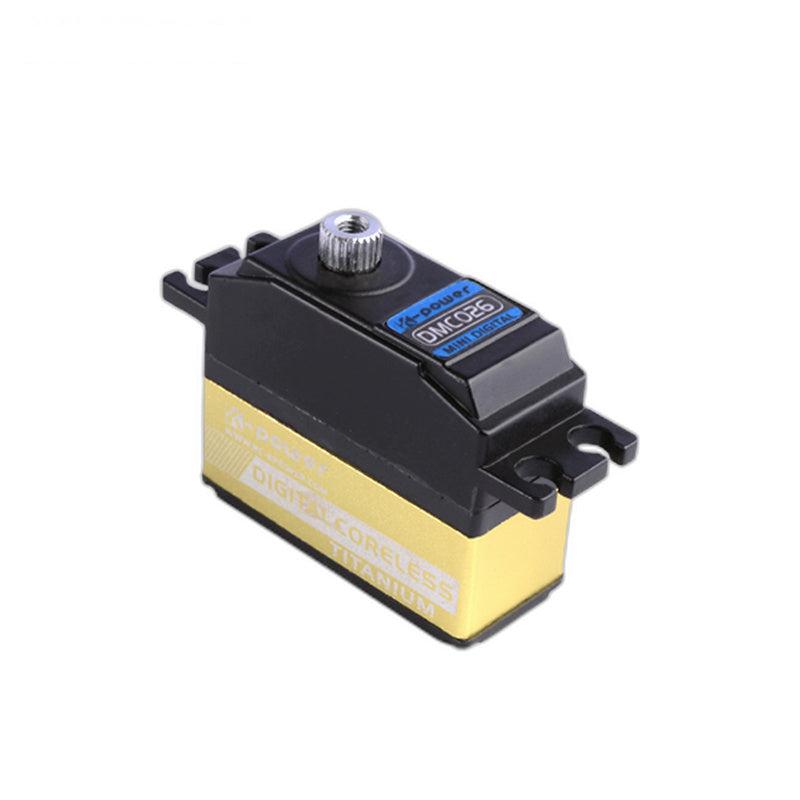

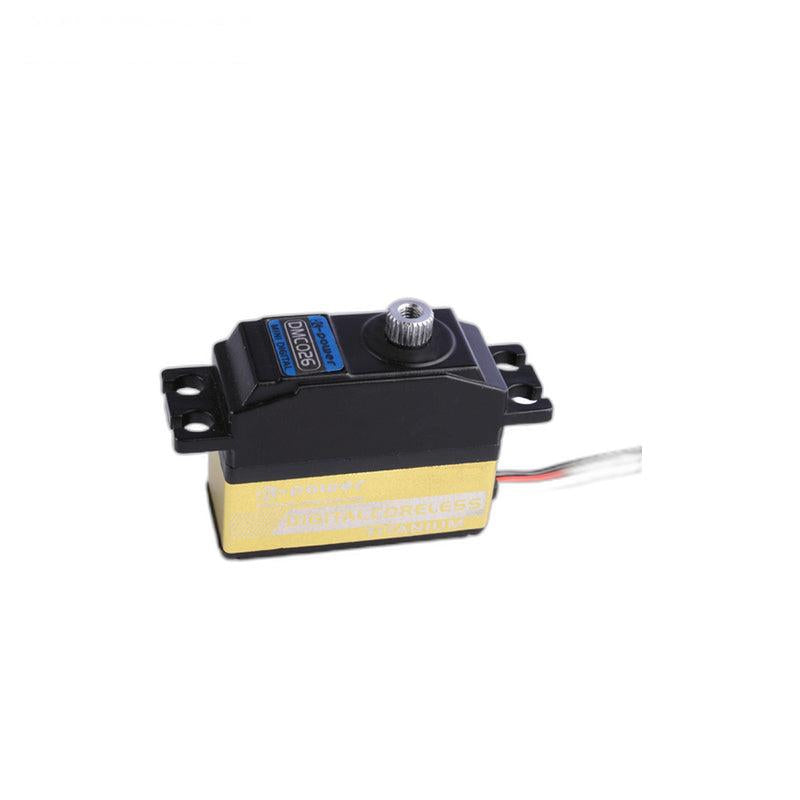

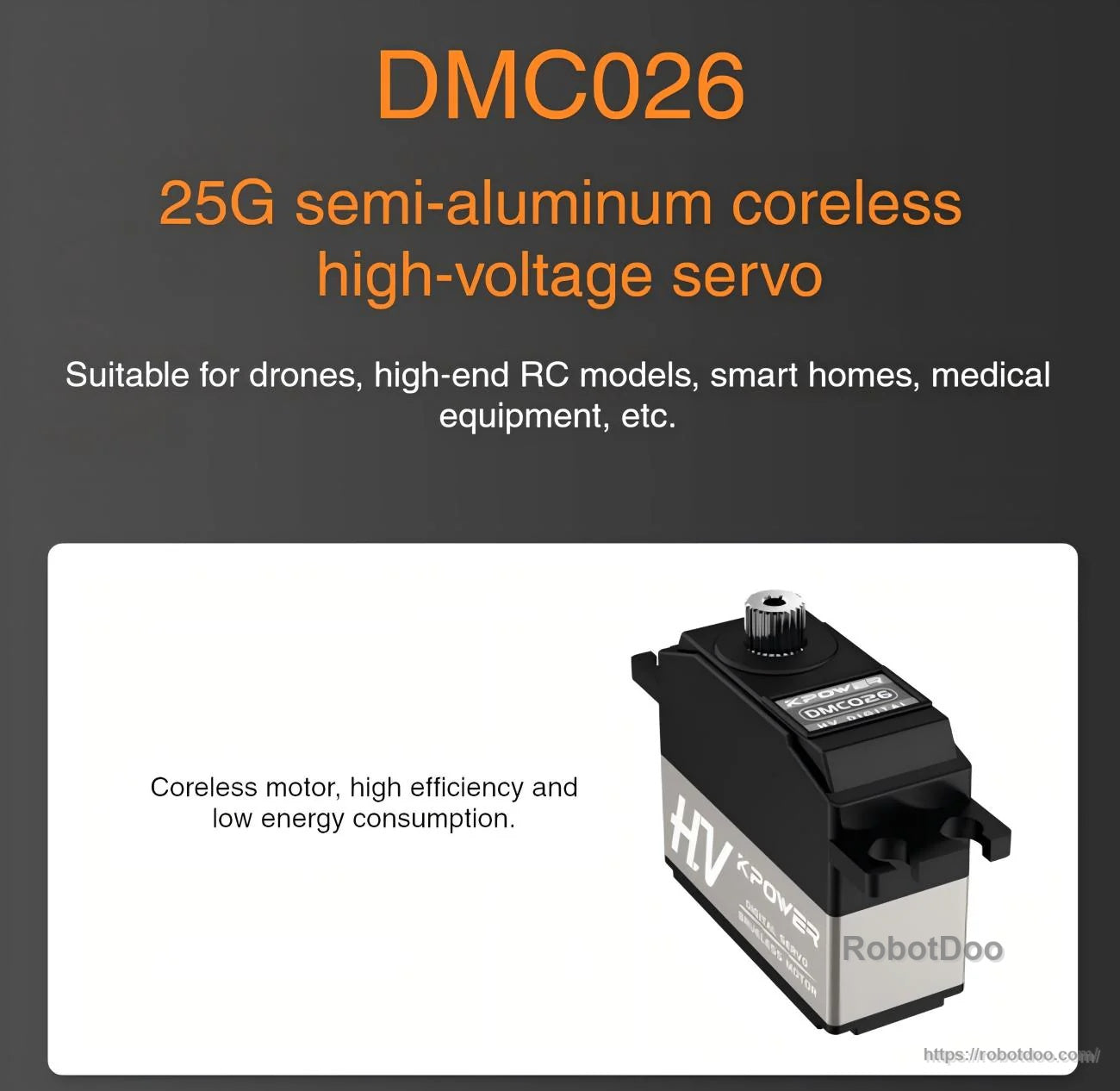

Kpower DMC026 is a digital servo motor with a coreless motor design, aluminum mid case, titanium gears, and 2BB bearings. It is specified for 4.8–6 V operation, includes a 25T spline output, and is rated waterproof. The product media also describes it as a “semi-aluminum coreless high-voltage servo” and mentions “operating voltage up to 8.4V”; unless otherwise confirmed for a specific batch/version, use the stated operating voltage of 4.8–6 V.
Key Features
- Digital servo: DMC026
- Coreless (coreless cup) motor
- Aluminum alloy housing / aluminum mid case; CNC-machined aluminum alloy housing (stated in product media)
- Machined metal gears; gear material: titanium
- High efficiency and low energy consumption (stated in product media)
- Waterproof: Yes
- Certifications/marks: CE, FCC (spec); RoHS (shown in product media)
- Control compatibility stated in product media: PWM, TTL, RS485
Specifications
| Model Type | Digital Servo DMC026 |
| Motor Type | Coreless |
| Case material | Aluminum Mid Case |
| Gear material | Titanium |
| Bearing Type | 2BB |
| Weight | 26 g / 1.0 oz (product media also shows “25G”) |
| Dimension | 36 x 15 x 29 mm^2 / 1.4 x 0.6 x 1.1 in^2 |
| Operation Voltage | 4.8 ~ 6 V (product media also mentions up to 8.4 V) |
| Torque | 4.8 V: 5.5 kg·cm 6.0 V: 6.8 kg·cm |
| Speed | 4.8 V: 0.15 sec/60° 6.0 V: 0.12 sec/60° |
| Pulse Width | 1000 ~ 1500 us |
| Dead band width | 2 us |
| Interface Type | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature | -20 to 60 C |
| Splining | 25T |
| Waterproof | Yes |
| Certification | CE & FCC (RoHS mark is shown in product media) |
Applications
- RC airplane, heli, car, and boat
- Ideal for 450–500 class heli tail/rudder
- Also listed in product media: drones, high-end RC models, smart homes, medical equipment
- Also listed in provided content: humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, ARU robots
Control & Wiring Notes (from included reference graphics)

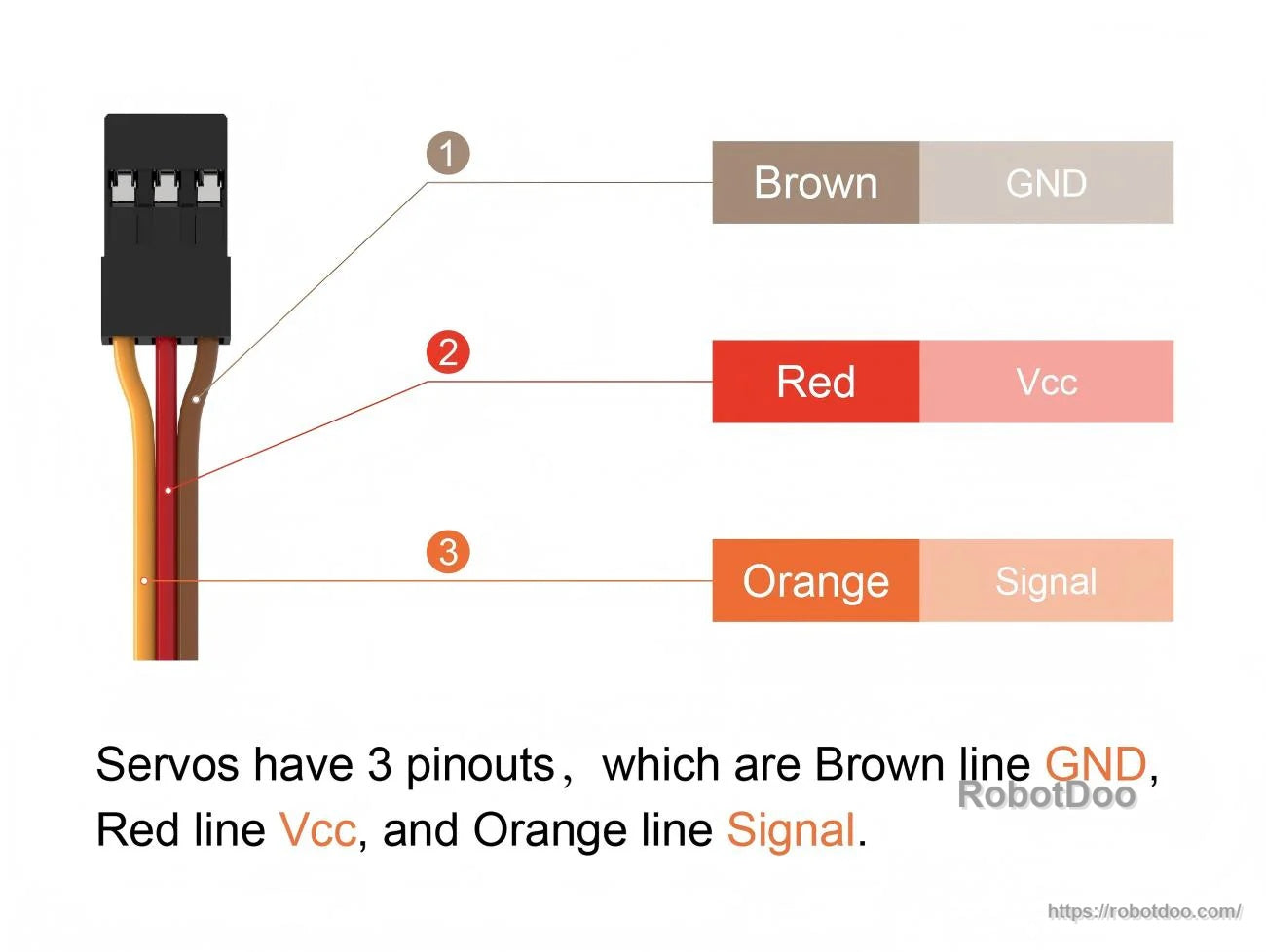

- Servo 3-wire pinout: Brown = GND, Red = Vcc, Orange = Signal

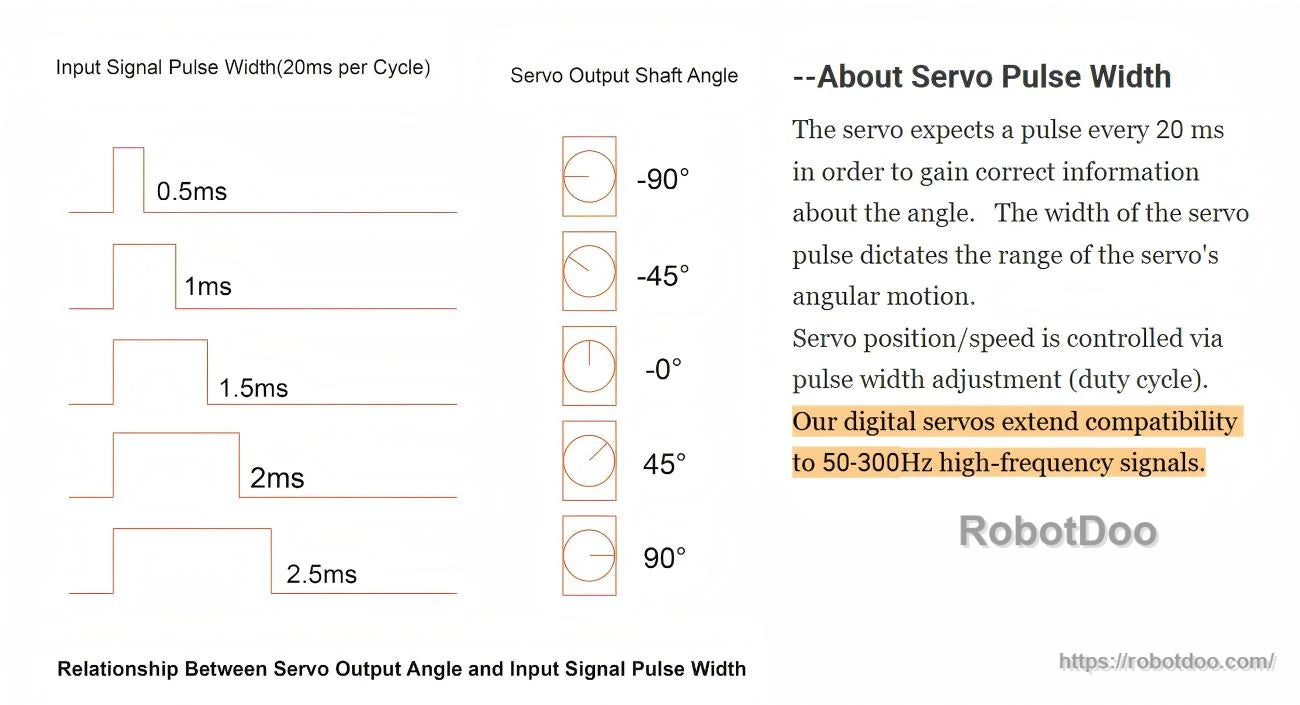

- Pulse timing reference: the servo expects a pulse every 20 ms; example pulse widths shown are 0.5 ms, 1 ms, 1.5 ms, 2 ms, 2.5 ms with example output shaft angles shown as -90°, -45°, -0°, 45°, 90°
- Reference note shown: digital servos extend compatibility to 50–300 Hz high-frequency signals
Manuals
Details
The DMC026 combines a coreless motor with an aluminum alloy housing and precision metal gearing for efficient, responsive control.
Designed for compact builds where low weight and coreless efficiency matter, from drones to high-end RC projects.

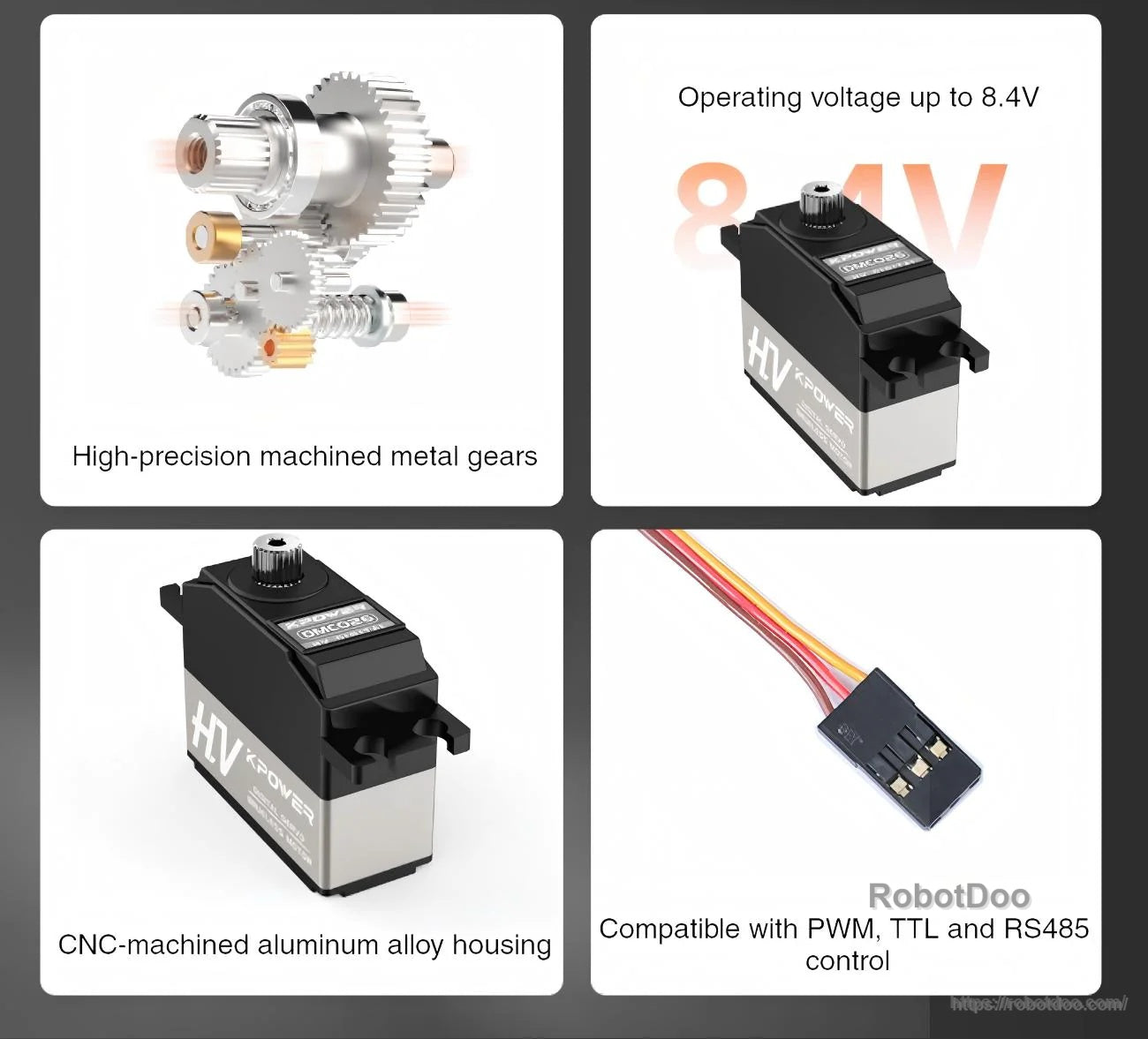

Control options include PWM, TTL, and RS485, with a metal gear train and CNC-machined aluminum housing for durability.

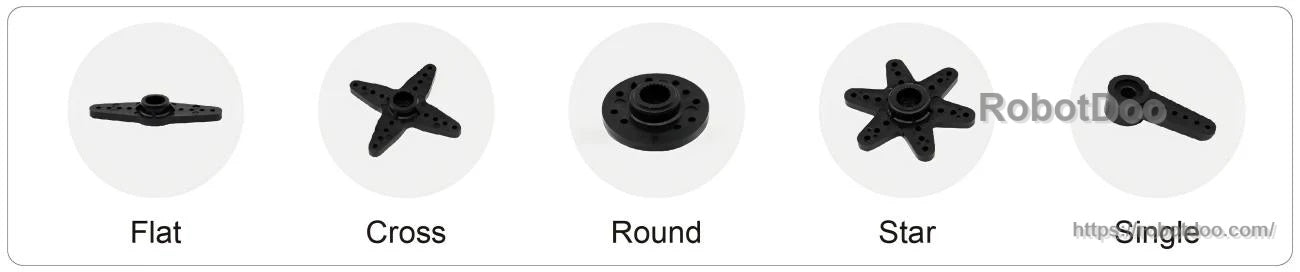

Multiple horn styles make it easier to match the output to your linkage geometry and mounting needs.
Standard servo pulse widths control position, and many digital servos can accept higher-frequency control signals.

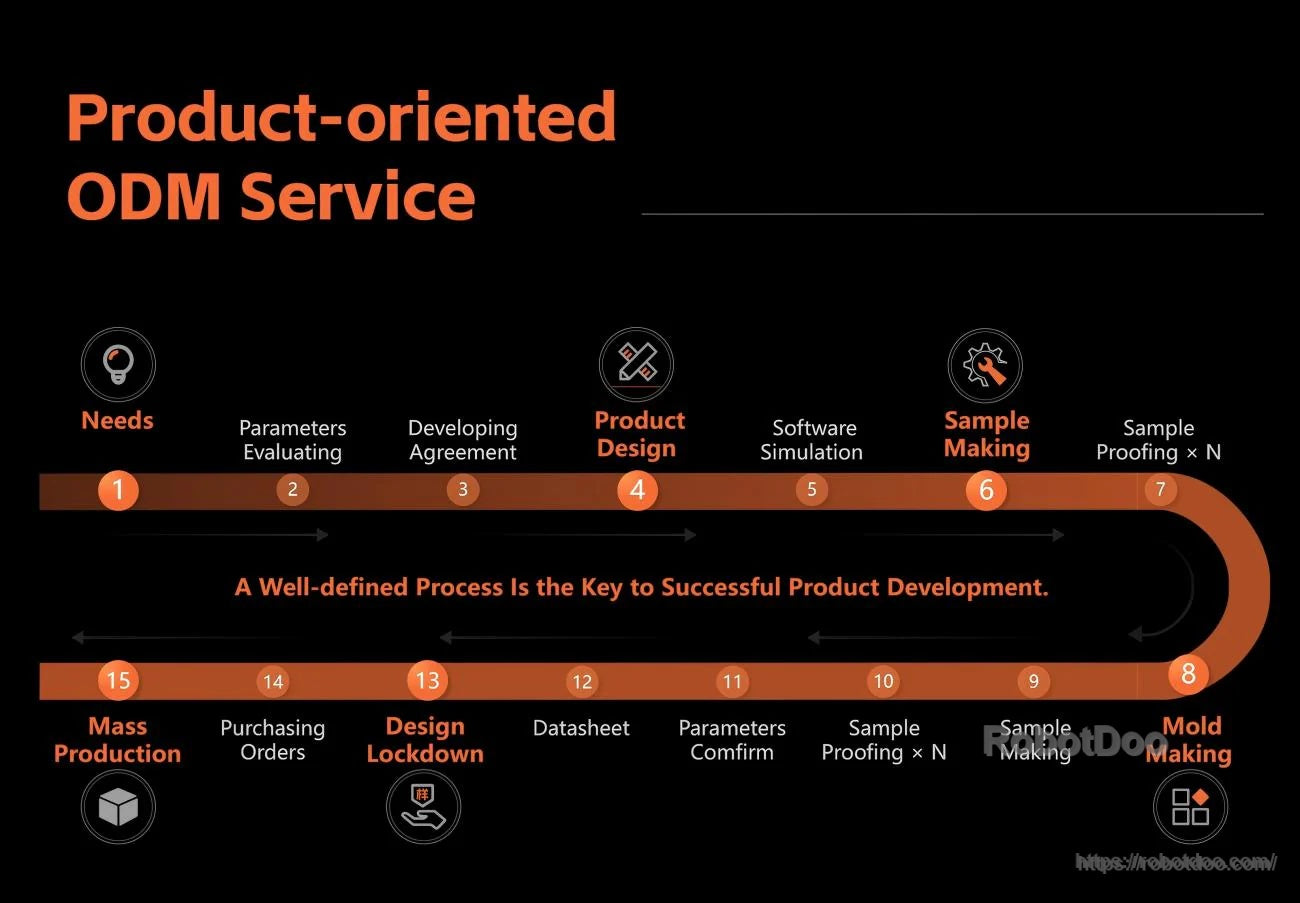

Customization support is available for appearance, performance targets, wiring, and protocol requirements.
Wiring follows the common 3‑wire servo standard: GND, Vcc, and Signal.

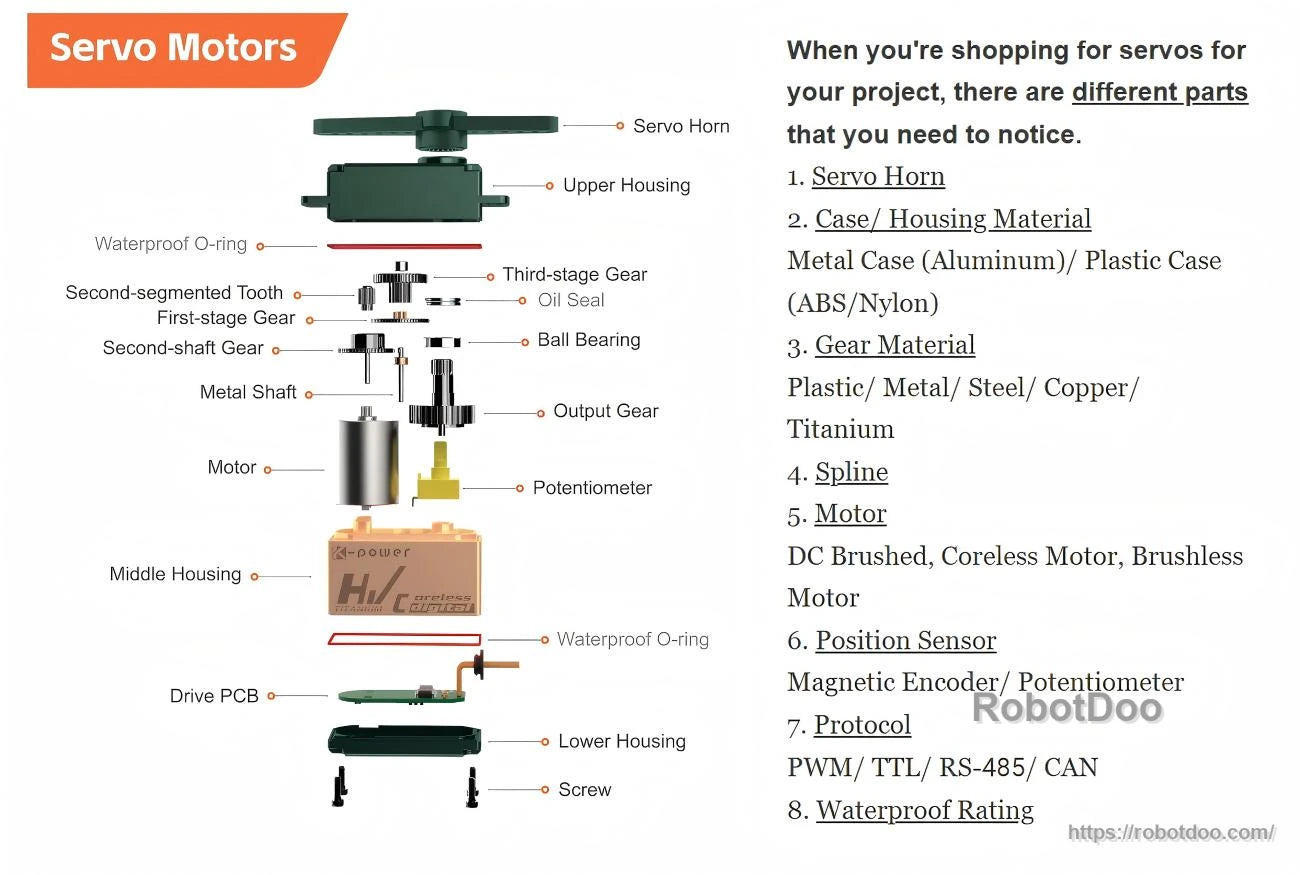

An exploded parts overview highlights key build elements like bearings, gear stages, and sealing components.
