Overview

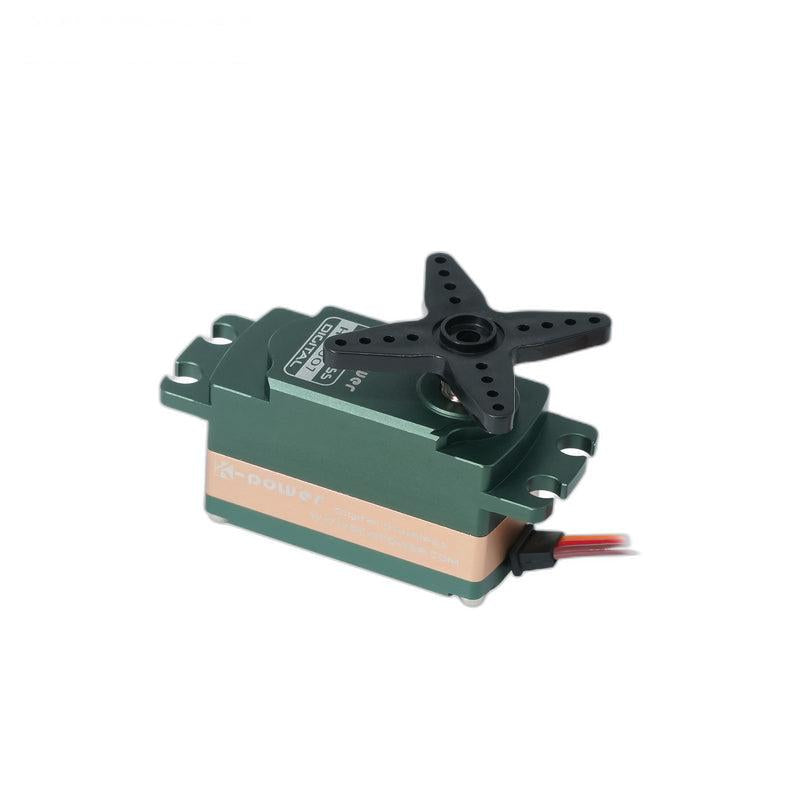

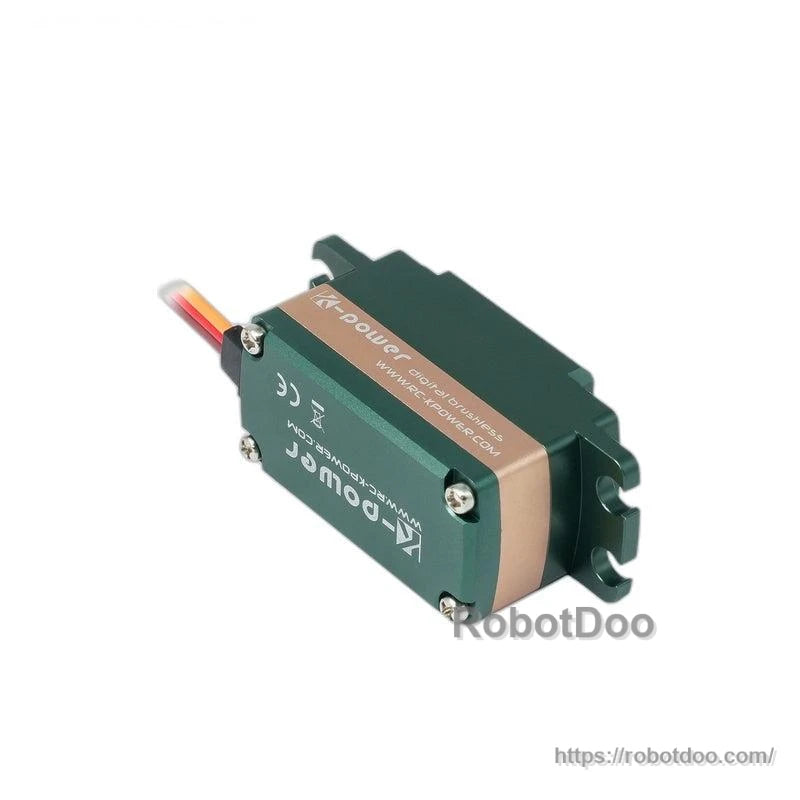

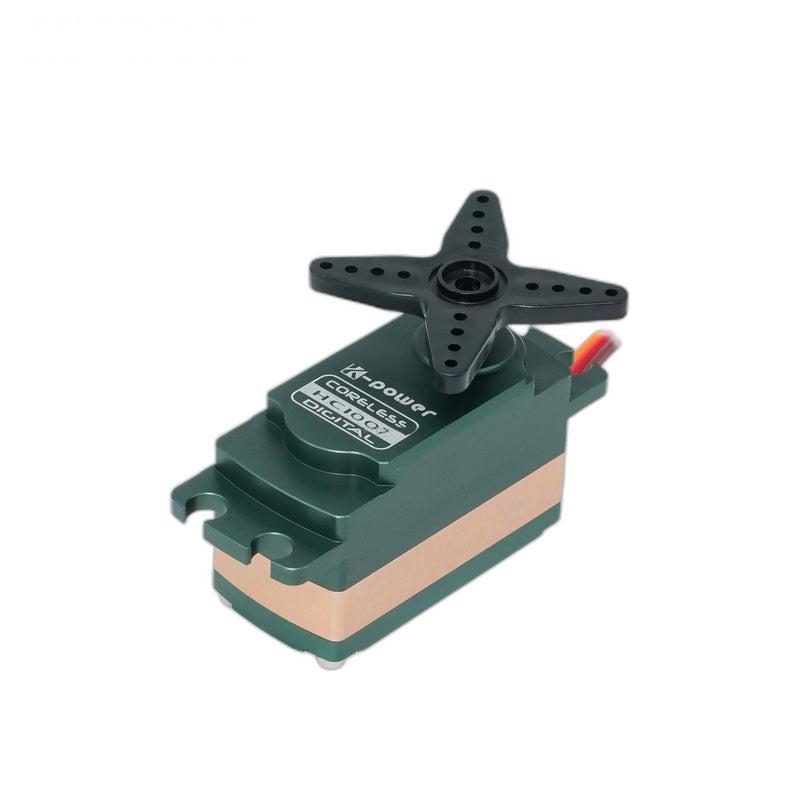

Kpower HC1007 is a low-profile coreless digital servo motor designed for compact installations requiring fast response and metal gearing. It supports PWM, TTL, and RS-485 control protocols, and uses a potentiometer position sensor with an aluminum alloy case and dual ball bearings.
Mechanical and control customization is noted as available for items such as servo wire length, control type, and position sensor.
Key Features
- Low-profile design (25 mm)
- Coreless motor
- Metal gear set; low-backlash machined gears (listed as <0.5° backlash)
- Deadband listed as <3 us (also shown as 3 µsec dead band width)
- Aluminum alloy case (also described as CNC aluminum case for heat dissipation and durability)
- Multiple control interfaces: PWM | TTL | RS-485
- IP42 rating

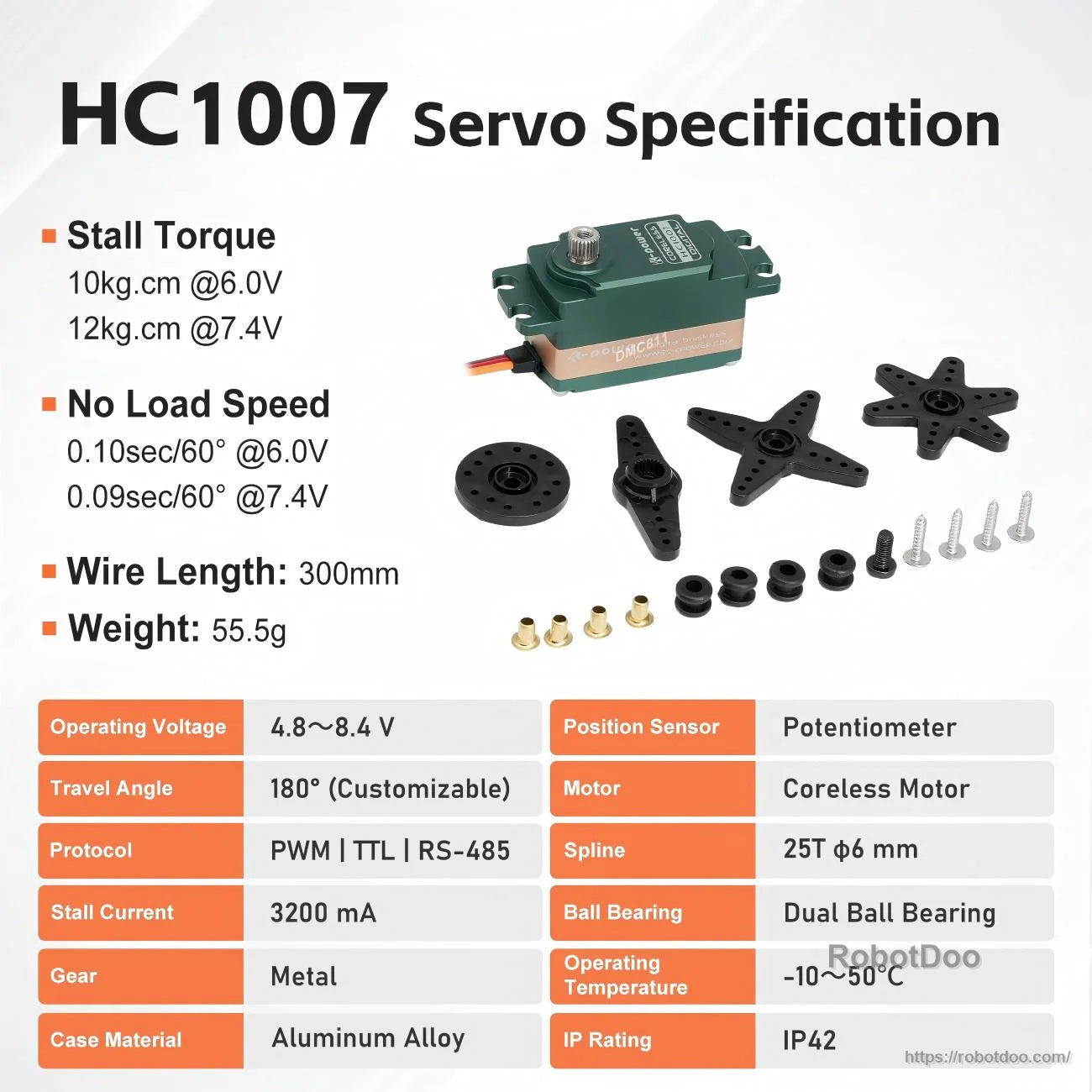

Specifications
| Model | HC1007 |
| Stall Torque | 12 kg (also specified as 10 kg.cm @ 6.0V; 12 kg.cm @ 7.4V) |
| Rated Torque | 3 kg |
| No-load Speed | 0.09 s (also specified as 0.10 sec/60° @ 6.0V; 0.09 sec/60° @ 7.4V) |
| Operating Voltage | 4.8 ~ 8.4 V |
| Working Frequency | 50 ~ 333 Hz |
| Travel Angle | 120° (Customizable) and 180° (Customizable) |
| Protocol | PWM | TTL | RS-485 |
| Pulse Lengths | 900 ~ 2100 us |
| Position Sensor | Potentiometer |
| Motor | Coreless Motor |
| Gear Material | Metal |
| Case Material | Aluminum Alloy |
| Ball Bearing | 2BB (Dual Ball Bearing) |
| Horn Gear Spline | 25T φ5.9 mm (also shown as 25T φ6 mm) |
| Wire Length | 300 mm |
| Current | 3200 mA (listed as No-load Current; also shown as Stall Current) |
| Weight | 55.5 g |
| Dimension | 40.6 × 20 × 25 mm (1.57" × 0.79" × 0.98") |
| Operating Temperature | -10 ~ 50°C |
| IP Rating | IP42 |

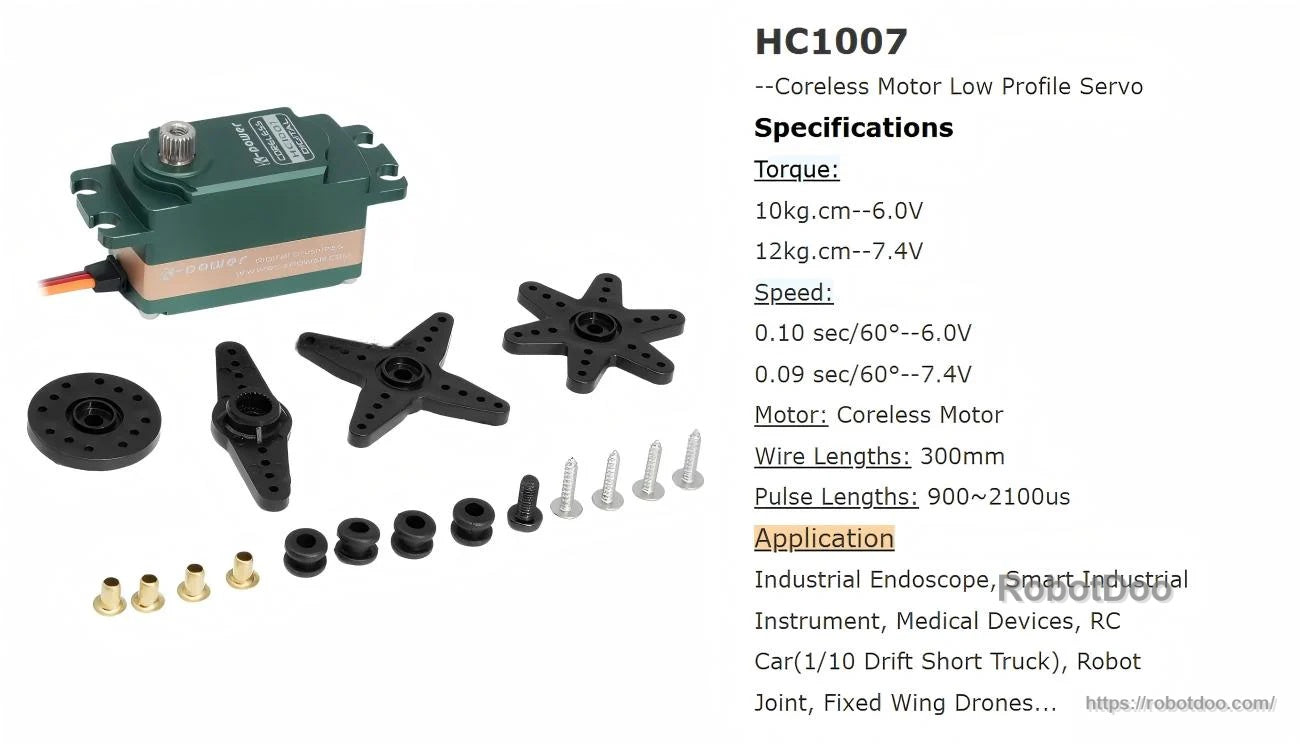

What's Included
- HC1007 servo motor
- Servo horns (assorted styles as shown)
- Mounting hardware (screws, rubber grommets, and brass eyelets as shown)

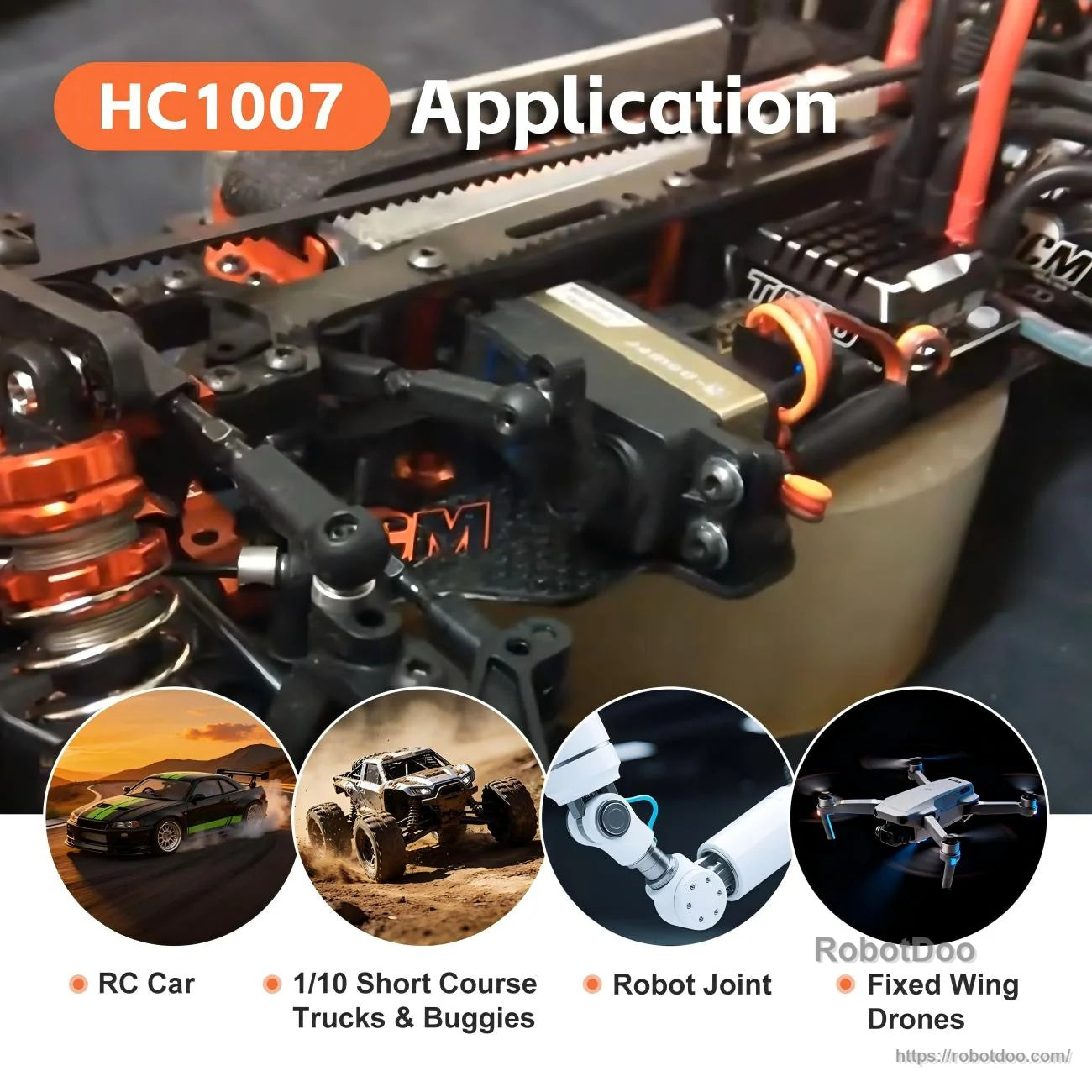

Applications
- RC cars; 1/10 scale on-road touring cars; 1/10 short course trucks & buggies; 1/10 drift short truck
- Robot joints, robotic arms, humanoid robots, quadruped robots
- Exoskeletons, AGV vehicles, ARU robots
- Fixed-wing drones
- Industrial instruments (including industrial endoscope use cases as listed)
- Medical devices (as listed)
Manuals
Details

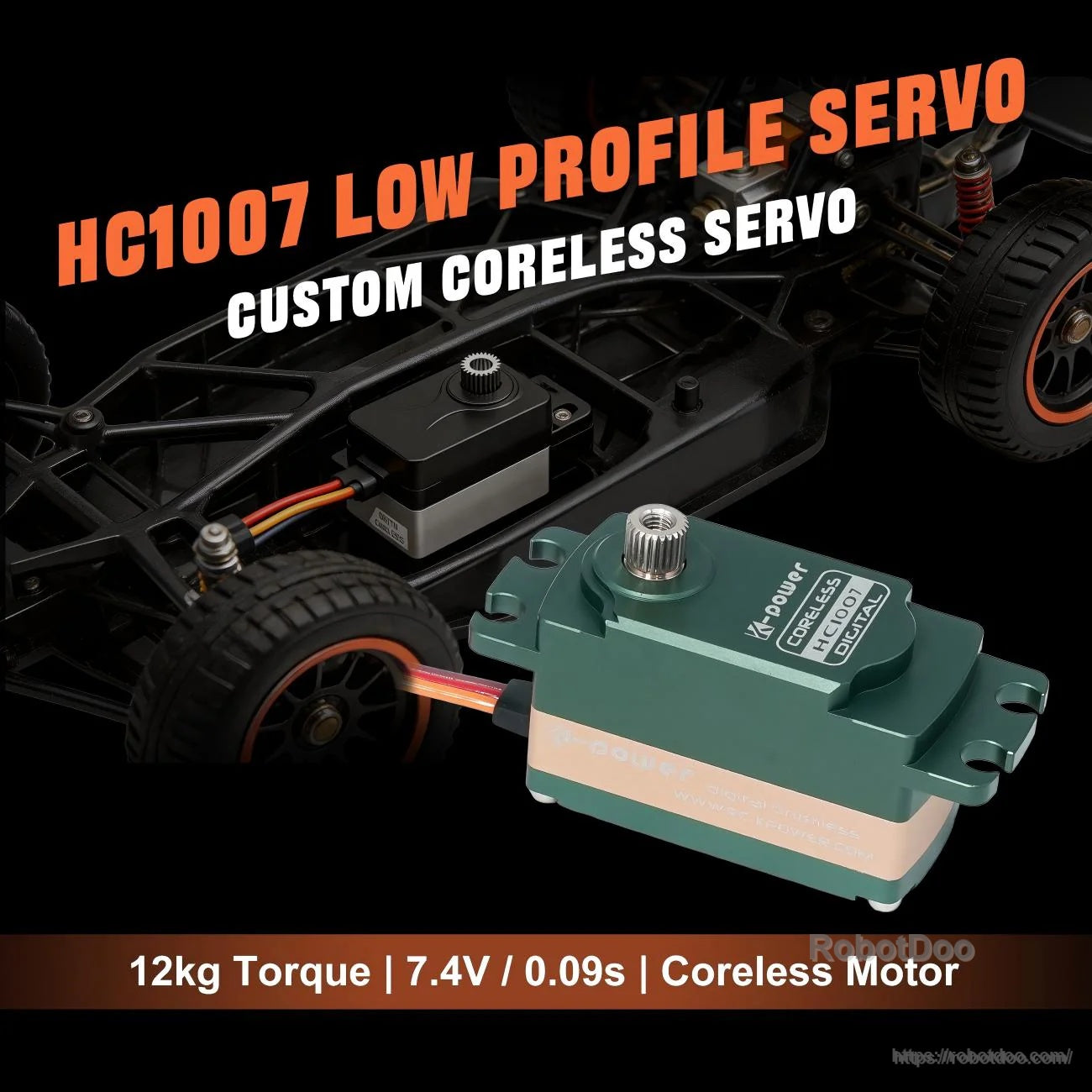

Designed for tight chassis layouts, the HC1007 combines a low-profile body with fast, high-torque steering control for RC builds.

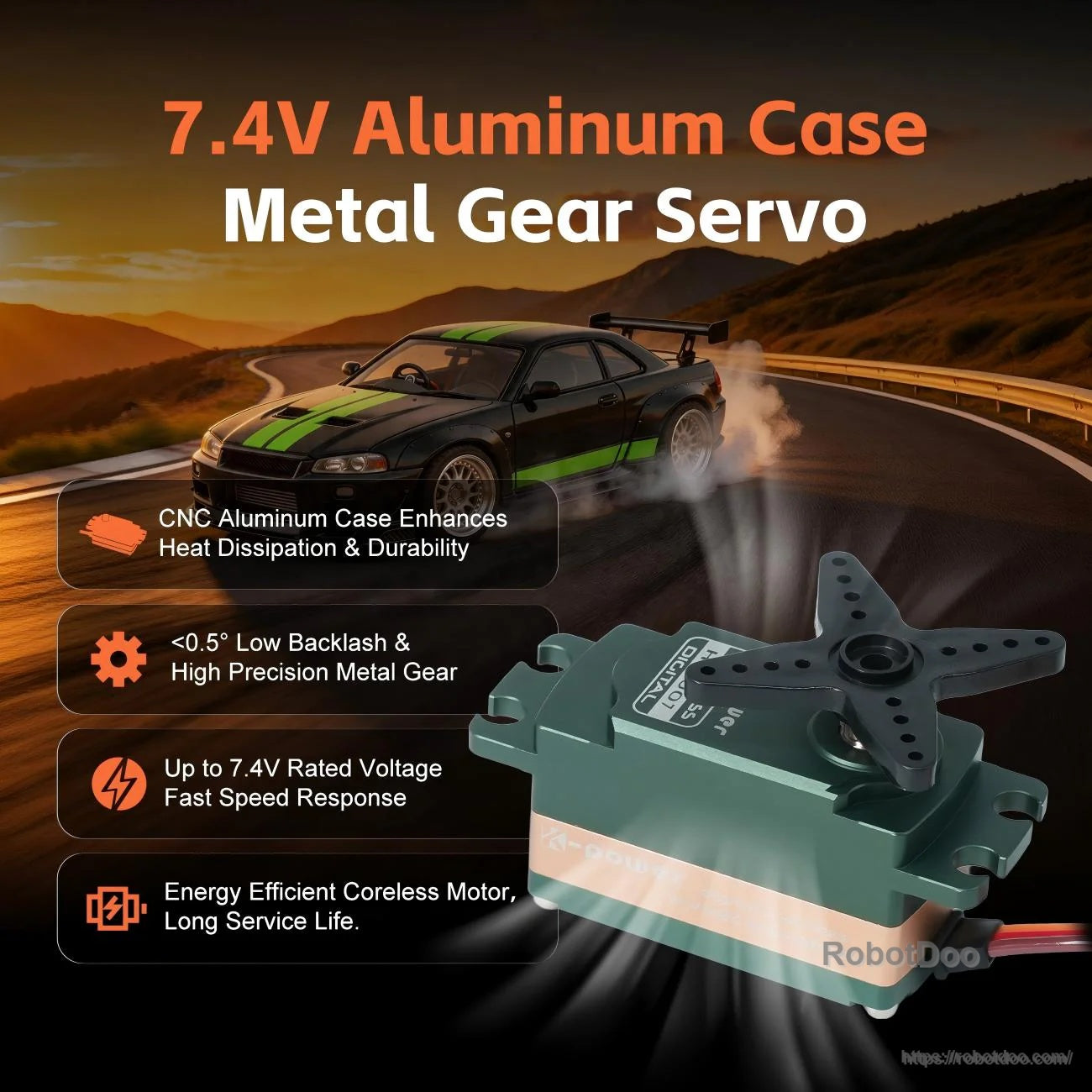

A CNC aluminum alloy case supports heat dissipation and durability, paired with a metal gear train for precise response.
Specifications and included hardware make it easy to match fitment and travel needs before installation.

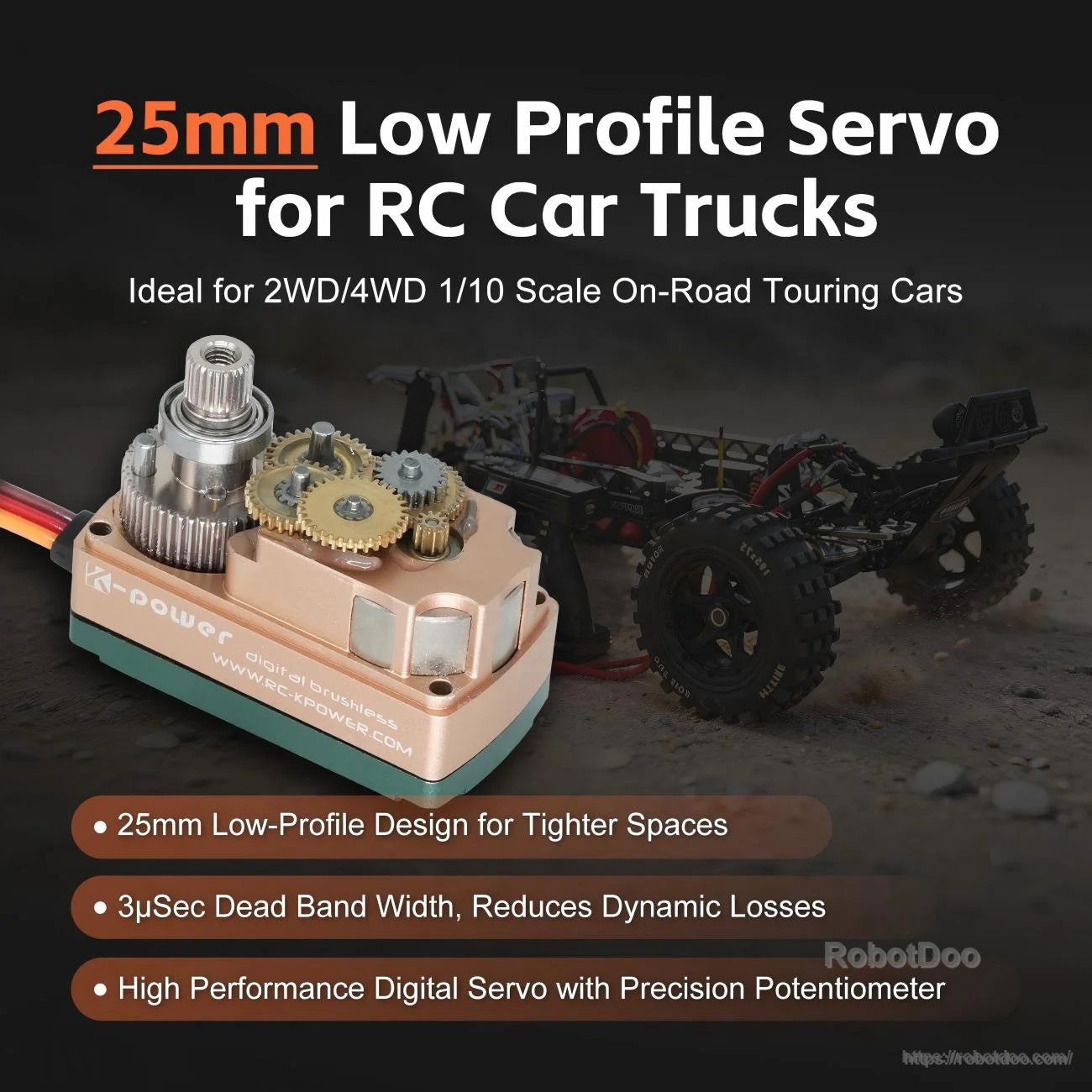

The 25 mm low-profile design helps fit modern 1/10 platforms while maintaining accurate potentiometer-based positioning.

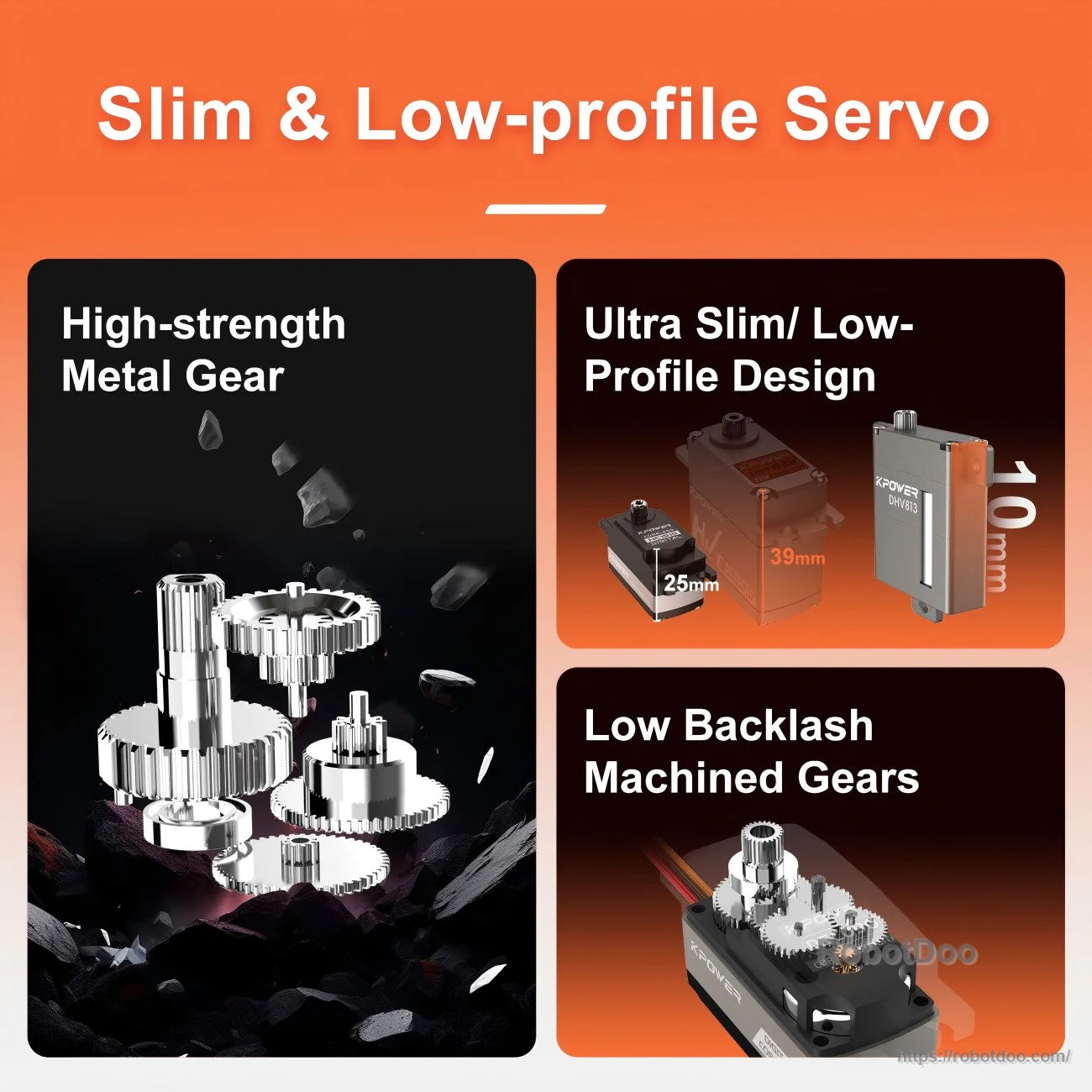

Low-backlash machined gears and a slim profile support smoother steering feel in performance RC and robotics projects.

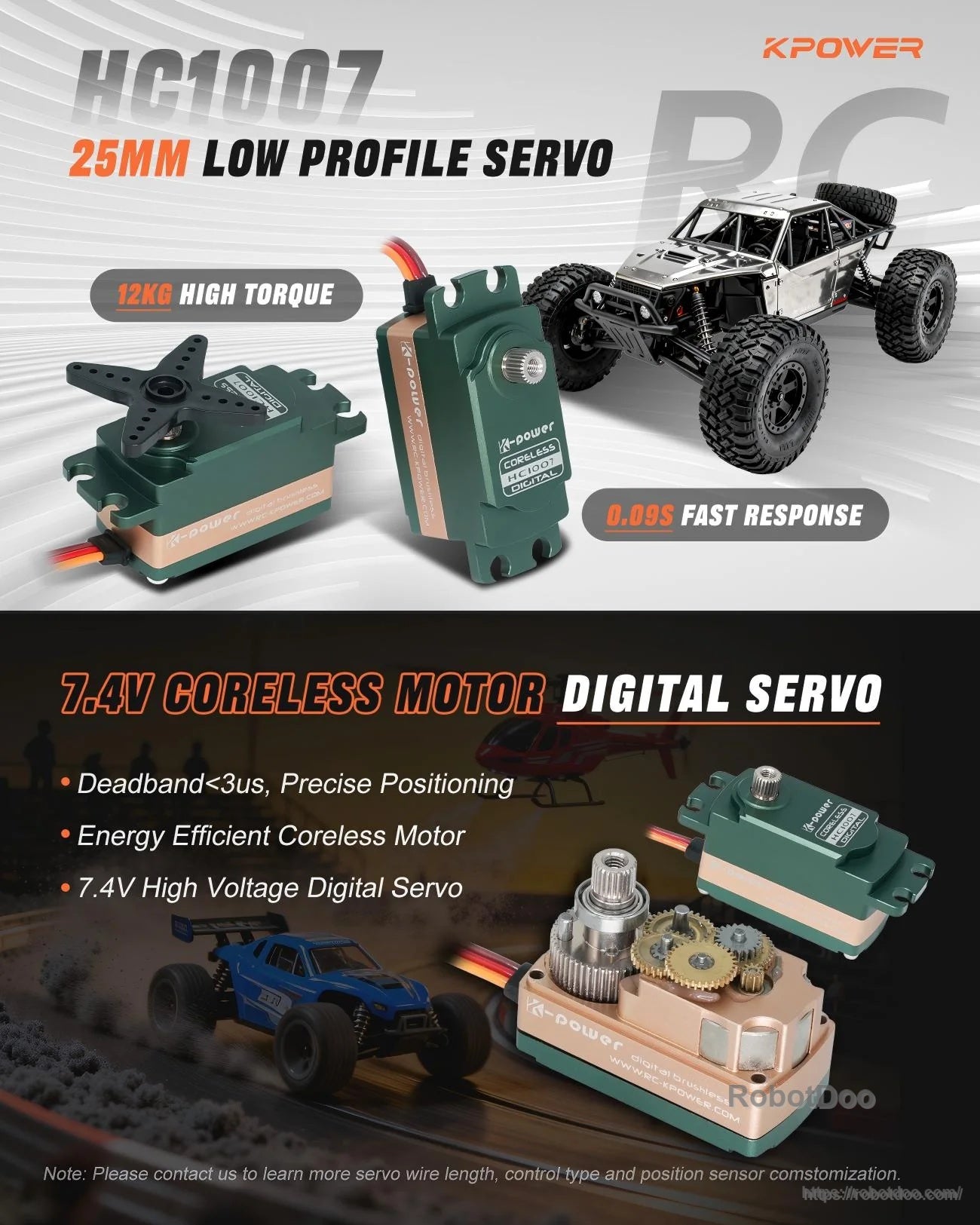

Optimized for 4.8–8.4V setups, the coreless digital drive delivers quick response for demanding steering and actuation.
Suitable for RC cars and 1/10 trucks as well as robotic joints and fixed-wing drone mechanisms where compact servos matter.
