Overview

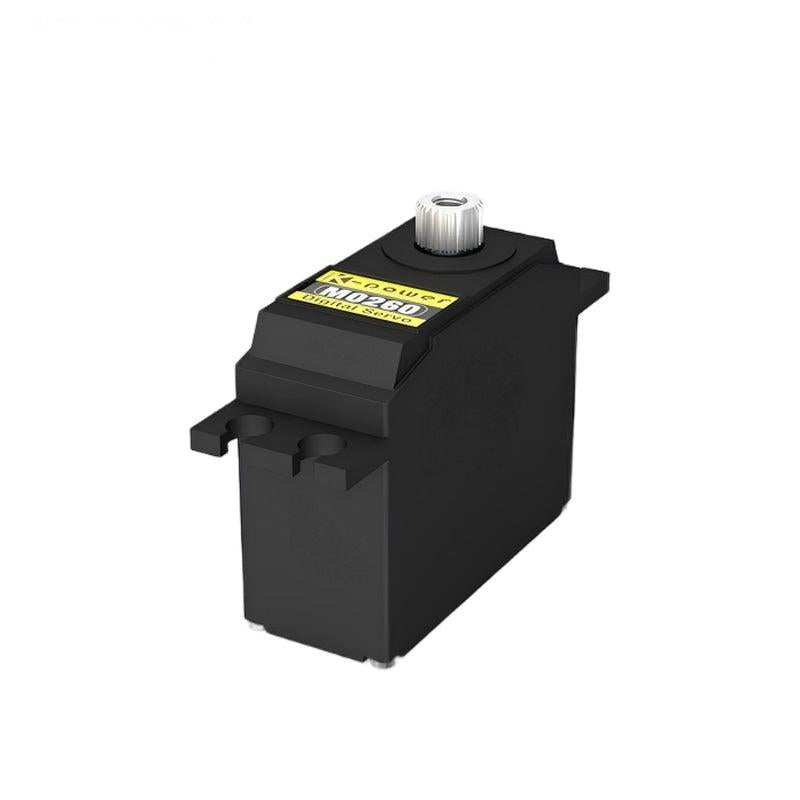

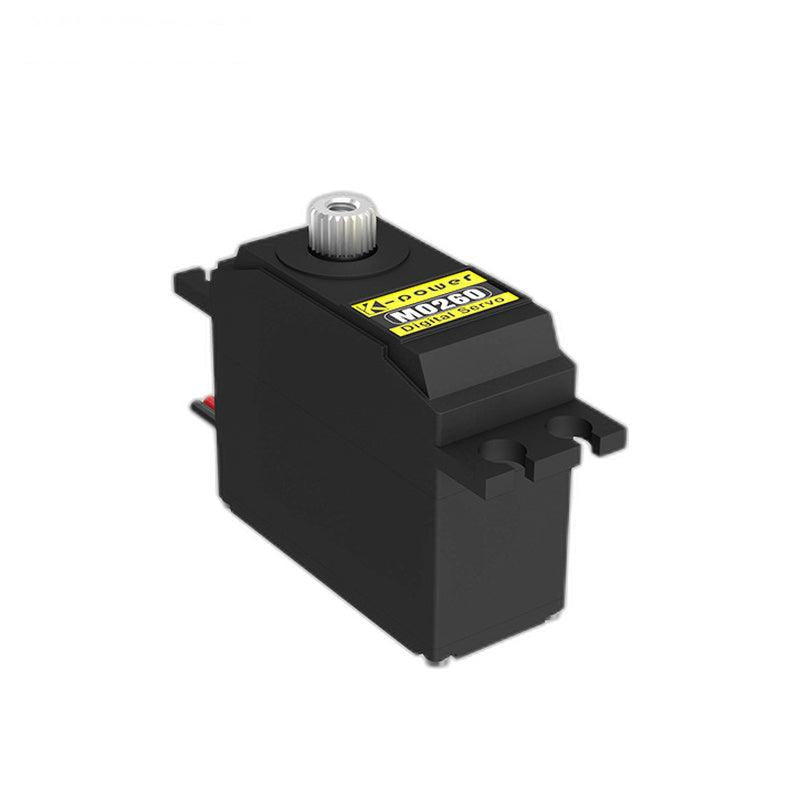

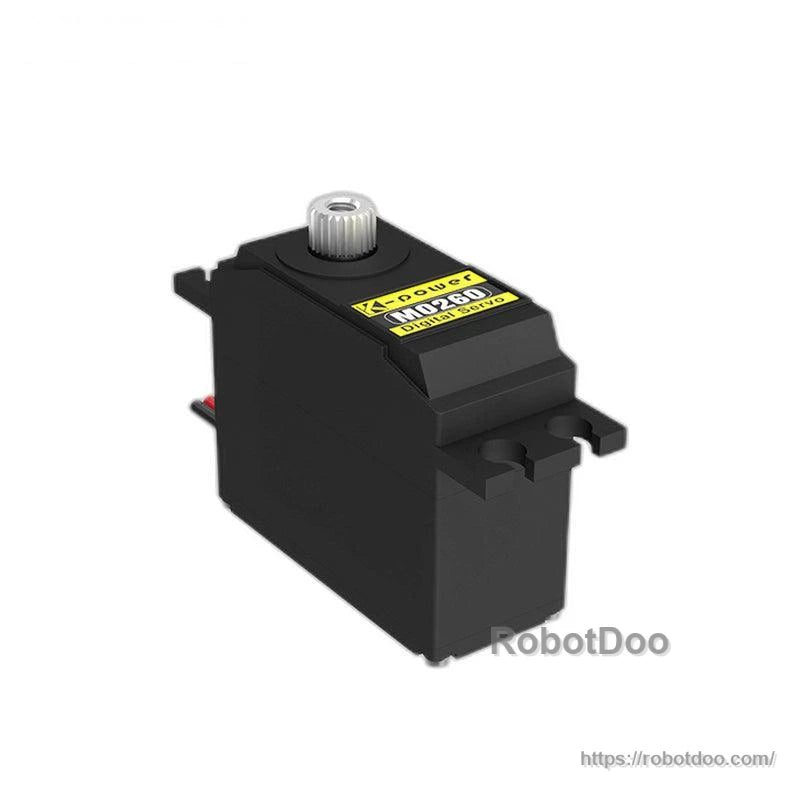

Kpower M0260 is a digital servo motor designed for RC models and robotics projects. It uses a brushed motor with a plastic case, metal gears, and supports position feedback and stall protection for controlled motion in smart home devices, RC airplane/car/boat platforms, and robots.

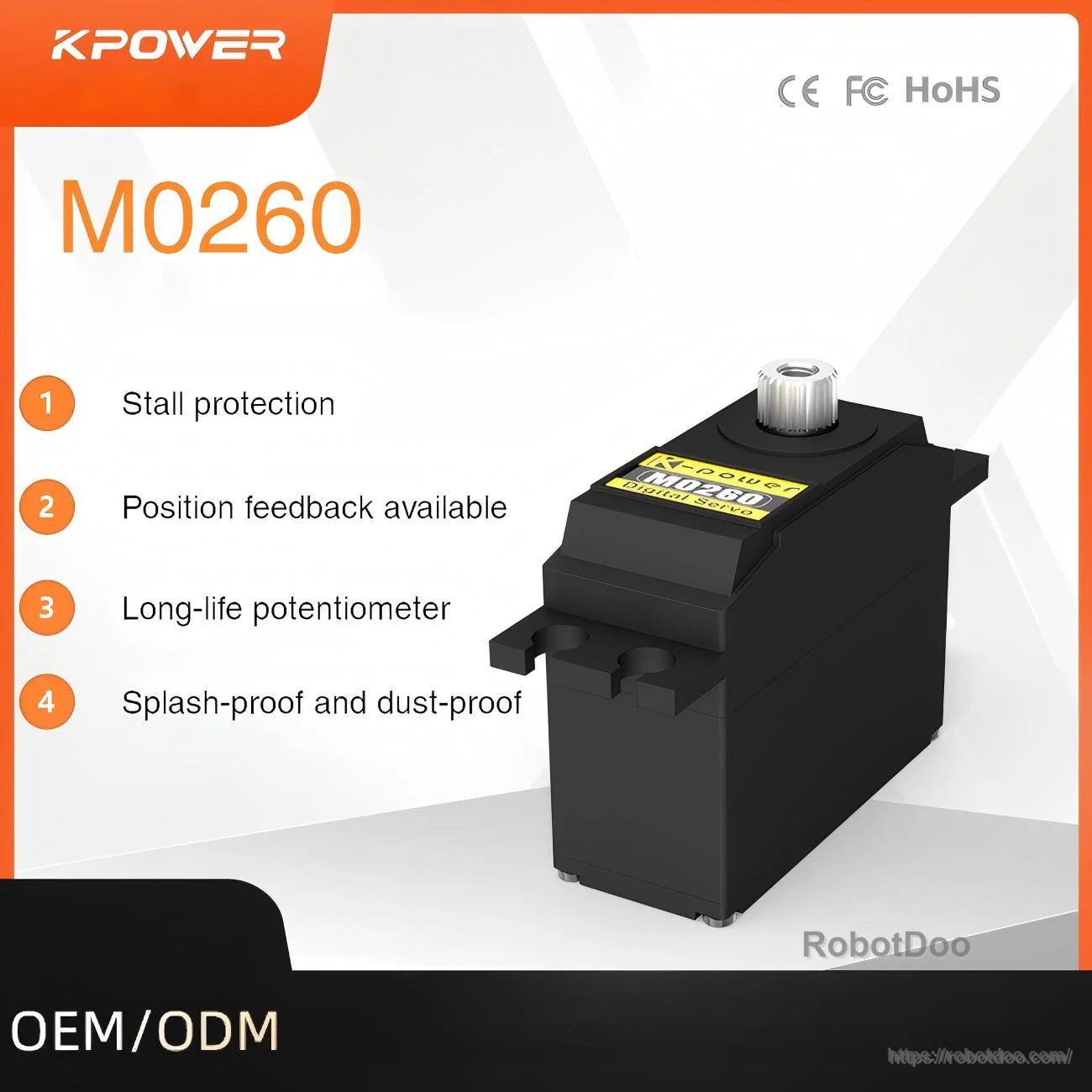

Key Features
- Stall protection
- Position feedback available
- Long-life potentiometer
- Splash-proof and dust-proof design
- Wear-resistant metal gears
- Brushed motor
- Supports PWM/TTL/RS485 (as stated)
Specifications
| Model Type | Digital Servo M0260 |
| Motor Type | Brushed |
| Case Material | Plastic Case |
| Gear Material | Metal |
| Bearing Type | 2BB |
| Weight | 28 g / 1.0 oz (spec table); “25G” is also stated |
| Dimension | 35.5 × 15 × 29 mm / 1.4 × 0.6 × 1.1 in |
| Operation Voltage | 4.8 ~ 6 V (spec table); “voltage up to 8.4V” is also stated |
| Torque | 4.8V: 3.6 kg·cm (50 oz·in) 6.0V: 4.0 kg·cm (55 oz·in) |
| Speed | 4.8V: 0.13 sec/60° 6.0V: 0.12 sec/60° |
| Pulse Width | 900 ~ 2100 μs |
| Dead Band Width | 2 μs |
| Interface Type | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature | -20 to 60 °C |
| Splining | 25T |
| Wire Length | Based on your requirement |
| Waterproof | Yes |
| Certification | CE & FCC (spec table); CE/FCC/RoHS labeling is also stated |

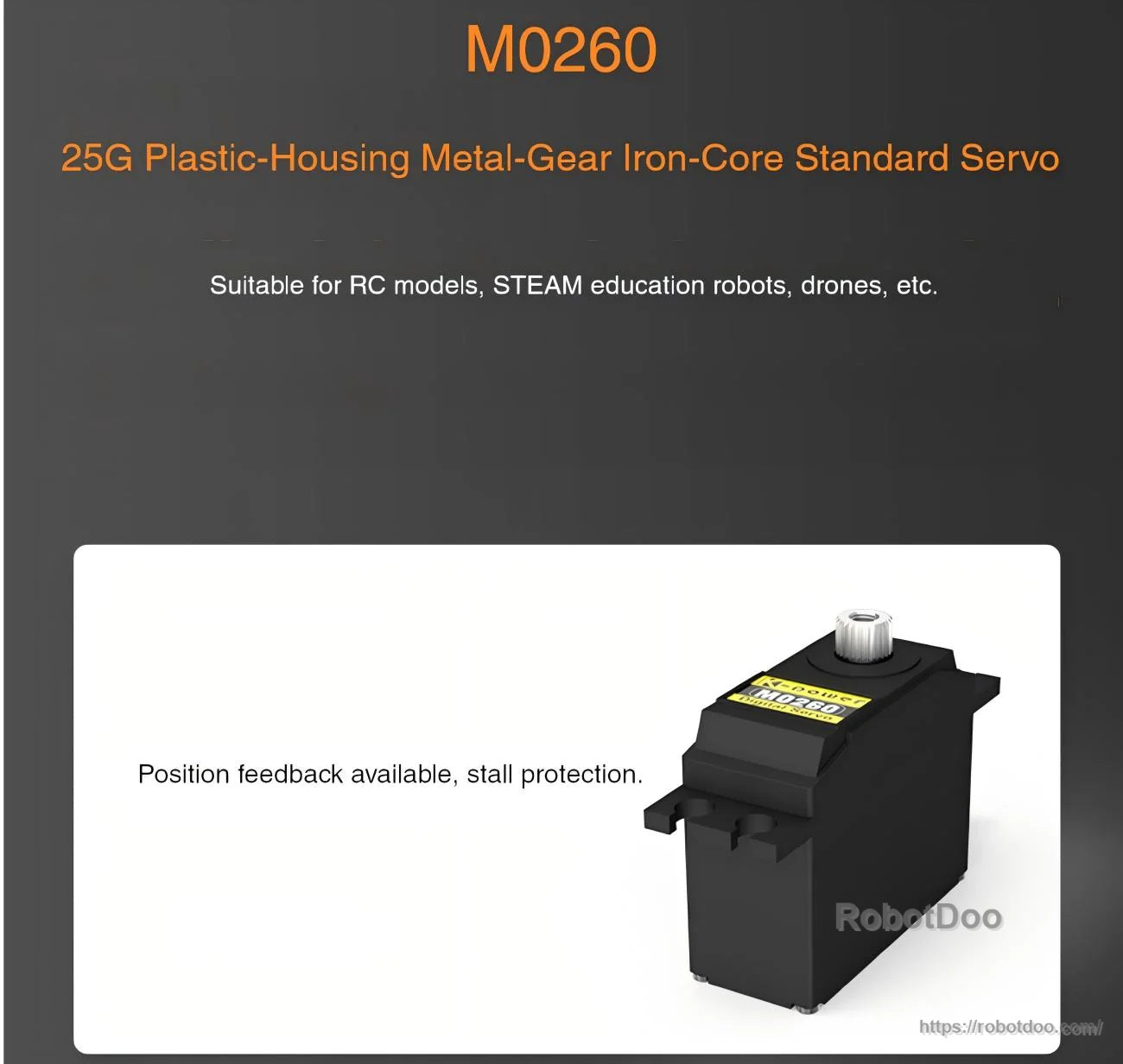

| Application | Smart home, RC Airplane, Car, Boat and Robot; also stated suitable for RC models and STEAM education robots |
| Service | One year warranty. Customized and OEM are available. |
Applications
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
- Smart home devices
- RC airplane, car, and boat

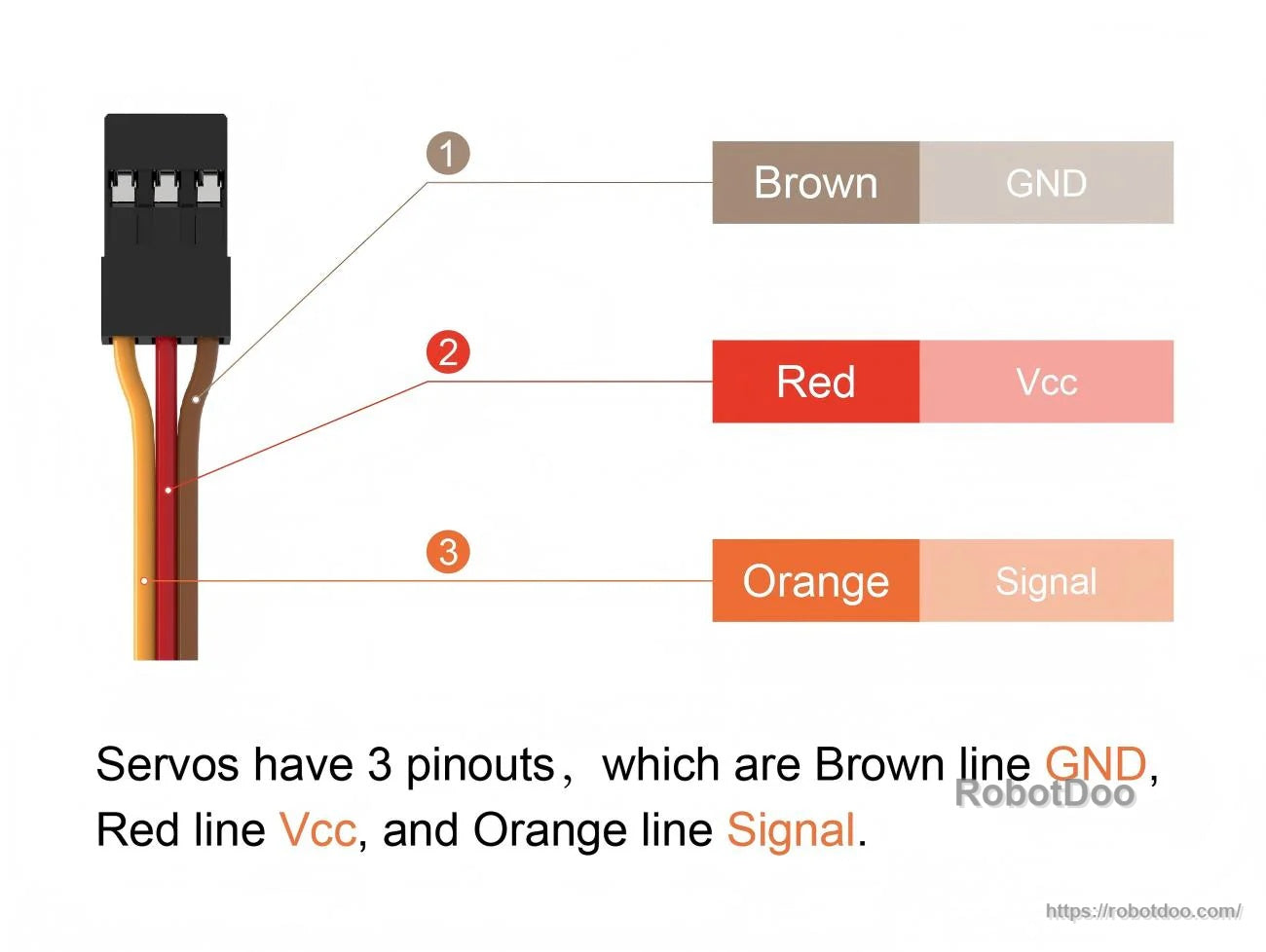

Wiring / Pinout (as stated)
- Brown: GND
- Red: Vcc
- Orange: Signal
Manuals
For wiring options (JR / FT / JST1.5 / JST2.0 / other), wire length requirements, and OEM/custom requests, contact customer service before ordering.
Details
Kpower M0260 digital servo motor supports controlled motion with stall protection and optional position feedback for RC and robotics builds.

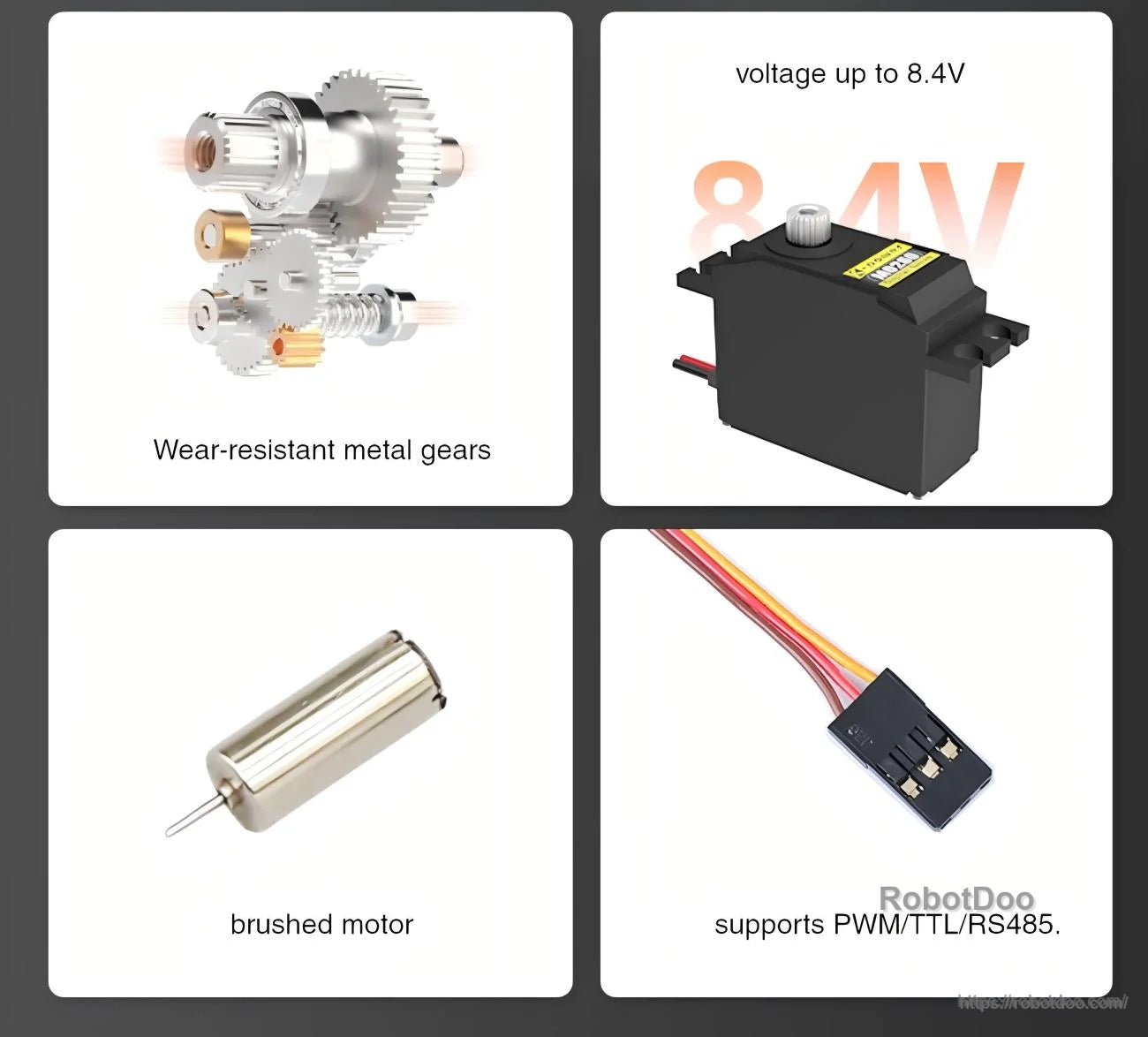

Built with wear-resistant metal gears and a brushed motor, with interface options listed for different control setups.

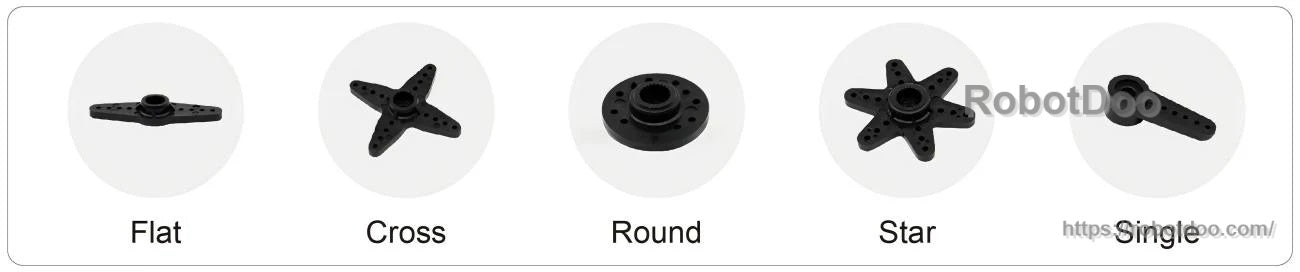

Multiple horn styles make it easier to match the output spline to your linkage, wheel, or arm design.

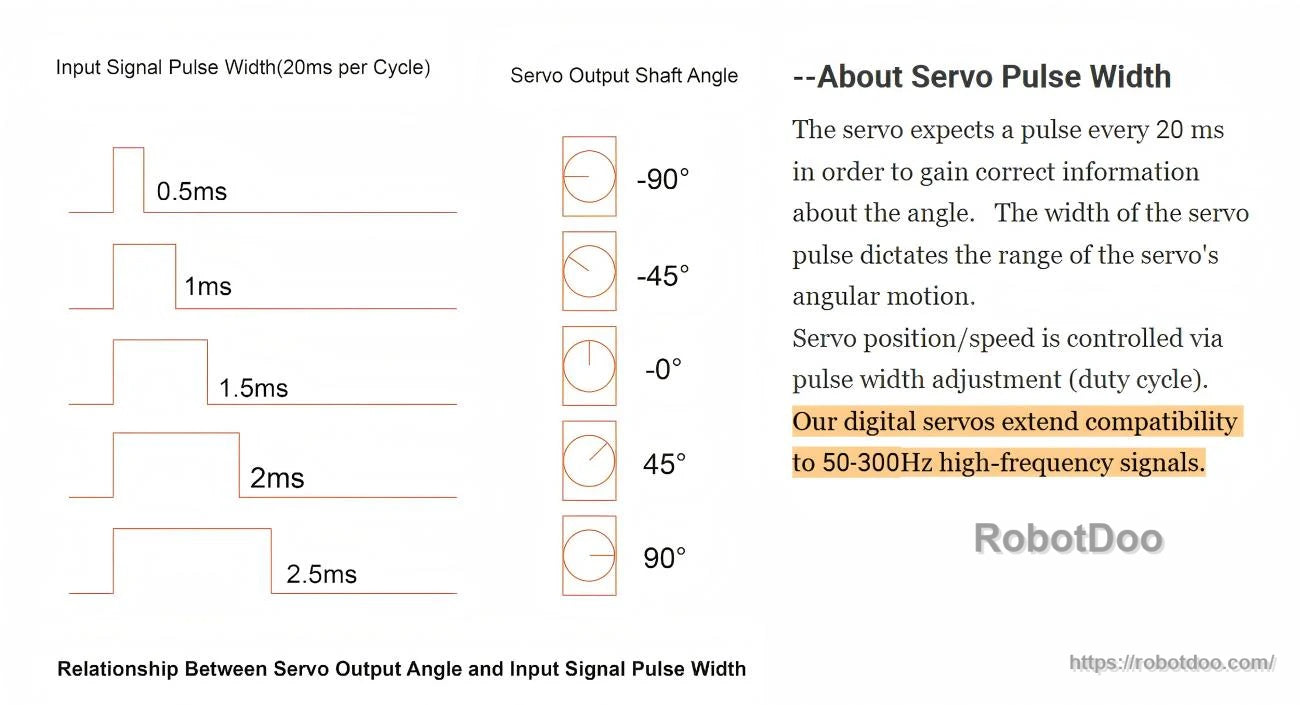

Standard PWM pulse widths map directly to output angle, helping you tune range and center position in your controller.
Wiring is straightforward with the common 3-pin servo lead: brown for ground, red for power, and orange for signal.
