Overview

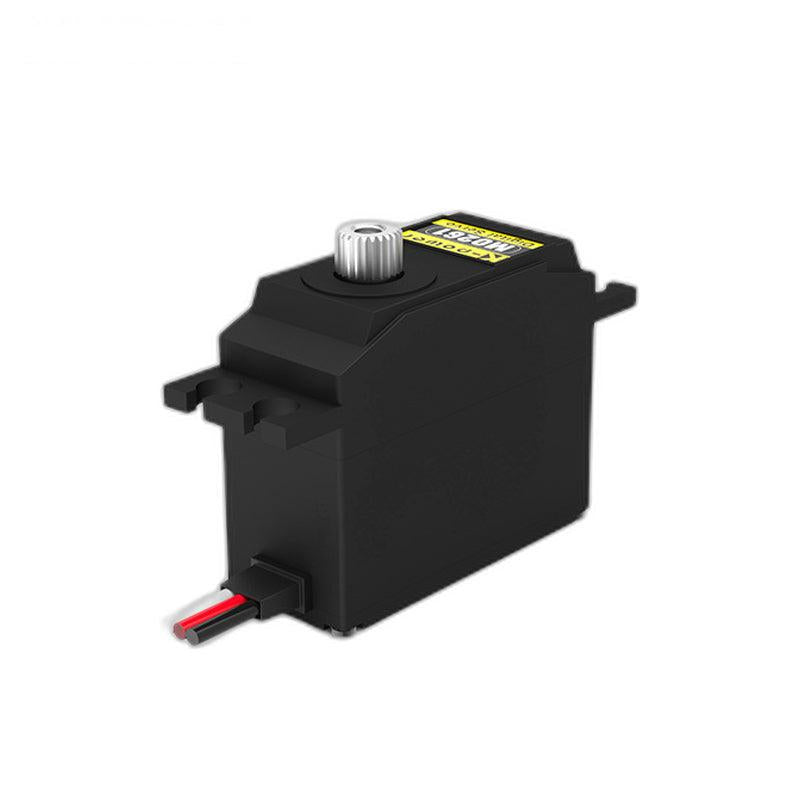

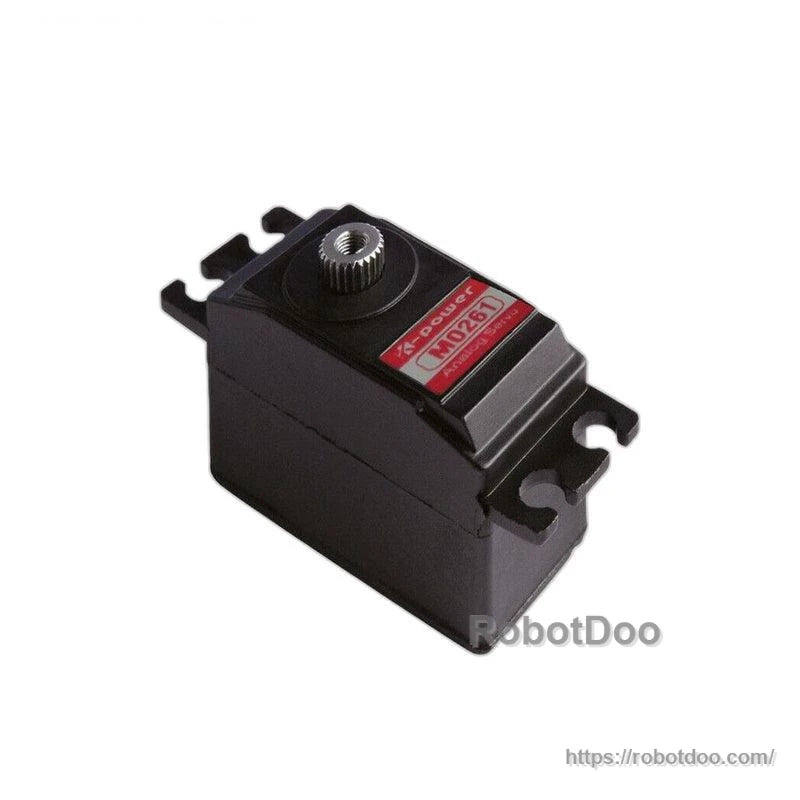

The Kpower M0261 servo motor is an analog, metal-gear micro/mini servo designed for compact actuation in robotics and RC/mechatronics projects. It uses a brushed motor, a plastic case, and a 25T spline output.
Key Features
- Analog metal-gear micro/mini servo (Model Type: Analog metal gear micro and mini servo M0261)
- Gear material: Metal
- Motor type: Brushed
- Running degree: 120° default (debuggable)
- Dead band width: 4 μs
- Splash proof
- Product material text highlights: stall protection, position feedback available, long-life potentiometer, splash-proof and dust-proof
Specifications
| Model | M0261 |
| Model Type | Analog metal gear micro and mini servo M0261 |
| Gear material | Metal |
| Case material | Plastic case |
| Dimension | 35.5 × 15 × 29 mm |
| Weight | 28 g |
| Motor type | Brushed |
| Running degree | 120° default (debuggable) |
| Speed | 4.8V: 0.07 s/60° 6.0V: 0.06 s/60° |
| Torque | 4.8V: 2.3 kg·cm 6.0V: 2.9 kg·cm |
| Power supply | 4.8 ~ 6.0 V |
| Dead band width | 4 μs |
| Connector | JR (default) |
| Operating Temperature | -10 ~ 60 °C |
| Splining | 25T |
| Waterproof | Splash proof |
Additional label / material text (for reference)

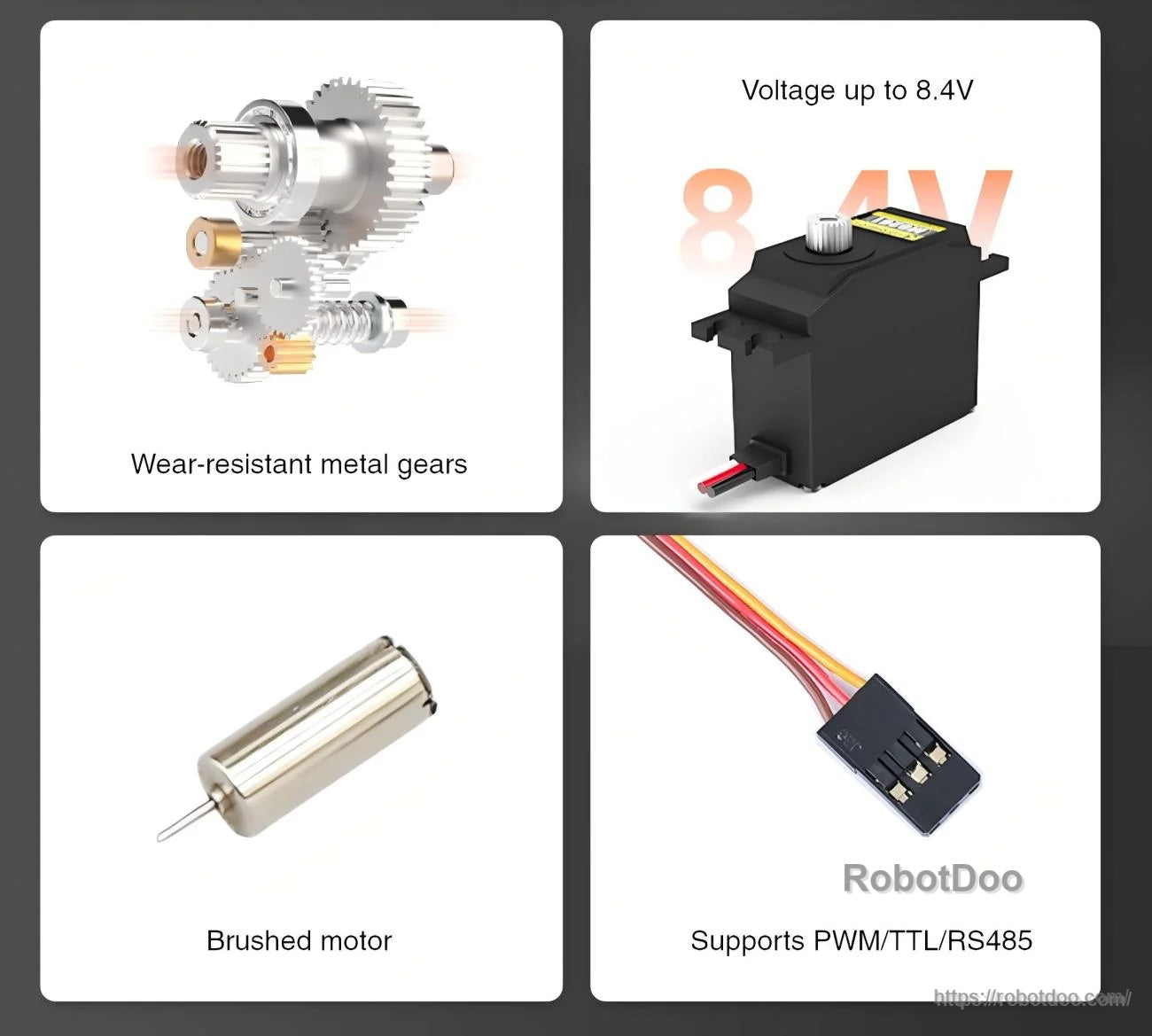

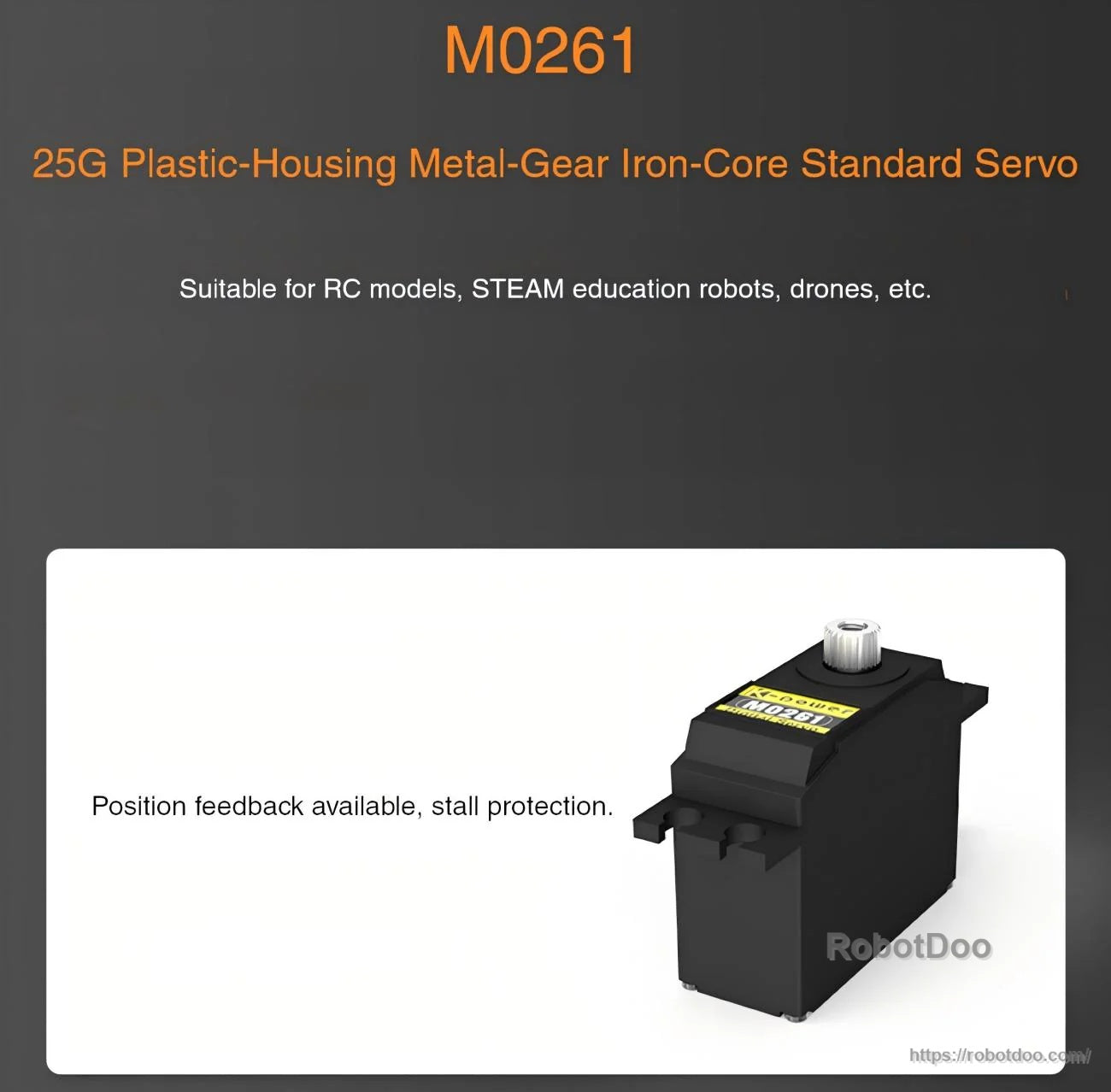

- “25G Plastic-Housing Metal-Gear Iron-Core Standard Servo”
- “Voltage up to 8.4V”
- “Supports PWM/TTL/RS485”
- Compliance marks shown: “CE”, “FC”, “HoHS”
- Servo horn styles shown: Flat / Cross / Round / Star / Single
- 3-wire color mapping shown: Brown = GND, Red = Vcc, Orange = Signal
Note: Some printed material values (for example “Voltage up to 8.4V” and “25G”) differ from the technical specifications list above (for example 4.8 ~ 6.0 V and 28 g). For integration, use the specifications table parameters unless confirmed otherwise for the specific batch/version.
Applications
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
- RC models, STEAM education robots, drones (stated in product materials)
Manuals
For pre-sales compatibility checks (mechanical fit, spline/horn matching, and control signal expectations), contact the store customer service team.
Details

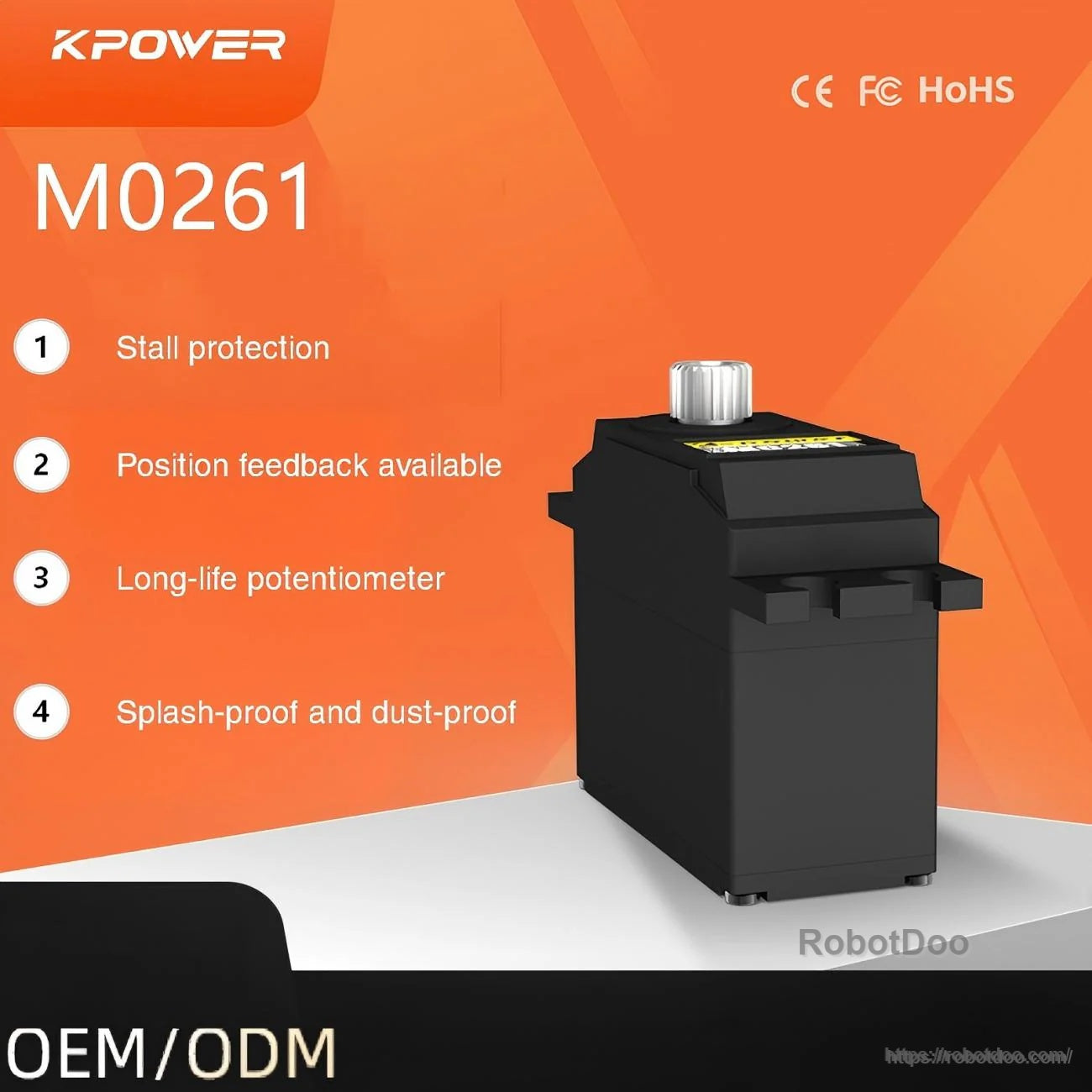

The M0261 is built for compact actuation, with metal gears plus stall protection and position feedback support.
A practical choice for RC models and STEAM/robotics projects where a small, durable servo is needed.
Metal gears and a brushed motor deliver dependable motion control in a compact form factor.

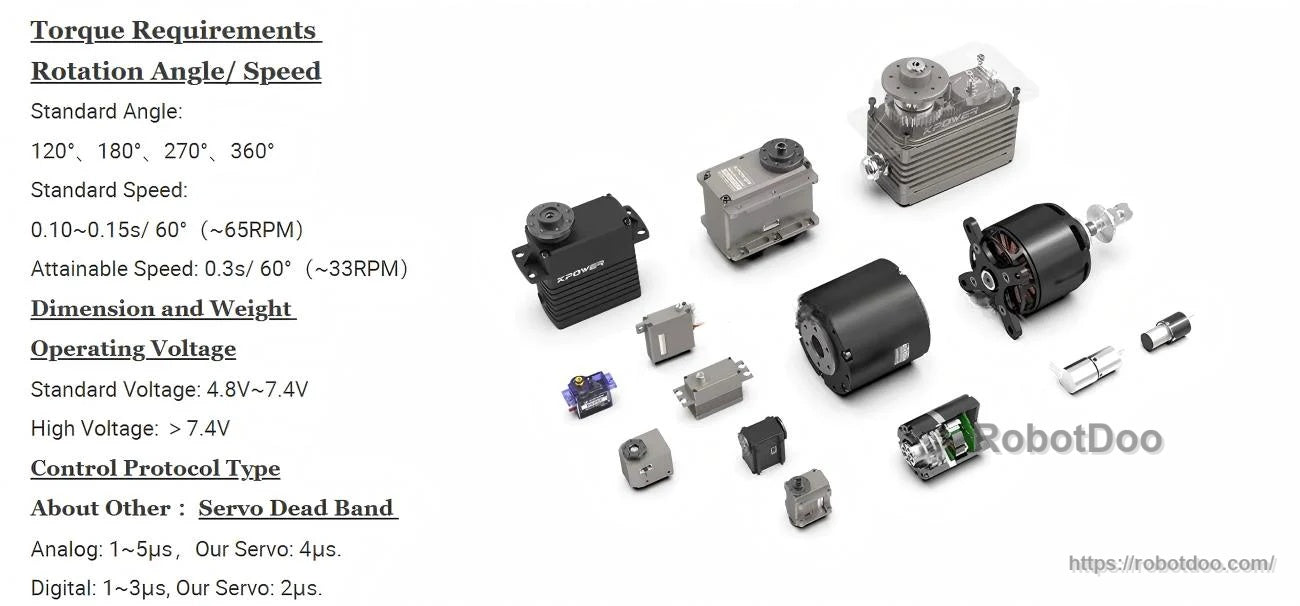

Use the torque and speed guidance to match a servo to your load, travel angle, and power setup.

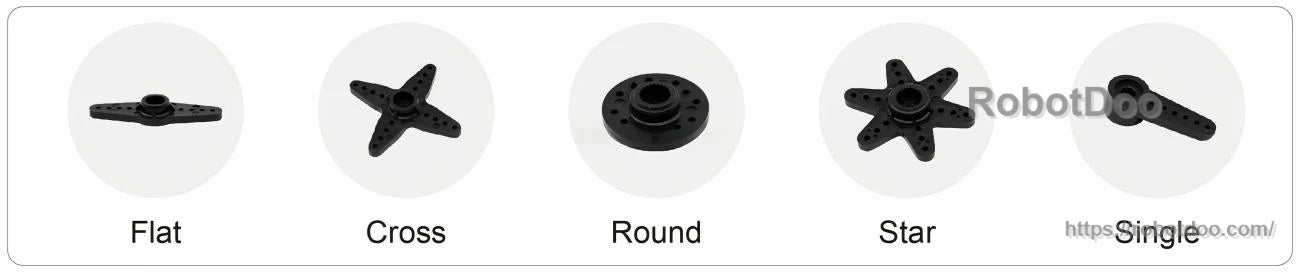

Multiple horn styles make it easier to adapt the 25T spline output to different linkages and brackets.

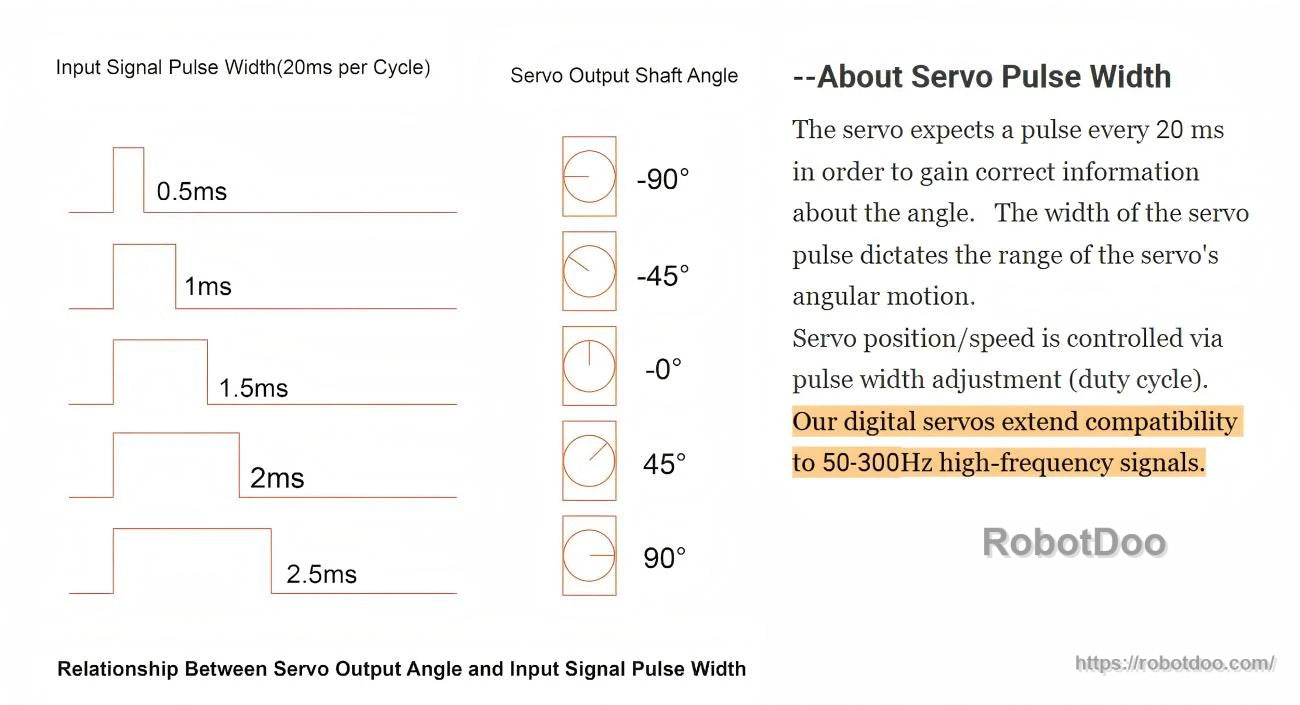

Standard PWM pulse widths (typically within a 20 ms period) control the output angle for straightforward integration.
Need a tailored variant for your build? Ask support about customization options for wiring, protocols, and performance targets.

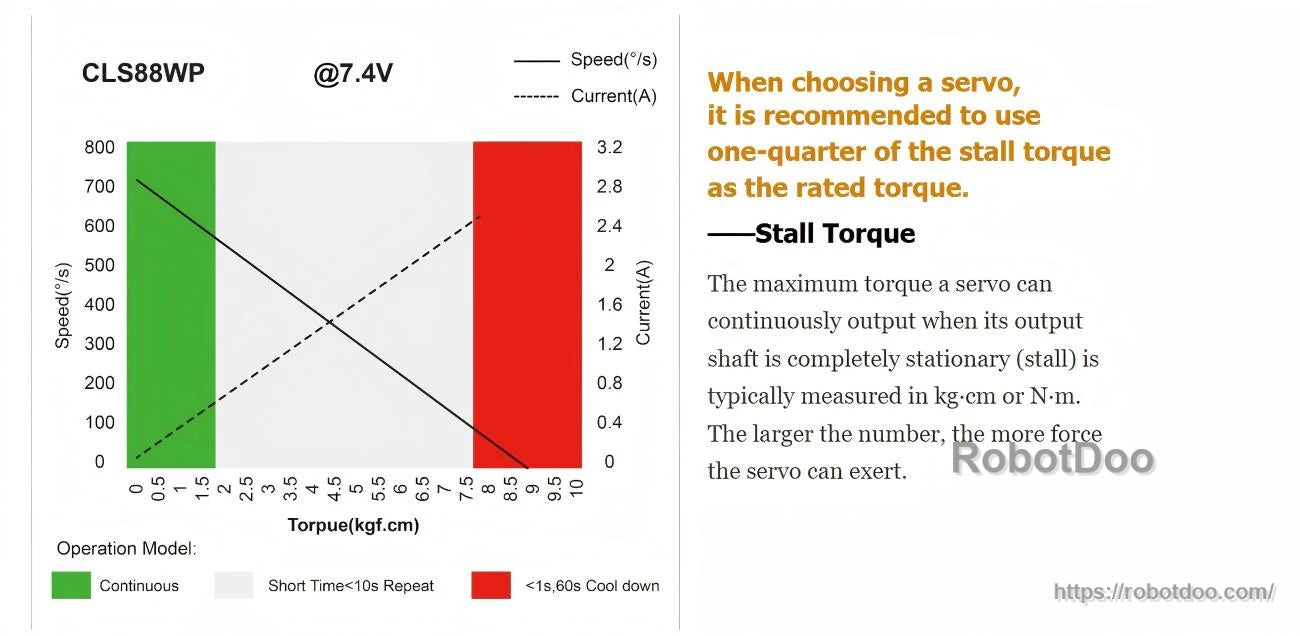

For longer life and stable performance, size working torque below stall torque when selecting a servo.

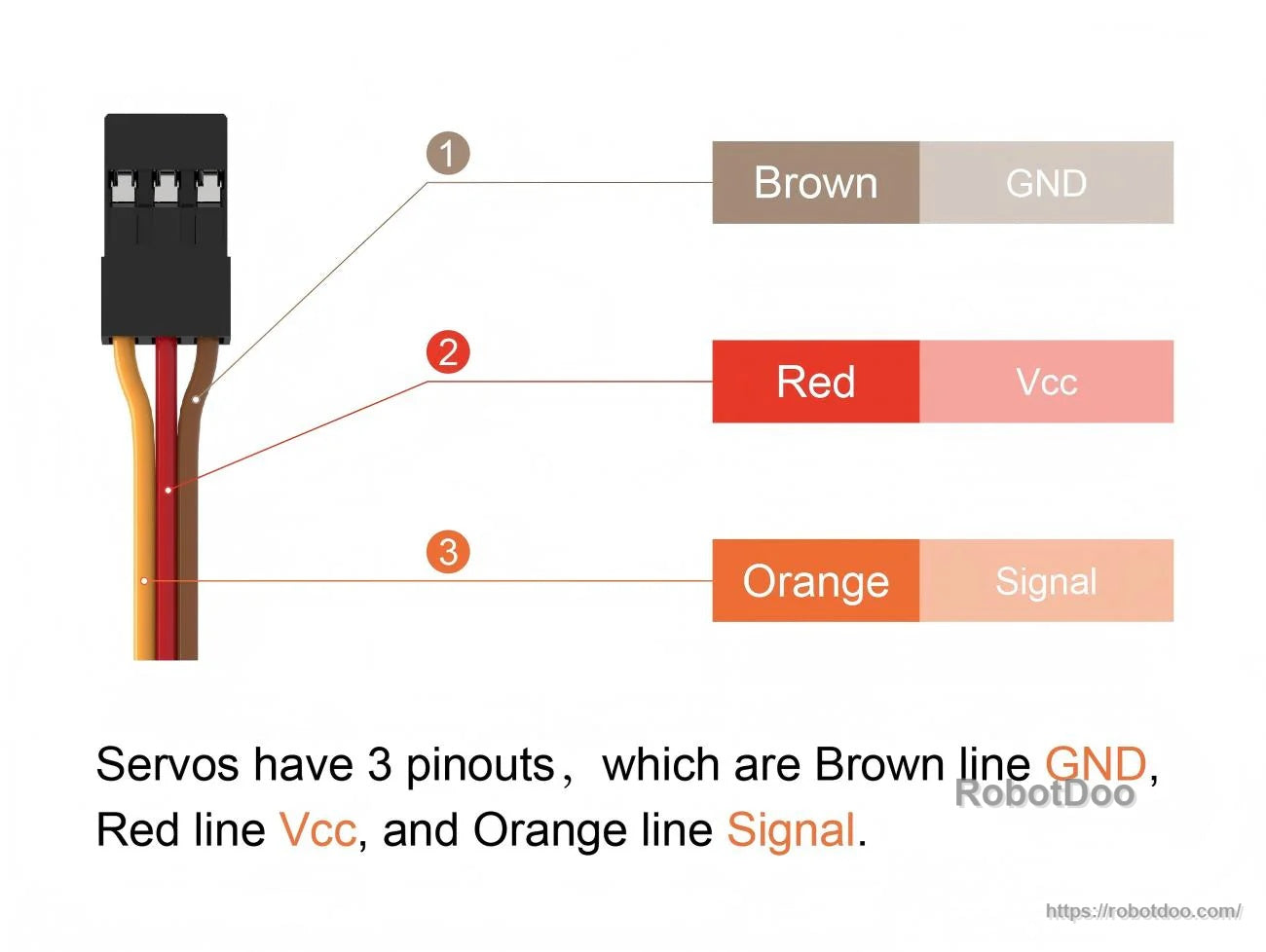

Wiring is the standard 3-wire servo format: brown (GND), red (Vcc), and orange (signal).

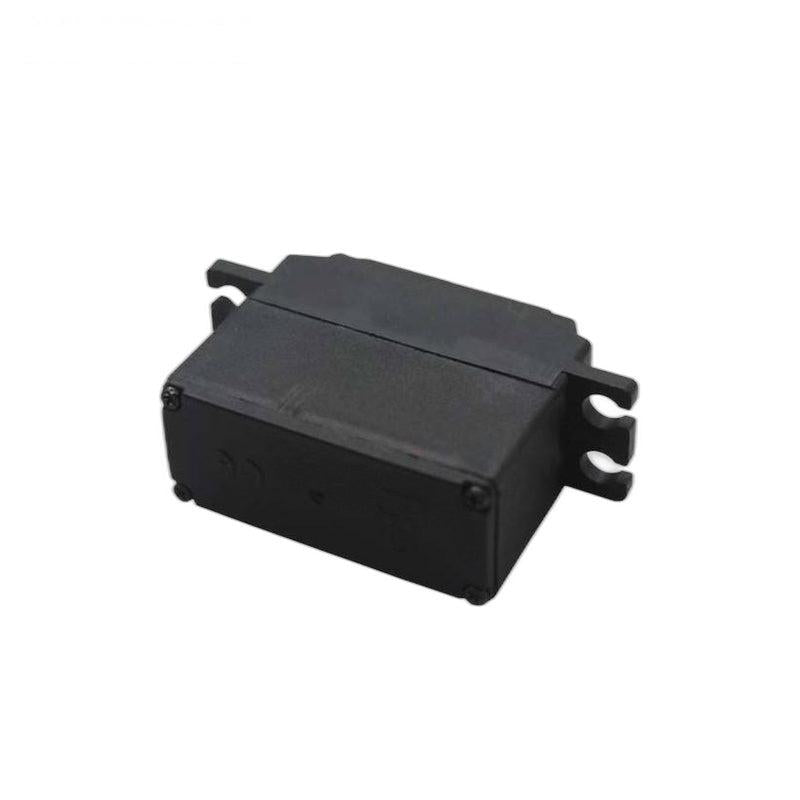

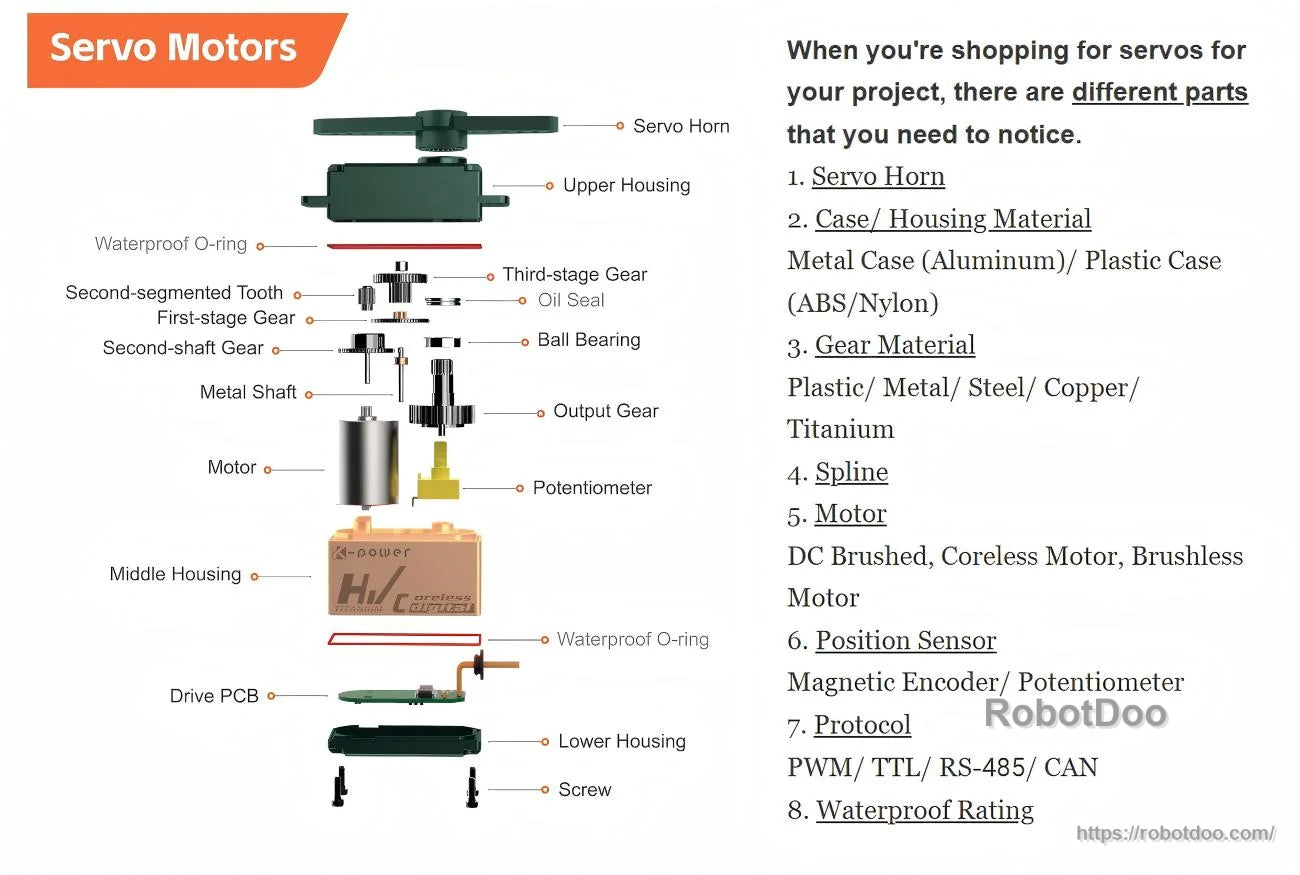

A quick parts overview helps confirm the construction details that matter most for durability and control feedback.
Well-suited for a wide range of mechatronics builds—from robot joints and desktop robots to automation prototypes.

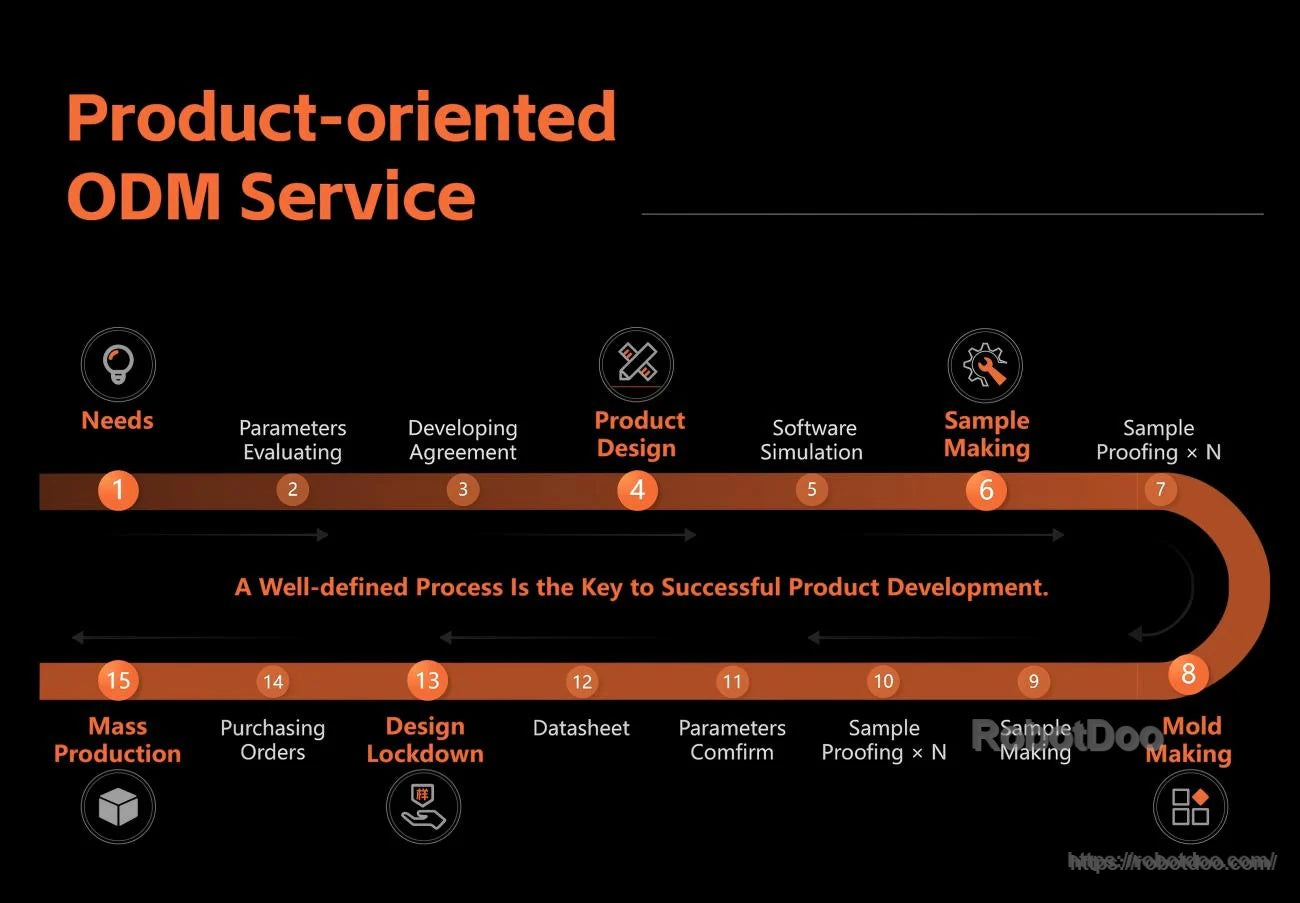

For OEM/ODM projects, the development flow supports evaluation, prototyping, and scaling into production.
