Overview

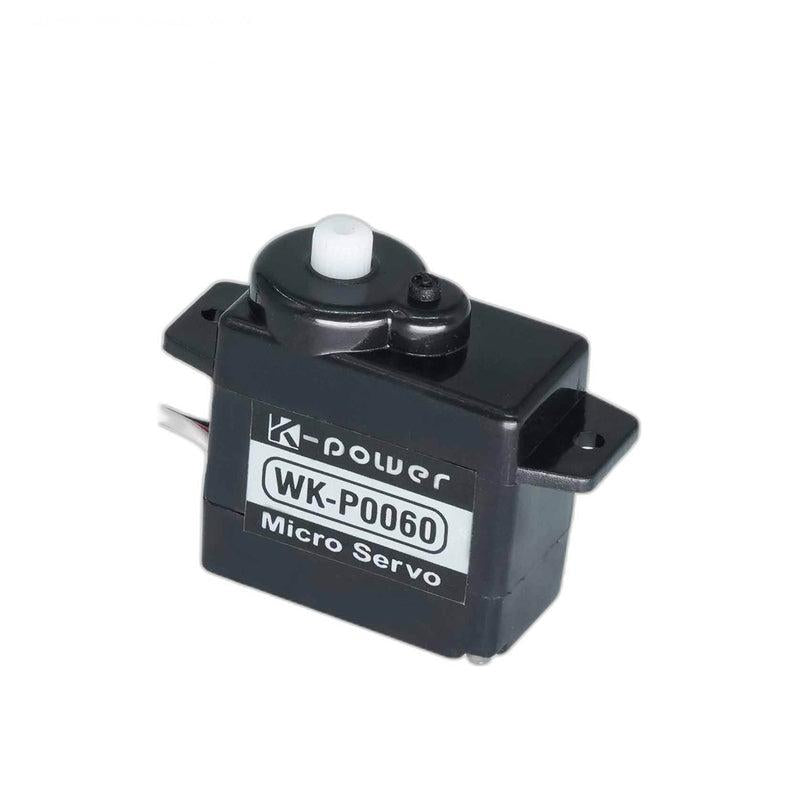

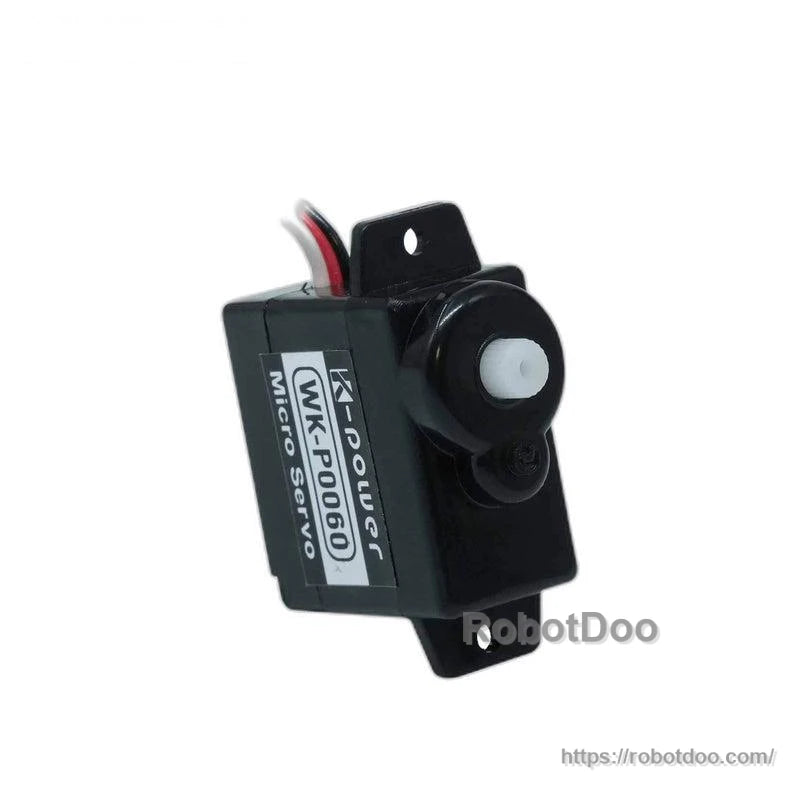

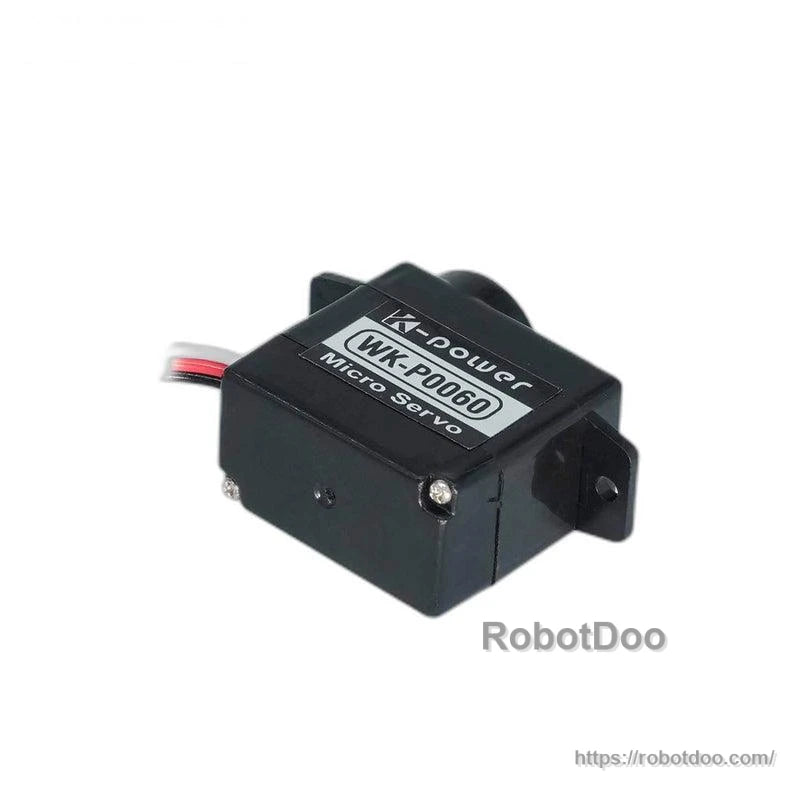

Kpower P0060 / WK-P0060 is a micro servo motor designed for lightweight actuation in small robotics and RC models. Product materials list a 6 g body, PWM control, plastic/POM gearing options, and typical use in Arduino robot kits, micro RC cars/aircraft, and compact mechanisms.
Note: Published specifications vary across the provided materials (e.g., travel angle, motor type, spline size, and some electrical parameters). All stated values are preserved below for completeness.

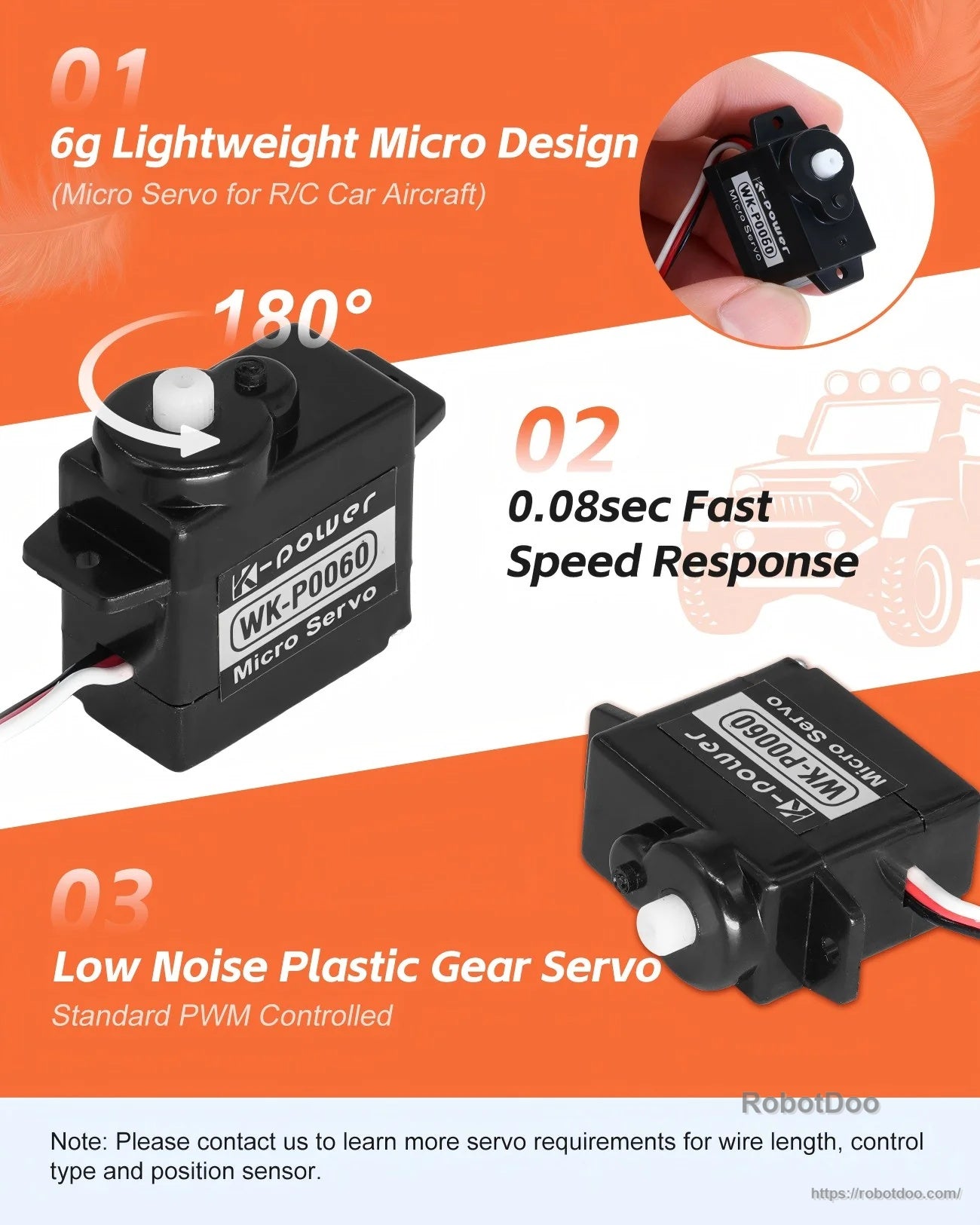

Key Features
- 6 g ultra-light micro/mini servo
- Standard PWM controlled
- Fast speed response values shown: 0.08 s (and 0.08 s/60° @ 6.0 V in one spec sheet)
- Plastic gear / POM gear referenced; “low-noise plastic gear” with a noise figure shown as 60 dB / 30
- Position sensor: potentiometer
- Ingress protection rating: IP42

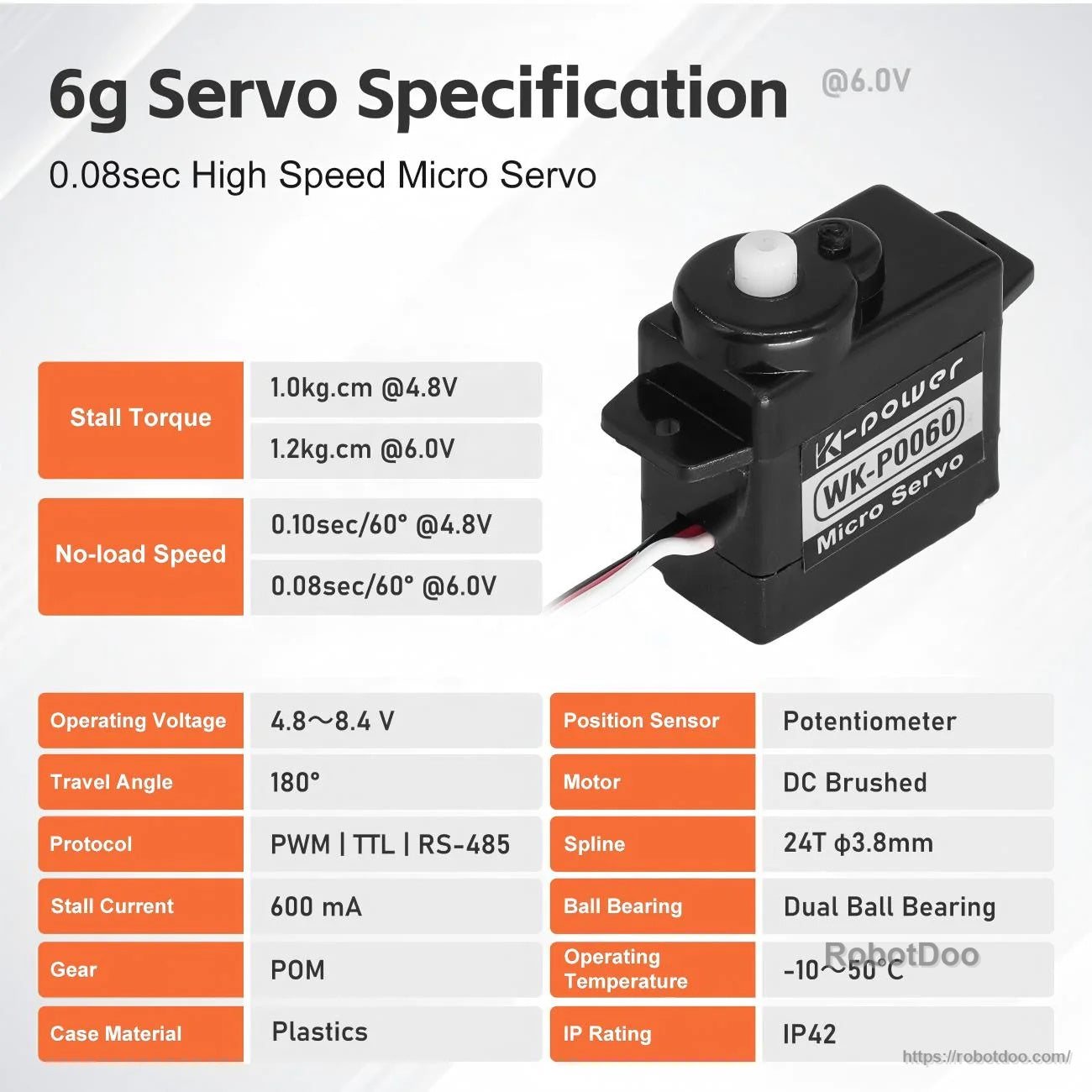

Specifications
| Model marking | WK-P0060 / P0060 |
| Weight | 6 g |
| Dimension | 21.5 × 11.8 × 22.9 mm (0.85 × 0.46 × 0.9 in) |
| Operating voltage | 4.8 ~ 8.4 V (also shown as 4.8~8.4 V) |
| Stall torque | 1.2 kg (table) / 1.0 kg.cm @ 4.8 V / 1.2 kg.cm @ 6.0 V |
| Rated torque | 0.3 kg |
| No-load speed | 0.08 s (table) / 0.10 sec/60° @ 4.8 V and 0.08 sec/60° @ 6.0 V (one sheet) / 0.11 sec/60° @ 4.8 V and 0.09 sec/60° @ 6.0 V (another sheet) |
| Travel angle | 120°±5 (Customizable) / 180° |
| Protocol / control | PWM (table) / PWM | TTL | RS-485 (one sheet) / Pulse lengths: 900~2100 us (one sheet) / Dead band: 8 us (one sheet) |
| Working frequency | 50 ~ 333 Hz |
| Current (as stated) | No-load current: 600 mA (table) / Stall current: 600 mA (one sheet) |
| Motor (as stated) | Coreless Motor (table and one sheet) / DC Brushed (one sheet) |
| Position sensor | Potentiometer |
| Horn gear spline / spline | 20T φ1.9 mm (table) / 24T φ3.8 mm (one sheet) |
| Gear material | POM (also referenced as plastic gear) |
| Case material | Plastic / Plastics |
| Ball bearing | 2BB (table) / Dual Ball Bearing (one sheet) |
| Wire length | 210 mm |
| Operating temperature | -10 ~ 50°C |
| IP rating | IP42 |

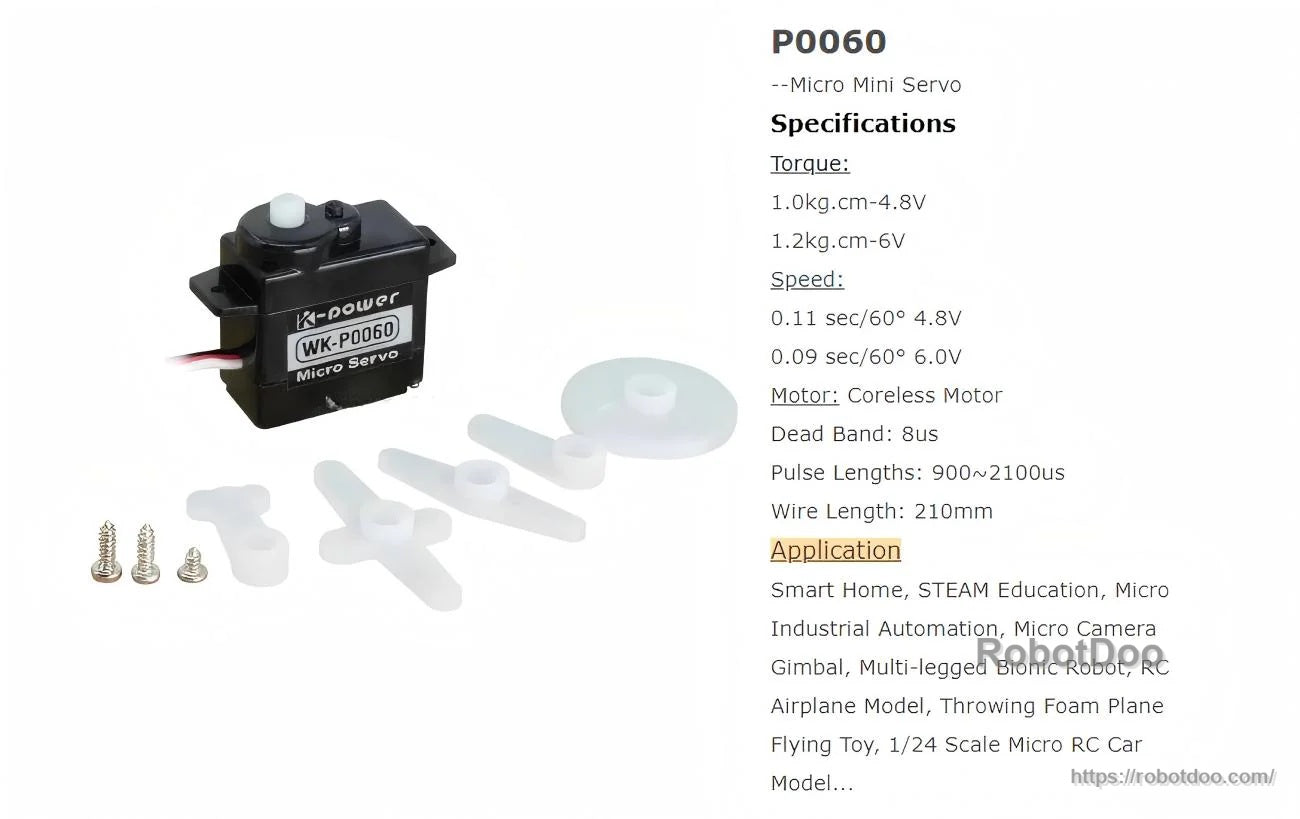

What's Included
- WK-P0060 / P0060 micro servo
- Servo horns/accessories set (multiple horn shapes shown)
- Mounting screws (set shown)
Applications
- Humanoid robots, robotic arms, exoskeletons, quadruped robots
- AGV vehicles, ARU robots

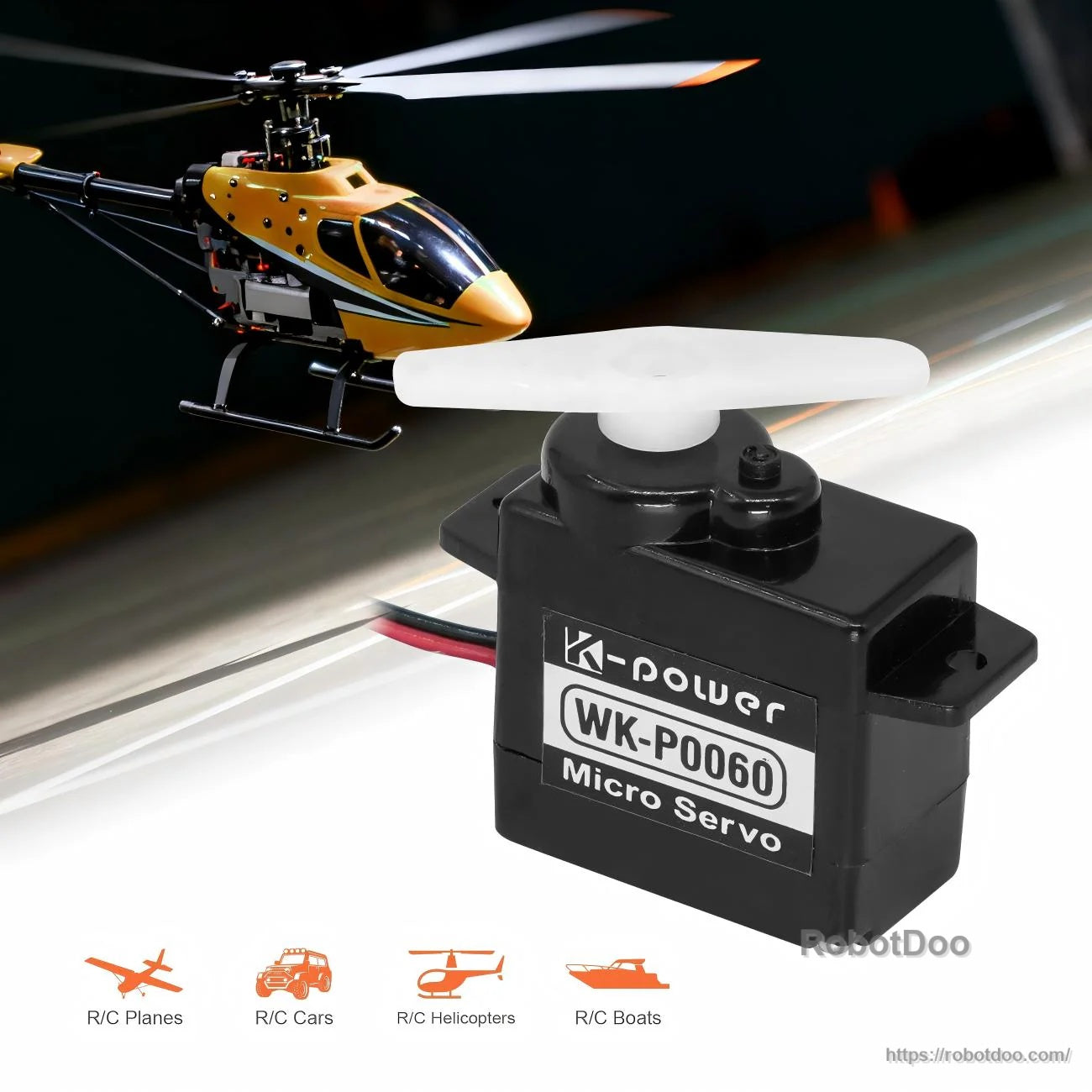

- Micro RC models: planes, cars, helicopters, boats
- Mini bionic robot projects, micro camera gimbal, robot toys
- Smart home, STEAM education, micro industrial automation
- RC airplane model, throwing foam plane flying toy, 1/24 scale micro RC car model
Manuals
Details
Built for lightweight RC and small robotics projects where quick, precise PWM control matters.

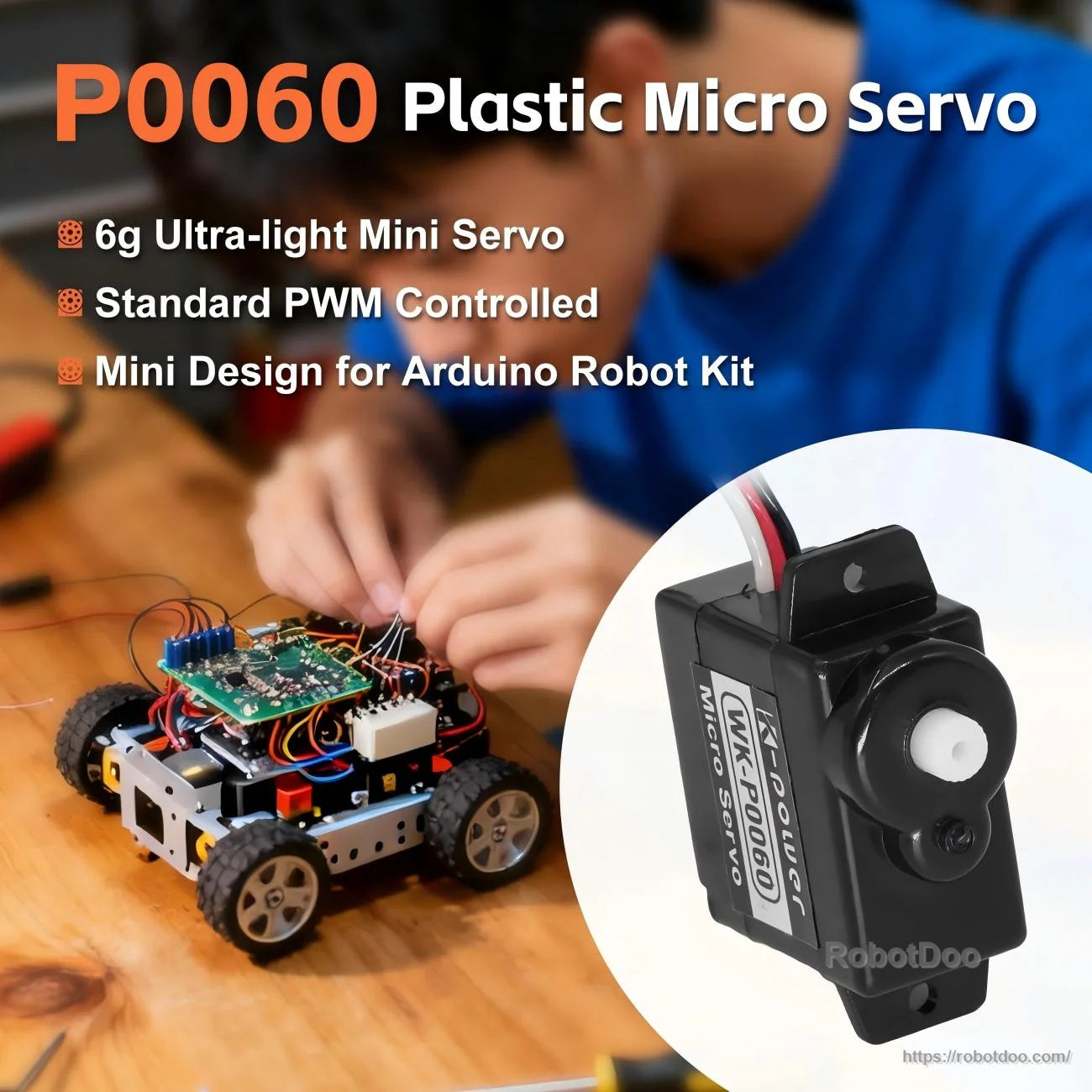

A compact 6 g servo that fits neatly into Arduino-based robot cars and other tight builds.
Specs are often listed differently across sources, so the key values are included for reference.
A popular choice for micro RC aircraft and cars thanks to the low weight and fast response.
Useful for compact mechanisms like small robotic joints, mini bionic builds, and micro gimbal actuation.
Includes the servo plus a horn/accessories set and mounting screws for straightforward installation.
