Overview

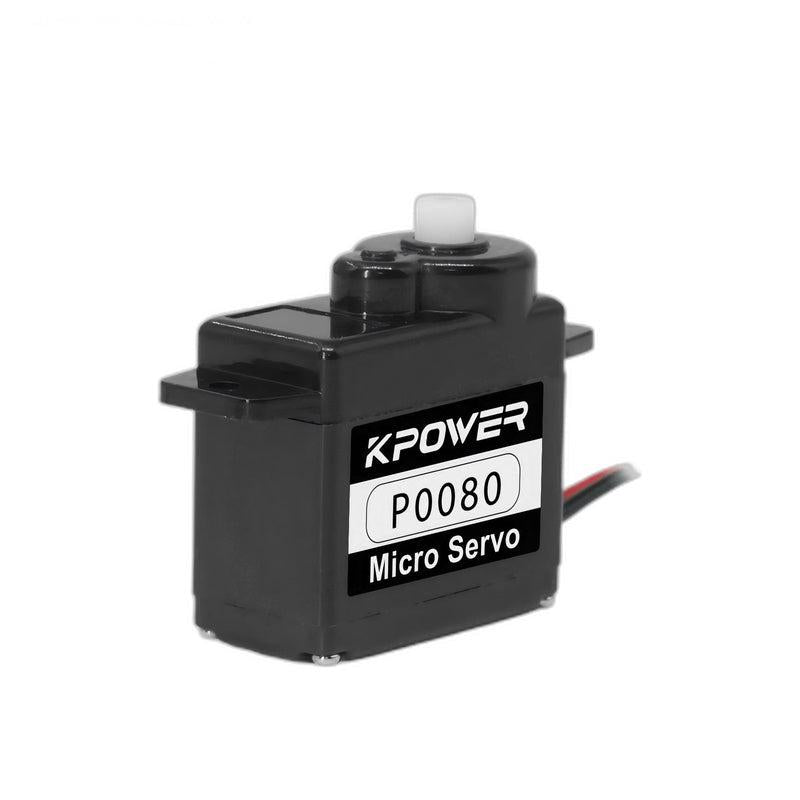

Kpower P0080 is an 8 g plastic micro servo motor ("Micro Servo") designed for standard PWM control. It is listed as a mini servo for Arduino robot kits and is suitable for compact RC and robotics mechanisms where low mass and fast response are required.
Key Features
- 8 g ultra-light mini servo
- Coreless motor micro servo
- Standard PWM controlled
- Fast speed response (listed: 0.10 sec/60° @ 6.0 V; 0.12 sec/60° @ 4.8 V)
- Plastic gear servo (listed gear material: POM)
- Ball bearing: dual ball bearing / 2BB
- IP rating: IP42
Specifications
| Model | P0080 |
| Type | Plastic micro servo motor |
| Weight | 8 g |
| Dimensions | 23 x 12 x 23.6 mm (0.91" x 0.47" x 0.93") |
| Operating voltage | 4.8 to 8.4 V |
| Stall torque | 1.3 kg.cm @ 4.8 V; 1.4 kg.cm @ 6.0 V (also listed: 1.4 kg) |
| Rated torque | 0.1 kg |
| No-load speed | 0.12 sec/60° @ 4.8 V; 0.10 sec/60° @ 6.0 V (also listed: 0.1 s) |
| Travel angle | 180° (also listed: 120° ± 5, customizable) |
| Control protocol | PWM (also listed: PWM | TTL | RS-485) |
| Working frequency | 50 to 333 Hz |
| Pulse lengths | 900 to 2100 us |
| Dead band | 8 us |
| Current (listed) | 800 mA (listed as no-load current in one spec table; listed as stall current in another) |
| Motor | Coreless motor |
| Position sensor | Potentiometer |
| Gear material | POM |
| Case material | Plastic / Plastics |
| Ball bearing | 2BB / Dual ball bearing |
| Horn gear spline (listed) | 20T phi 1.9 mm (also listed: 24T phi 3.8 mm) |
| Operating temperature | -10 to 50 C |
| IP rating | IP42 |

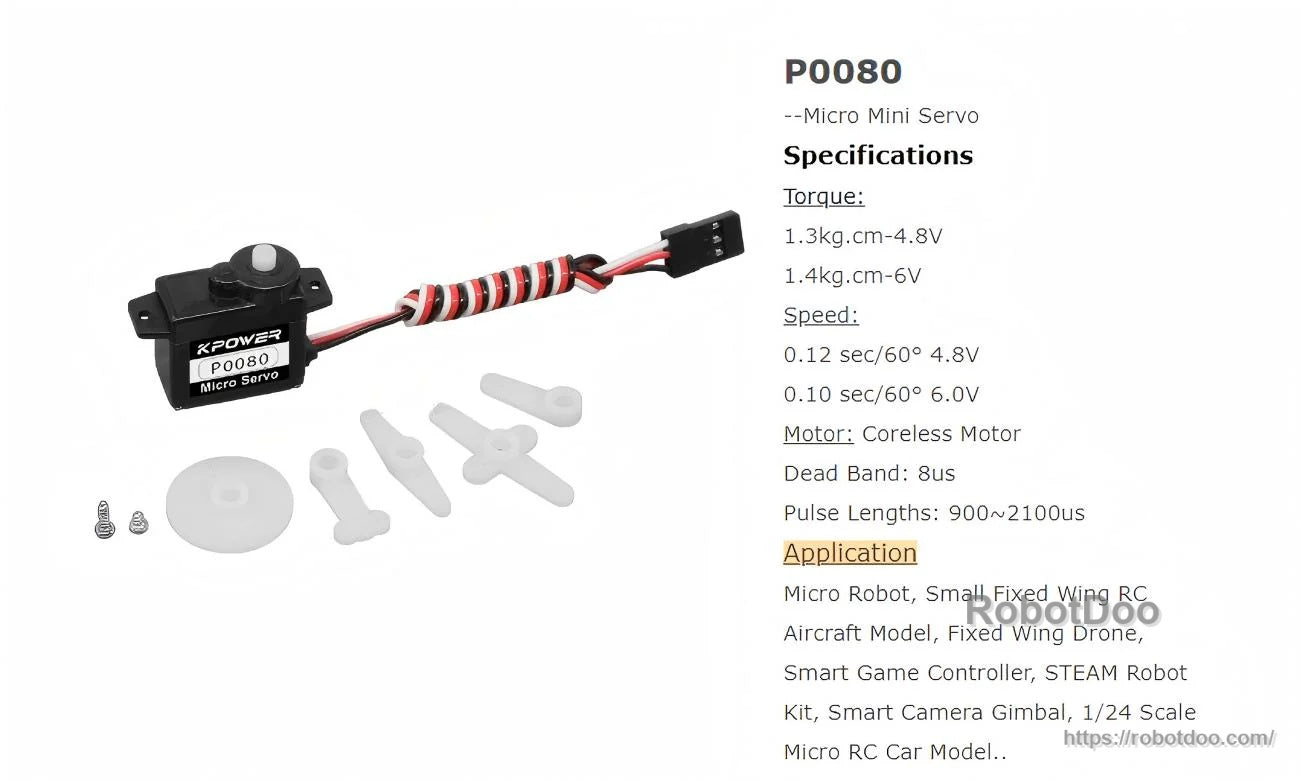

What's Included
- Kpower P0080 micro servo motor
- Servo horn set (assorted styles)
- Screws (small hardware)
For questions about wiring length, control type, or position sensor options, contact the store customer service team via the site contact page.
Applications
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
- Micro robots and STEAM robot kits
- Micro camera gimbal

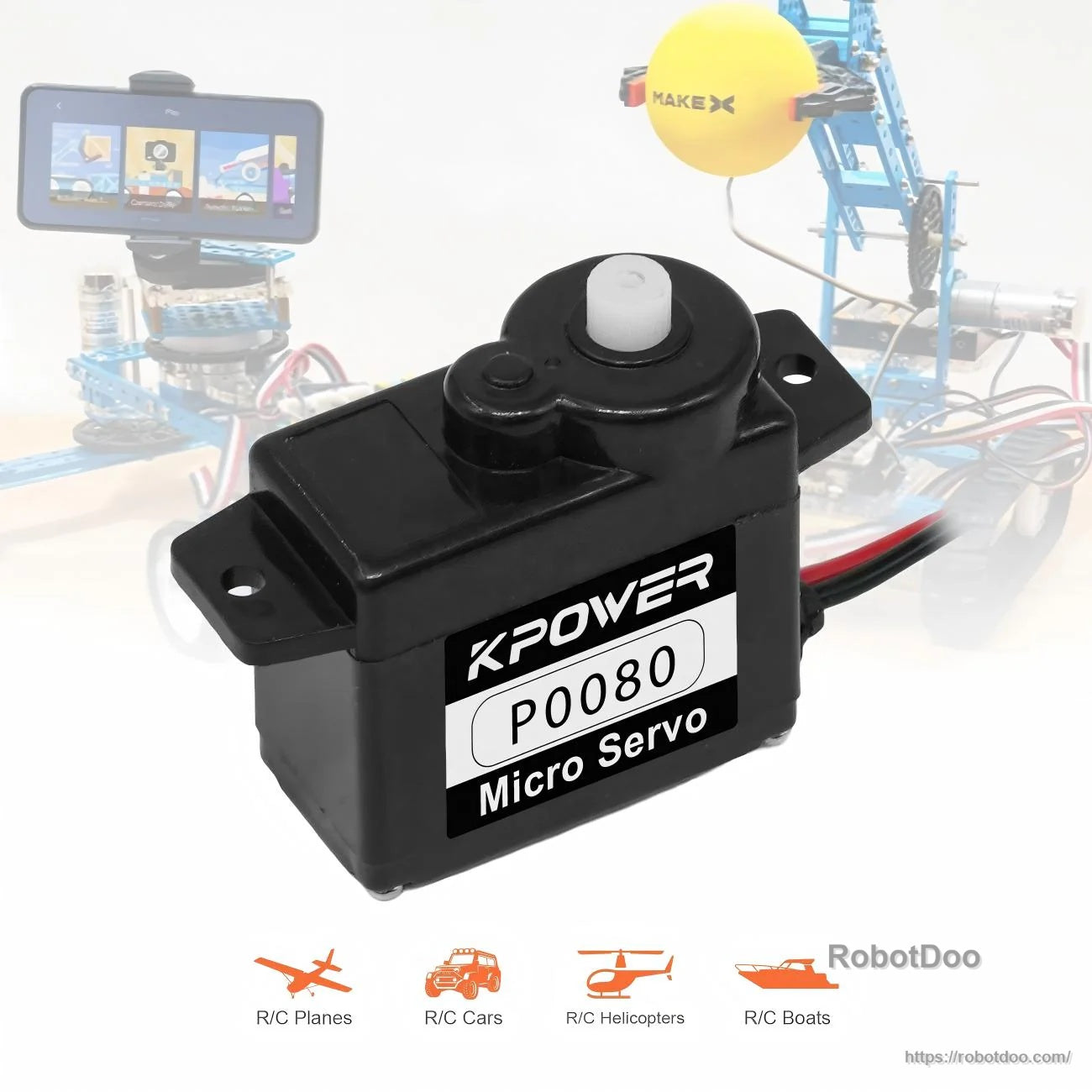

- RC models: planes, cars, helicopters, boats (micro RC car / aircraft models are listed)
- Smart game controller mechanisms
Manuals
Details
An 8 g micro servo for compact RC and robotics builds where weight and response time matter.
Standard PWM control makes the P0080 an easy fit for Arduino robot kits and other PWM controllers.

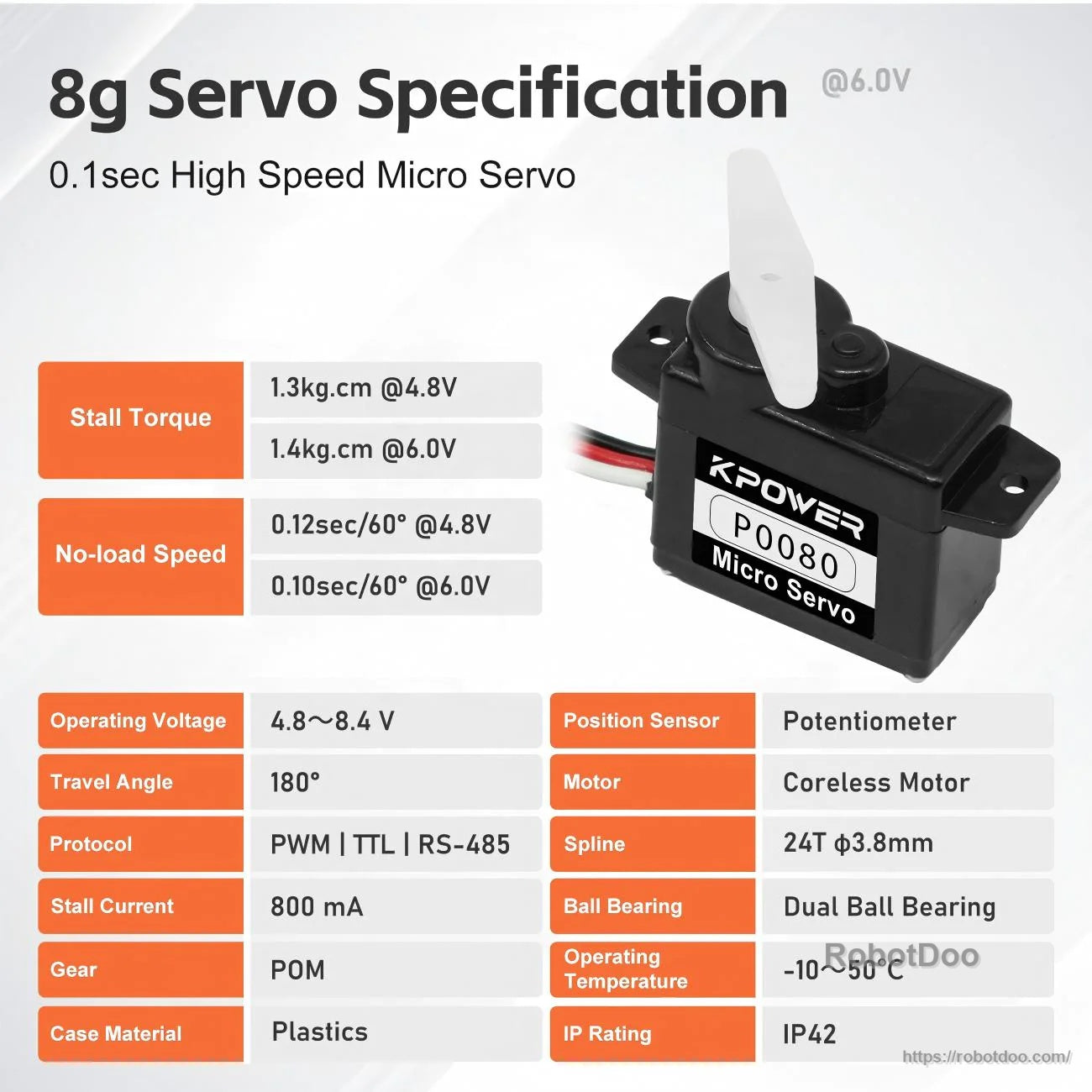

Key specs at a glance, including operating voltage range, speed ratings, and listed 180° travel angle.

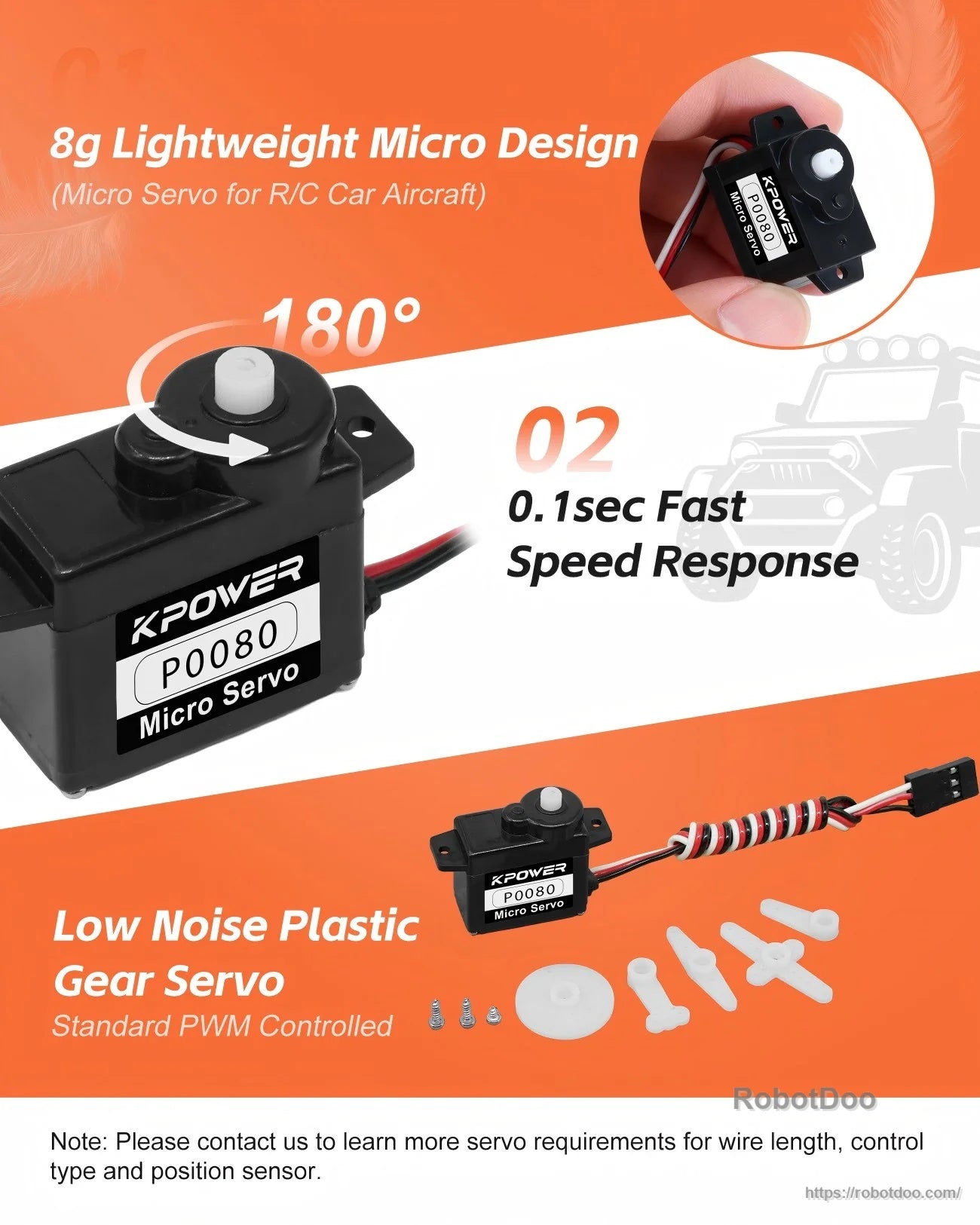

Includes assorted servo horns and mounting screws to match common linkage and bracket setups.
A lightweight option for micro RC cars and aircraft control surfaces.
The coreless motor design targets fast response for small mechanisms and educational robots.
Everything needed to start prototyping—servo, horn set, and hardware in one kit.
Common uses include small bionic robots, micro camera gimbals, and toy/DIY robot mechanisms.
