Overview

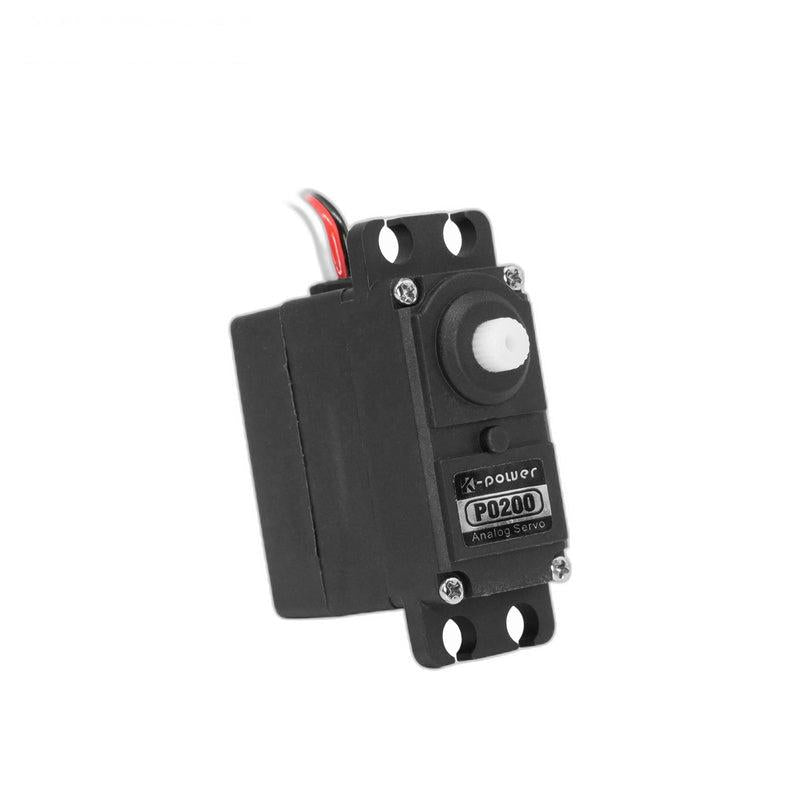

The Kpower P0200 Servo Motor is a compact servo motor (marked as an analog servo on the label) designed for robotics and RC/mechatronics motion control. It uses a plastic case with plastic (POM) gears, a DC brushed motor, and a potentiometer position sensor, and supports PWM as well as TTL and RS-485 control protocols.
Key Features
- Control protocols listed: PWM | TTL | RS-485 (series materials also mention CAN)
- Plastic case; case material listed: Plastic
- Gear material listed: POM; image label indicates plastic gear
- Position sensor: Potentiometer
- Ball bearing: 2BB
- Horn gear spline: 25T, φ5.9 mm
- Travel angle range: 120° (Customizable); series materials mention 0°–360° (120°/180°/270°)
- Servo lead/plug reference: JR, FUTABA
- 3-wire pinout reference: Brown = GND, Red = Vcc, Orange = Signal
- Compliance logos shown: ISO, CE, RoHS, EN71
Specifications
| Stall Torque | 3.3 kg |
| Rated Torque | 0.8 kg |
| Torque (from label) | 2.8 kg.cm @ 4.8V; 3.3 kg.cm @ 6.0V |
| No-load Speed | 0.13 s/60° |
| Speed (from label) | 0.14 sec/60 @ 4.8V; 0.13 sec/60 @ 6.0V |
| Weight | 16 g |
| Dimension | 31.5 × 16.5 × 29.6 mm |
| Operating Voltage | 4.8 ~ 8.4 V |
| No-load Current | 800 mA |
| Working Frequency | 50 ~ 333 Hz |
| Motor | DC Brushed |
| Gear Material | POM |
| Case Material | Plastic |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |
| Travel Angle Range | 120° (Customizable) |
| Horn Gear Spline | 25T φ5.9 mm |
| Protocol | PWM | TTL | RS-485 |
| Operating Temperature | -10 ~ 50°C |
| IP Rating | IP42 |
Applications
- Humanoid robots, robotic arms, exoskeletons, quadruped robots
- AGV vehicles, ARU robots

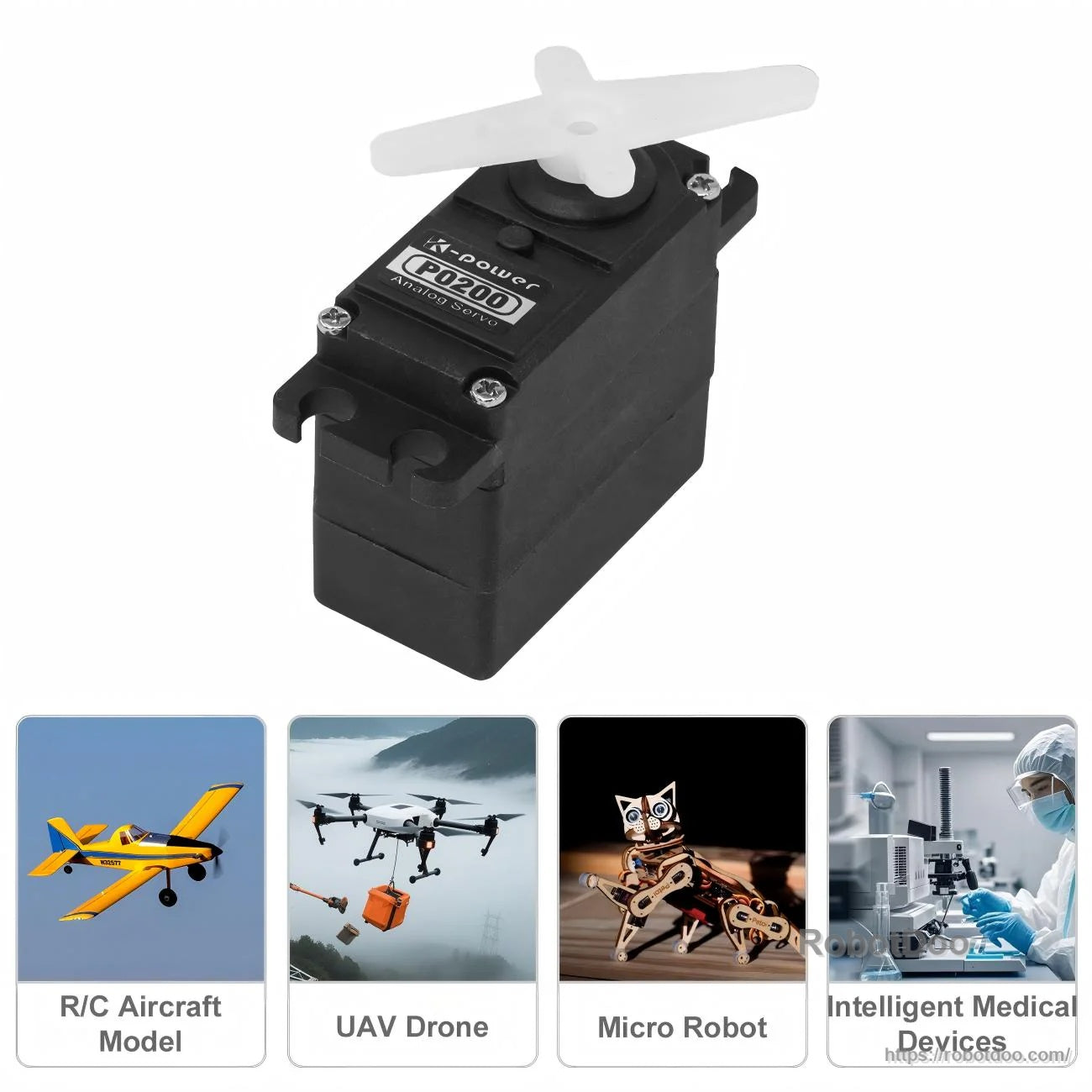

- R/C aircraft models and R/C car models; micro robots
- Smart home devices; robot vacuum applications
Manuals
Details

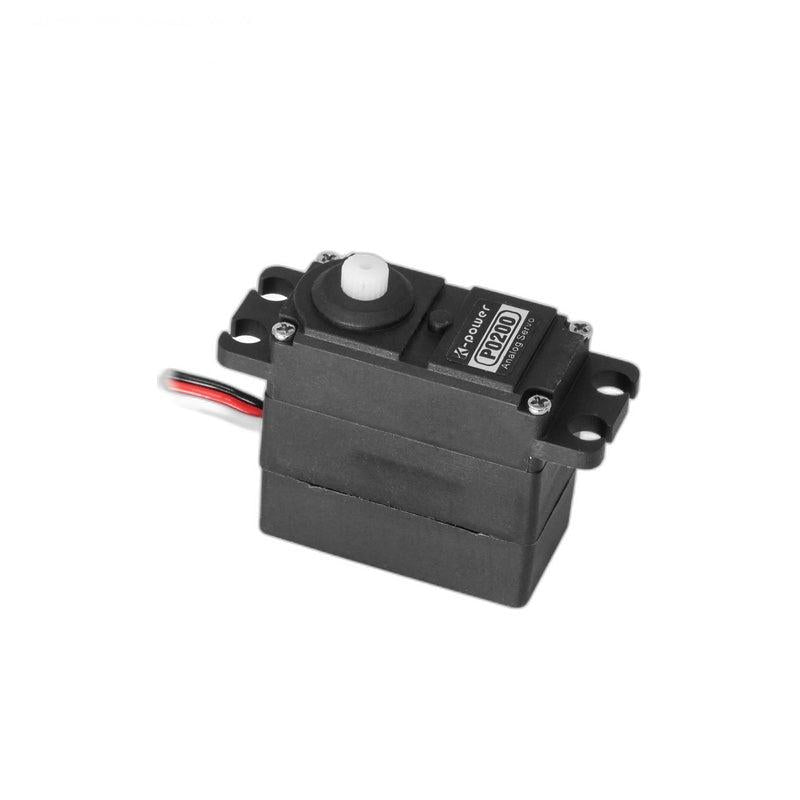

A compact P0200-size servo that fits easily into tight RC and robotics builds while still delivering precise motion control.
Core specifications are summarized for quick selection, including torque/speed at common voltages and overall dimensions.

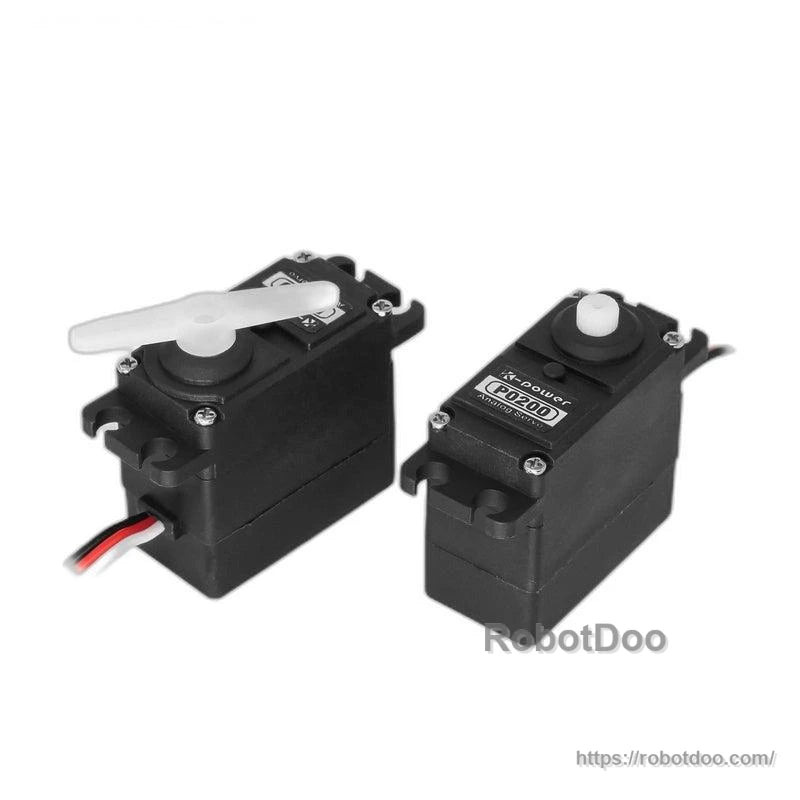

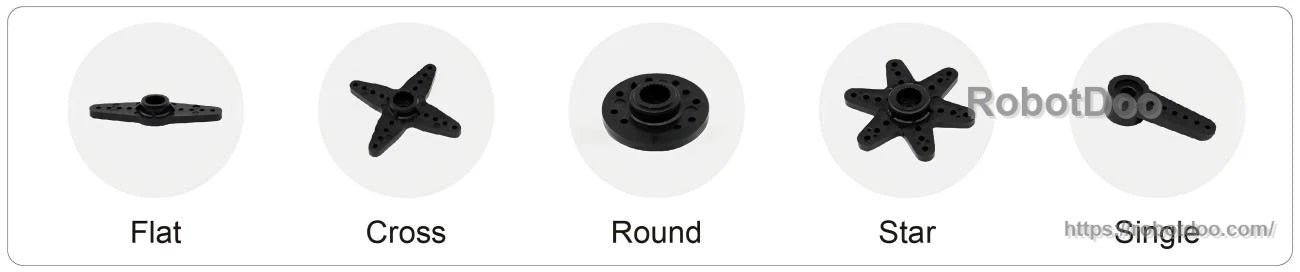

Choose from multiple horn styles to match different linkages, wheels, and mounting patterns.

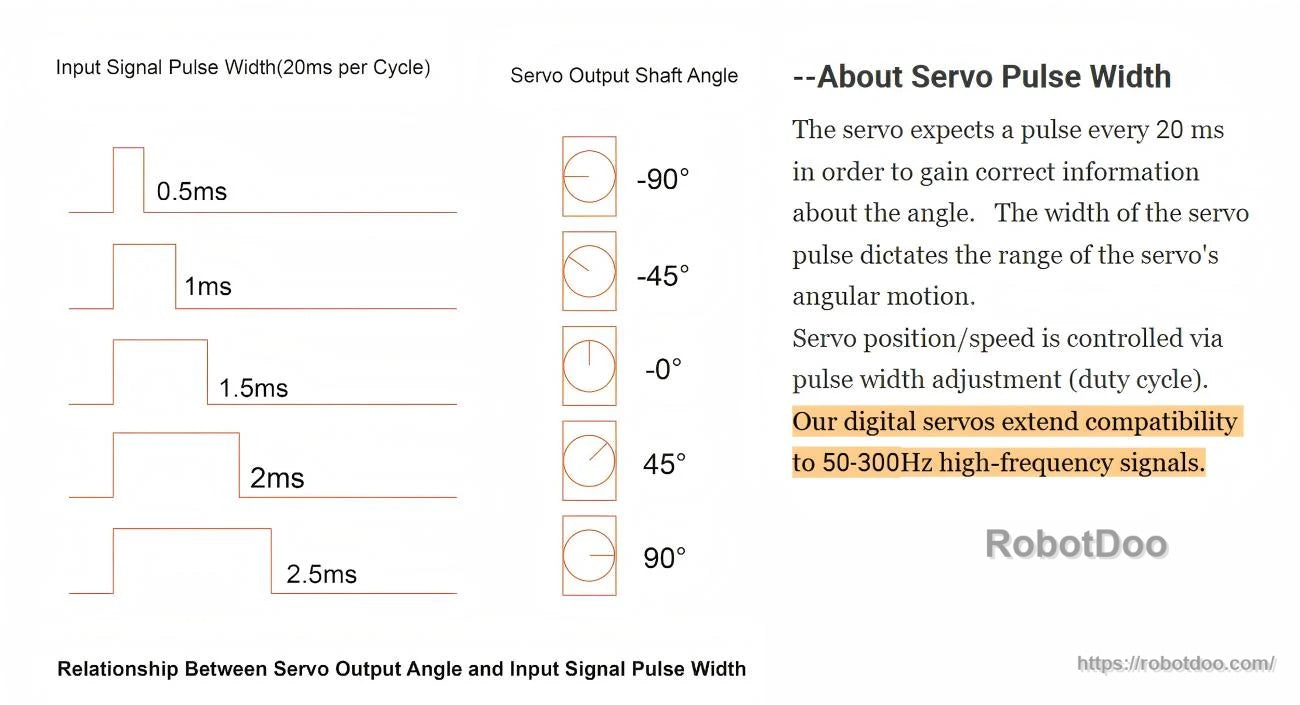

PWM pulse width maps directly to shaft angle, helping you tune endpoints and response for your controller settings.

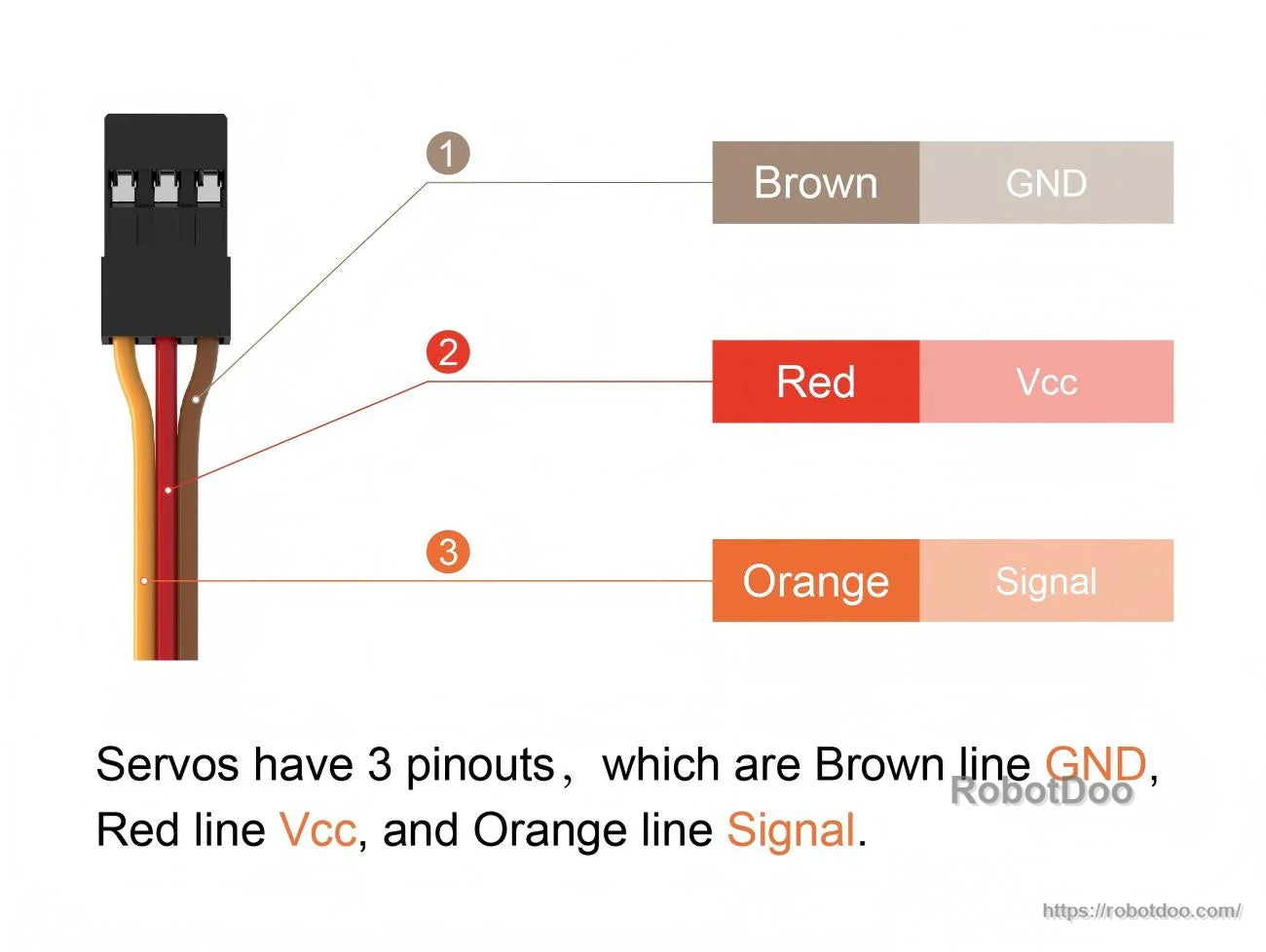

Standard 3-wire wiring makes hookup straightforward: brown ground, red power, and orange signal.

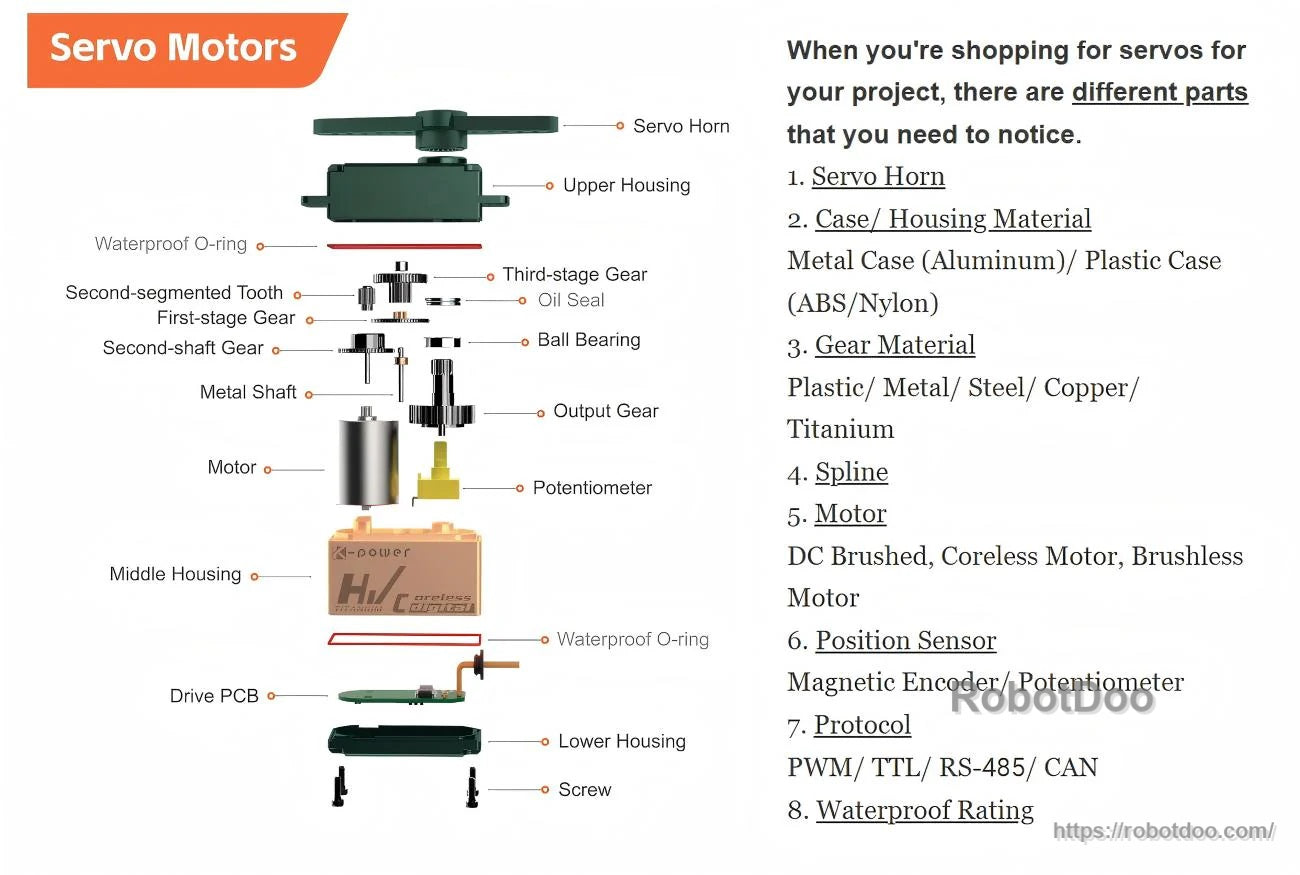

An exploded view of the internal parts highlights the gear train, motor, bearings, and position sensor used for feedback control.
