Overview

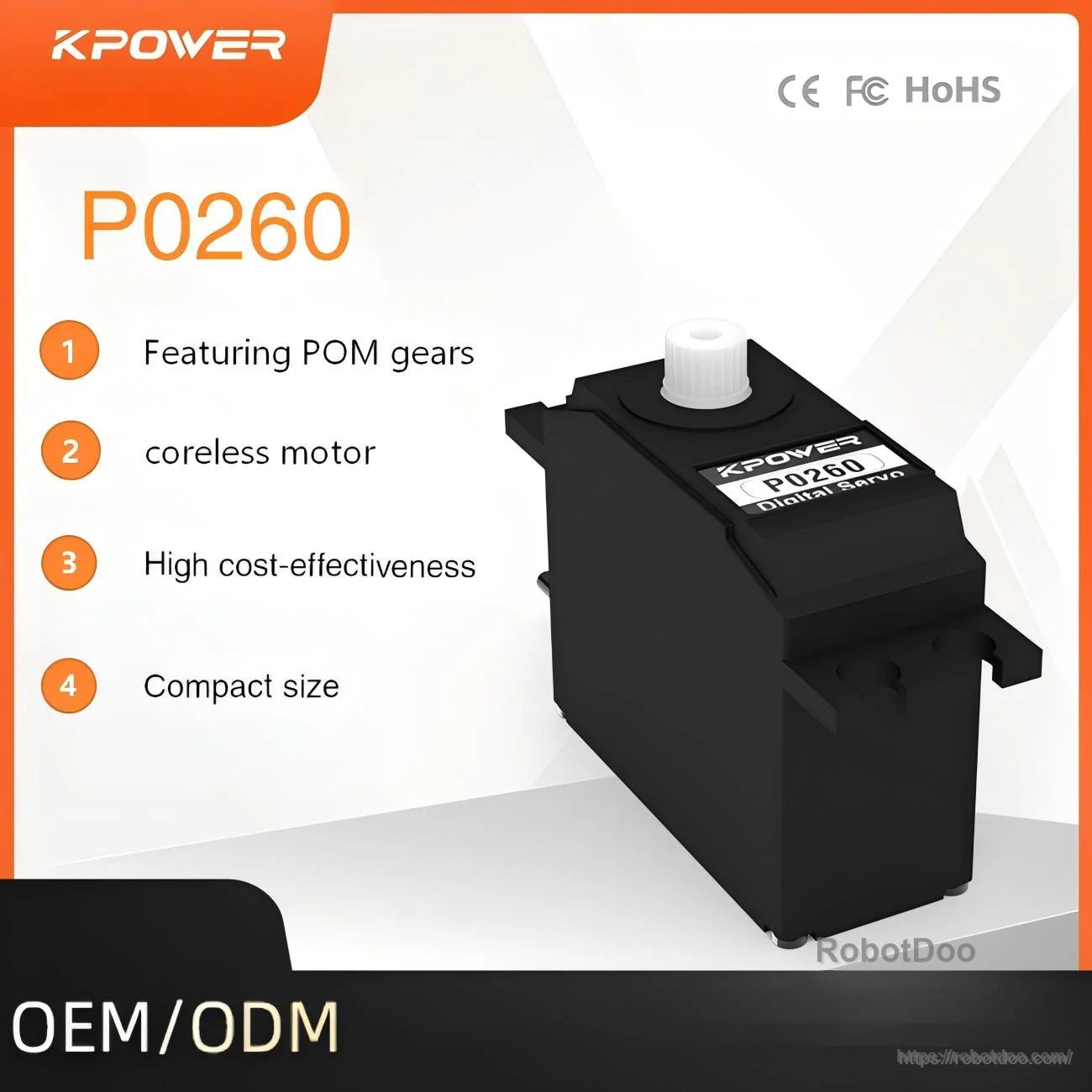

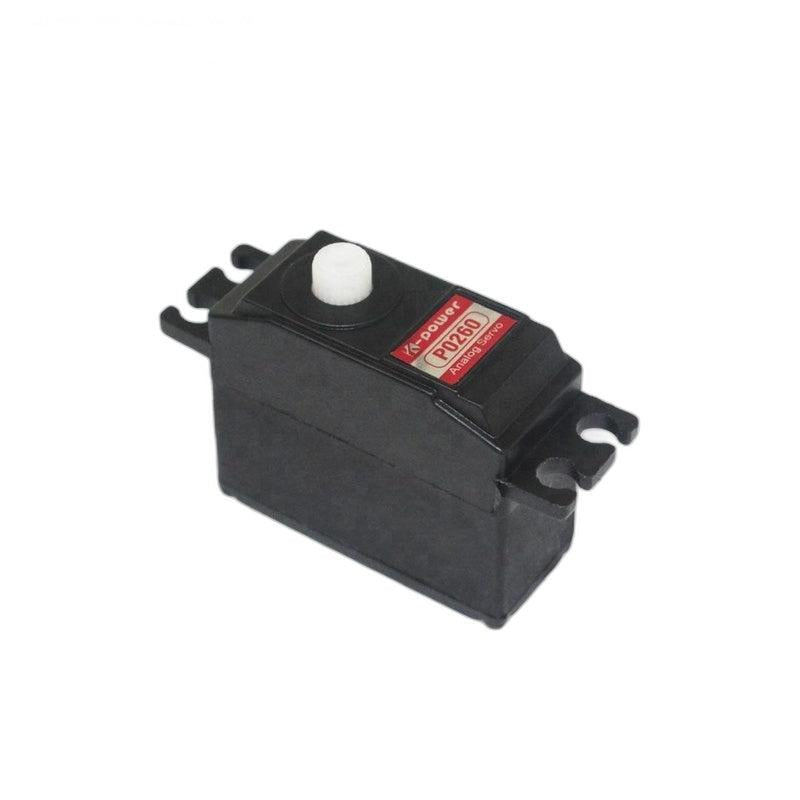

Kpower P0260 is a compact servo motor designed for small robotics and automation joints that require lightweight actuation and multiple control interfaces. It is specified with 3.8 kg stall torque, 4.8 ~ 8.4 V operating voltage, 120° travel angle range (customizable), and support for PWM | TTL | RS-485 control.
Key Features

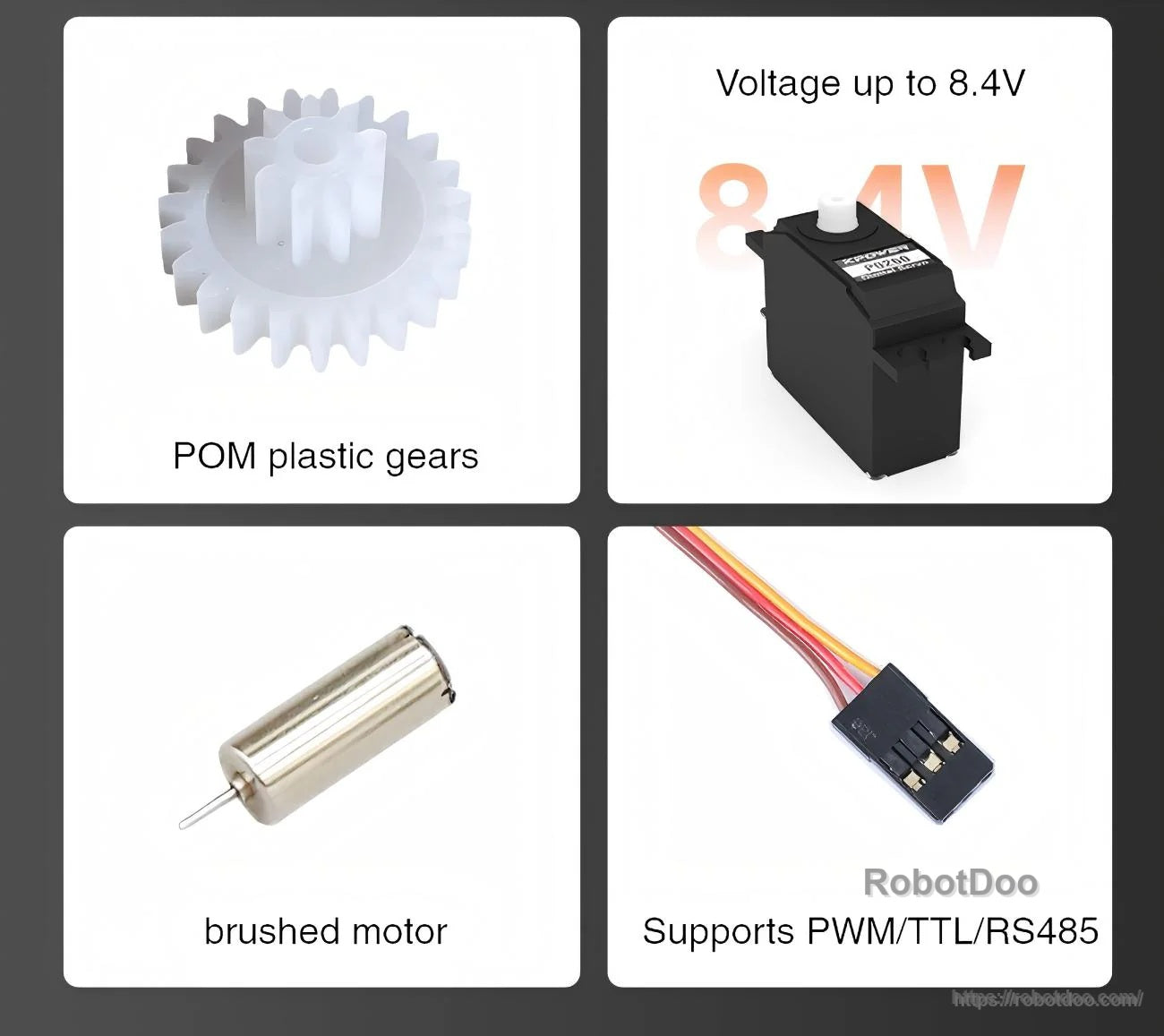

- Micro plastic-gear servo; gear material: POM
- Operating voltage up to 8.4 V (specified range: 4.8 ~ 8.4 V)
- Control protocol support: PWM | TTL | RS-485

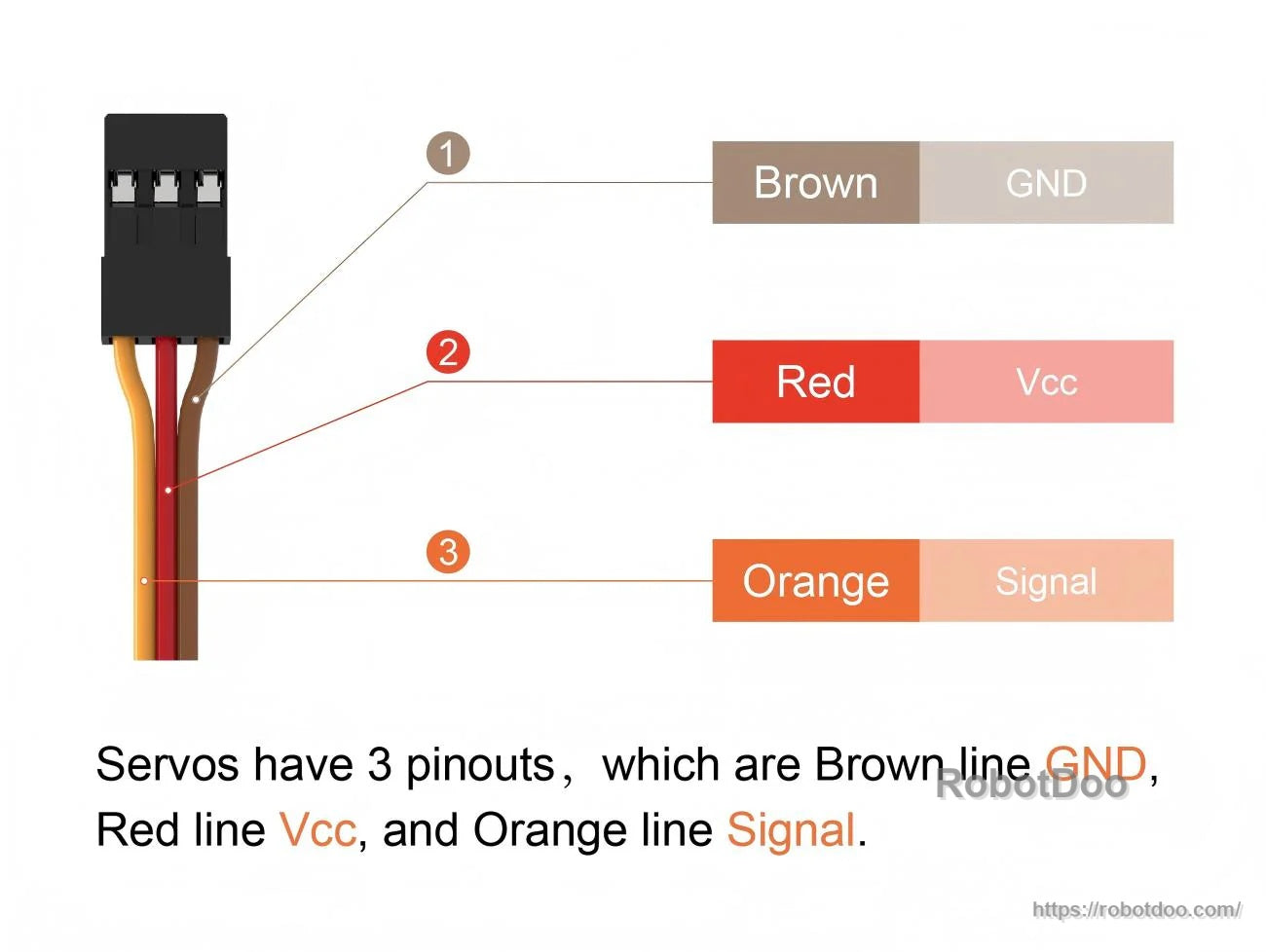

- 3-wire servo lead pinout: Brown = GND, Red = Vcc, Orange = Signal
- Working frequency: 50 ~ 333 Hz (a separate servo pulse-width note indicates compatibility with 50–300 Hz signals)
- Markings shown: CE, FC, RoHS
For pre-sales integration and wiring questions, contact the store customer service team.
Specifications
| Model | P0260 |
| Stall Torque | 3.8 kg |
| Rated Torque | 1 kg |
| No-load Speed | 0.11 s |
| Weight | 26 g |
| Dimension | 35.8 × 15 × 29.5 mm (1.39" × 0.59" × 1.14") |
| Travel Angle Range | 120° (Customizable) |
| Operating Voltage | 4.8 ~ 8.4 V |

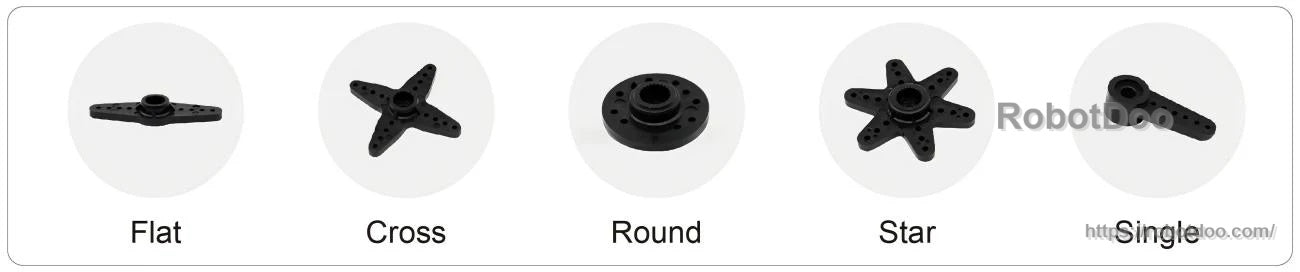

| Horn Gear Spline | 25T φ5.8 mm |
| Gear Material | POM |
| Motor | DC Brushed |
| Protocol | PWM | TTL | RS-485 |
| No-load Current | 1000 mA |
| Position Sensor | Potentiometer |
| Case Material | Plastic |
| Ball Bearing | 2BB |
| Working Frequency | 50 ~ 333 Hz |
| Operating Temperature | -10 ~ 50°C |
| IP Rating | IP42 |
Applications
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
- RC models
- STEAM education robots
- Smart home projects
Manuals
Details

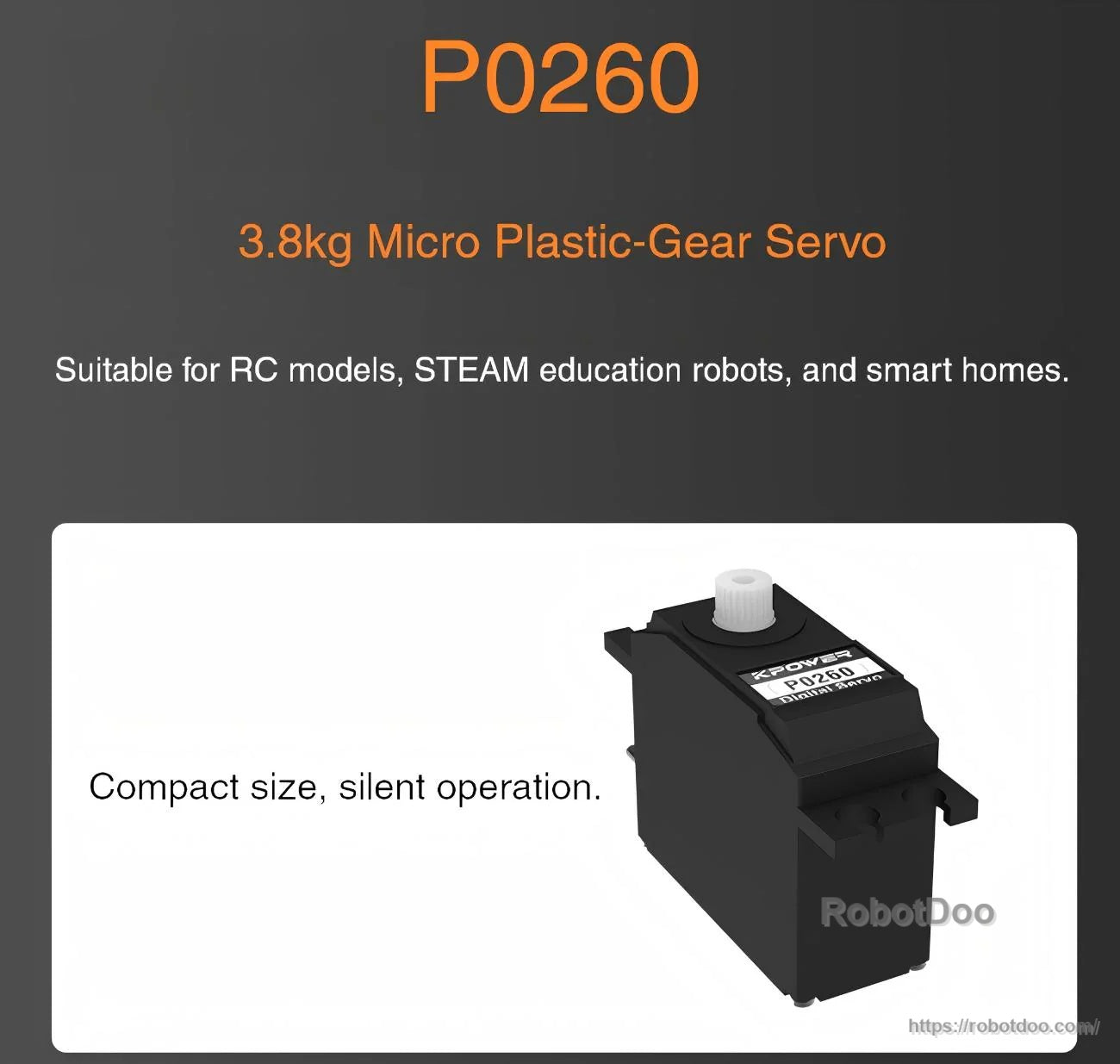

The Kpower P0260 is a compact micro servo built for lightweight robotic joints where size and cost matter.
A 3.8 kg-class micro plastic-gear servo suitable for RC builds, STEAM education robots, and smart home projects.
Supports multiple control options (PWM, TTL, and RS-485) and operates up to 8.4 V for flexible integration.

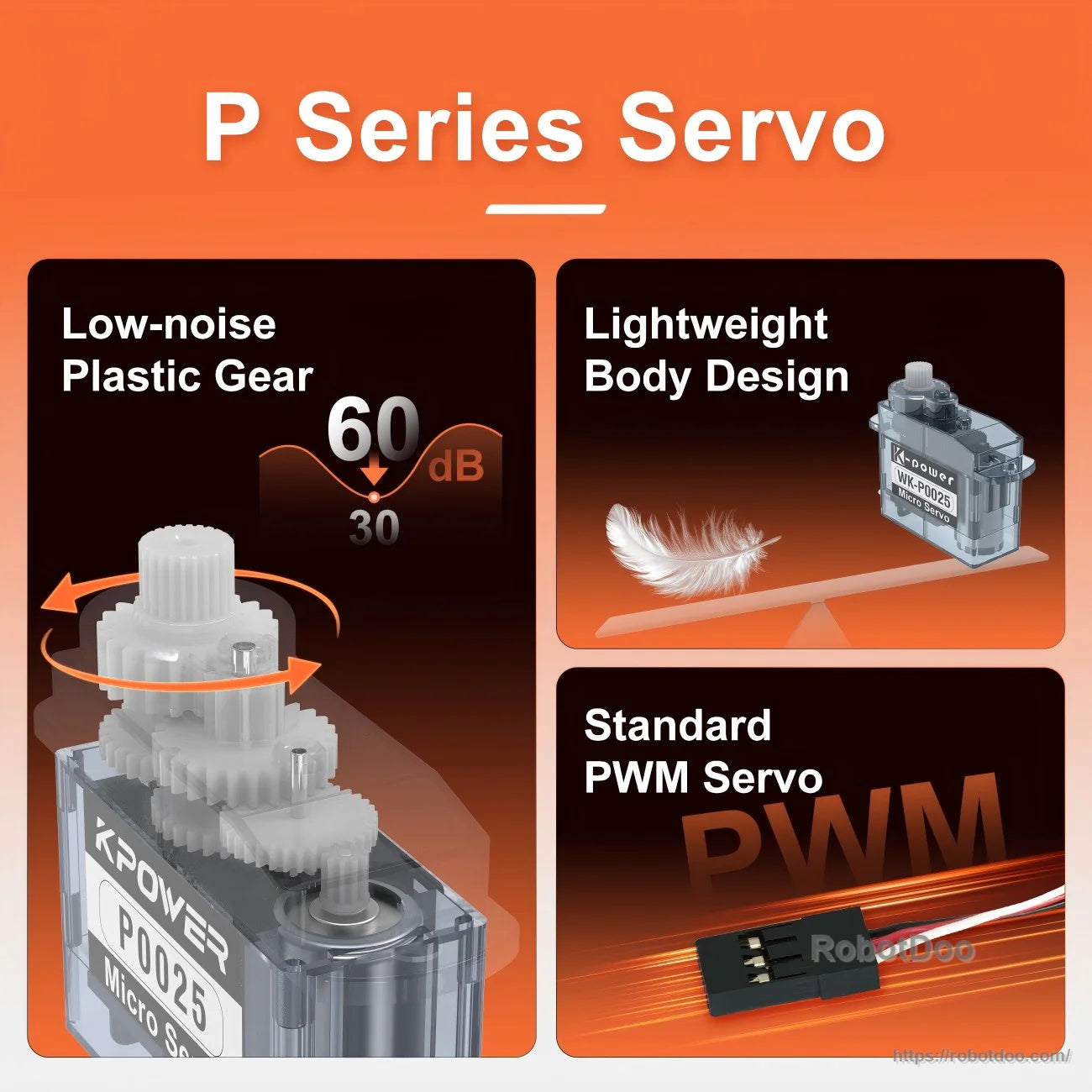

Low-noise plastic gearing and a lightweight design help keep mechanisms responsive without adding bulk.

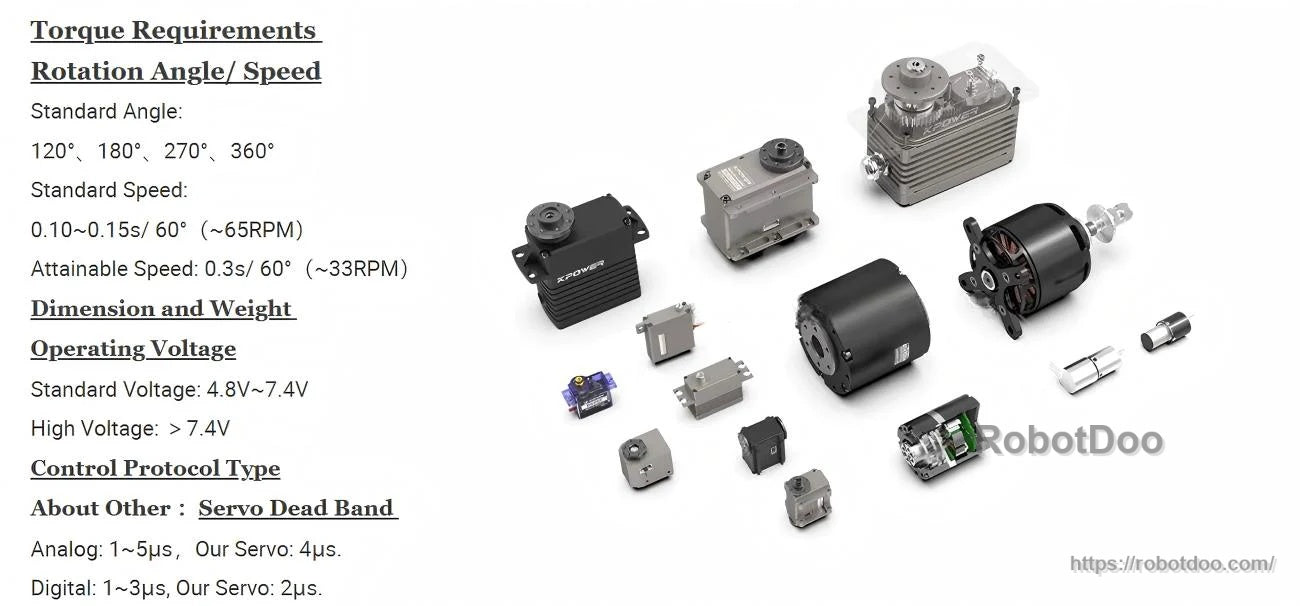

Use the torque/angle/speed guidance to match a servo to your joint load and required travel.

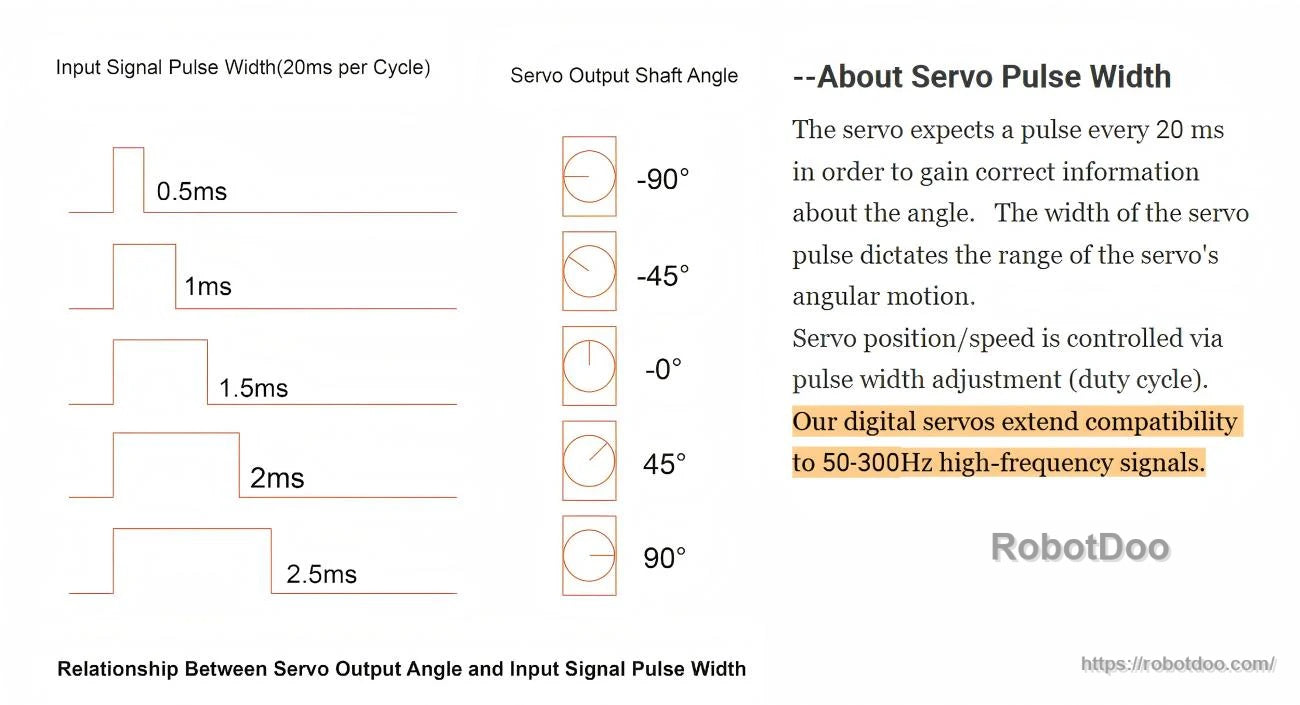

PWM pulse width determines the commanded position; confirm controller timing and frequency for best results.

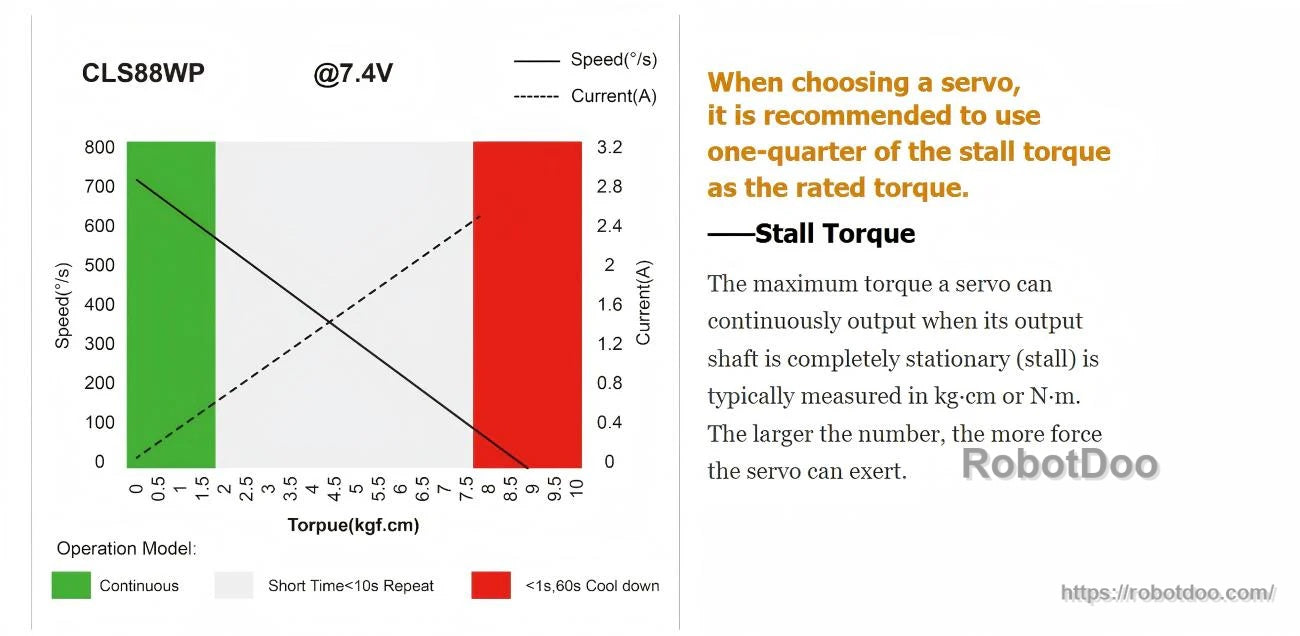

For continuous operation, selecting a rated load well below stall torque helps reduce heat and extend service life.

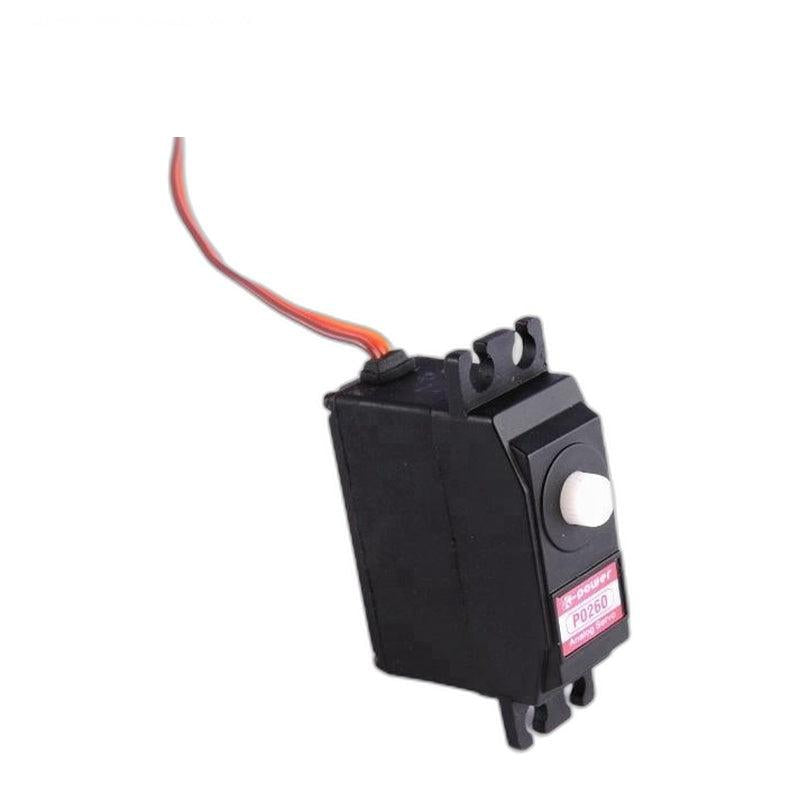

Standard 3-wire lead: Brown = GND, Red = Vcc, Orange = Signal.
