Overview

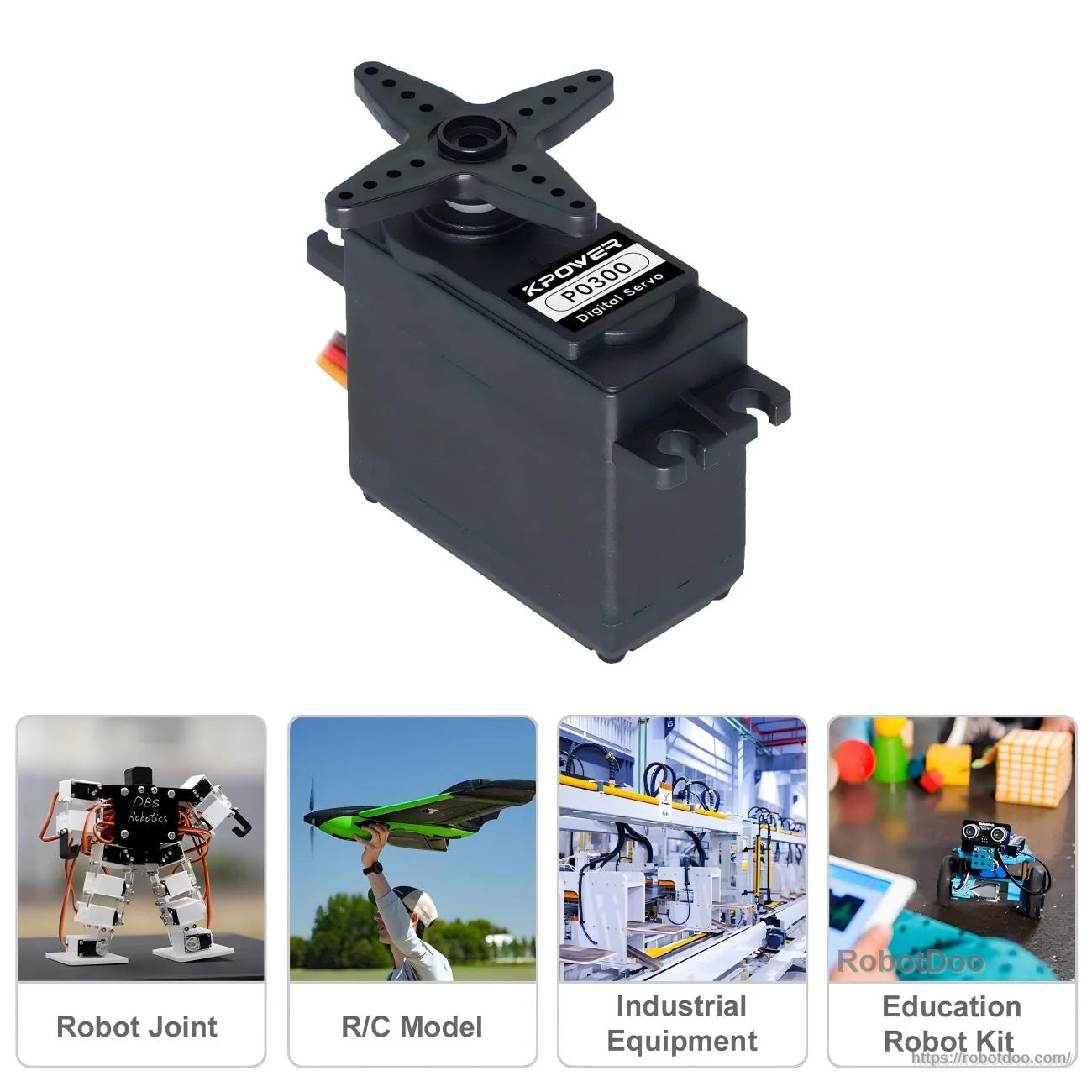

Kpower P0300 is a servo motor designed for compact robotic actuation and RC-style control. It is labeled as a “digital servo” and uses a DC brushed motor with a potentiometer position sensor, plastic gear train, and a 3-wire servo interface. Control protocol support is listed as PWM | TTL | RS-485, with a working frequency of 50 ~ 333 Hz (promotional material also mentions compatibility to 50–300 Hz high-frequency signals).
Key Features
- Plastic gear, plastic case
- DC brushed motor; position sensor: potentiometer

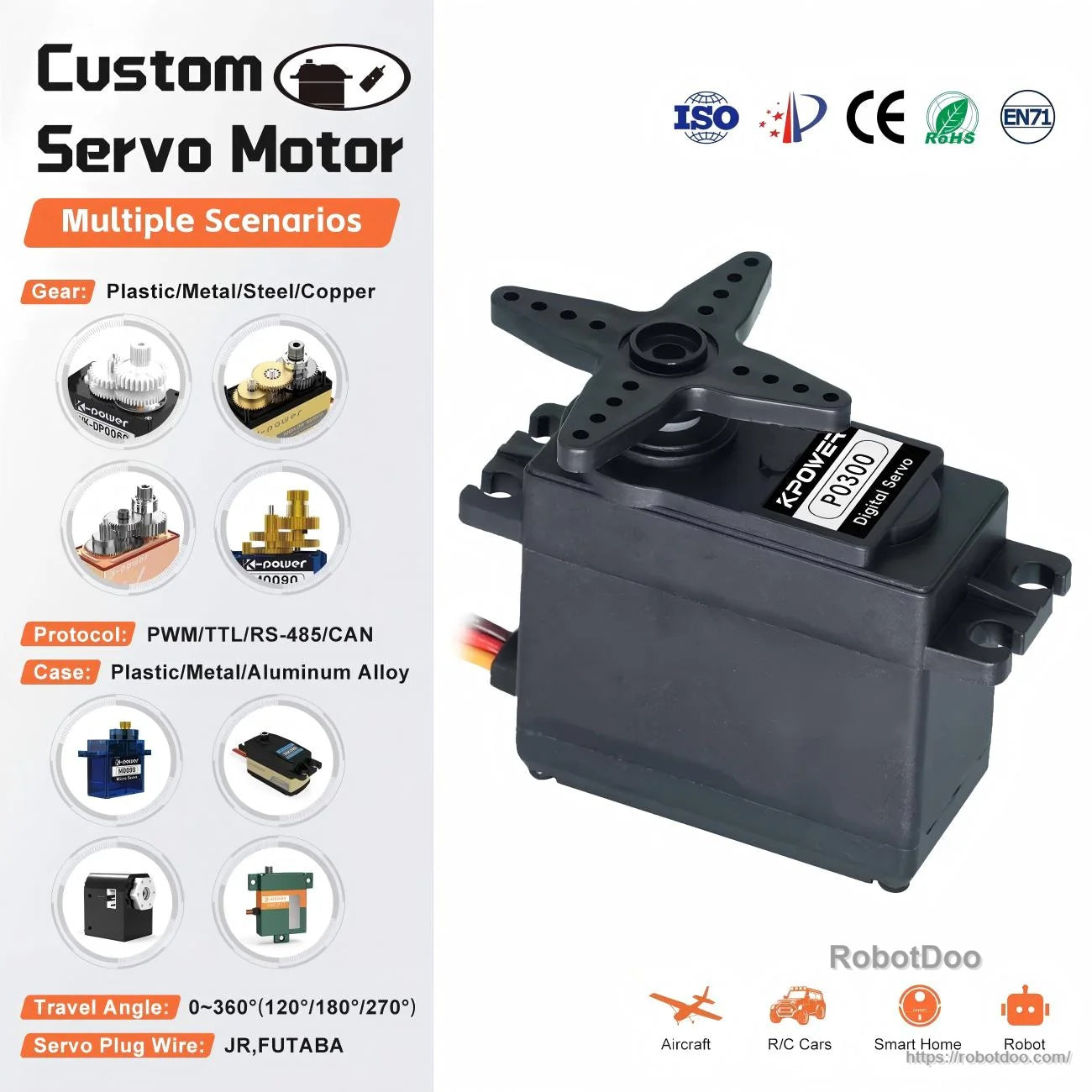

- Protocols listed: PWM | TTL | RS-485 (some promotional material also shows PWM/TTL/RS-485/CAN)
- Travel angle range: 120° (customizable); promotional material also lists 0~360° (120°/180°/270°)
- Ball bearing: 2BB
- Servo plug wire types shown: JR, FUTABA
- 3-pin wiring color code: Brown = GND, Red = Vcc, Orange = Signal
- “Low-noise plastic gear” (promotional graphic shows “60 dB” and “30”)

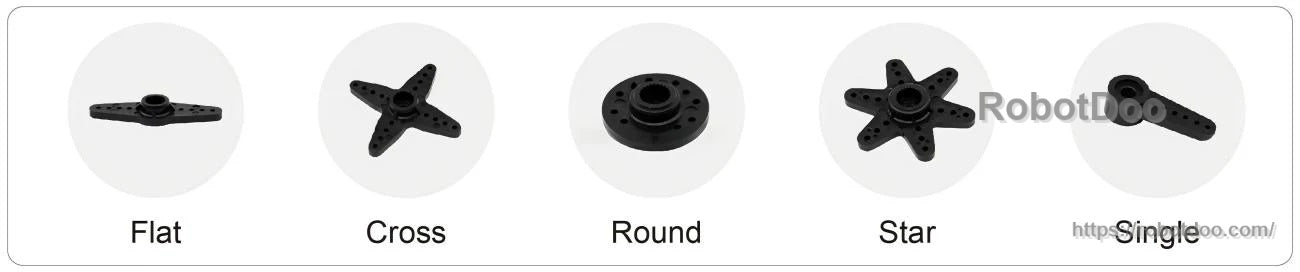

- Servo horn styles shown: Flat, Cross, Round, Star, Single
- Marks shown on promotional material: ISO, CE, RoHS, EN71
Specifications
| Stall Torque | 3.6 kg |
| Rated Torque | 0.9 kg |
| Torque (promotional specs) | 3.2 kg.cm @ 4.8V; 3.6 kg.cm @ 6.0V |
| No-load Speed | 0.13 s |
| Speed (promotional specs) | 0.15 sec/60° @ 4.8V; 0.13 sec/60° @ 6.0V; also shown as 0.13s/60° |
| Weight | 30 g |
| Dimension | 40.7 × 20 × 38 mm |
| Size (promotional graphic) | 40 × 20 × 43 mm |
| Travel Angle Range | 120° (Customizable) |
| Operating Voltage | 4.8 ~ 8.4 V |
| Horn Gear Spline | 25T φ5.5 mm |
| Gear Material | Plastic |
| Case Material | Plastic |
| Motor | DC Brushed |
| Position Sensor | Potentiometer |
| Protocol | PWM | TTL | RS-485 |
| Working Frequency | 50 ~ 333 Hz |
| No-load Current | 4000 mA |
| Operating Temperature | -10 ~ 50°C |
| IP Rating | IP42 |
Applications
- Humanoid robots, quadruped robots, robotic arms, exoskeletons
- AGV vehicles, ARU robots
- Robot joints, education robot kits, industrial equipment, RC models
- Additional application examples shown: UAV drone, micro robot, steam education, smart home, fixed-wing drone, luggage electronic lock, robot toys, grass cutter robot, smart camera, intelligent medical devices
Manuals
Details

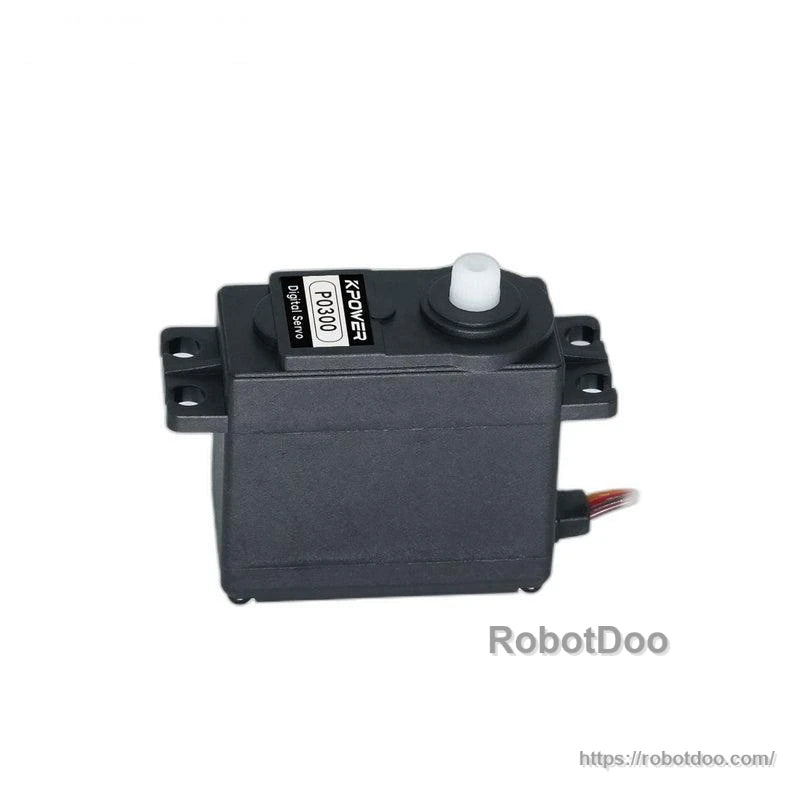

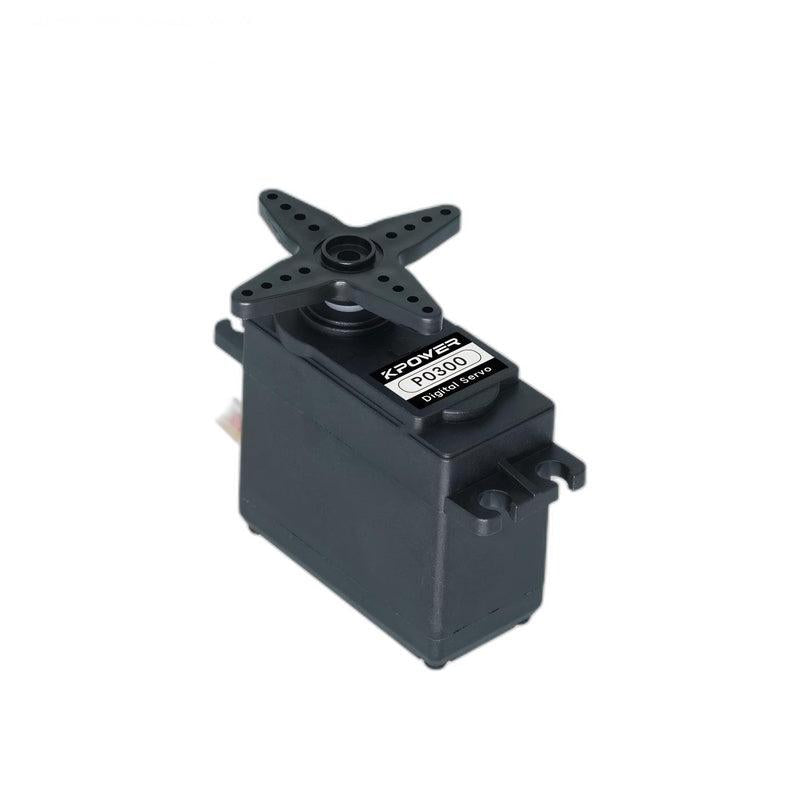

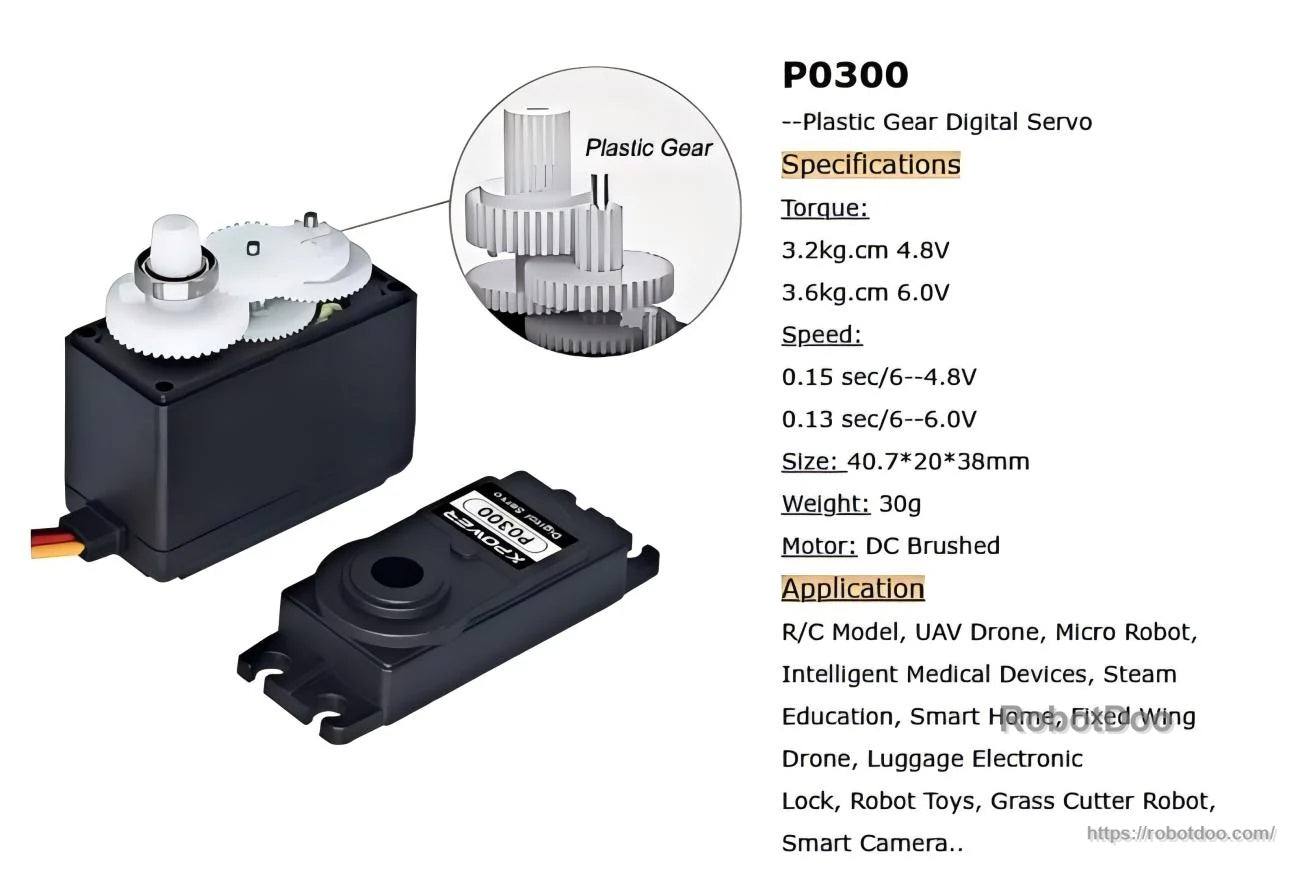

Compact Kpower P0300 servo motor for robotic joints and RC-style control, with multiple interface options listed by the manufacturer.

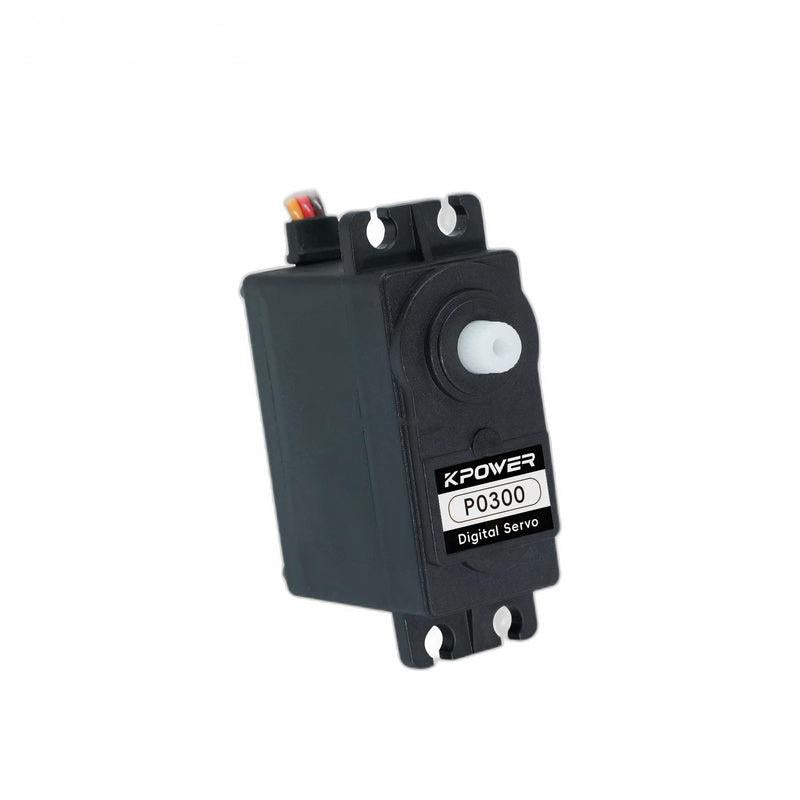

A lightweight plastic-cased servo designed for education robots, RC models, and compact actuation projects.

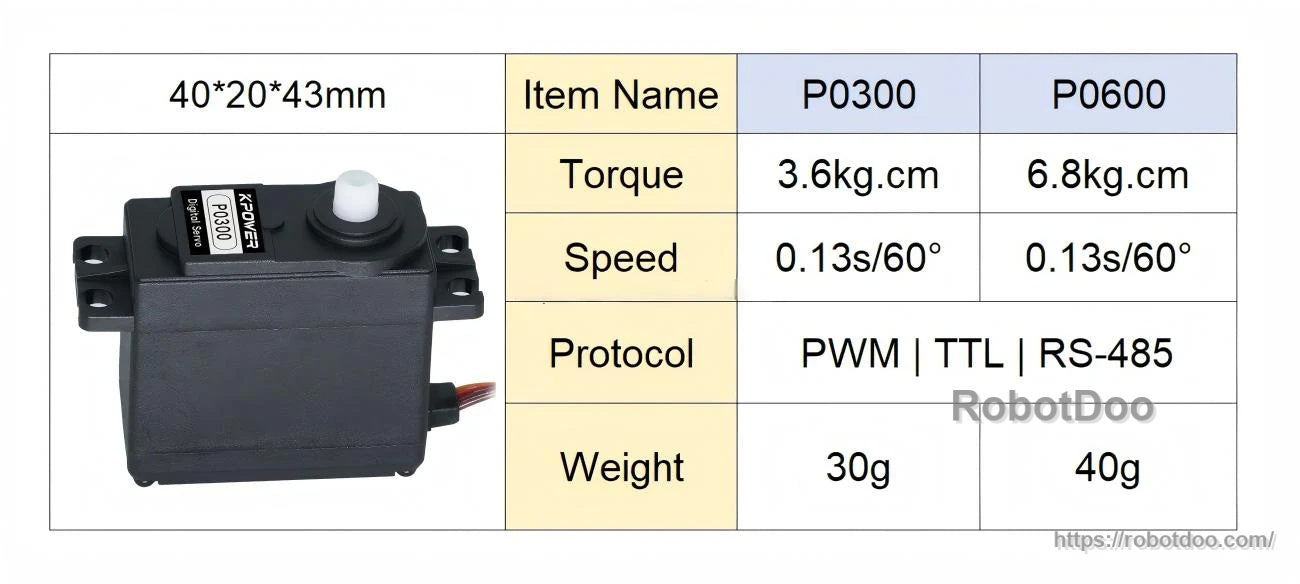

Key dimensions and core specs are summarized for quick fit checks in tight builds.

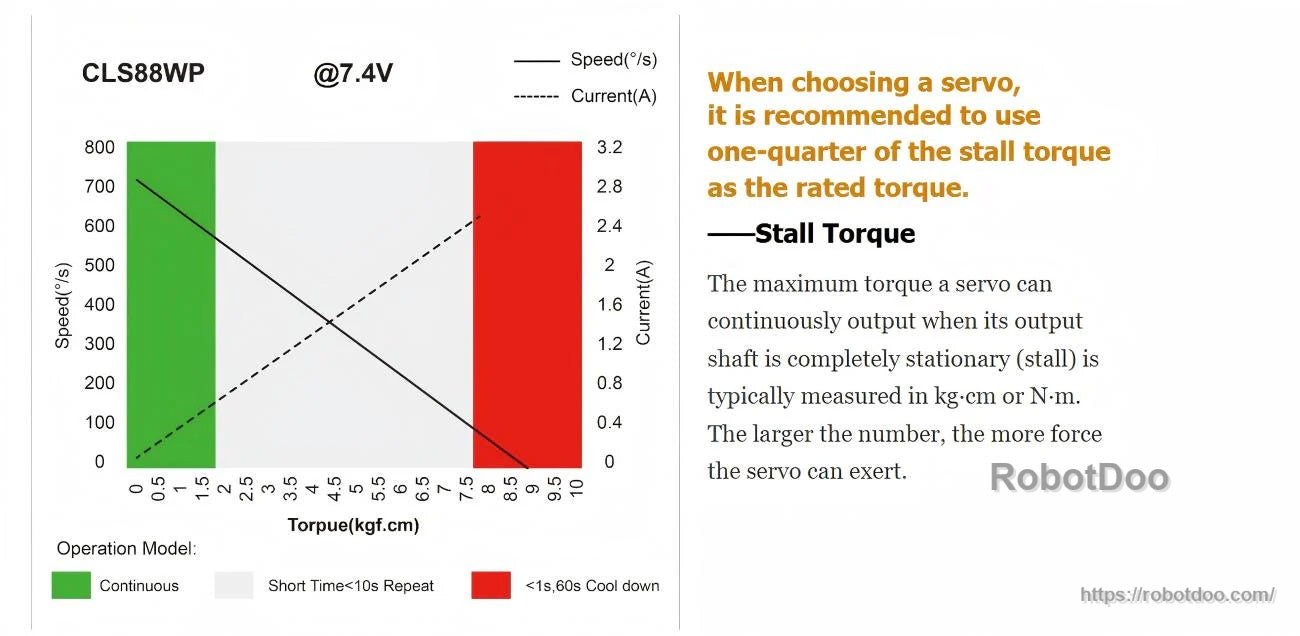

Manufacturer-listed torque/speed ratings and typical use cases help match the servo to your project requirements.

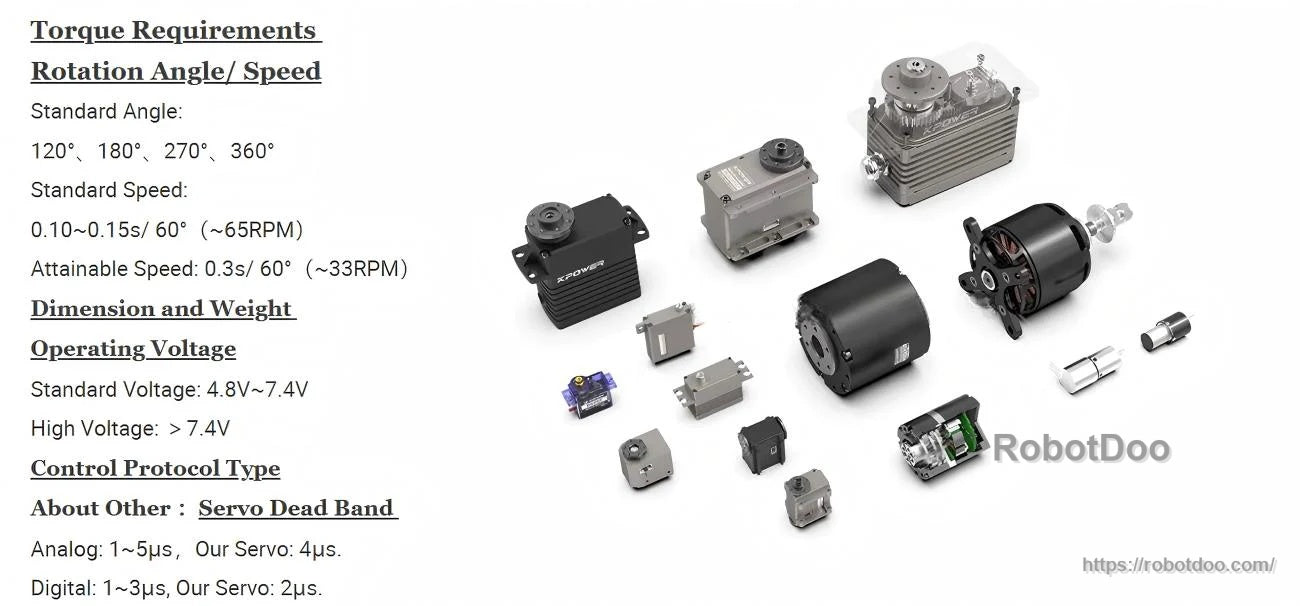

Choose rotation range, voltage, and control method based on load and responsiveness targets.
Multiple horn styles make it easier to adapt the output spline to linkages, wheels, and brackets.

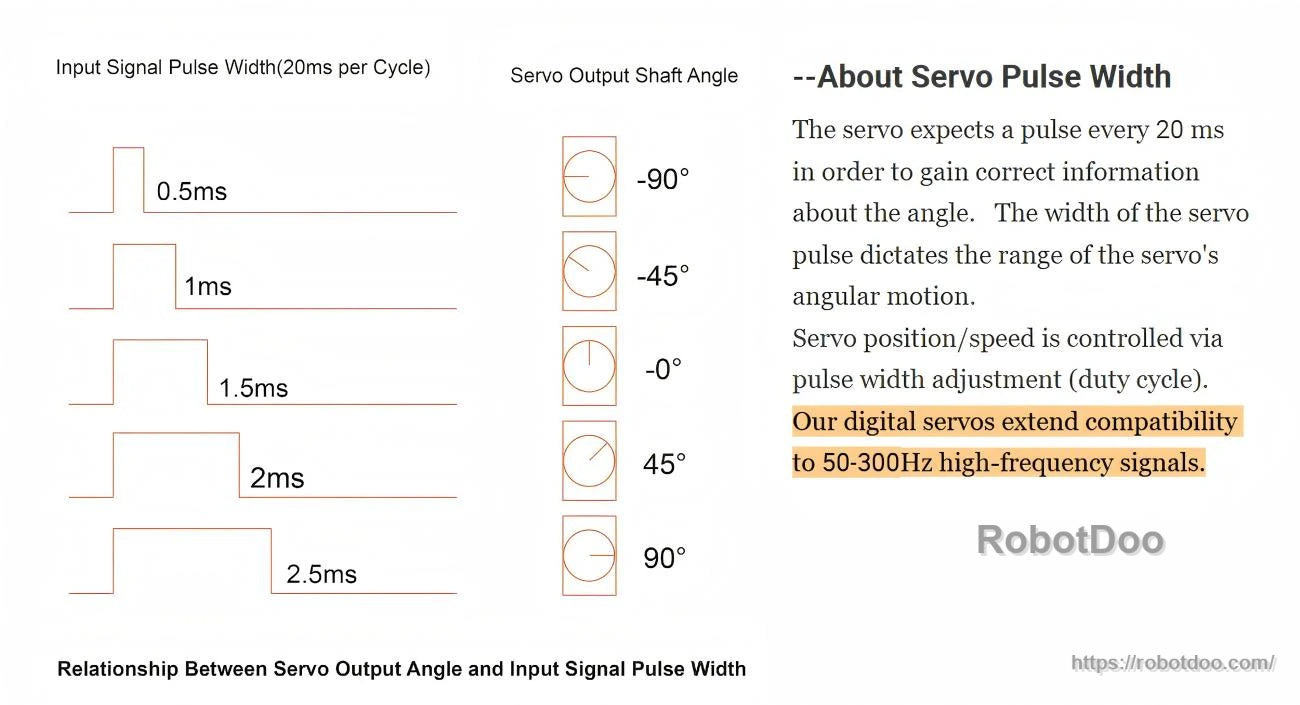

Standard PWM pulse width control is supported, with high-frequency signal compatibility noted in the manufacturer material.

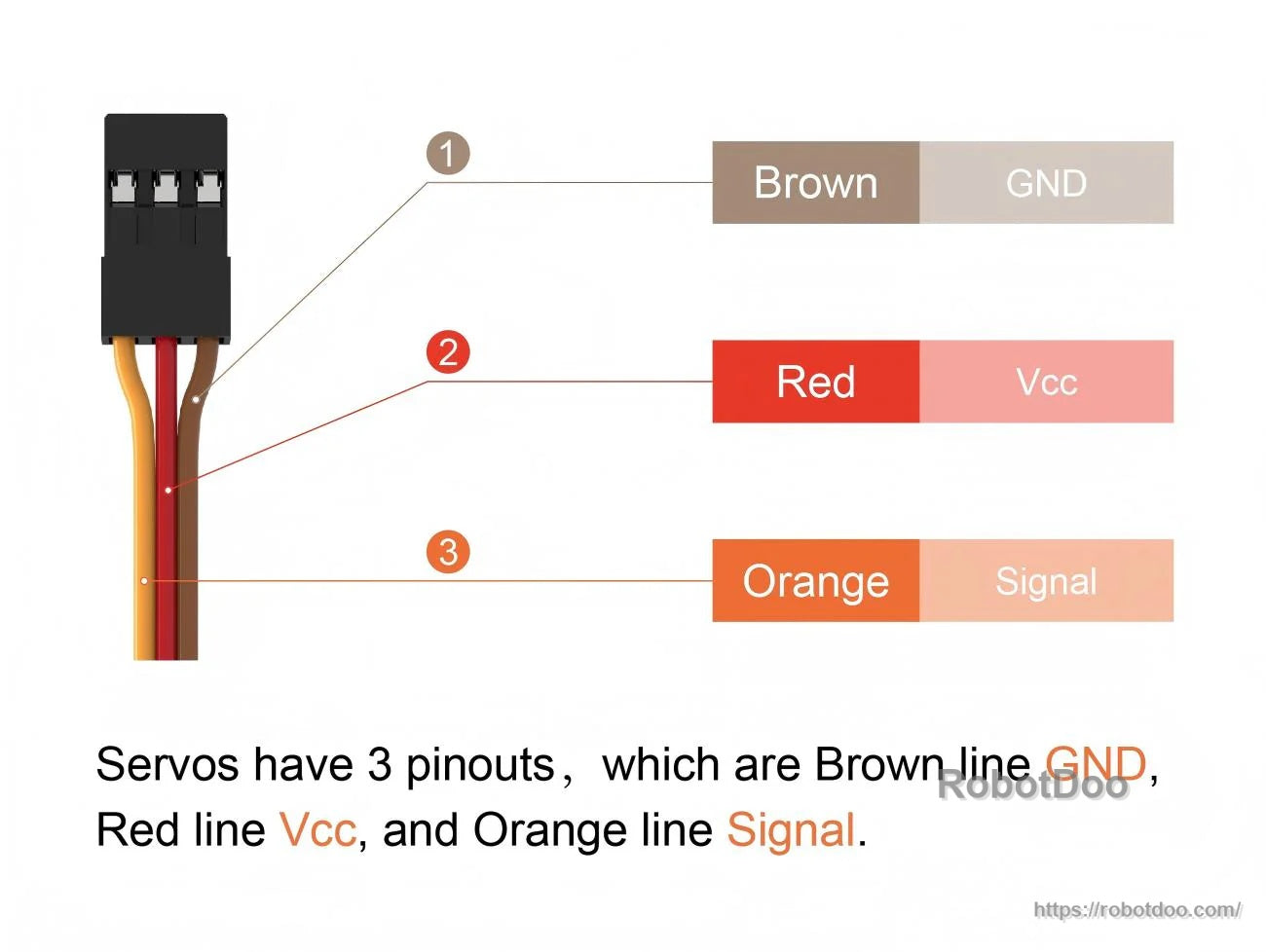

Simple 3-wire wiring: ground (brown), power (red), and control signal (orange).

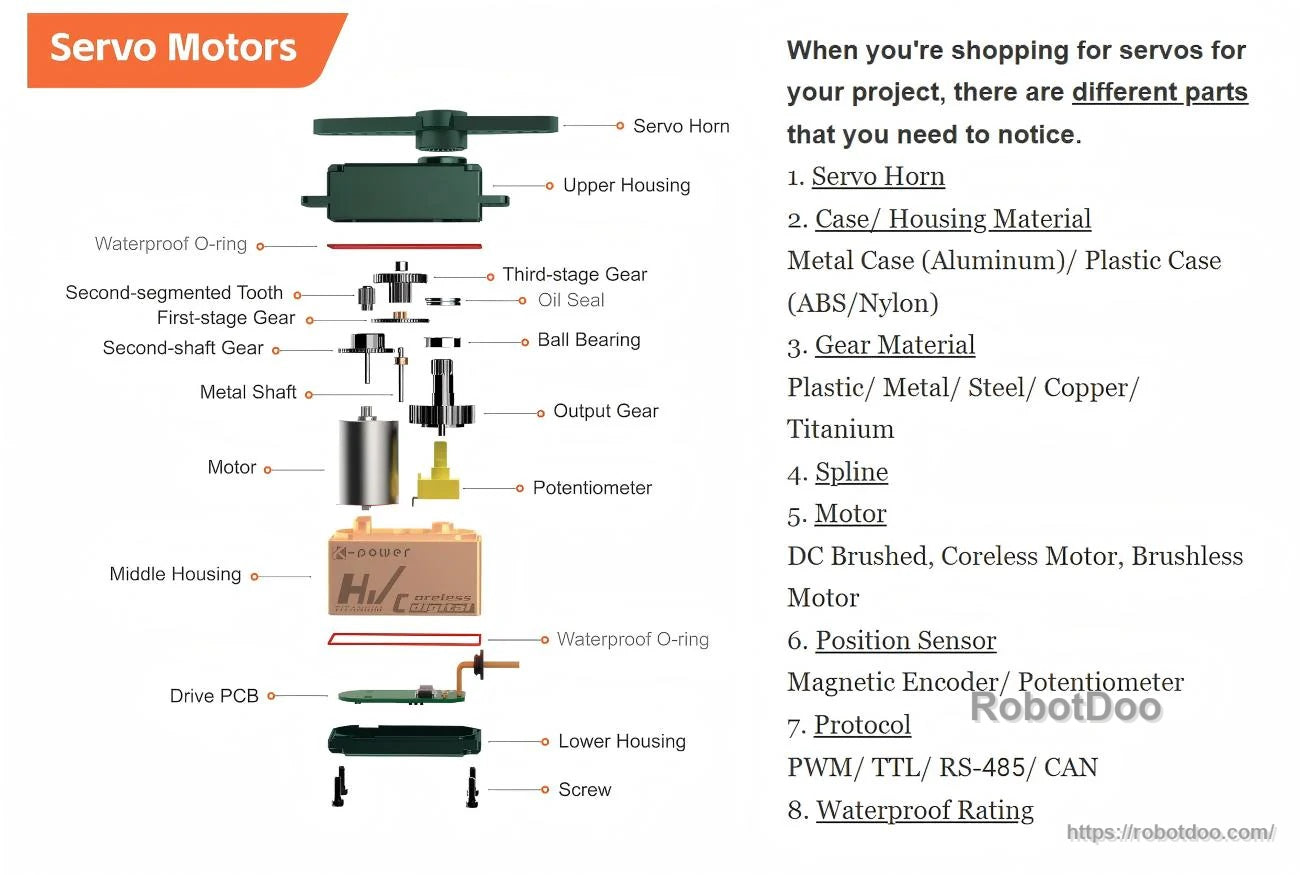

Internal component layout covers gears, motor, position sensor, bearings, and housing parts.
