Overview

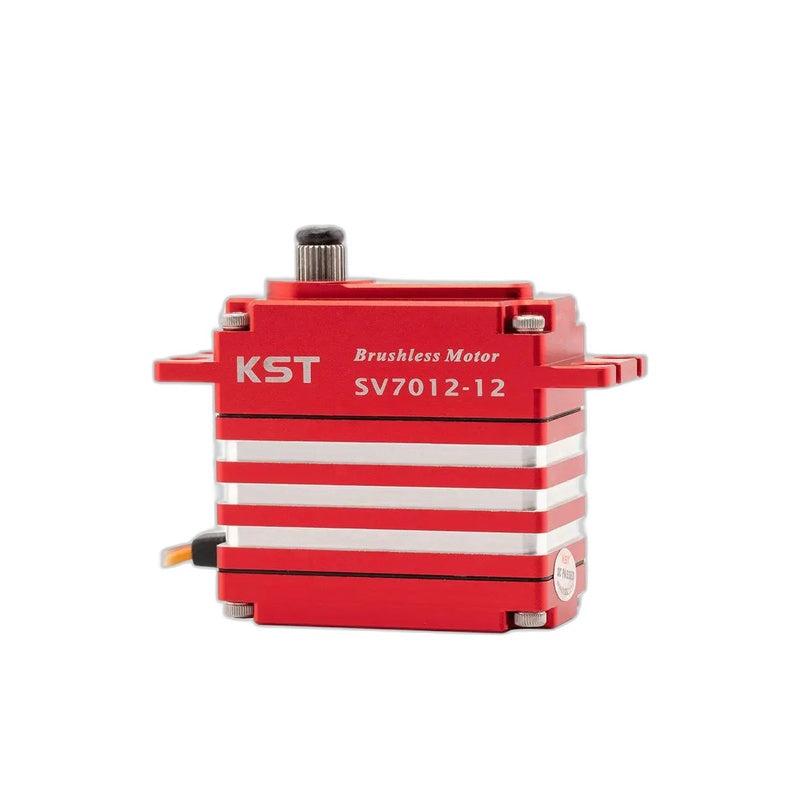

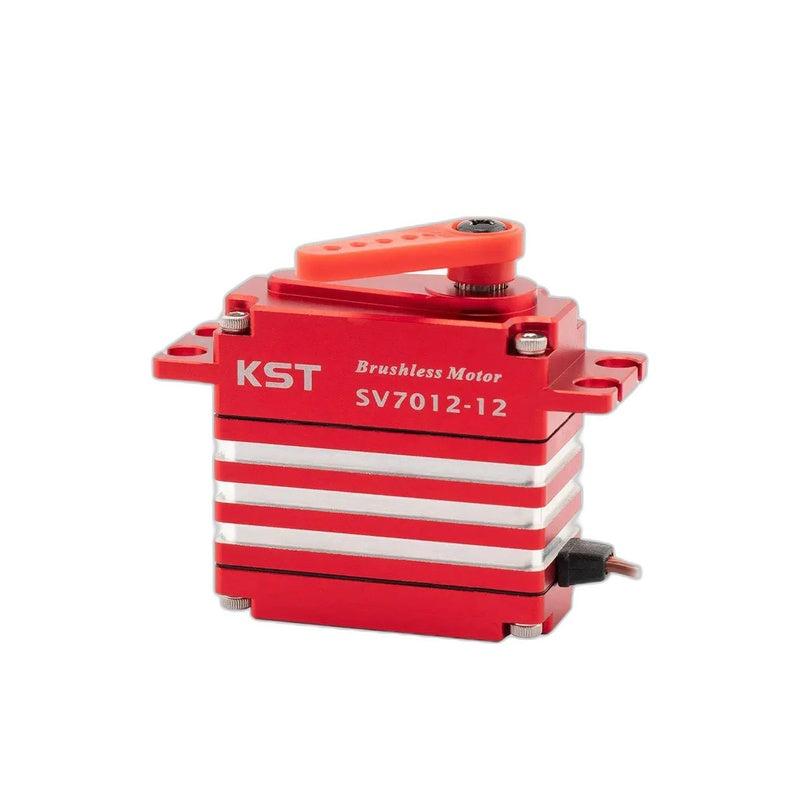

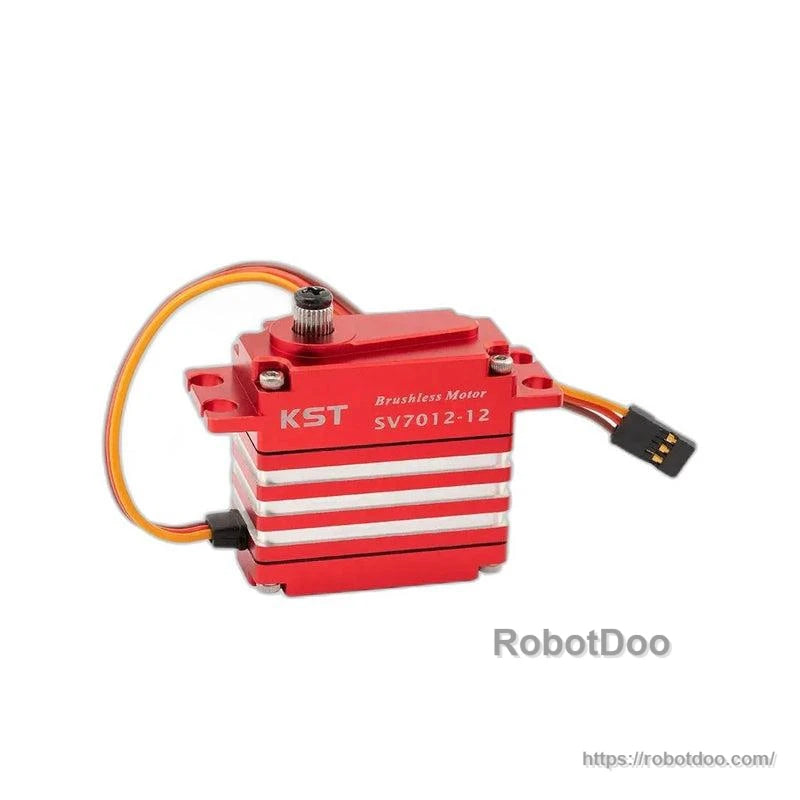

The KST SV7012-12 is an SHV 4-pole brushless servo motor designed for large scale RC planes, industrial UAVs, and robotics. It supports a rated voltage of DC12.0V (fits 3S LiPo battery) and provides up to 75Kgf.cm torque @13.0V with 0.10sec/60deg no-load speed @13.0V. The default travel is +/-100deg (200deg total) and is programmable.
Key Features
- SHV (Super High Voltage) operation: DC8.40V to 13.0V
- 4-pole brushless DC motor
- Hardened steel gear train
- Contactless position feedback sensor
- 6BB (six ball bearings) configuration
- Programmable configuration and programmable soft start function
- Aluminum alloy housing (CNC aluminum case) for durability and heat dissipation
For product selection help, wiring guidance, or after-sales support, contact the store’s customer service team via the contact form on this store.
Specifications
| Rated voltage | DC12.0V |
| Operating voltage range | DC8.40V ~ 13.0V |
| Stalling torque | 55Kgf.cm @8.40V; 70Kgf.cm @12.0V; 75Kgf.cm @13.0V |
| No-load rotational speed | 0.16sec/60deg @8.40V; 0.12sec/60deg @12.0V; 0.10sec/60deg @13.0V |
| Working frequency | 1520us / 333Hz |

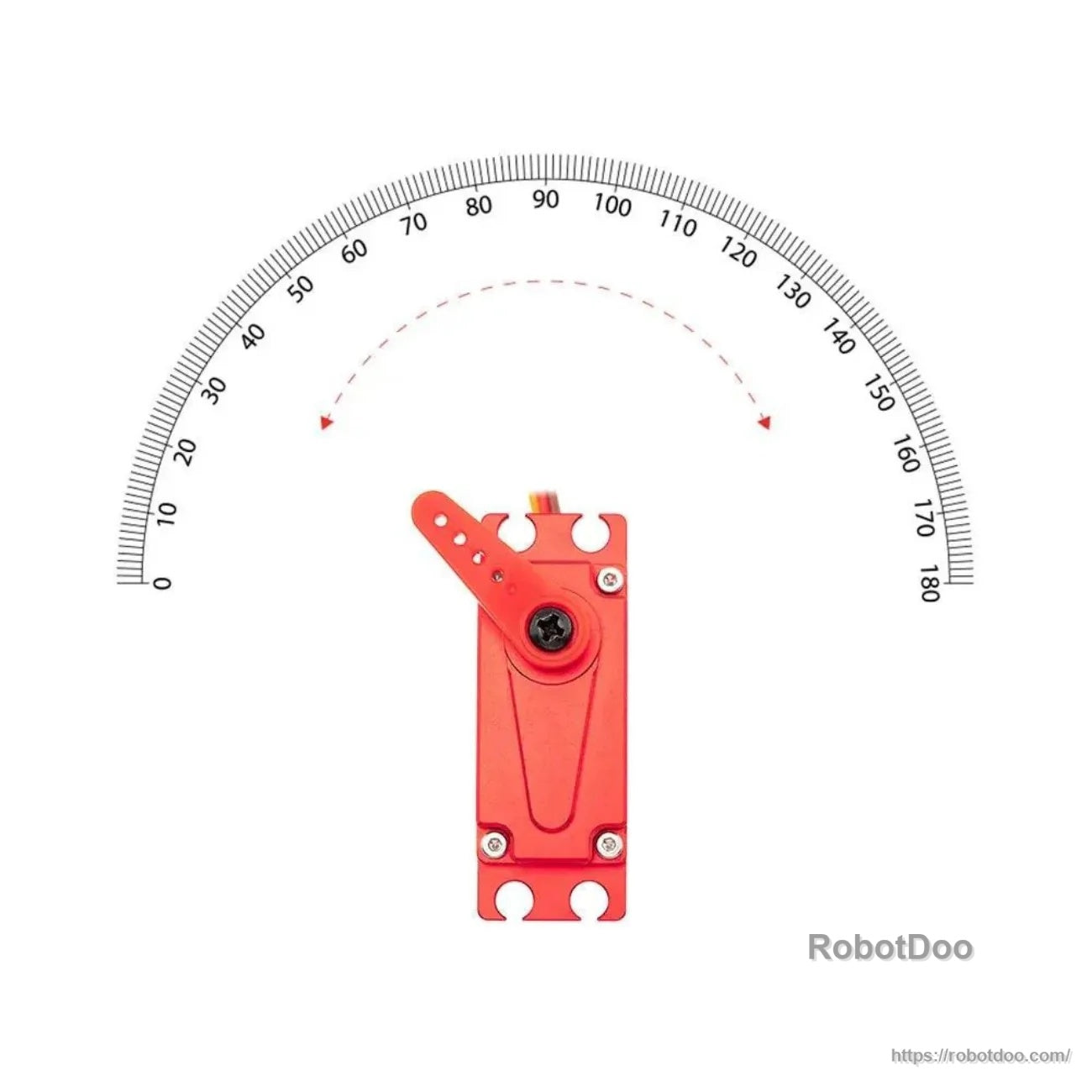

| Default total travel angle | +/-100deg (Total Swing Angle: 200deg) |
| Control signal voltage | HIGH Level: Min.3.3V, Max.5.0V; LOW Level: Min.0.0V, Max.1.5V |
| Control pulse width range | 500us ~ 2500us |

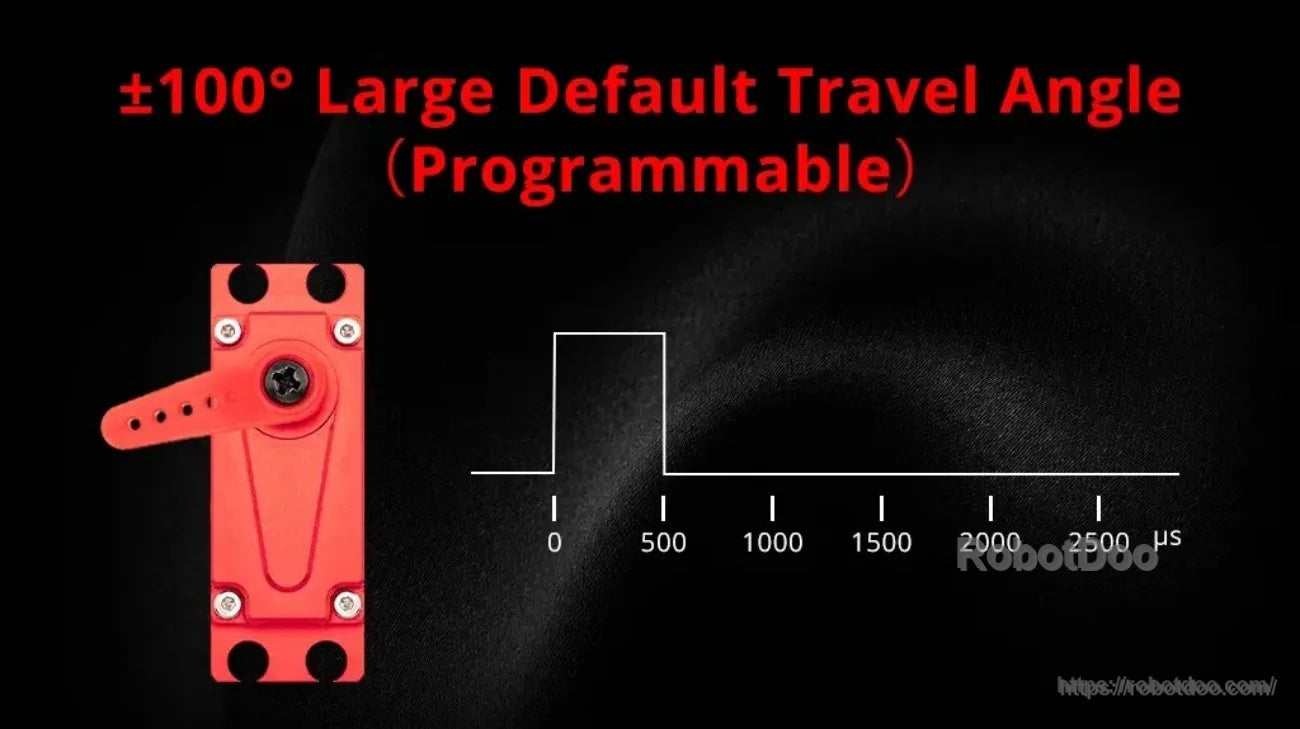

| Position-pulse width correspondence | 500us -> -100deg; 1500us -> 0deg; 2500us -> +100deg |
| Soft start function | Programmable |
| Programmable configuration | Yes |
| Motor type | 4-Pole Brushless DC Motor |
| Gear train material | Hardened Steel |
| Position feedback sensor | Contactless Type |
| Ball bearing configuration | 6BB |
| Operating ambient temperature range | -10deg C ~ +65deg C |
| Housing material | Aluminum Alloy |
| Outer housing dimension | 40x20x40mm +/-0.2mm |
| Net weight | 75g +/-10% |

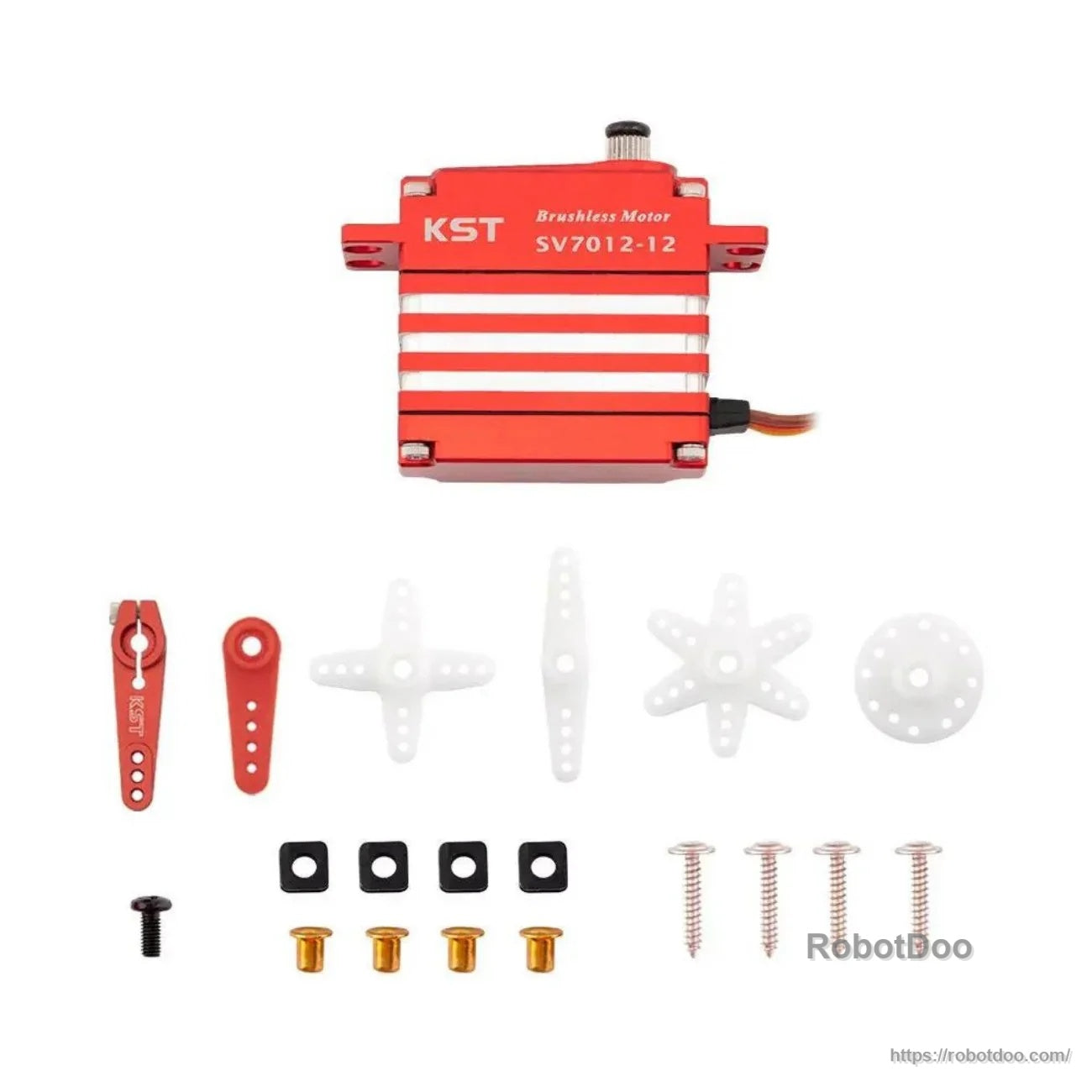

What's Included
- SV7012-12 servo motor
- Servo horns/arms: 2 red metal arms; 4 white plastic horns (cross, single arm, multi-arm, round disc)
- Mounting hardware: 4 long screws, 4 black square pads, 4 gold-colored inserts, and 1 small black screw
Applications
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
- Large scale RC planes
- Industrial UAVs
Manuals
Details
Built for large-scale RC planes, industrial UAVs, and robotics, the SV7012-12 combines high torque with fast response on SHV power.
High-torque output supports demanding control surfaces on big airframes and high-load robotic mechanisms.
DC 12V rated voltage makes it a natural fit for 3S LiPo setups commonly used in UAV and robotics builds.

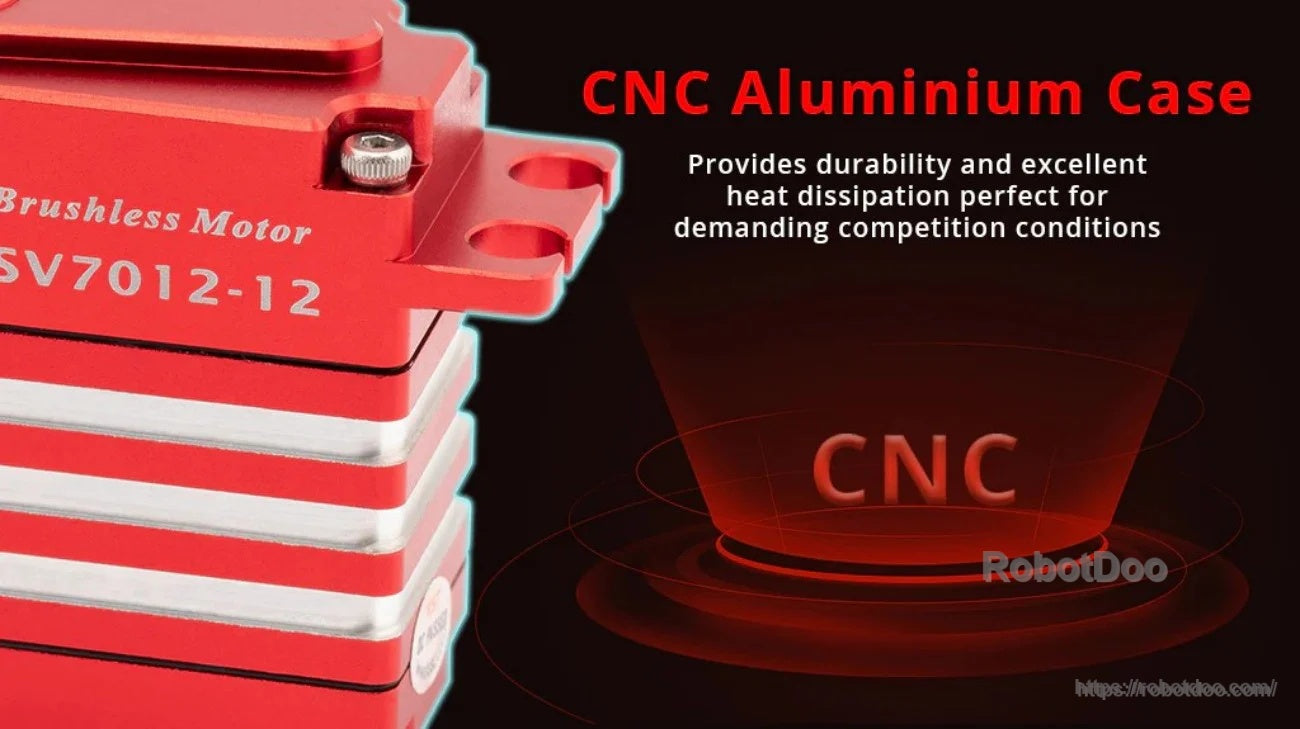

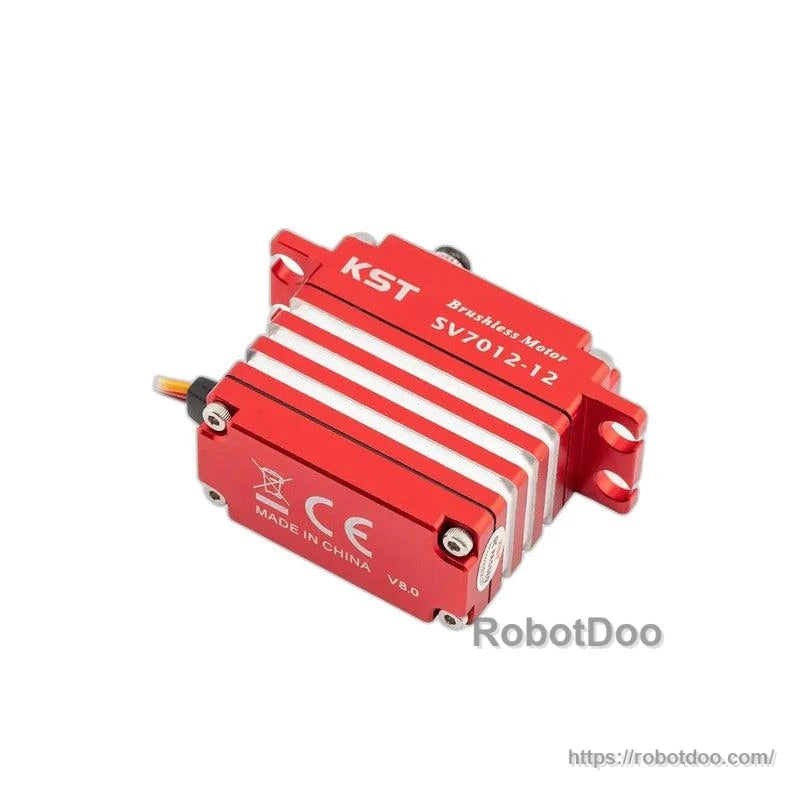

A CNC aluminum alloy housing improves rigidity and helps shed heat during sustained high-load operation.
Programmable travel and signal range make it easier to tune end points for custom linkages and control geometry.
Included hardware and multiple horn styles help match the servo to different mounting patterns and control arms.
