DESCRIPTION

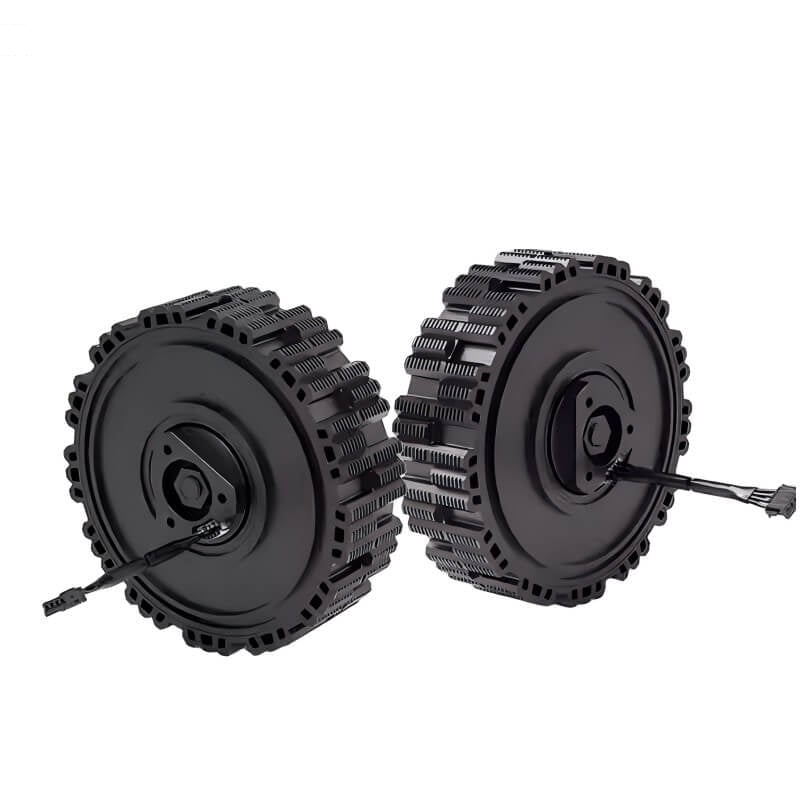

The Direct Drive Tech M0603B_224 is a compact high-performance direct drive motor designed for robotics, precision motion systems, and advanced automation applications. Featuring a built-in 12-bit encoder, low noise operation, and efficient direct-drive architecture, it delivers precise positioning and smooth motion without the backlash associated with traditional gear transmissions.
Its lightweight construction, wide operating voltage range, and robust IPX4 protection make it ideal for humanoid robots, robotic arms, exoskeleton systems, quadruped robots, AGVs, and other intelligent robotic platforms.
FEATURES
- Direct drive design with zero gearbox backlash
- Integrated 12-bit encoder for precise position feedback
- Rated torque up to 0.25Nm
- Stall torque up to 0.85Nm
- Compact and lightweight structure
- Wide operating voltage range (10V–28V DC)
- Low noise operation ≤48dB
- IPX4 protection rating
- Suitable for robotic joints and precision motion control
TECHNICAL SPECIFICATIONS
| Parameter | Value |
|---|---|
| Model | M0603B_224 |
| Rated Voltage | 14.4V DC |
| Operating Voltage Range | 10.0–28.0V DC |
| No-Load Speed | 210 ±15 RPM |
| Rated Speed | 98 RPM |
| Rated Torque | 0.25 Nm |
| Stall Torque | 0.85 Nm |
| No-Load Current | ≤0.15 A |
| Rated Current | 0.5 A |
| Stall Current | ≤3 A |
| Encoder Resolution | 12-bit |
| Weight | 260 g |
| Protection Rating | IPX4 |
| Noise Level | ≤48 dB |
APPLICATIONS
- Humanoid Robots
- Robotic Arms
- Exoskeleton Systems
- Quadruped Robots
- AGV Mobile Robots
- Autonomous Service Robots
- Precision Motion Control Systems
- Research and Educational Robotics
PACKAGE INCLUDES
- 1 × M0603B_224 Direct Drive Motor
