Overview
The MY1016 is a 24V, 350W brushed DC motor designed for chain-drive motion systems and electric project builds. It operates at a rated speed of 2750 RPM and supports clockwise or counterclockwise rotation by reversing the motor power connections.
Key Features
- MY1016 brushed DC motor with 350W rated output power
- 24V rated voltage and 2750 RPM rated speed
- Reversible rotation through power-lead reversal
- Aluminum construction
- Supplied with an 11-tooth sprocket for 25 chain and a mounting bracket
Specifications
| Model | MY1016 |
| Motor Type | Brushed DC motor |
| Material | Aluminum |
| Rated Voltage | 24V |
| Rated Output Power | 350W |
| Rated Speed | 2750 RPM |
| No-Load Current | 2.0A |
| Rated Current | ≤ 18.7A |
| Rated Torque | 1.2 N.m |

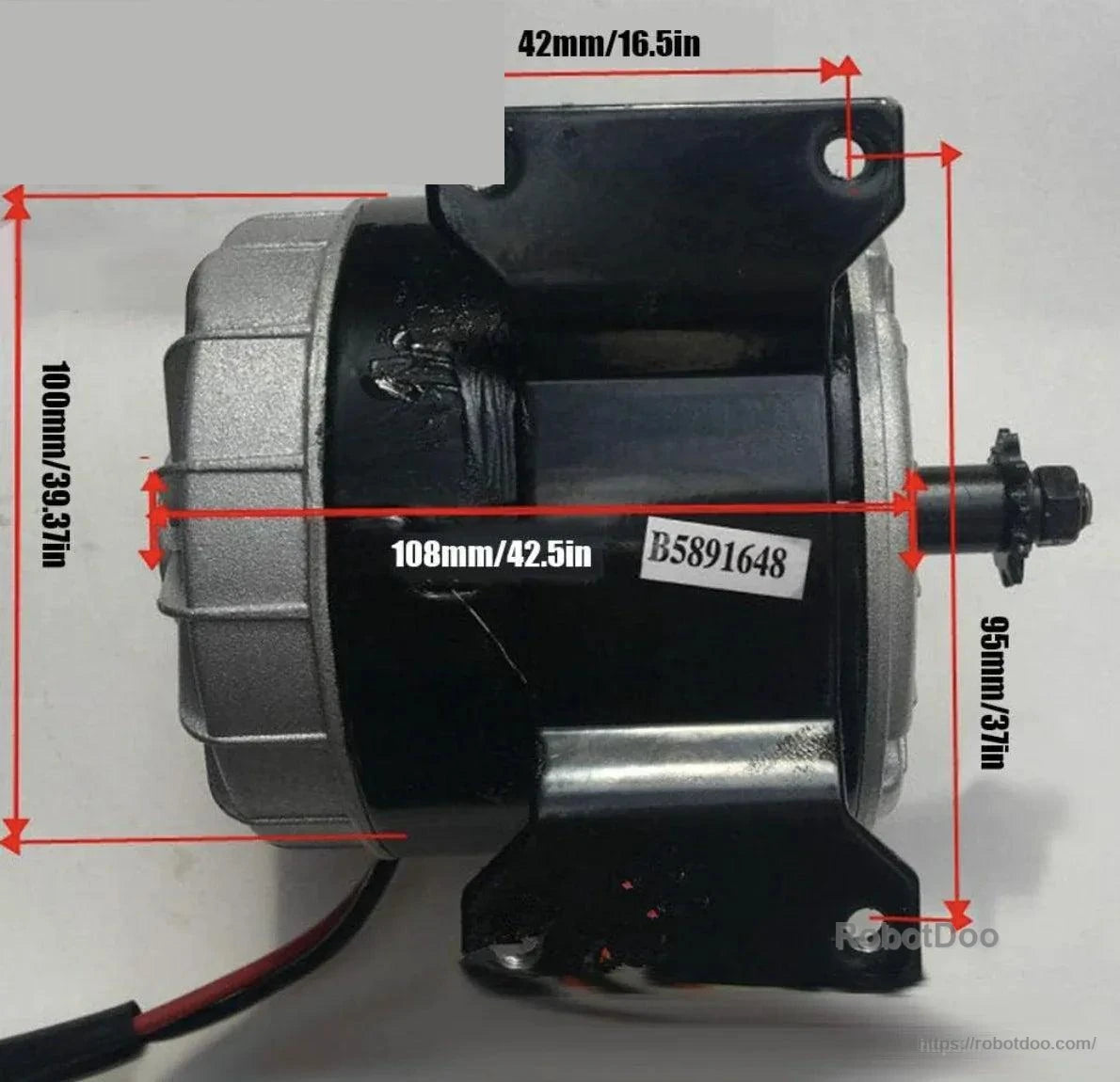

| Mounting Holes | 4 holes |
| Mounting Hole Spacing | 42-95 |
| Mounting Hole Diameter | 5 |
| Motor Body Diameter | 100 |
| Sprocket | 11 teeth, 25 chain |
| DC Voltage Limit | Below 36V |
What's Included

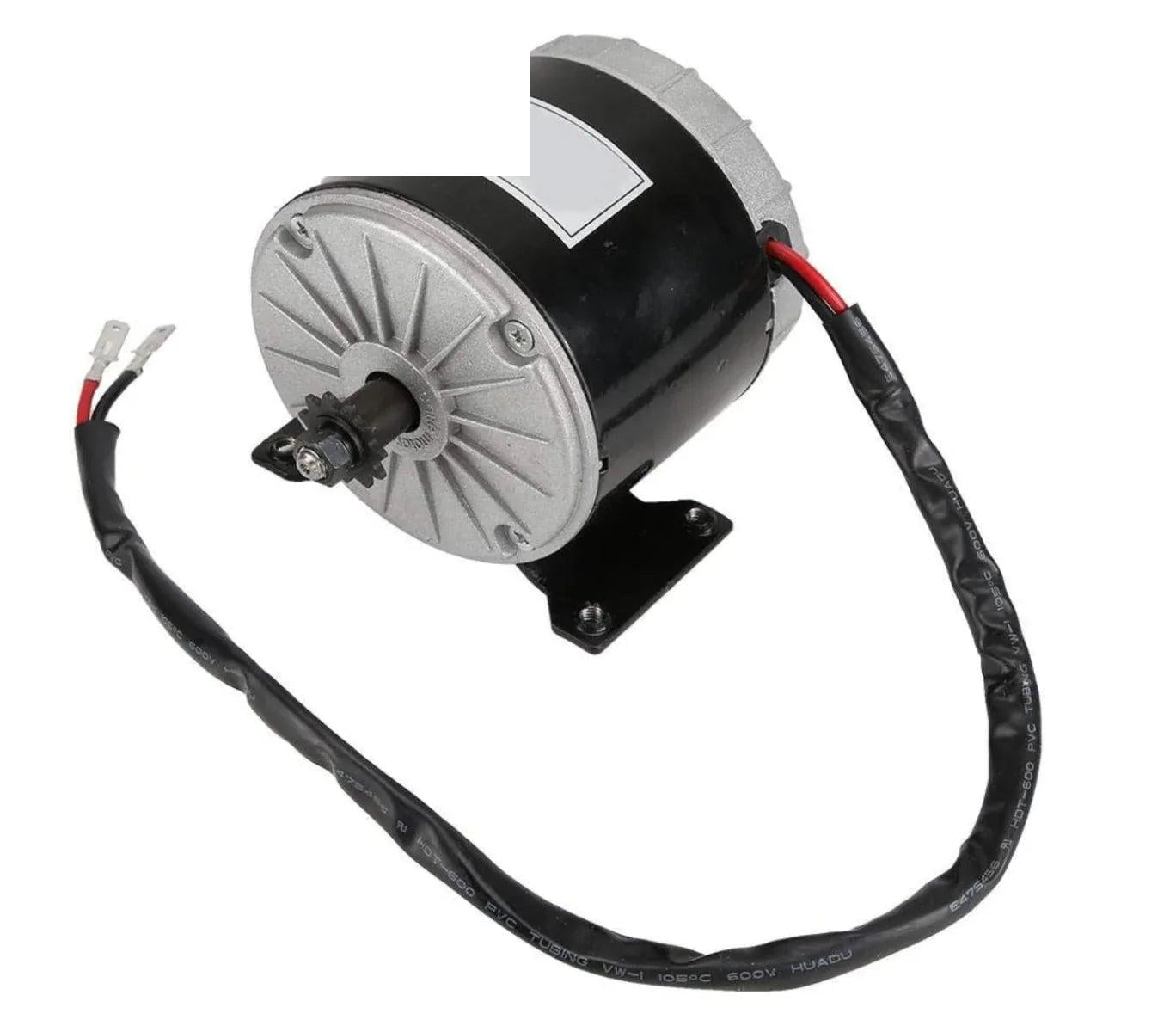

- MY1016 24V 350W brushed DC motor with 11-tooth sprocket
- Mounting bracket
Applications
Suitable for 24V chain-drive projects requiring a compact reversible DC motor. For product assistance, contact RobotDoo customer service.
