Overview

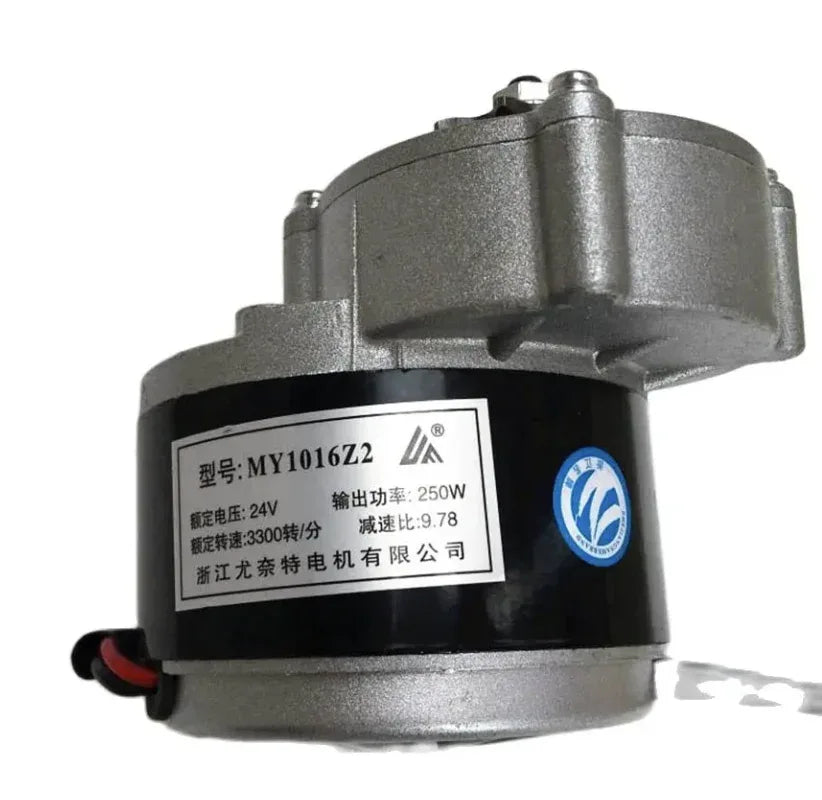

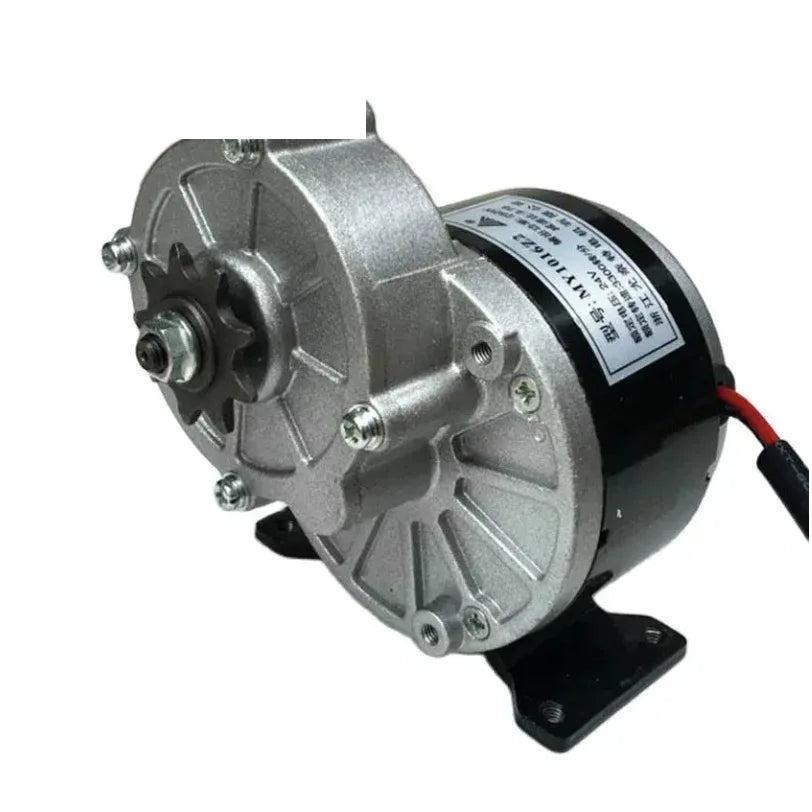

The MY1016Z2 is a 250W 24V DC brushed gear motor for electric scooter, e-bike, electric wheelchair, and two-wheeled balance vehicle projects. It uses a permanent-magnet construction with brush commutation and a totally enclosed design.
Key Features
- 24V DC, 250W gear motor
- Permanent-magnet brushed motor construction
- Totally enclosed protection design
- Four-hole mounting arrangement
Specifications
| Model | MY1016Z2 |
| Product Number | H0915 |
| Motor Type | DC brushed gear motor |
| Rated Voltage | 24V |
| Output Power | 250W |
| Rated Speed | 3000 rpm |
| Continuous Current | 13.4A |
| Torque | 0.80 N m |
| Construction | Permanent magnet |
| Commutation | Brush |
| Protection | Totally enclosed |
| Carrying Capacity | 80 kg |
| Motor Weight | 2.34 kg |

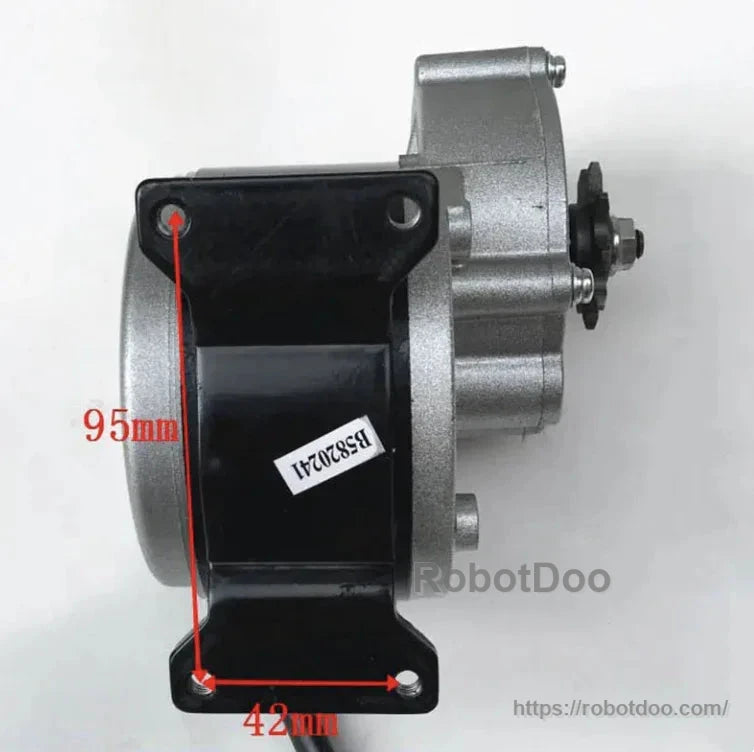

| Fixed Aperture | 42-95 mm, 4 holes |
Applications
Suitable for DIY electric scooter, electric bicycle, electric wheelchair, and two-wheeled balance vehicle applications. For product support, contact RobotDoo.
