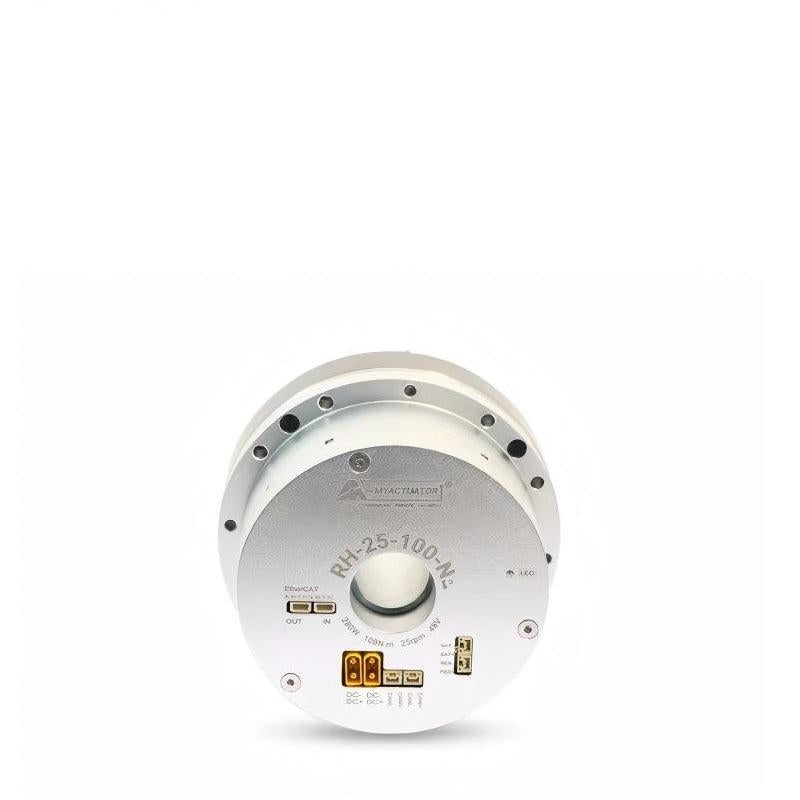

• MyActuator harmonic actuator front face with center bore and integrated communication/power connectors

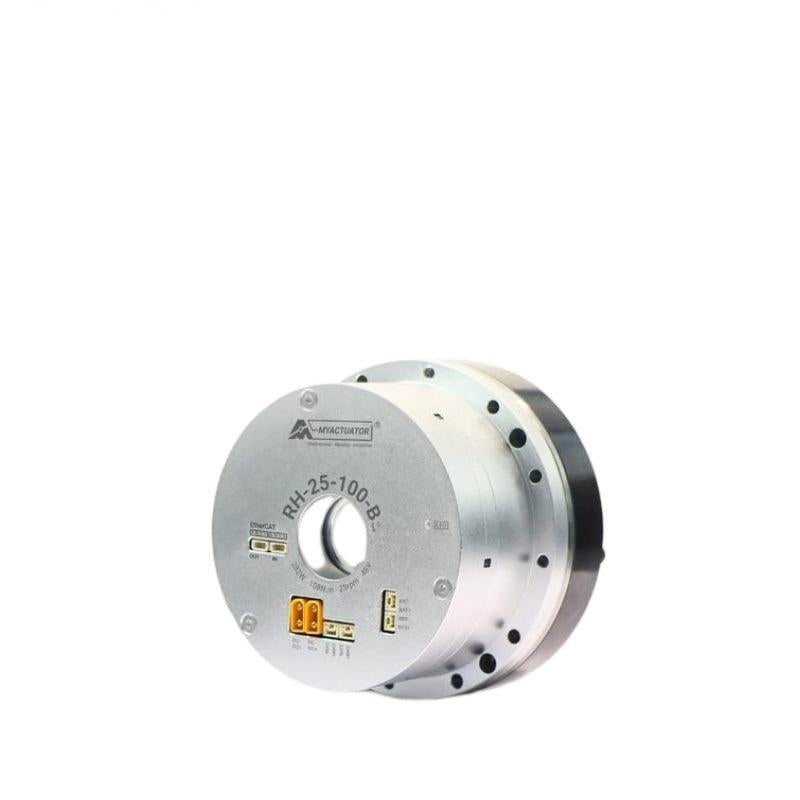

  • MyActuator actuator angled view showing front plate, mounting holes, and outer housing thickness

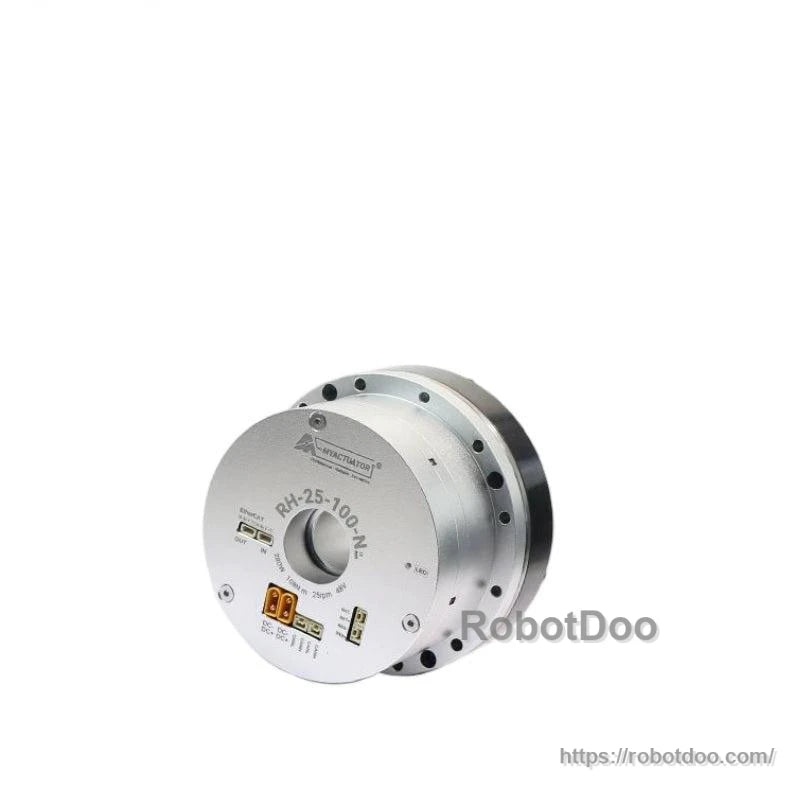

  • Angled view of actuator with front plate markings, connector ports, and housing profile (RobotDoo watermark)

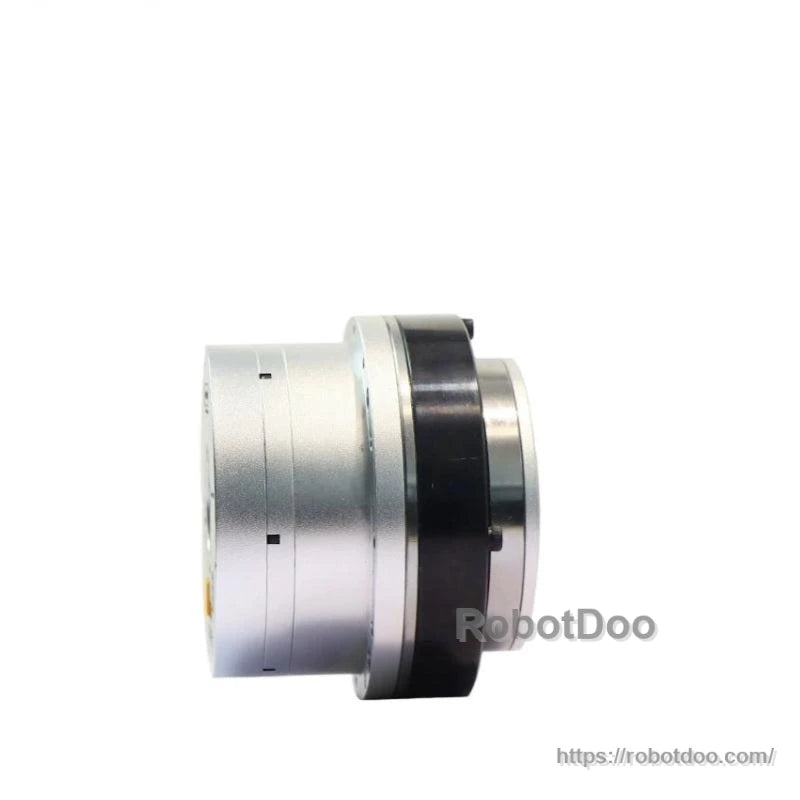

  • Side profile of the actuator showing cylindrical housing and rear section thickness (RobotDoo watermark)

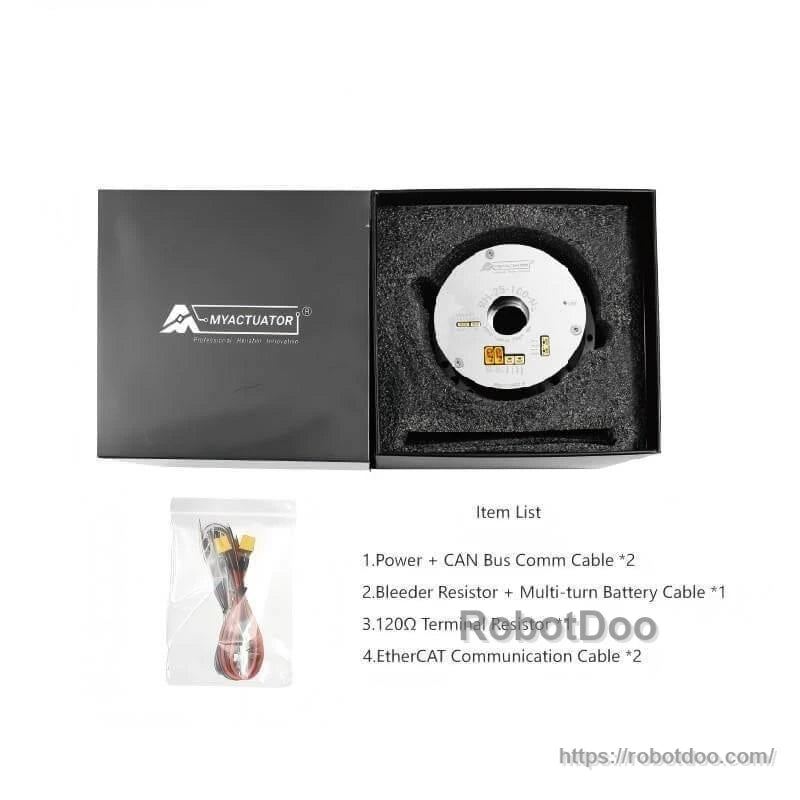

  • Boxed package contents: actuator in foam tray plus cable bundle and printed item list

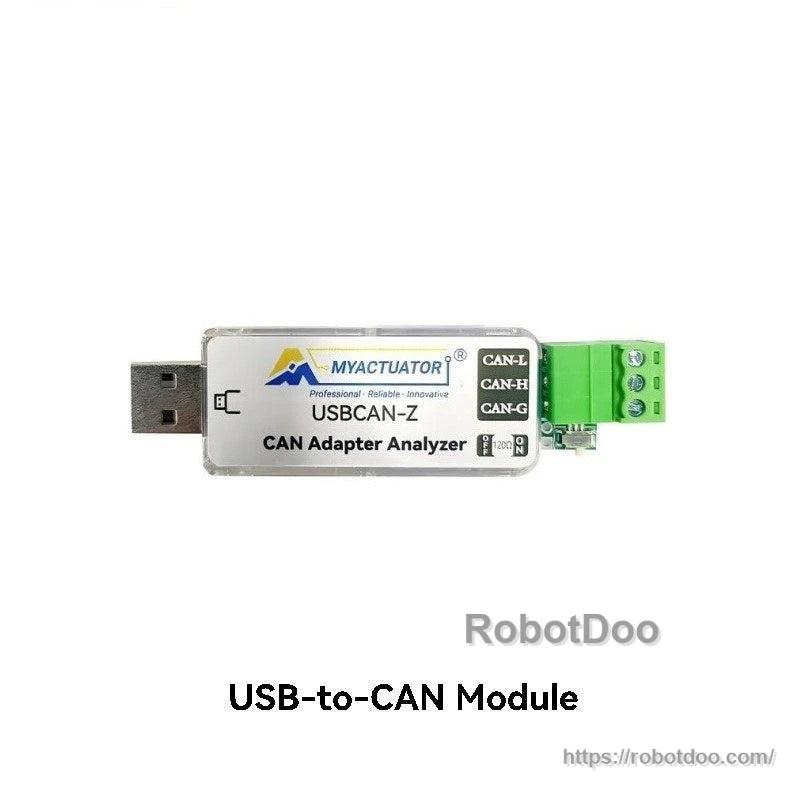

  • USB-to-CAN module labeled "USBCAN-Z" with green terminal block for CAN-H, CAN-L, CAN-G

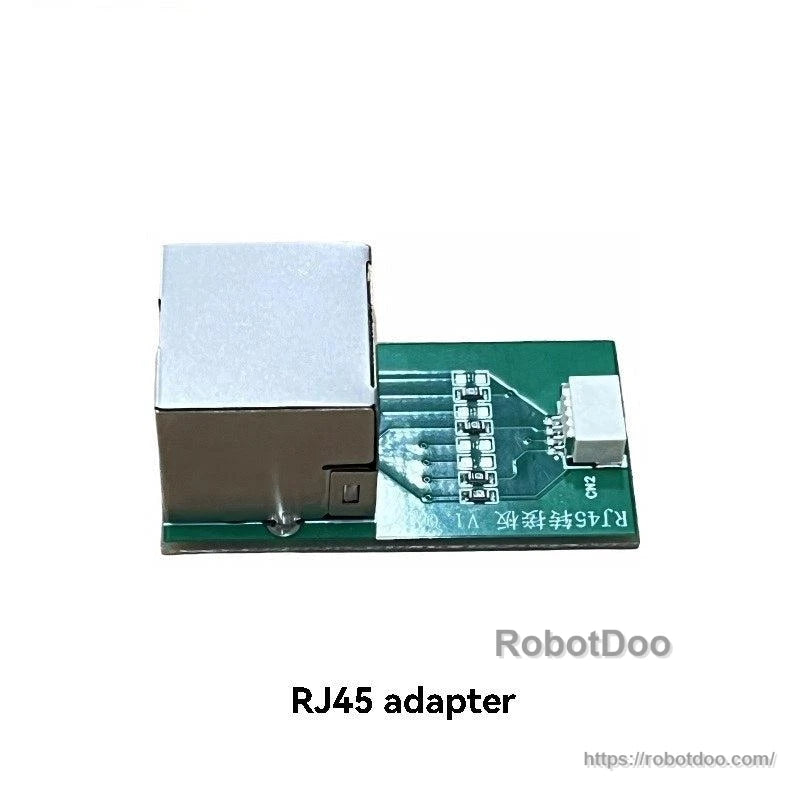

  • RJ45 adapter board with metal Ethernet jack on small PCB labeled RJ45 adapter
1 7

MyActuator

MyActuator RH-25 Motor 48V 100:1 Harmonic Actuator, Dual ABS-17BIT Encoders, CAN BUS/EtherCAT

MyActuator RH-25 Motor 48V 100:1 Harmonic Actuator, Dual ABS-17BIT Encoders, CAN BUS/EtherCAT

$1,565.00 USD
$1,565.00 USD
Sale Sold out
Shipping calculated at checkout.
Version
Brake
Accessory Kit
View full details

Overview

The MyActuator RH-25 Motor is an RH Series harmonic actuator motor for robotics and automation joints, supporting CAN BUS & EtherCAT communication and dual encoders. Key design/feature labels for the RH Series include high precision, low noise, hollow design, high efficiency, CAN BUS & EtherCAT, and dual encoder.

Key Features

  • RH Series Harmonic Actuator (MyActuator Actuator product series)
  • Communication: CAN BUS & EtherCAT
  • Dual encoder support (see encoder details in Specifications)
  • Feature labels: High Precision, Low Noise, Hollow Design, High Efficiency

Applications

  • Humanoid Robots
  • Robotic Arms
  • Exoskeletons
  • Quadruped Robots
  • AGV Vehicles / AGV Smart Car
  • ARU Robots
  • Wheeled Robot
  • Gimbal
  • PTZ
  • Industrial Automation / Automation
  • Smart warehousing: Warehouse Robot / Smart Warehouse
  • CNC Machine Tools
  • Inspection
  • Smart Agriculture
  • Healthcare / Medical Equipment

Specifications

Parameter Value
Gear Ratio 100
Input Voltage 48V
No Load Speed 30RPM
No-Load Input Current 2A
Rated Speed 25RPM
Rated Torque 108N.m
Rated Output Power 282W
Rated Phase Current 10.6A(rms)
Peak Torque 157N.m
Peak Phase Current 14.1A(rms)
Motor Back-EMF Constant 19.2Vdc/Krpm
Module Torque Constant 10.1N.m/A
Motor Phase Resistance 0.16Ω
Motor Phase Inductance 0.33mH
Pole Pair 10
3 Phase Connection Y
Backlash <40 Arcsec
Radial Load Static load 35.8KN
Radial Load Dynamic load 21.8KN
Axial Load Static load 198.2KN
Axial Load Dynamic load 49.1KN
Inertia N 1.94Kg.cm²
Encoder Type Dual Encoder ABS-17BIT(Input) | ABS-17BIT(Output)
Repeat Position Accuracy <0.01Degree
Communication CAN BUS/EtherCAT
Weight N 2.42Kg
Insulation Grade F

Model Naming (EPS-RH Series Naming Conventions)

Naming example shown: EPS - RH - 17 - 100 - E - B - D

  • EPS: Brand Name (E = Efficiency, P = Precision, S = Smart)
  • RH: Series Name (Harmonic Actuator)
  • 17: Harmonic Model (e.g. 14/17/20/25/32 etc)
  • 100: Reduction ratio 100:1
  • E: Communication (E: CAN BUS & EtherCAT)
  • B / N: Brake option (N: Without Brake, B: With Brake)
  • D / S: Encoder option (D: Dual Encoder, S: Single Encoder)

Example model shown: EPS-RH-20-100-E-N-D

Manuals & Files

Details

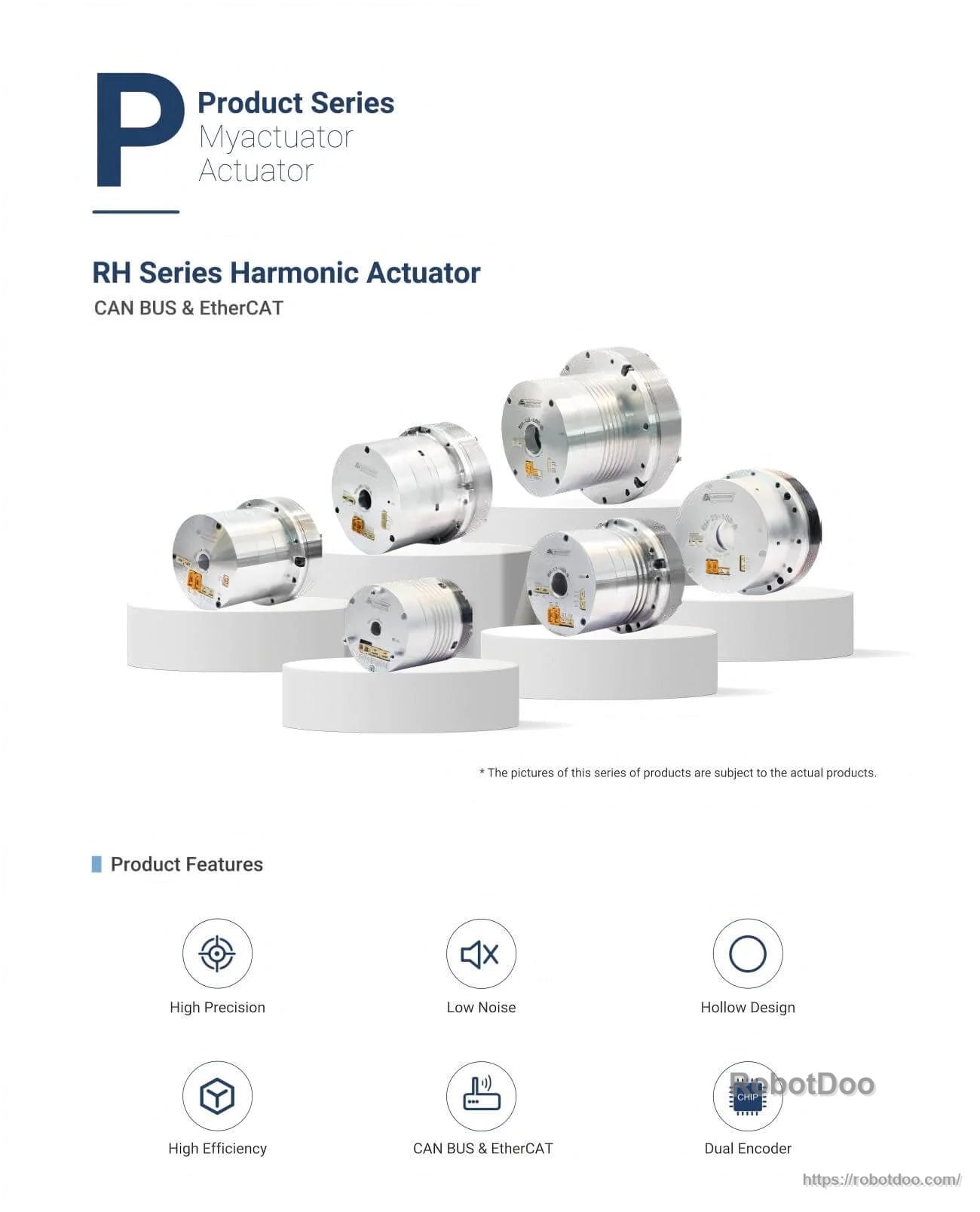

MyActuator RH Series harmonic actuator motors with CAN BUS & EtherCAT and dual encoder feature icons

RH Series harmonic actuators for robotics joints, combining high precision, low noise, and a hollow, high‑efficiency design.

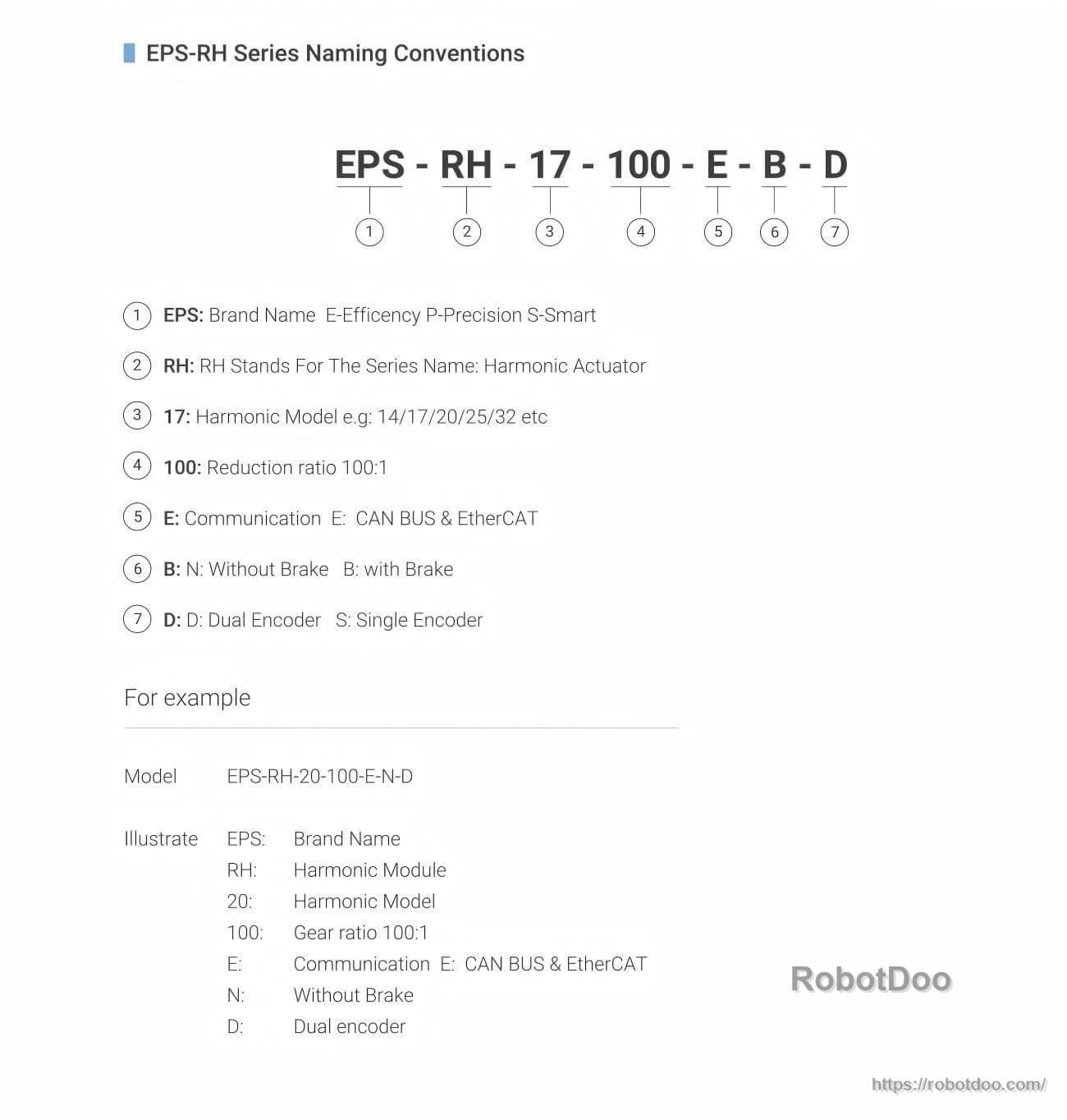

EPS-RH series naming convention chart explaining harmonic model, 100:1 reduction, communication, brake, and encoder options

Model naming makes it easy to confirm the harmonic size, 100:1 gear ratio, communication type, and brake/encoder configuration before ordering.

Application icons for RH series actuators, including humanoid robots, robotic arms, gimbals, AGV vehicles, CNC tools, and smart warehousing

Common applications include humanoid robots, robotic arms, exoskeletons, AGVs, gimbals/PTZ, CNC machine tools, and smart warehousing automation.
