Description

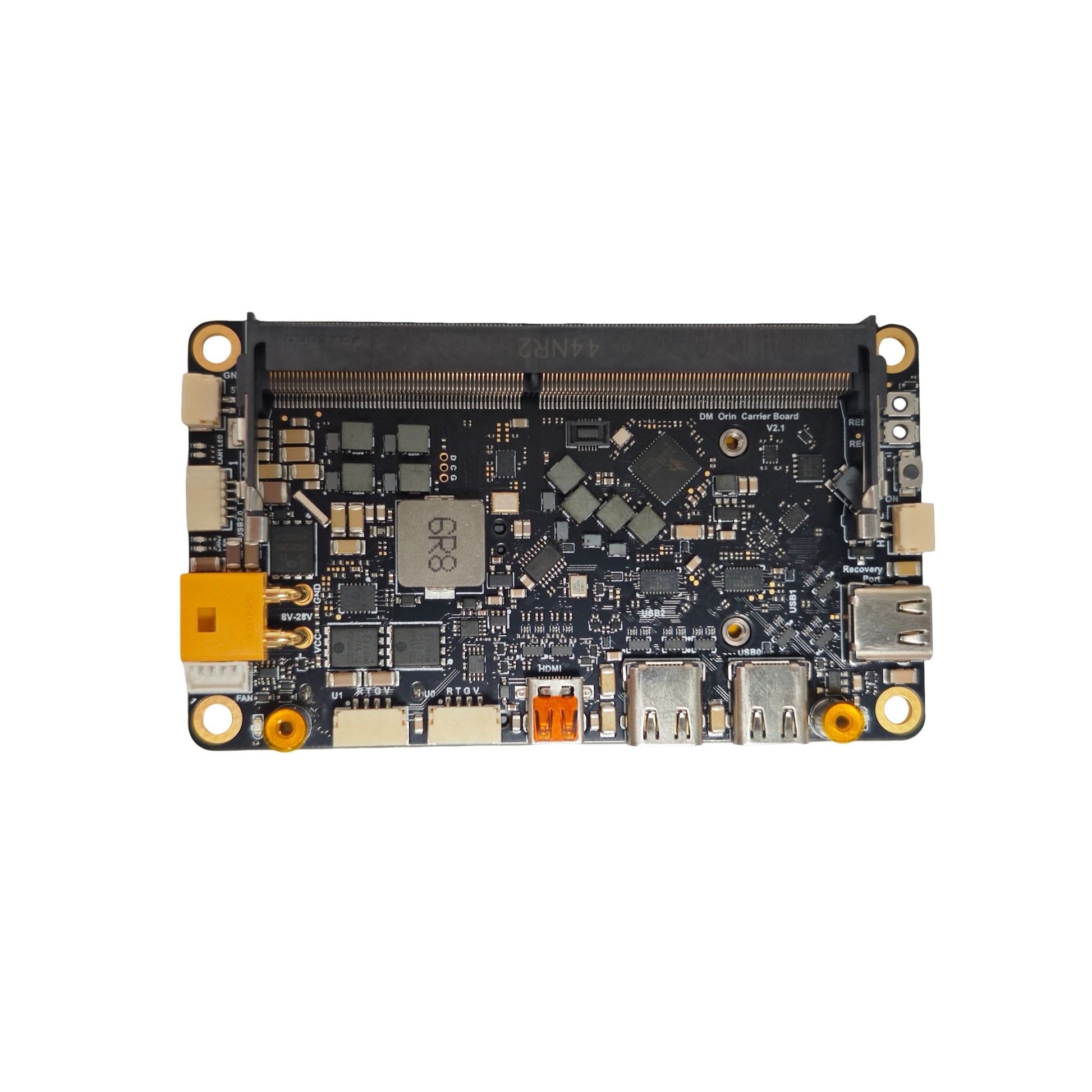

The ORIN NX V2 Carrier Board is a compact, lightweight AI edge computing carrier board designed for NVIDIA Jetson Orin NX and Jetson Orin Nano modules. Featuring rich I/O connectivity, dual MIPI CSI camera interfaces, CAN bus communication, Gigabit Ethernet support, USB 3.0, M.2 SSD expansion, and WiFi module support, this board is optimized for robotics, autonomous mobile robots (AMR), AGV systems, machine vision, AI inference, drones, and embedded edge AI applications.

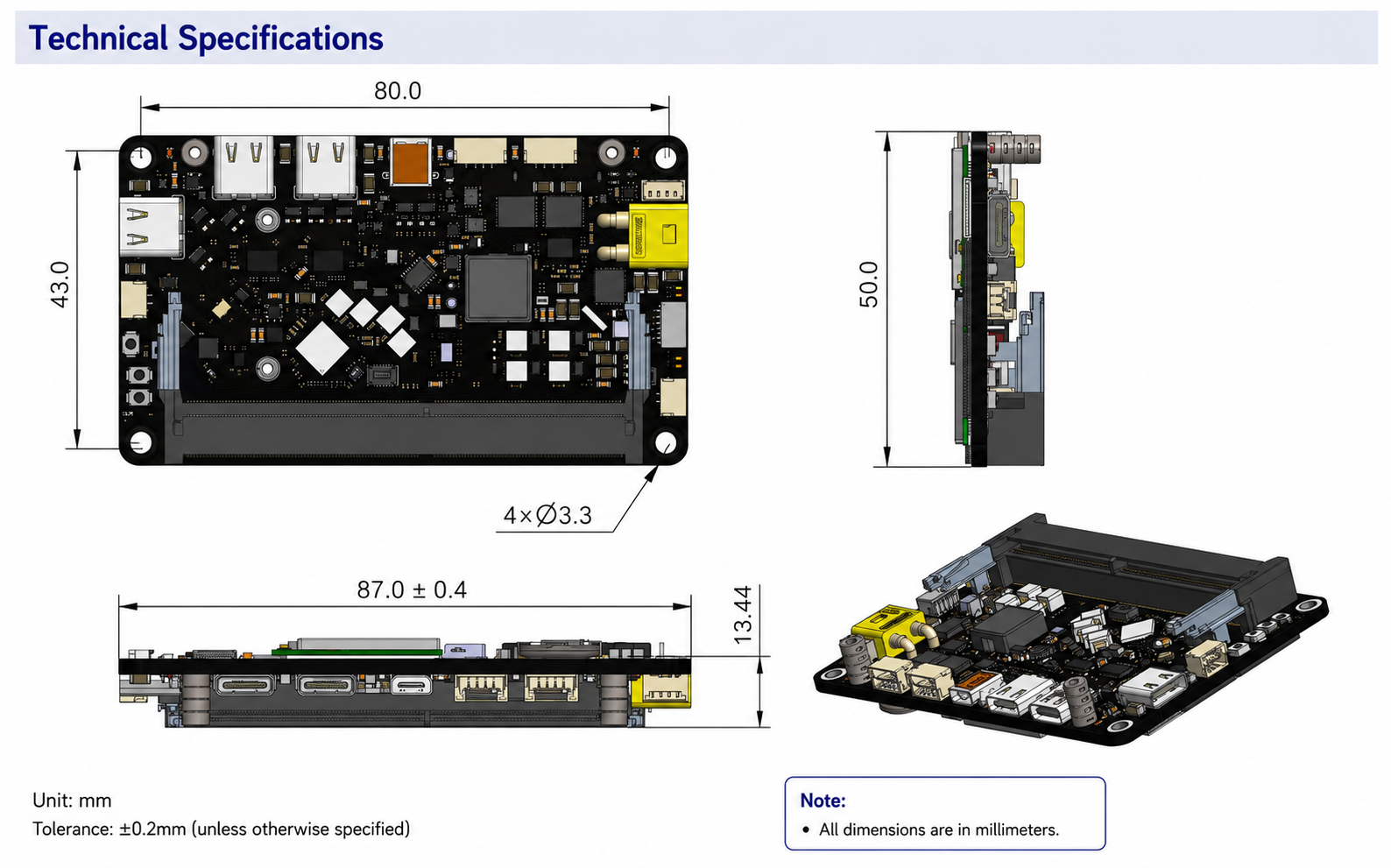

With a compact footprint of only 87 × 50 mm and support for 12–28V wide voltage input, the board is ideal for mobile robots and space-constrained embedded AI projects. The integrated CAN interface enables seamless communication with motor controllers, servo drives, sensors, and robotic subsystems, making it particularly suitable for ROS and autonomous robotics development. Dimensions and interface configuration shown in the provided documentation match the compact V2 carrier design.
Key Features
- Compatible with NVIDIA Jetson Orin NX modules
- Compatible with NVIDIA Jetson Orin Nano modules
- Compact 87 × 50 mm carrier board design
- Lightweight design for robotics and mobile applications
- Wide input voltage: 12–28V DC
- CAN Bus communication interface
- Dual MIPI CSI camera interfaces
- M.2 Key M slot for NVMe SSD expansion
- M.2 Key E slot for WiFi module expansion
- USB 3.0 high-speed connectivity
- USB 2.0 expansion interface
- Gigabit Ethernet support
- UART serial communication interfaces
- HDMI display output
- GPIO expansion interface
- RTC battery support
- Suitable for ROS, AI vision, AMR, AGV, drones, and edge AI computing

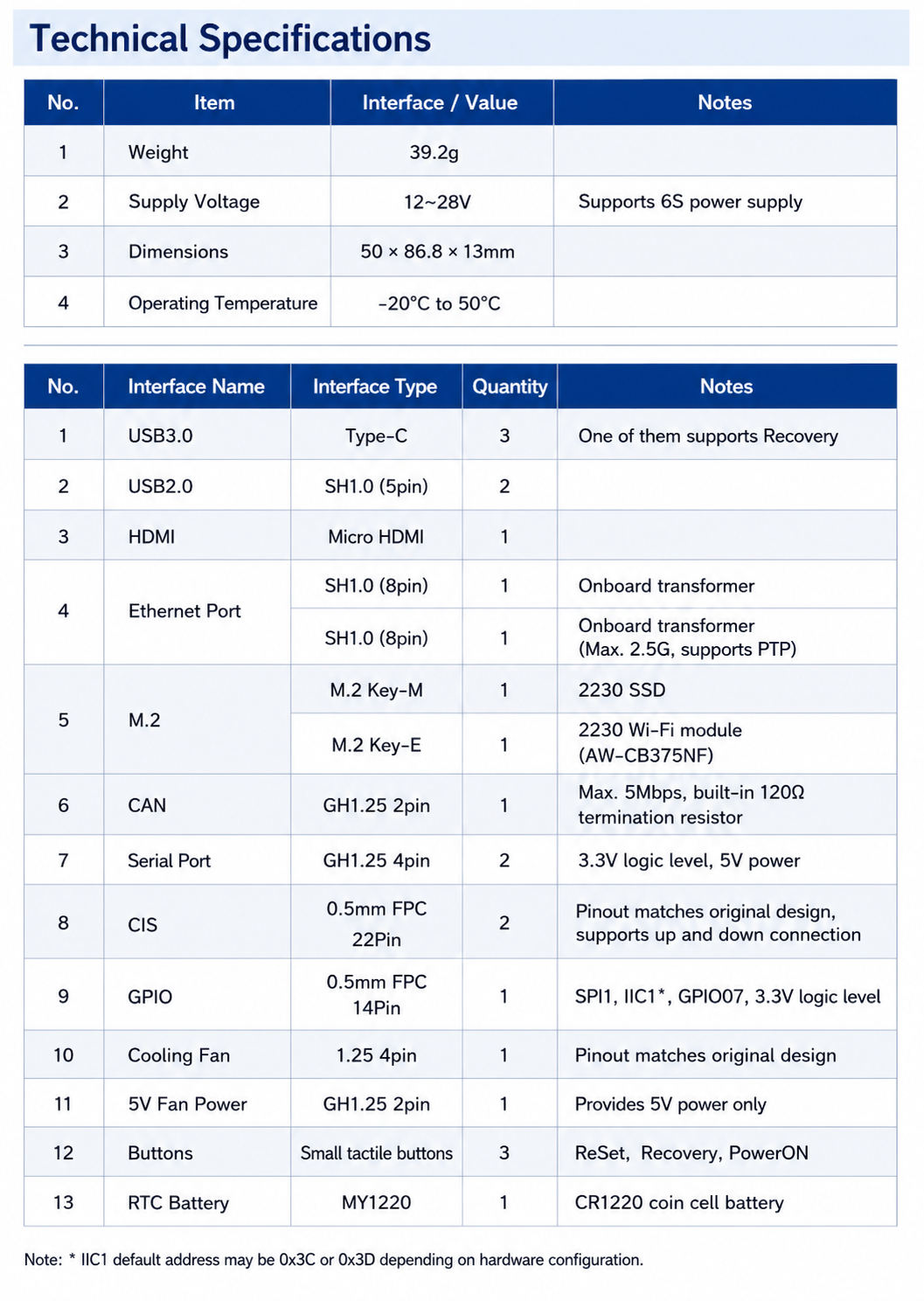

Specifications
Interface Overview

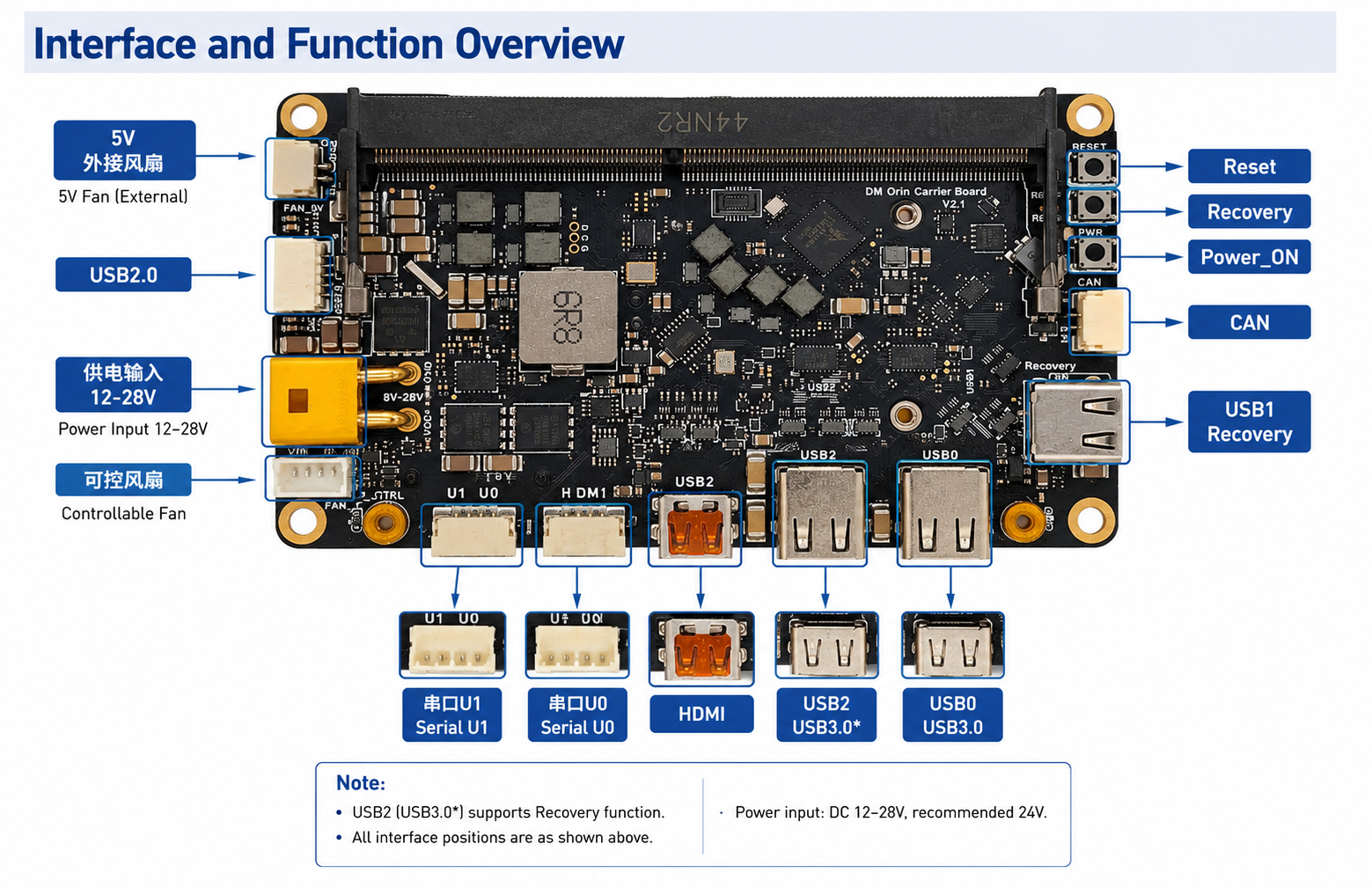

Front Side
- 12–28V Power Input
- USB 2.0
- USB 3.0 Type-C
- HDMI Output
- CAN Bus Interface
- UART U0 / U1
- External Fan Connector
- Controllable Cooling Fan Connector
- Reset Button
- Recovery Button
- Power ON Button

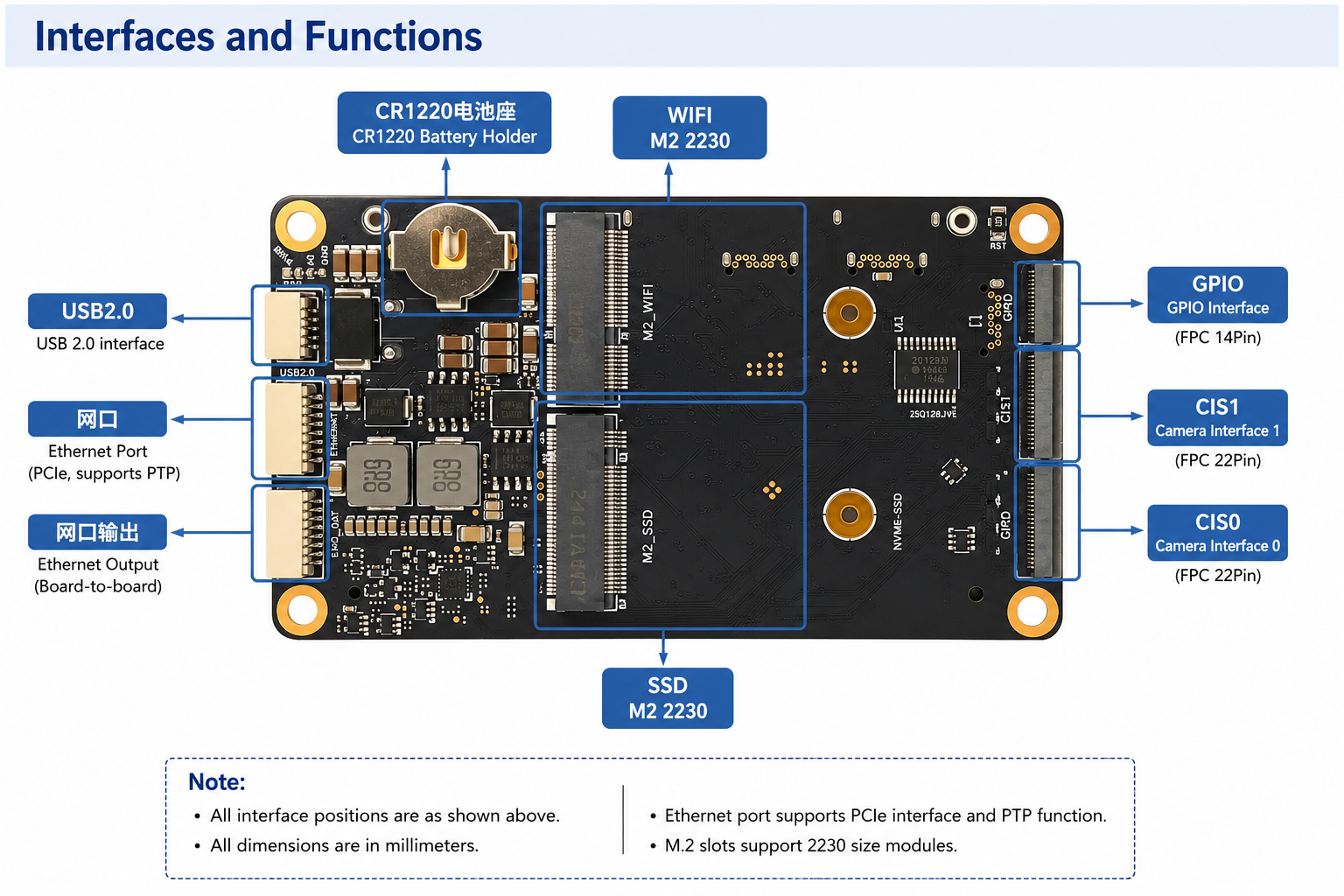

Rear Side
- M.2 Key M SSD Slot
- M.2 Key E WiFi Slot
- Dual CSI Camera Interfaces
- GPIO Expansion Header
- Dual Ethernet Interfaces
- RTC Battery Holder
Applications
- Autonomous Mobile Robots (AMR)
- AGV Navigation Systems
- AI Vision Processing
- Edge AI Computing
- ROS Robotics Development
- Industrial Automation
- UAV & Drone AI Systems
- Machine Vision Projects
- Smart Inspection Robots
- Intelligent Embedded Systems
Package Includes
Standard Package
- 1 × ORIN NX V2 Carrier Board
Optional Configurations
- Carrier Board + SSD
- Carrier Board + WiFi Module
- Carrier Board + SSD + WiFi Module
Jetson Orin NX / Orin Nano module, heatsink, and cooling accessories are typically sold separately unless otherwise specified.
FAQ
Which NVIDIA modules are supported?
Supports NVIDIA Jetson Orin NX and Jetson Orin Nano modules.
Does the board support CAN communication?
Yes. A dedicated CAN interface is provided for robotics and motor control applications.
Can I install an SSD?
Yes. The board includes an M.2 Key M slot supporting 2230 NVMe SSDs.
Does it support WiFi?
Yes. An M.2 Key E slot is available for WiFi modules.
Is it suitable for ROS robots?
Yes. The board is designed for robotics, autonomous systems, AI vision, and ROS-based development.
Is the Jetson module included?
No. The carrier board is normally sold separately from the Jetson compute module.
